Set options for NLPDirectTester from an OptionsFromStream object. More...

#include <NLPInterfacePack_NLPDirectTesterSetOptions.hpp>

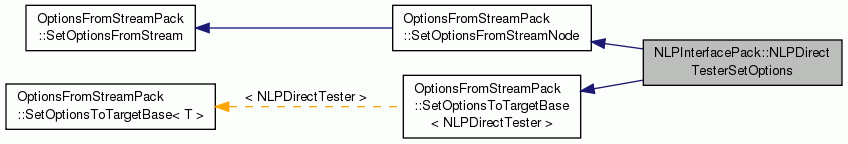

Inheritance diagram for NLPInterfacePack::NLPDirectTesterSetOptions:

Public Member Functions
	NLPDirectTesterSetOptions (NLPDirectTester *target=0, const char opt_grp_name[]="NLPDirectTester")

Public Member Functions inherited from OptionsFromStreamPack::SetOptionsFromStreamNode
	SetOptionsFromStreamNode (const std::string &options_group, int num_options, const char *option_names[], bool exists_optional=true)
	Constructs with the name of the options group and the names of the options. More...

void	set_options (const OptionsFromStream &options)
	Overridden from SetOptionsFromStream and calls setOption(...). More...

Public Member Functions inherited from OptionsFromStreamPack::SetOptionsFromStream
virtual	~SetOptionsFromStream ()

Public Member Functions inherited from OptionsFromStreamPack::SetOptionsToTargetBase< NLPDirectTester >
	SetOptionsToTargetBase (NLPDirectTester *target=0)

void	set_target (NLPDirectTester *target)

NLPDirectTester *	get_target ()

const NLPDirectTester *	get_target () const

NLPDirectTester &	target ()

const NLPDirectTester &	target () const

Protected Member Functions
void	setOption (int option_num, const std::string &option_value)
	Overridden from SetOptionsFromStreamNode. More...

Detailed Description

Set options for NLPDirectTester from an OptionsFromStream object.

The default options group name is 'NLPDirectTester'.

The options group is:

options_group NLPDirectTester {
*    Gf_testing_method = FD_COMPUTE_ALL;
    Gf_testing_method = FD_DIRECTIONAL;
    Gf_warning_tol    = 1e-6;
    Gf_error_tol      = 1e-1;
*    Gc_testing_method = FD_COMPUTE_ALL;
    Gc_testing_method = FD_DIRECTIONAL;
    Gc_warning_tol    = 1e-6;
    Gc_error_tol      = 1e-1;
  num_fd_directions = 3;  *** [testing_method == FD_DIRECTIONAL]
  dump_all = false;
}

Definition at line 73 of file NLPInterfacePack_NLPDirectTesterSetOptions.hpp.

Constructor & Destructor Documentation

NLPInterfacePack::NLPDirectTesterSetOptions::NLPDirectTesterSetOptions	(	NLPDirectTester *	target = `0`,
		const char	opt_grp_name[] = `"NLPDirectTester"`
	)

Definition at line 79 of file NLPInterfacePack_NLPDirectTesterSetOptions.cpp.

Member Function Documentation

void NLPInterfacePack::NLPDirectTesterSetOptions::setOption	(	int	option_num,
		const std::string &	option_value
	)

protectedvirtual

Overridden from SetOptionsFromStreamNode.

Implements OptionsFromStreamPack::SetOptionsFromStreamNode.

Definition at line 87 of file NLPInterfacePack_NLPDirectTesterSetOptions.cpp.

The documentation for this class was generated from the following files:
