MOOCHO (Single Doxygen Collection)  Version of the Day
 All Classes Namespaces Files Functions Variables Typedefs Enumerations Enumerator Friends Macros Groups Pages
Public Member Functions | Private Attributes | List of all members
ConstrainedOptPack::MeritFuncNLPL1 Class Reference

The L1 merit function. More...

#include <ConstrainedOptPack_MeritFuncNLPL1.hpp>

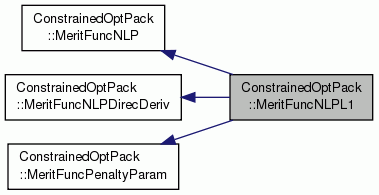

Inheritance diagram for ConstrainedOptPack::MeritFuncNLPL1:
Inheritance graph
[legend]

Public Member Functions

 MeritFuncNLPL1 ()
 Initializes deriv() = 0 and mu() = 0. More...

- Public Member Functions inherited from ConstrainedOptPack::MeritFuncNLP
virtual ~MeritFuncNLP ()

- Public Member Functions inherited from ConstrainedOptPack::MeritFuncNLPDirecDeriv
virtual ~MeritFuncNLPDirecDeriv ()

- Public Member Functions inherited from ConstrainedOptPack::MeritFuncPenaltyParam
virtual ~MeritFuncPenaltyParam ()


Private Attributes

value_type deriv_

value_type mu_


Overridden from MeritFuncNLP

MeritFuncNLPoperator= (const MeritFuncNLP &)

value_type value (value_type f, const Vector *c, const Vector *h, const Vector *hl, const Vector *hu) const

value_type deriv () const

void print_merit_func (std::ostream &out, const std::string &leading_str) const


Overridden from MeritFuncNLPDirecDeriv

value_type calc_deriv (const Vector &Gf_k, const Vector *c_k, const Vector *h_k, const Vector *hl, const Vector *hu, const Vector &d_k)


Overridden from MeritFuncPenaltyParam

void mu (value_type mu)

value_type mu () const


Detailed Description

The L1 merit function.

phi(x) = f(x) + mu * norm(c(x),1)

Dphi(x_k,d_k) = Gf_k' * d_k - mu * norm(c_k,1)

Note that the definition of Dphi(x_k,d_k) assumes that Gc_k'*d_k + c_k = 0. In otherwords, d_k must satisfiy the linearized equality constraints at at x_k.

ToDo: Add a term for general inequalities hl <= h <= hu

Implicit copy constructor and assignment operators are allowed.

Definition at line 67 of file ConstrainedOptPack_MeritFuncNLPL1.hpp.

Constructor & Destructor Documentation

ConstrainedOptPack::MeritFuncNLPL1::MeritFuncNLPL1 ( )

Initializes deriv() = 0 and mu() = 0.

Definition at line 53 of file ConstrainedOptPack_MeritFuncNLPL1.cpp.

Member Function Documentation

MeritFuncNLP & ConstrainedOptPack::MeritFuncNLPL1::operator= ( const MeritFuncNLP merit_func)
virtual

Reimplemented from ConstrainedOptPack::MeritFuncNLP.

Definition at line 59 of file ConstrainedOptPack_MeritFuncNLPL1.cpp.

value_type ConstrainedOptPack::MeritFuncNLPL1::value ( value_type  f,
const Vector *  c,
const Vector *  h,
const Vector *  hl,
const Vector *  hu
) const
virtual
value_type ConstrainedOptPack::MeritFuncNLPL1::deriv ( ) const
virtual
void ConstrainedOptPack::MeritFuncNLPL1::print_merit_func ( std::ostream &  out,
const std::string &  leading_str
) const
virtual
value_type ConstrainedOptPack::MeritFuncNLPL1::calc_deriv ( const Vector &  Gf_k,
const Vector *  c_k,
const Vector *  h_k,
const Vector *  hl,
const Vector *  hu,
const Vector &  d_k
)
virtual
void ConstrainedOptPack::MeritFuncNLPL1::mu ( value_type  mu)
virtual
value_type ConstrainedOptPack::MeritFuncNLPL1::mu ( ) const
virtual

Member Data Documentation

value_type ConstrainedOptPack::MeritFuncNLPL1::deriv_
private

Definition at line 125 of file ConstrainedOptPack_MeritFuncNLPL1.hpp.

value_type ConstrainedOptPack::MeritFuncNLPL1::mu_
private

Definition at line 126 of file ConstrainedOptPack_MeritFuncNLPL1.hpp.


The documentation for this class was generated from the following files:
