Public Member Functions | Protected Member Functions | List of all members
ConstrainedOptPack::DirectLineSearchArmQuad_StrategySetOptions Class Reference

Set options for DirectLineSearchArmQuad_Strategy from a OptionsFromStream object. More...

#include <ConstrainedOptPack_DirectLineSearchArmQuad_StrategySetOptions.hpp>

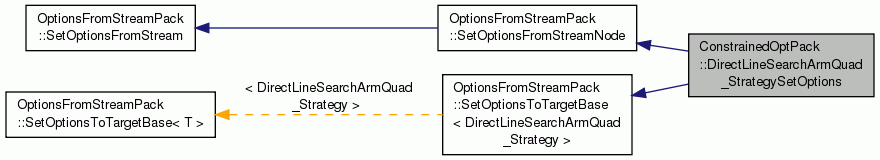

Inheritance diagram for ConstrainedOptPack::DirectLineSearchArmQuad_StrategySetOptions:
Inheritance graph
[legend]

Public Member Functions

 DirectLineSearchArmQuad_StrategySetOptions (DirectLineSearchArmQuad_Strategy *qp_solver=0, const char opt_grp_name[]="DirectLineSearchArmQuad")

- Public Member Functions inherited from OptionsFromStreamPack::SetOptionsFromStreamNode
 SetOptionsFromStreamNode (const std::string &options_group, int num_options, const char *option_names[], bool exists_optional=true)
 Constructs with the name of the options group and the names of the options. More...

void set_options (const OptionsFromStream &options)
 Overridden from SetOptionsFromStream and calls setOption(...). More...

- Public Member Functions inherited from OptionsFromStreamPack::SetOptionsFromStream
virtual ~SetOptionsFromStream ()

- Public Member Functions inherited from OptionsFromStreamPack::SetOptionsToTargetBase< DirectLineSearchArmQuad_Strategy >
 SetOptionsToTargetBase (DirectLineSearchArmQuad_Strategy *target=0)

void set_target (DirectLineSearchArmQuad_Strategy *target)

DirectLineSearchArmQuad_Strategy * get_target ()

const
DirectLineSearchArmQuad_Strategy *
get_target () const

DirectLineSearchArmQuad_Strategy & target ()

const
DirectLineSearchArmQuad_Strategy &
target () const


Protected Member Functions

void setOption (int option_num, const std::string &option_value)
 Overridden from SetOptionsFromStreamNode. More...


Detailed Description

Set options for DirectLineSearchArmQuad_Strategy from a OptionsFromStream object.

The default options group name is DirectLineSearchArmQuad.

The options group is:

{verbatim} options_group DirectLineSearchArmQuad { slope_frac = ?; min_frac_step = ?: max_frac_step = ?; max_ls_iter = ?; max_out_ls_iter = ?; } {verbatim}

{description} [slope_frac] Fraction of intial decent slope of merit function required by armijo test. Mapps to eta in linesearch algorithm. Must be in the range [0, 1]. Example: slope_frac = 1.0e-4; [min_frac_step] Minimum fractional change in the step length per linesearch iteration. Mapps to min_frac in the linesearch algorithm. Must be in the range (0, 1]. Example: min_frac_step = 0.1; [max_frac_step] Maximum fractional change in the step length per linesearch iteration. Mapps to max_frac in the linesearch algorithm. Must be in the range (0, 1]. Note that max_frac_step must be greater than min_frac_step. Example: min_frac_step = 0.5; [max_ls_iter] The maximum number of linesearch iterations to take before giving up and declaring a line search failure. Mapps to max_ls_iter in linesearch algorithm. Example: max_ls_iter = 20. [max_out_ls_iter] A flag to max out on line search iterations. Mostly just used for debugging, not very useful in general. {description}

Definition at line 90 of file ConstrainedOptPack_DirectLineSearchArmQuad_StrategySetOptions.hpp.

Constructor & Destructor Documentation

ConstrainedOptPack::DirectLineSearchArmQuad_StrategySetOptions::DirectLineSearchArmQuad_StrategySetOptions ( DirectLineSearchArmQuad_Strategy qp_solver = 0,
const char  opt_grp_name[] = "DirectLineSearchArmQuad"
)

Member Function Documentation

void ConstrainedOptPack::DirectLineSearchArmQuad_StrategySetOptions::setOption ( int  option_num,
const std::string &  option_value
)
protectedvirtual

Overridden from SetOptionsFromStreamNode.

Implements OptionsFromStreamPack::SetOptionsFromStreamNode.

Definition at line 81 of file ConstrainedOptPack_DirectLineSearchArmQuad_StrategySetOptions.cpp.


The documentation for this class was generated from the following files:
