VectorSpace subclass for the composite of one or more VectorSpace objects. More...

#include <AbstractLinAlgPack_VectorSpaceBlocked.hpp>

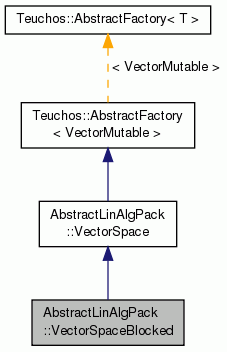

Inheritance diagram for AbstractLinAlgPack::VectorSpaceBlocked:

Public Member Functions
	VectorSpaceBlocked (const VectorSpace::space_ptr_t vector_spaces[], int num_vector_spaces, const VectorSpace::space_fcty_ptr_t &small_vec_spc_fcty=Teuchos::null)
	Construct the vector space object. More...

void	initialize (const VectorSpace::space_ptr_t vec_spaces[], int num_vector_spaces, const VectorSpace::space_fcty_ptr_t &small_vec_spc_fcty=Teuchos::null)
	Initialize with a set of vector space objects. More...

int	num_vector_spaces () const
	Return the value of `num_vec_spaces` passed to `this->initialize()`. More...

const VectorSpace::space_ptr_t *	vector_spaces () const

const index_type *	vector_spaces_offsets () const
	Returns array (length `this->num_vector_spaces() + 1`) of offsets for each constitient vector space in the composite vector. More...

void	get_vector_space_position (index_type i, int kth_vector_space, index_type kth_global_offset) const
	Get the position of the vector space object and its offset into the composite vector of the vector space object that owns the `ith` index in the composite vector. More...

Public Member Functions inherited from AbstractLinAlgPack::VectorSpace
space_ptr_t	sub_space (const index_type il, const index_type iu) const
	Inlined to call `this->sub_space(Range1D(il,iu))`. More...

virtual space_ptr_t	space (const GenPermMatrixSlice &P, BLAS_Cpp::Transp P_trans) const
	Create a vector space for vector to gather the elements into. More...

	VectorSpace (const inner_prod_ptr_t &inner_prod=Teuchos::null)
	Calls `inner_prod()` More...

virtual void	inner_prod (const inner_prod_ptr_t &inner_prod)
	Initialize with an inner product object. More...

virtual const inner_prod_ptr_t	inner_prod () const
	Return the smart pointer to the inner product strategy object. More...

virtual bool	is_in_core () const
	Returns true if the vectors are in core. More...

virtual vec_mut_ptr_t	create_member (const value_type &alpha) const
	Create a vector member from the vector space initialized to a scalar. More...

obj_ptr_t	create () const
	Just calls `this->create_member()` by default! More...

Public Member Functions inherited from Teuchos::AbstractFactory< VectorMutable >
virtual	~AbstractFactory ()

Private Types
typedef std::vector < VectorSpace::space_ptr_t >	vector_spaces_t

typedef std::vector< index_type >	vec_spaces_offsets_t

Private Member Functions
	VectorSpaceBlocked ()

Private Attributes
VectorSpace *	vector_spaces

VectorSpaceFactory *	small_vec_spc_fcty

Overridden from VectorSpace
bool	is_compatible (const VectorSpace &vec_space) const
	Returns `true` if same type and has compatible vector spaces. More...

index_type	dim () const

space_fcty_ptr_t	small_vec_spc_fcty () const

vec_mut_ptr_t	create_member () const

multi_vec_mut_ptr_t	create_members (size_type num_vecs) const

space_ptr_t	clone () const

space_ptr_t	sub_space (const Range1D &rng) const

Additional Inherited Members
Public Types inherited from AbstractLinAlgPack::VectorSpace
typedef Teuchos::RCP< const InnerProduct >	inner_prod_ptr_t

typedef Teuchos::RCP< const VectorSpace >	space_ptr_t

typedef Teuchos::RCP< const VectorSpaceFactory >	space_fcty_ptr_t

typedef Teuchos::RCP < VectorMutable >	vec_mut_ptr_t

typedef Teuchos::RCP < MultiVectorMutable >	multi_vec_mut_ptr_t

Detailed Description

VectorSpace subclass for the composite of one or more VectorSpace objects.

This subclass allows VectorSpace objects to be built out of one or more other vector space objects. This is essentially the product of vector spaces. The specific type of vector created by a VectorSpaceBlocked object is of type VectorMutableBlocked but the client need not ever know this or deal with this type directly.

For example, suppose you have p vector spaces V[k] for k = 0...p-1 and want to form a concatenated vector space Z containing all of these vector spaces stacked on top of each other to form:

    [ V[0]   ]
Z = [ V[1]   ]
    [ .      ]
    [ V[p-1] ]

Such a vector space can be constructed as shown if the following function:

void f( const VectorSpace::space_ptr_t V[], int p, VectorSpaceBlocked* Z )
{
    Z->initialize( V, p );
}

Once a VectorSpaceBlocked object is initialized, it can be used just like any other VectorSpace object. The method create_member() will create VectorWithOpMutableCompoisteStd objects containing members from the constitient vector spaces.

There are several methods that can be used by clients that need to work with the individual constituent vector spaces. The method num_vector_spaces() give the number of constitient vector spaces while vector_spaces() returns an array of the constitient vector spaces passed to initialize(). Some other useful utility methods are also defined. The method vector_spaces_offsets() returns an array that gives the offset of each constitient vector in the overall composite vector. For example, the ith (zero based) vector space this->vector_spaces()[i] owns the element indexes this->vector_spaces_offsets()[i]+1 to this->vector_spaces_offsets()[i+1]. Determining which constitient vector space owns a element index can be determined by calling get_vector_space_position().

The default assignment operator is allowed since it has the correct semantics. The default copy constructor is also allowed but only performs a shallow copy of the constituent vector space objects. If you want to copy the constituent vector space objects also you need to use the clone() method. The default constructor is not allowed (declared private) to avoid accidents.

Definition at line 99 of file AbstractLinAlgPack_VectorSpaceBlocked.hpp.

Member Typedef Documentation

typedef std::vector<VectorSpace::space_ptr_t> AbstractLinAlgPack::VectorSpaceBlocked::vector_spaces_t

private

Definition at line 213 of file AbstractLinAlgPack_VectorSpaceBlocked.hpp.

typedef std::vector<index_type> AbstractLinAlgPack::VectorSpaceBlocked::vec_spaces_offsets_t

private

Definition at line 214 of file AbstractLinAlgPack_VectorSpaceBlocked.hpp.

Constructor & Destructor Documentation

AbstractLinAlgPack::VectorSpaceBlocked::VectorSpaceBlocked	(	const VectorSpace::space_ptr_t	vector_spaces[],
		int	num_vector_spaces,
		const VectorSpace::space_fcty_ptr_t &	small_vec_spc_fcty = `Teuchos::null`
	)

Construct the vector space object.

Calls this->initialize().

Definition at line 56 of file AbstractLinAlgPack_VectorSpaceBlocked.cpp.

AbstractLinAlgPack::VectorSpaceBlocked::VectorSpaceBlocked ( )

private

Member Function Documentation

void AbstractLinAlgPack::VectorSpaceBlocked::initialize	(	const VectorSpace::space_ptr_t	vec_spaces[],
		int	num_vector_spaces,
		const VectorSpace::space_fcty_ptr_t &	small_vec_spc_fcty = `Teuchos::null`
	)

Initialize with a set of vector space objects.

Postconditions:

this->num_vector_spaces() == num_vector_spaces
this->vector_spaces()[i].get() == vector_spaces[i].get(), i = 0...num_vector_spaces-1
this->dim() == sum{ vector_spaces[i]->dim(), i = 0...num_vector_spaces-1 }
this->sub_space(rng[i]).get() == vector_spaces[i].get(), this->vector_spaces_offsets()[i] = rng[i].lbound()-1, for i = 0...num_vector_spaces-1, rng[0] = Range1D(1,vector_spaces[0]->dim()); rng[i] = Range1D(1,vector_spaces[i]->dim()) + rng[i-1].ubound(), i = 0...num_vector_spaces-1
this->dim() == this->vector_spaces_offsets()[num_vector_spaces]
this->small_vec_spc_fcty().get() == small_vec_spc_fcty.get()

Parameters

vector_spaces	[in] Array (length `num_vector_spaces`) that give the vector space objects that compose this composite vector space. The quantity `vector_spaces[i].get()`, for `i = 0...num_vector_spaces-1` gives the `ith` vector_space object. `vector_spaces` an be NULL if `num_vector_spaces == 0`.
num_vector_spaces	[in] Number of constitient vector spaces. Can be zero (empty vector space).
small_vec_spc_fcty	[in] Defines the vector space factory returned by `this->small_vec_spc_fcty()`

Definition at line 65 of file AbstractLinAlgPack_VectorSpaceBlocked.cpp.

int AbstractLinAlgPack::VectorSpaceBlocked::num_vector_spaces ( ) const

inline

Return the value of num_vec_spaces passed to this->initialize().

Definition at line 244 of file AbstractLinAlgPack_VectorSpaceBlocked.hpp.

const VectorSpace::space_ptr_t* AbstractLinAlgPack::VectorSpaceBlocked::vector_spaces ( ) const

const index_type * AbstractLinAlgPack::VectorSpaceBlocked::vector_spaces_offsets ( ) const

inline

Returns array (length this->num_vector_spaces() + 1) of offsets for each constitient vector space in the composite vector.

Definition at line 257 of file AbstractLinAlgPack_VectorSpaceBlocked.hpp.

void AbstractLinAlgPack::VectorSpaceBlocked::get_vector_space_position	(	index_type	i,
		int *	kth_vector_space,
		index_type *	kth_global_offset
	)		const

Get the position of the vector space object and its offset into the composite vector of the vector space object that owns the ith index in the composite vector.

Preconditions:

1 <= i <= this->dim() (throw std::out_of_range)

Postconditions:

kth_global_offset + 1 <= i <= kth_global_offset + this->vector_spaces()[kth_vector_space]->dim()

Parameters

i	[in] The index of the element to find the vector space object for.
kth_vector_space	[out] The index for `this->vector_spaces()[kth_vector_space]` that owns the element `i`.
kth_global_offset	[out] The global offset for `this->vector_spaces()[kth_vector_space]` in the composite vector.

Definition at line 80 of file AbstractLinAlgPack_VectorSpaceBlocked.cpp.

bool AbstractLinAlgPack::VectorSpaceBlocked::is_compatible ( const VectorSpace & vec_space ) const

virtual

Returns true if same type and has compatible vector spaces.

This method will only return true if all of the following are true:

(vs = dynamic_cast<const VectorSpaceCompoisteStd*>(&vec_space)) != NULL
this->num_num_vector_spaces() == vs->num_vector_spaces()
this->vector_spaces()[k]->is_compatible(*vs->vector_spaces()[k] , for k = 0 ... this->num_vector_spaces()-1

Otherwise, this method will return false.

Implements AbstractLinAlgPack::VectorSpace.

Definition at line 108 of file AbstractLinAlgPack_VectorSpaceBlocked.cpp.

index_type AbstractLinAlgPack::VectorSpaceBlocked::dim ( ) const

virtual

Implements AbstractLinAlgPack::VectorSpace.

Definition at line 122 of file AbstractLinAlgPack_VectorSpaceBlocked.cpp.

space_fcty_ptr_t AbstractLinAlgPack::VectorSpaceBlocked::small_vec_spc_fcty ( ) const

virtual

Reimplemented from AbstractLinAlgPack::VectorSpace.

VectorSpace::vec_mut_ptr_t AbstractLinAlgPack::VectorSpaceBlocked::create_member ( ) const

virtual

Implements AbstractLinAlgPack::VectorSpace.

Definition at line 134 of file AbstractLinAlgPack_VectorSpaceBlocked.cpp.

VectorSpace::multi_vec_mut_ptr_t AbstractLinAlgPack::VectorSpaceBlocked::create_members ( size_type num_vecs ) const

virtual

Reimplemented from AbstractLinAlgPack::VectorSpace.

Definition at line 156 of file AbstractLinAlgPack_VectorSpaceBlocked.cpp.

VectorSpace::space_ptr_t AbstractLinAlgPack::VectorSpaceBlocked::clone ( ) const

virtual

Implements AbstractLinAlgPack::VectorSpace.

Definition at line 163 of file AbstractLinAlgPack_VectorSpaceBlocked.cpp.

VectorSpace::space_ptr_t AbstractLinAlgPack::VectorSpaceBlocked::sub_space ( const Range1D & rng ) const

virtual

Reimplemented from AbstractLinAlgPack::VectorSpace.

Definition at line 169 of file AbstractLinAlgPack_VectorSpaceBlocked.cpp.

Member Data Documentation

const VectorSpace::space_ptr_t * AbstractLinAlgPack::VectorSpaceBlocked::vector_spaces

inlineprivate

Definition at line 220 of file AbstractLinAlgPack_VectorSpaceBlocked.hpp.

VectorSpace::space_fcty_ptr_t AbstractLinAlgPack::VectorSpaceBlocked::small_vec_spc_fcty

private

Definition at line 221 of file AbstractLinAlgPack_VectorSpaceBlocked.hpp.
