AbstractLinAlgPack::VectorMutableSubView Class Reference

Concrete subclass for a sub-view of a VectorMutable object. More...

#include <AbstractLinAlgPack_VectorMutableSubView.hpp>

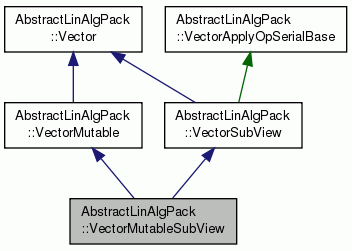

Inheritance diagram for AbstractLinAlgPack::VectorMutableSubView:
Inheritance graph
[legend]

Public Member Functions

 VectorMutableSubView ()
 Constructs to uninitialized. More...

 VectorMutableSubView (const vec_mut_ptr_t &full_vec, const Range1D &rng)
 Calls this->initialize(). More...

void initialize (const vec_mut_ptr_t &vec, const Range1D &rng)
 Initialize. More...

void set_uninitialized ()
 Set uninitialized() More...

const vec_mut_ptr_tfull_vec () const

- Public Member Functions inherited from AbstractLinAlgPack::VectorMutable
virtual VectorMutableoperator= (value_type alpha)
 Assign the elements of this vector to a scalar. More...

virtual VectorMutableoperator= (const Vector &v)
 Assign the elements of a vector to this. More...

virtual VectorMutableoperator= (const VectorMutable &v)
 Default implementation calls operator=((const &Vector)v). More...

vec_mut_ptr_t sub_view (const index_type &l, const index_type &u)
 Inline member function that simply calls this->sub_view(Range1D(l,u)). More...

virtual void zero ()
 Zeros this vector. More...

virtual void axpy (value_type alpha, const Vector &x)
 Adds a linear combination of another vector to this vector object. More...

virtual void Vp_StMtV (value_type alpha, const GenPermMatrixSlice &P, BLAS_Cpp::Transp P_trans, const Vector &x, value_type beta)
 Perform a gather or scatter operation with a vector. More...

- Public Member Functions inherited from AbstractLinAlgPack::Vector
 Vector ()

virtual ~Vector ()

vec_ptr_t sub_view (const index_type &l, const index_type &u) const
 Inline member function that simply calls this->sub_view(Range1D(l,u)). More...

virtual void has_changed () const
 Must be called by any vector subclass that modifies this vector object! More...

virtual index_type nz () const
 Return the number of nonzero elements in the vector. More...

virtual std::ostream & output (std::ostream &out, bool print_dim=true, bool newline=true, index_type global_offset=0) const
 Virtual output function. More...

virtual vec_mut_ptr_t clone () const
 Create a clone of this vector objet. More...

virtual value_type norm_1 () const
 One norm. ||v||_1 = sum( |v(i)|, i = 1,,,this->dim() ) More...

virtual value_type norm_2 () const
 Two norm. ||v||_2 = sqrt( sum( v(i)^2, i = 1,,,this->dim() ) ) More...

virtual value_type norm_inf () const
 Infinity norm. ||v||_inf = max( |v(i)|, i = 1,,,this->dim() ) More...

virtual value_type inner_product (const Vector &v) const
 Return the inner product of *this with v. More...

- Public Member Functions inherited from AbstractLinAlgPack::VectorSubView
 VectorSubView ()
 Constructs to uninitialized. More...

 VectorSubView (const vec_ptr_t &full_vec, const Range1D &rng)
 Calls this->initialize(). More...

void initialize (const vec_ptr_t &full_vec, const Range1D &rng)
 Initialize a sub-view based on a full vector. More...

void set_uninitialized ()
 Set uninitialized() More...

const vec_ptr_tfull_vec () const

const VectorSpaceSubSpacespace_impl () const

const VectorSpacespace () const

index_type dim () const

void apply_op (const RTOpPack::RTOp &op, const size_t num_vecs, const Vector *vecs[], const size_t num_targ_vecs, VectorMutable *targ_vecs[], RTOpPack::ReductTarget *reduct_obj, const index_type first_ele, const index_type sub_dim, const index_type global_offset) const
 Calls apply_op() on the underlying full vectors. More...

value_type get_ele (index_type i) const

vec_ptr_t sub_view (const Range1D &rng) const

void get_sub_vector (const Range1D &rng, RTOpPack::SubVector *sub_vec) const

void free_sub_vector (RTOpPack::SubVector *sub_vec) const


Private Member Functions

VectorMutableSubViewoperator= (const VectorMutableSubView &)


Private Attributes

vec_mut_ptr_t full_vec_


Overridden from Vector

vec_ptr_t sub_view (const Range1D &rng) const
 Overridden to pick VectorSubView::sub_view(). More...


Overridden from VectorMutable

void set_ele (index_type i, value_type val)

vec_mut_ptr_t sub_view (const Range1D &rng)

void get_sub_vector (const Range1D &rng, RTOpPack::MutableSubVector *sub_vec)

void commit_sub_vector (RTOpPack::MutableSubVector *sub_vec)

void set_sub_vector (const RTOpPack::SparseSubVector &sub_vec)


Additional Inherited Members

- Public Types inherited from AbstractLinAlgPack::Vector
typedef Teuchos::RCP< const
Vector
vec_ptr_t

typedef Teuchos::RCP
< VectorMutable
vec_mut_ptr_t

- Protected Member Functions inherited from AbstractLinAlgPack::Vector
virtual void finalize_apply_op (const size_t num_targ_vecs, VectorMutable **targ_vecs) const
 This method usually needs to be called by subclasses at the end of the apply_op() method implementation to insure that has_changed() is called on the transformed vector objects. More...

- Protected Member Functions inherited from AbstractLinAlgPack::VectorApplyOpSerialBase
 VectorApplyOpSerialBase ()

void apply_op_serial (const RTOpPack::RTOp &op, const size_t num_vecs, const Vector *vecs[], const size_t num_targ_vecs, VectorMutable *targ_vecs[], RTOpPack::ReductTarget *reduct_obj, const index_type first_ele, const index_type sub_dim, const index_type global_offset) const


Detailed Description

Concrete subclass for a sub-view of a VectorMutable object.

Not all of the methods from VectorMutable are overridden, only those that need to be or may result in better performance.

The default constructor and copy constructors are allowd but the default assignment operator is not allowed since it does not have the correct sematics.

There is really not much to this vector subclass. The subclass is only possible because of the first_ele, sub_dim, and global_offset options with apply_op(). The vector space object returned by this->space() is of type VectorSpaceSubSpace which in turn relys on VectorSpace::sub_space().

Definition at line 63 of file AbstractLinAlgPack_VectorMutableSubView.hpp.

Constructor & Destructor Documentation

AbstractLinAlgPack::VectorMutableSubView::VectorMutableSubView ( )
inline

Constructs to uninitialized.

Postconditions: see set_uninitialized().

Definition at line 138 of file AbstractLinAlgPack_VectorMutableSubView.hpp.

AbstractLinAlgPack::VectorMutableSubView::VectorMutableSubView ( const vec_mut_ptr_t full_vec,
const Range1D rng
)

Calls this->initialize().

Definition at line 49 of file AbstractLinAlgPack_VectorMutableSubView.cpp.

Member Function Documentation

void AbstractLinAlgPack::VectorMutableSubView::initialize ( const vec_mut_ptr_t vec,
const Range1D rng
)

Initialize.

Constructs a view of the vector this = vec(rng).

Parameters
full_vec[in] The original full vector. It is allowed for full_vec.get() == NULL in which case this is uninitialized (i.e. this->dim() == 0).
rng[in] The range of elements in full_vec that this vector will represent.

Definition at line 54 of file AbstractLinAlgPack_VectorMutableSubView.cpp.

void AbstractLinAlgPack::VectorMutableSubView::set_uninitialized ( )

Set uninitialized()

Postconditions:

Definition at line 62 of file AbstractLinAlgPack_VectorMutableSubView.cpp.

const VectorMutableSubView::vec_mut_ptr_t & AbstractLinAlgPack::VectorMutableSubView::full_vec ( ) const
inline

Definition at line 143 of file AbstractLinAlgPack_VectorMutableSubView.hpp.

Vector::vec_ptr_t AbstractLinAlgPack::VectorMutableSubView::sub_view ( const Range1D rng) const
virtual

Overridden to pick VectorSubView::sub_view().

Reimplemented from AbstractLinAlgPack::VectorMutable.

Definition at line 71 of file AbstractLinAlgPack_VectorMutableSubView.cpp.

void AbstractLinAlgPack::VectorMutableSubView::set_ele ( index_type  i,
value_type  val
)
virtual

Reimplemented from AbstractLinAlgPack::VectorMutable.

Definition at line 78 of file AbstractLinAlgPack_VectorMutableSubView.cpp.

VectorMutable::vec_mut_ptr_t AbstractLinAlgPack::VectorMutableSubView::sub_view ( const Range1D rng)
virtual

Reimplemented from AbstractLinAlgPack::VectorMutable.

Definition at line 86 of file AbstractLinAlgPack_VectorMutableSubView.cpp.

void AbstractLinAlgPack::VectorMutableSubView::get_sub_vector ( const Range1D rng,
RTOpPack::MutableSubVector sub_vec
)
virtual
void AbstractLinAlgPack::VectorMutableSubView::commit_sub_vector ( RTOpPack::MutableSubVector sub_vec)
virtual
void AbstractLinAlgPack::VectorMutableSubView::set_sub_vector ( const RTOpPack::SparseSubVector sub_vec)
virtual
VectorMutableSubView& AbstractLinAlgPack::VectorMutableSubView::operator= ( const VectorMutableSubView )
private

Member Data Documentation

vec_mut_ptr_t AbstractLinAlgPack::VectorMutableSubView::full_vec_
private

Definition at line 127 of file AbstractLinAlgPack_VectorMutableSubView.hpp.


The documentation for this class was generated from the following files:
