AbstractLinAlgPack::MatrixOpGetGMSMutable Class Referenceabstract

Abstract interface that allows the extraction of a non-const DMatrixSlice view of an abstract matrix. More...

#include <AbstractLinAlgPack_MatrixOpGetGMSMutable.hpp>

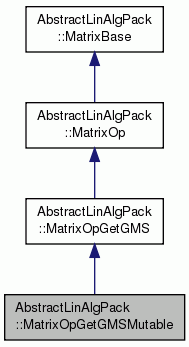

Inheritance diagram for AbstractLinAlgPack::MatrixOpGetGMSMutable:
Inheritance graph
[legend]

Public Member Functions

virtual DMatrixSlice get_gms_view ()=0
 Get a representation of the abstract matrixr in the form DenseLinAlgPack::DMatrixSlice. More...

virtual void commit_gms_view (DMatrixSlice *gms_view)=0
 Commit changes to a view of a dense matrix initialized from this->get_gms_view(). More...

- Public Member Functions inherited from AbstractLinAlgPack::MatrixOpGetGMS
virtual const DMatrixSlice get_gms_view () const =0
 Get a const view of the abstract matrix in the form DenseLinAlgPack::DMatrixSlice. More...

virtual void free_gms_view (const DMatrixSlice *gms_view) const =0
 Free a view of a dense matrix initialized from get_gms_view()>/tt>. More...

- Public Member Functions inherited from AbstractLinAlgPack::MatrixOp
virtual void zero_out ()
 M_lhs = 0 : Zero out the matrix. More...

virtual void Mt_S (value_type alpha)
 M_lhs *= alpha : Multiply a matrix by a scalar. More...

virtual MatrixOpoperator= (const MatrixOp &mwo_rhs)
 M_lhs = mwo_rhs : Virtual assignment operator. More...

virtual mat_mut_ptr_t clone ()
 Clone the non-const matrix object (if supported). More...

virtual mat_ptr_t clone () const
 Clone the const matrix object (if supported). More...

virtual std::ostream & output (std::ostream &out) const
 Virtual output function. More...

const MatNorm calc_norm (EMatNormType requested_norm_type=MAT_NORM_1, bool allow_replacement=false) const
 Compute a norm of this matrix. More...

virtual mat_ptr_t sub_view (const Range1D &row_rng, const Range1D &col_rng) const
 Create a transient constant sub-matrix view of this matrix (if supported). More...

mat_ptr_t sub_view (const index_type &rl, const index_type &ru, const index_type &cl, const index_type &cu) const
 Inlined implementation calls this->sub_view(Range1D(rl,ru),Range1D(cl,cu)). More...

virtual mat_ptr_t perm_view (const Permutation *P_row, const index_type row_part[], int num_row_part, const Permutation *P_col, const index_type col_part[], int num_col_part) const
 Create a permuted view: M_perm = P_row' * M * P_col. More...

virtual mat_ptr_t perm_view_update (const Permutation *P_row, const index_type row_part[], int num_row_part, const Permutation *P_col, const index_type col_part[], int num_col_part, const mat_ptr_t &perm_view) const
 Reinitialize a permuted view: M_perm = P_row' * M * P_col. More...

- Public Member Functions inherited from AbstractLinAlgPack::MatrixBase
virtual ~MatrixBase ()
 Virtual destructor. More...

virtual const VectorSpacespace_cols () const =0
 Vector space for vectors that are compatible with the columns of the matrix. More...

virtual const VectorSpacespace_rows () const =0
 Vector space for vectors that are compatible with the rows of the matrix. More...

virtual size_type rows () const
 Return the number of rows in the matrix. More...

virtual size_type cols () const
 Return the number of columns in the matrix. More...

virtual size_type nz () const
 Return the number of nonzero elements in the matrix. More...


Detailed Description

Abstract interface that allows the extraction of a non-const DMatrixSlice view of an abstract matrix.

This interface is ment to be used by MatrixOp objects that store all of their matrix elements in the local address space or can easily access all of the elements from this process and can modify the elements in their data structures.

Subclasses that store a Fortran compatible dense dense matrix can implement these methods without any dynamic memory allocations. There is no default implementation for these methods so subclasses that derive from this interface must implement these methods.

These methods should never be called directly. Instead, use the helper class type MatrixDenseMutableEncap.

Definition at line 65 of file AbstractLinAlgPack_MatrixOpGetGMSMutable.hpp.

Member Function Documentation

virtual DMatrixSlice AbstractLinAlgPack::MatrixOpGetGMSMutable::get_gms_view ( )
pure virtual

Get a representation of the abstract matrixr in the form DenseLinAlgPack::DMatrixSlice.

Returns
On ouput, return will be initialized to point to storage to the dense matrix elements. The output from this function gms_view = this->get_gms_view() must be passed to this->commit_gms_view(gms) to commit and free any memory that may have been allocated and to ensure the that underlying abstract matrix object has been updated. After this->commit_gms_view(gms_view) is called, gms_view must not be used any longer!

Postconditions:

Warning! If a subclass overrides this method, it must also override commit_gms_view().

virtual void AbstractLinAlgPack::MatrixOpGetGMSMutable::commit_gms_view ( DMatrixSlice gms_view)
pure virtual

Commit changes to a view of a dense matrix initialized from this->get_gms_view().

Parameters
gms_view[in/out] On input, gms_view must have been initialized from this->get_gms_view(). On output, gms_view will become invalid and must not be used.

Preconditions:

  • gms_view must have been initialized by this->get_gms_view)

Postconditions:

  • this is guaranteed to be updated.
  • gms_view becomes invalid and must not be used any longer!

The documentation for this class was generated from the following file:
