AbstractLinAlgPack::BasisSystemFactoryStd Class Reference

Default implementation for BasisSystemPermDirectSparse obejcts using DirectSparseSolver object. More...

#include <AbstractLinAlgPack_BasisSystemFactoryStd.hpp>

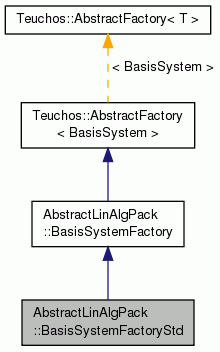

Inheritance diagram for AbstractLinAlgPack::BasisSystemFactoryStd:

Public Member Functions
	BasisSystemFactoryStd ()
Public Member Functions inherited from AbstractLinAlgPack::BasisSystemFactory
virtual	~BasisSystemFactory ()
Public Member Functions inherited from Teuchos::AbstractFactory< BasisSystem >
virtual	~AbstractFactory ()

Private Types
enum	EDirectLinearSolverType { LA_DENSE, LA_MA28, LA_MA48, LA_SUPERLU }

Private Member Functions
void	read_options () const

Private Attributes
EDirectLinearSolverType	direct_linear_solver_type_
options_ptr_t	options_

Overridden from BasisSystemFactory
void	set_options (const options_ptr_t &options)
const options_ptr_t &	get_options () const

Overridden from AbstractFactory
obj_ptr_t	create () const

Detailed Description

Default implementation for BasisSystemPermDirectSparse obejcts using DirectSparseSolver object.

Several direct sparse solvers are supported by default. These include:

• DENSE (using LAPACK xGETRF())
• MA28
• MA48 (using MA28 for BasisSystemPerm::select_basis()) (not yet)
• SuperLU

These solvers are supported only if the proper macros are defined.

ToDo: Create a DirectSparseSolverFactory interface and use this to allow clients to add new DirectSparseSolvers ...

Definition at line 68 of file AbstractLinAlgPack_BasisSystemFactoryStd.hpp.

Member Enumeration Documentation

enum AbstractLinAlgPack::BasisSystemFactoryStd::EDirectLinearSolverType

private

Enumerator
LA_DENSE
LA_MA28
LA_MA48
LA_SUPERLU

Definition at line 99 of file AbstractLinAlgPack_BasisSystemFactoryStd.hpp.

Constructor & Destructor Documentation

AbstractLinAlgPack::BasisSystemFactoryStd::BasisSystemFactoryStd

(

)

Definition at line 57 of file AbstractLinAlgPack_BasisSystemFactoryStd.cpp.

Member Function Documentation

void AbstractLinAlgPack::BasisSystemFactoryStd::set_options ( const options_ptr_t &  options )

virtual

Implements AbstractLinAlgPack::BasisSystemFactory.

Definition at line 73 of file AbstractLinAlgPack_BasisSystemFactoryStd.cpp.

const BasisSystemFactoryStd::options_ptr_t & AbstractLinAlgPack::BasisSystemFactoryStd::get_options ( ) const

virtual

Implements AbstractLinAlgPack::BasisSystemFactory.

Definition at line 79 of file AbstractLinAlgPack_BasisSystemFactoryStd.cpp.

BasisSystemFactoryStd::obj_ptr_t AbstractLinAlgPack::BasisSystemFactoryStd::create ( ) const

virtual

Implements Teuchos::AbstractFactory< BasisSystem >.

Definition at line 87 of file AbstractLinAlgPack_BasisSystemFactoryStd.cpp.

void AbstractLinAlgPack::BasisSystemFactoryStd::read_options ( ) const

private

Definition at line 150 of file AbstractLinAlgPack_BasisSystemFactoryStd.cpp.

Member Data Documentation

EDirectLinearSolverType AbstractLinAlgPack::BasisSystemFactoryStd::direct_linear_solver_type_

mutableprivate

Definition at line 104 of file AbstractLinAlgPack_BasisSystemFactoryStd.hpp.

options_ptr_t AbstractLinAlgPack::BasisSystemFactoryStd::options_

private

Definition at line 105 of file AbstractLinAlgPack_BasisSystemFactoryStd.hpp.

---

The documentation for this class was generated from the following files:

• AbstractLinAlgPack_BasisSystemFactoryStd.hpp
• AbstractLinAlgPack_BasisSystemFactoryStd.cpp
