RTOp_obj_value_index_vtbl.h File Reference

#include "RTOp.h"

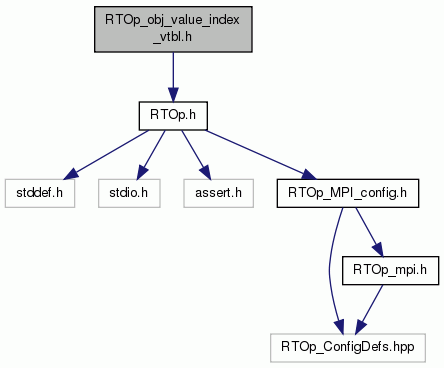

Include dependency graph for RTOp_obj_value_index_vtbl.h:

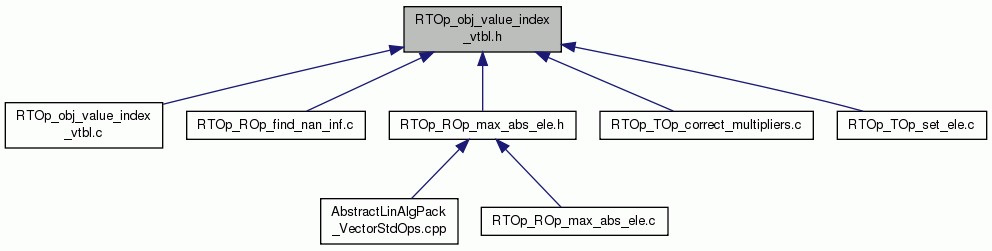

This graph shows which files directly or indirectly include this file:

Go to the source code of this file.

Classes
struct	RTOp_value_index_type
const struct RTOp_obj_type_vtbl_t	RTOp_obj_value_index_vtbl

Variable Documentation

const struct RTOp_obj_type_vtbl_t RTOp_obj_value_index_vtbl

Virtual function table for a simple object of a {RTOp_value_type,RTOp_index_type} pair.

The functions do the following:

• get_obj_type_num_entries(...)
  • vtbl [in] Ignored
  • instance_data [in] Ignored
  • num_values [out] Returns 1
  • num_indexes [out] Returns 1
  • num_chars [out] Returns 0
• obj_create(...)
  • vtbl [in] Ignored
  • instance_data [in] Ignored
  • obj [out] Points an allocated to a RTOp_value_index_type object initialized to {0.0,0}
• obj_reinit(...)
  • vtbl [in] Ignored
  • instance_data [in] Ignored
  • obj [in/out] RTOp_value_index_type object reinitialized to {0.0,0}
• obj_free(...)
  • vtbl [in] Ignored
  • instance_data [in] Ignored
  • obj [in/out] allocated object is freed and obj is set to NULL.
• extract_state(...)
  • vtbl [in] Ignored
  • instance_data [in] Ignored
  • obj [in] Allocated RTOp_value_index_type object.
  • num_values [in] Must be 1
  • value_data [out] value_data[0] = ((RTOp_value_index_type*)obj->value)
  • num_indexes [in] Must be 1
  • index_data [out] index_data[0] = ((RTOp_value_index_type*)obj->index)
  • num_chars [in] Must be 0
  • char_data [out] Must be NULL
• load_state(...)
  • vtbl [in] Ignored
  • instance_data [in] Ignored
  • num_values [in] Must be 1
  • value_data [in] value_data[0]
  • num_indexes [in] Must be 1
  • index_data [in] index_data[0]
  • num_chars [in] Must be 0
  • char_data [in] Must be NULL
  • obj [in/out] If *obj == NULL then *obj = malloc(sizeof(RTOp_value_index_type)) and *(RTOp_value_index_type)*obj = {value_data[0],index_data[0]}

Definition at line 148 of file RTOp_obj_value_index_vtbl.c.
