Variables
RTOp_obj_index_vtbl.h File Reference
#include "RTOp.h"

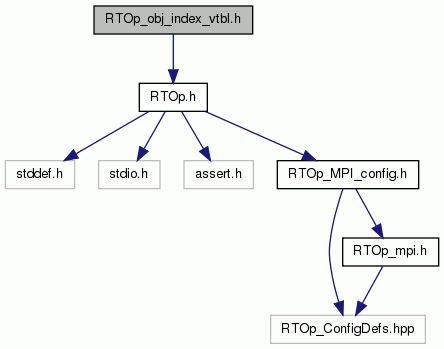

Include dependency graph for RTOp_obj_index_vtbl.h:

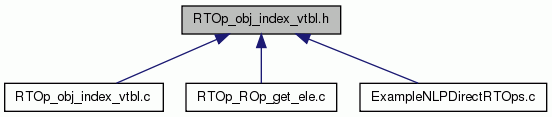

This graph shows which files directly or indirectly include this file:

Go to the source code of this file.

Variables

const struct RTOp_obj_type_vtbl_t RTOp_obj_index_vtbl


Variable Documentation

const struct RTOp_obj_type_vtbl_t RTOp_obj_index_vtbl

Virtual function table for a simple scalar object of type RTOp_index_type.

The functions do the following:

  • get_obj_type_num_entries(...)
    • vtbl [in] Ignored
    • instance_data [in] Ignored
    • num_values [out] Returns 0
    • num_indexes [out] Returns 1
    • num_chars [out] Returns 0
  • obj_create(...)
    • vtbl [in] Ignored
    • instance_data [in] Ignored
    • obj [out] Points an allocated to a RTOp_index_type object initialized to 0
  • obj_reinit(...)
    • vtbl [in] Ignored
    • instance_data [in] Ignored
    • obj [in/out] RTOp_index_type object reinitialized to 0
  • obj_free(...)
    • vtbl [in] Ignored
    • instance_data [in] Ignored
    • obj [in/out] allocated object is freed and obj is set to NULL.
  • extract_state(...)
    • vtbl [in] Ignored
    • instance_data [in] Ignored
    • obj [in] Allocated RTOp_index_type object.
    • num_values [in] Must be 0
    • value_data [out] Must be NULL
    • num_indexes [in] Must be 1
    • index_data [out] index_data[0] = *(RTOp_index_type*)obj
    • num_chars [in] Must be 0
    • char_data [out] Must be NULL
  • load_state(...)
    • vtbl [in] Ignored
    • instance_data [in] Ignored
    • num_values [in] Must be 0
    • value_data [in] Must be NULL
    • num_indexes [in] Must be 1
    • index_data [in] index_data[0]
    • num_chars [in] Must be 0
    • char_data [in] Must be NULL
    • obj [in/out] If *obj == NULL then *obj = malloc(sizeof(RTOp_index_type)) and *(RTOp_index_type)*obj = index_data[0]

Definition at line 121 of file RTOp_obj_index_vtbl.c.
