#include "RTOp_obj_index_vtbl.h"
#include "RTOp_obj_free_free.h"
#include <stdlib.h>

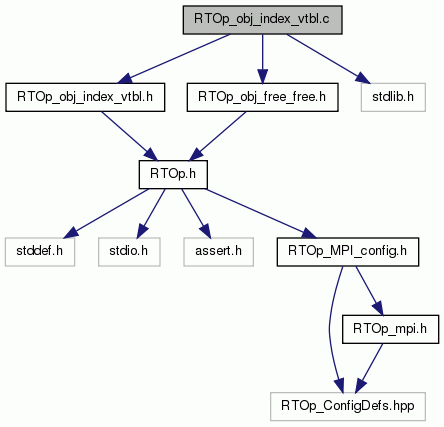

Include dependency graph for RTOp_obj_index_vtbl.c:

Functions
static int	get_obj_type_num_entries (const struct RTOp_obj_type_vtbl_t vtbl, const void instance_data, int num_values, int num_indexes, int *num_chars)

static int	obj_create (const struct RTOp_obj_type_vtbl_t vtbl, const void instance_data, void **obj)

static int	obj_reinit (const struct RTOp_obj_type_vtbl_t vtbl, const void instance_data, void *obj)

static int	extract_state (const struct RTOp_obj_type_vtbl_t vtbl, const void instance_data, void *obj, int num_values, RTOp_value_type value_data[], int num_indexes, RTOp_index_type index_data[], int num_chars, RTOp_char_type char_data[])

static int	load_state (const struct RTOp_obj_type_vtbl_t vtbl, const void instance_data, int num_values, const RTOp_value_type value_data[], int num_indexes, const RTOp_index_type index_data[], int num_chars, const RTOp_char_type char_data[], void **obj)

Variables
const struct RTOp_obj_type_vtbl_t	RTOp_obj_index_vtbl

Function Documentation

static int get_obj_type_num_entries	(	const struct RTOp_obj_type_vtbl_t *	vtbl,
		const void *	instance_data,
		int *	num_values,
		int *	num_indexes,
		int *	num_chars
	)

static

Definition at line 51 of file RTOp_obj_index_vtbl.c.

static int obj_create	(	const struct RTOp_obj_type_vtbl_t *	vtbl,
		const void *	instance_data,
		void **	obj
	)

static

Definition at line 65 of file RTOp_obj_index_vtbl.c.

static int obj_reinit	(	const struct RTOp_obj_type_vtbl_t *	vtbl,
		const void *	instance_data,
		void *	obj
	)

static

Definition at line 73 of file RTOp_obj_index_vtbl.c.

static int extract_state	(	const struct RTOp_obj_type_vtbl_t *	vtbl,
		const void *	instance_data,
		void *	obj,
		int	num_values,
		RTOp_value_type	value_data[],
		int	num_indexes,
		RTOp_index_type	index_data[],
		int	num_chars,
		RTOp_char_type	char_data[]
	)

static

Definition at line 79 of file RTOp_obj_index_vtbl.c.

static int load_state	(	const struct RTOp_obj_type_vtbl_t *	vtbl,
		const void *	instance_data,
		int	num_values,
		const RTOp_value_type	value_data[],
		int	num_indexes,
		const RTOp_index_type	index_data[],
		int	num_chars,
		const RTOp_char_type	char_data[],
		void **	obj
	)

static

Definition at line 99 of file RTOp_obj_index_vtbl.c.

Variable Documentation

const struct RTOp_obj_type_vtbl_t RTOp_obj_index_vtbl

Initial value:

=
{
  get_obj_type_num_entries
  ,obj_create
  ,obj_reinit
  ,RTOp_obj_free_free
  ,extract_state
  ,load_state
}

Virtual function table for a simple scalar object of type RTOp_index_type.

The functions do the following:

get_obj_type_num_entries(...)
- vtbl [in] Ignored
- instance_data [in] Ignored
- num_values [out] Returns 0
- num_indexes [out] Returns 1
- num_chars [out] Returns 0
obj_create(...)
- vtbl [in] Ignored
- instance_data [in] Ignored
- obj [out] Points an allocated to a RTOp_index_type object initialized to 0
obj_reinit(...)
- vtbl [in] Ignored
- instance_data [in] Ignored
- obj [in/out] RTOp_index_type object reinitialized to 0
obj_free(...)
- vtbl [in] Ignored
- instance_data [in] Ignored
- obj [in/out] allocated object is freed and obj is set to NULL.
extract_state(...)
- vtbl [in] Ignored
- instance_data [in] Ignored
- obj [in] Allocated RTOp_index_type object.
- num_values [in] Must be 0
- value_data [out] Must be NULL
- num_indexes [in] Must be 1
- index_data [out] index_data[0] = *(RTOp_index_type*)obj
- num_chars [in] Must be 0
- char_data [out] Must be NULL
load_state(...)
- vtbl [in] Ignored
- instance_data [in] Ignored
- num_values [in] Must be 0
- value_data [in] Must be NULL
- num_indexes [in] Must be 1
- index_data [in] index_data[0]
- num_chars [in] Must be 0
- char_data [in] Must be NULL
- obj [in/out] If *obj == NULL then *obj = malloc(sizeof(RTOp_index_type)) and *(RTOp_index_type)*obj = index_data[0]

Definition at line 121 of file RTOp_obj_index_vtbl.c.
