RTOp_TOp_force_in_bounds.c File Reference

#include "RTOp_TOp_force_in_bounds.h"
#include "RTOp_obj_null_vtbl.h"
#include "RTOp_obj_value_value_vtbl.h"

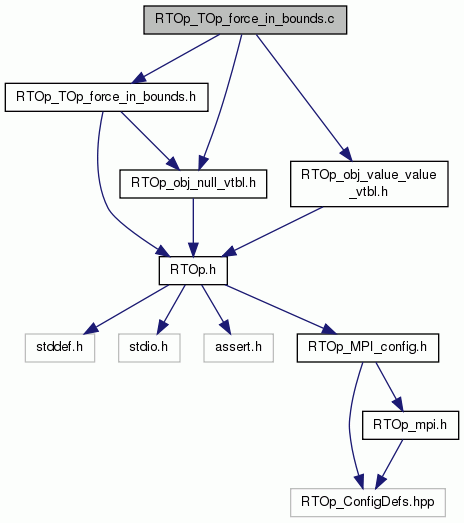

Include dependency graph for RTOp_TOp_force_in_bounds.c:

Go to the source code of this file.

Macros
#define	max(a, b)   ( (a) > (b) ? (a) : (b) )
#define	min(a, b)   ( (a) < (b) ? (a) : (b) )

Functions
static int	RTOp_TOp_force_in_bounds_apply_op (const struct RTOp_RTOp_vtbl_t *vtbl, const void *obj_data, const int num_vecs, const struct RTOp_SubVector vecs[], const int num_targ_vecs, const struct RTOp_MutableSubVector targ_vecs[], RTOp_ReductTarget targ_obj)
int	RTOp_TOp_force_in_bounds_construct (struct RTOp_RTOp *op)
int	RTOp_TOp_force_in_bounds_destroy (struct RTOp_RTOp *op)
static int	RTOp_TOp_force_in_bounds_buffer_apply_op (const struct RTOp_RTOp_vtbl_t *vtbl, const void *obj_data, const int num_vecs, const struct RTOp_SubVector vecs[], const int num_targ_vecs, const struct RTOp_MutableSubVector targ_vecs[], RTOp_ReductTarget reduct_obj)
int	RTOp_TOp_force_in_bounds_buffer_construct (RTOp_value_type rel_push, RTOp_value_type abs_push, struct RTOp_RTOp *op)
int	RTOp_TOp_force_in_bounds_buffer_destroy (struct RTOp_RTOp *op)
int	RTOp_TOp_force_in_bounds_buffer_init (RTOp_value_type rel_push, RTOp_value_type abs_push, struct RTOp_RTOp *op)

Variables
const struct RTOp_RTOp_vtbl_t	RTOp_TOp_force_in_bounds_vtbl
const struct RTOp_RTOp_vtbl_t	RTOp_TOp_force_in_bounds_buffer_vtbl

Macro Definition Documentation

#define max	(		a,
			b
	)		( (a) > (b) ? (a) : (b) )

Definition at line 48 of file RTOp_TOp_force_in_bounds.c.

#define min	(		a,
			b
	)		( (a) < (b) ? (a) : (b) )

Definition at line 49 of file RTOp_TOp_force_in_bounds.c.

Function Documentation

static int RTOp_TOp_force_in_bounds_apply_op ( const struct RTOp_RTOp_vtbl_t *  vtbl, const void *  obj_data, const int  num_vecs, const struct RTOp_SubVector  vecs[], const int  num_targ_vecs, const struct RTOp_MutableSubVector  targ_vecs[], RTOp_ReductTarget  targ_obj  )

static

Definition at line 53 of file RTOp_TOp_force_in_bounds.c.

int RTOp_TOp_force_in_bounds_construct

(

struct RTOp_RTOp *

op

)

Definition at line 134 of file RTOp_TOp_force_in_bounds.c.

int RTOp_TOp_force_in_bounds_destroy

(

struct RTOp_RTOp *

op

)

Definition at line 141 of file RTOp_TOp_force_in_bounds.c.

static int RTOp_TOp_force_in_bounds_buffer_apply_op ( const struct RTOp_RTOp_vtbl_t *  vtbl, const void *  obj_data, const int  num_vecs, const struct RTOp_SubVector  vecs[], const int  num_targ_vecs, const struct RTOp_MutableSubVector  targ_vecs[], RTOp_ReductTarget  reduct_obj  )

static

Definition at line 150 of file RTOp_TOp_force_in_bounds.c.

int RTOp_TOp_force_in_bounds_buffer_construct	(	RTOp_value_type	rel_push,
		RTOp_value_type	abs_push,
		struct RTOp_RTOp *	op
	)

Definition at line 248 of file RTOp_TOp_force_in_bounds.c.

int RTOp_TOp_force_in_bounds_buffer_destroy

(

struct RTOp_RTOp *

op

)

Definition at line 259 of file RTOp_TOp_force_in_bounds.c.

int RTOp_TOp_force_in_bounds_buffer_init	(	RTOp_value_type	rel_push,
		RTOp_value_type	abs_push,
		struct RTOp_RTOp *	op
	)

Definition at line 267 of file RTOp_TOp_force_in_bounds.c.

Variable Documentation

const struct RTOp_RTOp_vtbl_t RTOp_TOp_force_in_bounds_vtbl

Initial value:

=
{
  &RTOp_obj_null_vtbl
  ,&RTOp_obj_null_vtbl
  ,"TOp_force_in_bounds"
  ,NULL
  ,RTOp_TOp_force_in_bounds_apply_op
  ,NULL
  ,NULL
}

Definition at line 121 of file RTOp_TOp_force_in_bounds.c.

const struct RTOp_RTOp_vtbl_t RTOp_TOp_force_in_bounds_buffer_vtbl

Initial value:

=
{
  &RTOp_obj_value_value_vtbl
  ,&RTOp_obj_null_vtbl
  ,"TOp_force_in_bounds_buffer"
  ,NULL
  ,RTOp_TOp_force_in_bounds_buffer_apply_op
  ,NULL
  ,NULL
}

This operator is used by the interior point algorithm to push initial variables sufficiently inside the bounds since the algorithm assumes that they are ALWAYS within bounds.

element-wise transformation:
    xl_sb = min(v0 + rel_push*(v1-v0), v0 + abs_push);
    xu_sb = max(v1 - rel_push*(v1-v0), v1 - abs_push);
    if (xl_sb >= xu_sb)
        { z0 = v0 + (v1-v0)/2.0; }
    else if (z0 < xl_sb)
        { z0 = xl_sb; }
    else if (z0 > xu_sb)
        { z0 = xu_sb; }
    // Otherwise, leave it

This operator class implementation was created automatically by 'new_rtop.pl'.

xl_sb = min(xl+relative_bound_push*(xu-xl), xl + absolute_bound_push) xu_sb = max(xu-relative_bound_push*(xu-xl), xu - absolute_bound_push) if (xl_sb > xu_sb) then x = (xl + (xu-xl)/2 else if (x < xl_sb) then x = xl_sb else if (x > xu_sb) then x = xu_sb

Definition at line 235 of file RTOp_TOp_force_in_bounds.c.
