A class to handle the projection of a node onto some segment More...

#include <mrtr_pnode.H>

Inheritance diagram for MOERTEL::ProjectedNode:

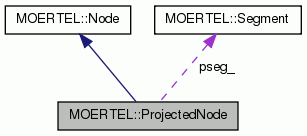

Collaboration diagram for MOERTEL::ProjectedNode:

Public Member Functions

	ProjectedNode (const MOERTEL::Node &basenode, const double xi, MOERTEL::Segment pseg)
	Constructor. More...

	ProjectedNode (const MOERTEL::Node &basenode, const double xi, MOERTEL::Segment pseg, int orthseg)
	Constructor (case of orthogonal projection only) More...

	ProjectedNode (MOERTEL::ProjectedNode &old)
	Copy-Constructor.

virtual	~ProjectedNode ()
	Destructor.


bool	Print () const
	Print this ProjectedNode and its Node.

double *	Xi ()
	Return view of the local coordinates of the projection in the segment.

MOERTEL::Segment *	Segment ()
	Return pointer to segment this projection is in.

int	OrthoSegment ()
	Return id of segment this projection is orthogonal to (might be different from Segment() )

Public Member Functions inherited from MOERTEL::Node
	Node (int Id, const double x, int ndof, const int dof, bool isonboundary, int out)
	Constructor. More...

	Node (int out)
	Constructor. More...

	Node (const MOERTEL::Node &old)
	Copy-Constructor. More...

virtual	~Node ()
	Destructor.

int	OutLevel ()
	Return the level of output written to stdout ( 0 - 10 )

int	Id () const
	Return unique and positive id of this node.

bool	Print () const
	Print this node to stdout.

void	Reset ()
	Reset the internal state of this node and clear integrated values. More...

const double *	XCoords () const
	Returns the view (a vector of length 3) to the current coordinates of this node.

bool	SetX (double *x)
	Update the coordinates of this Node. More...

const double *	Normal () const
	Return pointer to vector of length 3 of normal of this node.

bool	SetN (double *n)
	Store a normal in this node. More...

int	Ndof () const
	Return the number of degrees of freedom on this node.

int	Nlmdof () const
	Return the number of Lagrange mutlipliers on this node. More...

const int *	Dof () const
	Return view of degrees of freedom on this node. More...

const int *	LMDof () const
	Return view of the Lagrange multipliers on this node. More...

int	Nseg () const
	Return the number of segments adjacent to this node. More...

int *	SegmentIds ()
	Returns a view to the vector of segment ids of segments adjacent to this node. More...

MOERTEL::Segment **	Segments ()
	Returns a view to the vector of pointers to segments adjacent to this node. More...

bool	AddSegment (int sid)
	Adds a segment id to the list of segments adjacent to this node. More...

double *	Pack (int *size)
	Packs most information stored in this node to a double vector for communication with MPI. More...

bool	UnPack (double *pack)
	Unpacks information stored in a double vector to an instance of Node. More...

bool	BuildAveragedNormal ()
	Build averaged normal from adjacent segments at this node.

bool	GetPtrstoSegments (MOERTEL::Interface &interface)
	Construct vector of pointers to segments from adjacent segments id list.

bool	SetProjectedNode (MOERTEL::ProjectedNode *pnode)
	Store a pointer to a projected node. More...

Teuchos::RCP < MOERTEL::ProjectedNode > *	GetProjectedNode (int &length)
	Returns a view of all projected nodes this node owns. More...

Teuchos::RCP < MOERTEL::ProjectedNode >	GetProjectedNode ()
	Returns a view of the projection of this node. More...

bool	SetLagrangeMultiplierId (int LMId)
	Add a Lagrange multiplier id to this node's list.

void	AddDValue (double val, int col)
	Add a value to the 'D' map of this node. More...

void	AddMValue (double val, int col)
	Add a value to the 'M' map of this node. More...

void	AddMmodValue (int row, double val, int col)
	Add a value to the 'M' map of this node. More...

Teuchos::RCP< std::map< int, double > >	GetD ()
	Get view of the 'D' map of this node.

Teuchos::RCP< std::map< int, double > >	GetM ()
	Get view of the 'M' map of this node.

Teuchos::RCP< std::vector < std::map< int, double > > >	GetMmod ()
	Get view of the 'Mmod' map of this node.

void	SetCorner ()
	Set the flag indicating that node is corner node of 1D interface.

bool	IsCorner () const
	Query the flag indicating that node is corner node of 1D interface.

bool	IsOnBoundary () const
	Query the flag indicating that node is on the boundary of 2D interface.

int	NSupportSet () const
	Get number of nodes that support this boundary node. More...

void	AddSupportedByNode (MOERTEL::Node *suppnode)
	Add an internal node to the map of nodes supporting this node. More...

std::map< int, MOERTEL::Node * > &	GetSupportedByNode ()
	Get the map of nodes supporting this node. More...

double	Gap ()
	Return distance between projection and source node. More...

void	SetGap (double gap)
	Sets the distance between projection and source node. More...

Protected Member Functions
ProjectedNode	operator= (const ProjectedNode &old)

Protected Member Functions inherited from MOERTEL::Node
Node	operator= (const Node &old)

Protected Attributes
double	xi_ [2]

MOERTEL::Segment *	pseg_

int	orthseg_

Protected Attributes inherited from MOERTEL::Node
int	Id_

double	x_ [3]

double	n_ [3]

int	outputlevel_

bool	iscorner_

bool	isonboundary_

std::map< int, MOERTEL::Node * >	supportedby_

std::vector< int >	dof_

std::vector< int >	LMdof_

std::vector< int >	seg_

std::vector< MOERTEL::Segment * >	segptr_

Teuchos::RCP< std::map< int, double > >	Drow_

Teuchos::RCP< std::map< int, double > >	Mrow_

Teuchos::RCP< std::vector < std::map< int, double > > >	Mmodrow_

std::vector< Teuchos::RCP < MOERTEL::ProjectedNode > >	pnode_

double	gap_

Detailed Description

A class to handle the projection of a node onto some segment

The MOERTEL::ProjectedNode class supports the ostream& operator <<

Author: Glen Hansen (gahan.nosp@m.se@s.nosp@m.andia.nosp@m..gov)

Constructor & Destructor Documentation

MOERTEL::ProjectedNode::ProjectedNode	(	const MOERTEL::Node &	basenode,
		const double *	xi,
		MOERTEL::Segment *	pseg
	)

explicit

Constructor.

Constructs an instance of this class.
Note that this is not a collective call as nodes shall only have one owning process.

Parameters

basenode	: the node this class is the projection of
xi	: local coordinates of the projection in the segment its projected onto
pseg	: Segment this projection is located in

MOERTEL::ProjectedNode::ProjectedNode	(	const MOERTEL::Node &	basenode,
		const double *	xi,
		MOERTEL::Segment *	pseg,
		int	orthseg
	)

explicit

Constructor (case of orthogonal projection only)

Constructs an instance of this class.
Note that this is not a collective call as nodes shall only have one owning process.

Parameters

basenode	: the node this class is the projection of
xi	: local coordinates of the projection in the segment its projected onto
pseg	: Segment this projection is located in
orthseg	: id of segment this projection is orthogonal to which might be different from pseg

The documentation for this class was generated from the following files:

mrtr_pnode.H
mrtr_pnode.cpp
