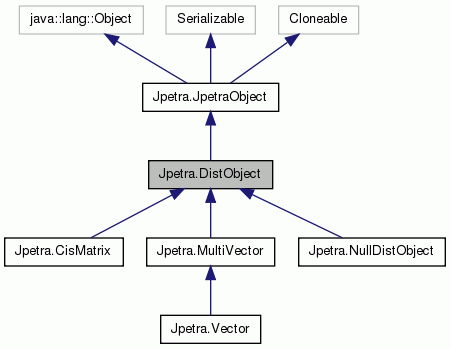

Inheritance diagram for Jpetra.DistObject:

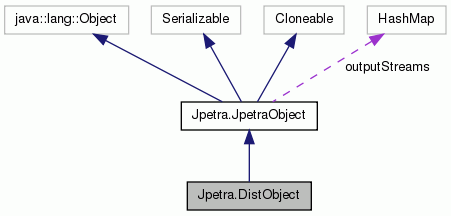

Collaboration diagram for Jpetra.DistObject:

Public Member Functions
	DistObject ()

void	importValues (DistObject distObjectSource, Import importer, int combineMode)

void	importValues (DistObject distObjectSource, Export exporter, int combineMode)

void	exportValues (DistObject distObjectSource, Import importer, int combineMode)

void	exportValues (DistObject distObjectSource, Export exporter, int combineMode)

void	doTransfer (DistObject distObjectSource, int numSameGids, int[] permuteToLids, int[] permuteFromLids, int[] exportGids, int[] exportLids, int combineMode, boolean doReverse)

abstract Serializable[]	packAndPrepare (DistObject distObjectSource, int[] exportGids, int[] exportLids)

abstract int[][]	unpackAndCombine (Serializable[] importData, int combineMode)

abstract void	copyAndPermute (DistObject distObjectSource, int numSameGids, int[] permuteToLids, int[] permuteFromLids, int combineMode)

abstract VectorSpace	getVectorSpace ()

void	setFlopCounter (FlopCounter flops)

void	updateFlops (double numFlops)

void	resetFlops ()

double	getFlops ()

double	getGlobalMegaFlops (Comm comm)

FlopCounter	getFlopCounter ()

Public Member Functions inherited from Jpetra.JpetraObject
	JpetraObject ()

void	initializeOutput ()

Static Public Attributes
static final int	ADD = 0

static final int	ZERO = 1

static final int	AVERAGE = 2

static final int	ABSMAX = 3

static final int	REPLACE = 4

Static Public Attributes inherited from Jpetra.JpetraObject
static HashMap	outputStreams = new HashMap(4)

static boolean	amIroot

Additional Inherited Members
Static Public Member Functions inherited from Jpetra.JpetraObject
static void	setRootPrint (String key, boolean rootPrint)

static void	setRootStream (String key, PrintStream rootStream)

static void	setVnodesPrint (String key, boolean vnodesPrint)

static void	setVnodesStream (String key, PrintStream vnodesStream)

static void	print (String key, String message)

static void	println (String key, String message)

static void	setAmIroot (Comm comm)

Detailed Description

Objects that extend DistObject can be constructed and distributed globally among the vnodes. DistObject presents a common interface to the user to use for all objects that can be distributed globally. Thus, some methods must be overriden by classes extending DistObject while others must not be overridden. DistObject also defines constants that correspond to the different avaliable combine modes.

Author: Jason Cross

Constructor & Destructor Documentation

Jpetra.DistObject.DistObject ( )

inline

Does nothing.

Member Function Documentation

abstract void Jpetra.DistObject.copyAndPermute	(	DistObject	distObjectSource,
		int	numSameGids,
		int[]	permuteToLids,
		int[]	permuteFromLids,
		int	combineMode
	)

abstract

Should not be called directly by the user.

This method must be overridden by classes extending DistObject.

Parameters

distObjectSource	The object from which local values will be copied and permuted.
numSameGids	The number of global ids that are the same starting from myMinGlobalEntryId.
permuteToLids	The local IDs of this `DistObject` that will permute elements from `distObjectSource` according to the corresponding local IDs in `permuteFromLids`.
permuteFromLids	The local IDs from `distObjectSource` that will be permuted to the local IDs in `permuteToLids` correspndong to this `DistObject`.
combineMode	One of the declared combine mode constants in `DistObject`.

Referenced by Jpetra.DistObject.doTransfer().

void Jpetra.DistObject.doTransfer	(	DistObject	distObjectSource,
		int	numSameGids,
		int[]	permuteToLids,
		int[]	permuteFromLids,
		int[]	exportGids,
		int[]	exportLids,
		int	combineMode,
		boolean	doReverse
	)

inline

Should not be called directly by the user.

Calls copyAndPermute, packAndPrepare, and unpackAndCombine which are all overridden by the calling child class. doTransfer also calls Distributor.distribute in order to send all exports to the corresponding vnodes and receive all imports from other vnodes. This method should not be overriden by classes extending DistObject.

References Jpetra.DistObject.copyAndPermute(), Jpetra.DistObject.packAndPrepare(), Jpetra.DistObject.unpackAndCombine(), and Jpetra.DistObject.ZERO.

Referenced by Jpetra.DistObject.importValues().

void Jpetra.DistObject.importValues	(	DistObject	distObjectSource,
		Import	importer,
		int	combineMode
	)

inline

Imports values from the source DistObject to this DistObject using the specified importer and combine mode. This method should not be overriden by classes extending DistObject.

Parameters

distObjectSource	The `DistObject` to import values from.
importer	The `Import` object built from the source `VectorSpace` and the target `VectorSpace`.
combineMode	One of the declared combine mode constants in `DistObject`.

References Jpetra.DistObject.doTransfer().

abstract Serializable [] Jpetra.DistObject.packAndPrepare	(	DistObject	distObjectSource,
		int[]	exportGids,
		int[]	exportLids
	)

abstract

Should not be called directly by the user.

This method must be overridden by classes extending DistObject.

Parameters

distObjectSource	The object from which elements will be packedup for exportation to other vnodes.
exportGids	The global IDs of the elements to be exported.
exportLids	The local IDs of elements to be exported.

Returns: The packed data that Distributor.distribute will export to other vnodes.

Referenced by Jpetra.DistObject.doTransfer().

abstract int [][] Jpetra.DistObject.unpackAndCombine	(	Serializable[]	importData,
		int	combineMode
	)

abstract

Should not be called directly by the user.

This method must be overridden by classes extending DistObject.

Parameters

importData	The data object returned from `Distributor.distribute` which contains all elements sent to this vnode.
combineMode	One of the declared combine mode constants in `DistObject`.

Referenced by Jpetra.DistObject.doTransfer().

Member Data Documentation

final int Jpetra.DistObject.ABSMAX = 3

static

This combine mode replaces values with the maximum absolute value of either the imported value or the existing corresponding local value.

final int Jpetra.DistObject.ADD = 0

static

This combine mode will cause all imported values to be added to existing values.

final int Jpetra.DistObject.AVERAGE = 2

static

This combine mode will cause all imported values to be averaged with existing values.

final int Jpetra.DistObject.REPLACE = 4

static

This combine mode replaces existing values with the imported ones.

final int Jpetra.DistObject.ZERO = 1

static

This combine mode will only copy and permute local values.

Referenced by Jpetra.DistObject.doTransfer().

The documentation for this class was generated from the following file:

DistObject.java
