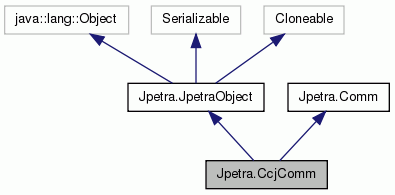

Inheritance diagram for Jpetra.CcjComm:

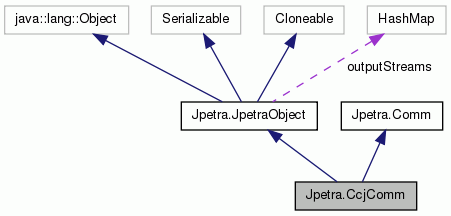

Collaboration diagram for Jpetra.CcjComm:

Public Member Functions
	CcjComm (String filePath)

boolean	isSerial ()

int	getVnodeId ()

int	getNumVnodes ()

void	barrier ()

void	threadBarrier ()

Serializable	broadcast (Serializable value, int root)

int	broadcast (int value, int root)

double	broadcast (double value, int root)

Serializable[]	gatherAll (Serializable[] myElements)

int[]	gatherAll (int[] myElements)

int[][]	gatherAll2dArray (int[] myElements)

double[]	gatherAll (double[] myElements)

int[]	gatherAll (int myInt)

double[]	gatherAll (double myDouble)

double[]	sumAll (double[] partialSums)

int[]	sumAll (int[] partialSums)

double[]	maxAll (double[] partialMaxs)

int[]	maxAll (int[] partialMaxs)

Serializable	minAll (Serializable partialMins)

double[]	minAll (double[] partialMins)

int[]	minAll (int[] partialMins)

double[]	scanSums (double[] myElements)

int[]	scanSums (int[] myElements)

int	getVnodeID ()

void	setMyVnodeID (int newVnodeID)

Distributor	createDistributor ()

CcjLink	getCcjLink ()

String	getGroupName ()

Directory	createDirectory (VectorSpace vectorSpace)

void	send (double[] exportObject, int destinationVnode)

void	send (int[] exportObject, int destinationVnode)

void	send (Serializable exportObject, int destinationVnode)

void	setupReceives (int numReceives)

Serializable	receive (int senderId)

int[]	scatter2dArray (int[][] in)

int[]	scatterIntArray (int[] in)

int[][]	gather (int[] in)

Serializable[][]	gather (Serializable[] in)

Serializable	maxAll (Serializable in)

String	getMyHostName ()

Public Member Functions inherited from Jpetra.JpetraObject
	JpetraObject ()

void	initializeOutput ()

Additional Inherited Members
Static Public Member Functions inherited from Jpetra.JpetraObject
static void	setRootPrint (String key, boolean rootPrint)

static void	setRootStream (String key, PrintStream rootStream)

static void	setVnodesPrint (String key, boolean vnodesPrint)

static void	setVnodesStream (String key, PrintStream vnodesStream)

static void	print (String key, String message)

static void	println (String key, String message)

static void	setAmIroot (Comm comm)

Static Public Attributes inherited from Jpetra.JpetraObject
static HashMap	outputStreams = new HashMap(4)

static boolean	amIroot

Detailed Description

CcjComm is the implementatin of the Comm interface for vnodes running in a parallel environment. It utilizes the Collective Communication (CCJ) API for MPI like message passing.

To use CcjComm first an instance of CcjComm needs to be created. A the path and file name of a ccjhosts file needs to be passed to the CcjComm contructor. The format of this file is one IP or host name and port per line, seperated by a colon (:). Note that the port number is optional.

Example ccjhosts file:

 // comments begining with /
 # and # are allowed; blank lines are also ok

 //root vnode
 192.168.1.8
 //slave vnodes
 192.168.1.8:1
 192.168.1.8:24
 sun1
 sun2
 //do not put comments on a host line: 192.168.1.5 // root  <== this comment will break things!

Each vnode needs to be able to access the ccjhosts file. This could entail copying the file to the same path on each physical node, or a shared file system could be used.

Adapted from SerialComm by Mike Heroux and Michael William Boldt.

Author: Jason Cross

Constructor & Destructor Documentation

Jpetra.CcjComm.CcjComm ( String filePath )

inline

Creates new CcjComm

Member Function Documentation

void Jpetra.CcjComm.barrier ( )

inline

Makes each CCJ vnode wait until all CCJ vnodes are ready.

Implements Jpetra.Comm.

Serializable Jpetra.CcjComm.broadcast	(	Serializable	value,
		int	root
	)

inline

Wrapper to CCJ broadcast.

Implements Jpetra.Comm.

int Jpetra.CcjComm.broadcast	(	int	value,
		int	root
	)

inline

Wrapper to CCJ broadcast.

Implements Jpetra.Comm.

References Jpetra.CcjSupport.CcjLink.broadcast().

double Jpetra.CcjComm.broadcast	(	double	value,
		int	root
	)

inline

Wrapper to CCJ broadcast.

Implements Jpetra.Comm.

References Jpetra.CcjSupport.CcjLink.broadcast().

Serializable [] Jpetra.CcjComm.gatherAll ( Serializable[] myElements )

inline

Wrapper to CCJ gatherAll.

Implements Jpetra.Comm.

int [] Jpetra.CcjComm.gatherAll ( int[] myElements )

inline

Wrapper to CCJ gatherAll.

Implements Jpetra.Comm.

double [] Jpetra.CcjComm.gatherAll ( double[] myElements )

inline

Wrapper to CCJ gatherAll.

Implements Jpetra.Comm.

int [] Jpetra.CcjComm.gatherAll ( int myInt )

inline

Wrapper to CCJ gatherAll.

Implements Jpetra.Comm.

double [] Jpetra.CcjComm.gatherAll ( double myDouble )

inline

Wrapper to CCJ gatherAll.

Implements Jpetra.Comm.

int Jpetra.CcjComm.getNumVnodes ( )

inline

Accessor for numVnodes.

Returns: numVnodes

Implements Jpetra.Comm.

int Jpetra.CcjComm.getVnodeId ( )

inline

Accessor for myVnode.

Returns: myVnode

Implements Jpetra.Comm.

int Jpetra.CcjComm.getVnodeID ( )

inline

Accessor for myVnode.

Returns: myVnode

boolean Jpetra.CcjComm.isSerial ( )

inline

Accessor for isSerial.

Returns: isSerial

Implements Jpetra.Comm.

double [] Jpetra.CcjComm.maxAll ( double[] partialMaxs )

inline

Wrapper to CcjLink maxAll.

Implements Jpetra.Comm.

int [] Jpetra.CcjComm.maxAll ( int[] partialMaxs )

inline

Wrapper to CcjLink maxAll.

Implements Jpetra.Comm.

Serializable Jpetra.CcjComm.minAll ( Serializable partialMins )

inline

Wrapper to CcjLink minAll.

Implements Jpetra.Comm.

double [] Jpetra.CcjComm.minAll ( double[] partialMins )

inline

Wrapper to CcjLink minAll.

Implements Jpetra.Comm.

int [] Jpetra.CcjComm.minAll ( int[] partialMins )

inline

Wrapper to CcjLink minAll.

Implements Jpetra.Comm.

Serializable Jpetra.CcjComm.receive ( int senderId )

inline

getReceives does all the work receiving all expected messages at once and then returns them. Note: this IS a blocking operation.

return the objects received

Implements Jpetra.Comm.

double [] Jpetra.CcjComm.scanSums ( double[] myElements )

inline

Wrapper to CcjLink scanSums.

Implements Jpetra.Comm.

int [] Jpetra.CcjComm.scanSums ( int[] myElements )

inline

Wrapper to CcjLink scanSums.

Implements Jpetra.Comm.

void Jpetra.CcjComm.send	(	double[]	exportObject,
		int	destinationVnode
	)

inline

Sends a double arry to a single specified vnode. Note: this is NOT a blocking operation.

Parameters

exportObject the double array to be sent

destinationVnode the vnode ID of the receiving vnode

Implements Jpetra.Comm.

void Jpetra.CcjComm.send	(	int[]	exportObject,
		int	destinationVnode
	)

inline

Sends an int arry to a single specified vnode. Note: this is NOT a blocking operation.

Parameters

exportObject the int array to be sent

destinationVnode the vnode ID of the receiving vnode

Implements Jpetra.Comm.

void Jpetra.CcjComm.send	(	Serializable	exportObject,
		int	destinationVnode
	)

inline

Sends a Serializable arry to a single specified vnode. Note: this is NOT a blocking operation.

Parameters

exportObject the Serializable array to be sent

destinationVnode the vnode ID of the receiving vnode

Implements Jpetra.Comm.

void Jpetra.CcjComm.setMyVnodeID ( int newVnodeID )

inline

Sets the vnode ID. The ID is also the rank, do not change this unless you know exaclty what you are doing.

Parameters

newVnodeID new proccess ID/rank

Implements Jpetra.Comm.

double [] Jpetra.CcjComm.sumAll ( double[] partialSums )

inline

Wrapper to CcjLink sumAll.

Implements Jpetra.Comm.

int [] Jpetra.CcjComm.sumAll ( int[] partialSums )

inline

Wrapper to CcjLink sumAll.

Implements Jpetra.Comm.

void Jpetra.CcjComm.threadBarrier ( )

inline

Makes each thread in this CCJ vnode wait until all threads in this vnode are ready. Not currently implemented.

The documentation for this class was generated from the following file:

CcjComm.java
