An implementation of the Partitioner interface that operates on Epetra matrices and linear systems. More...

#include <Isorropia_EpetraOperator.hpp>

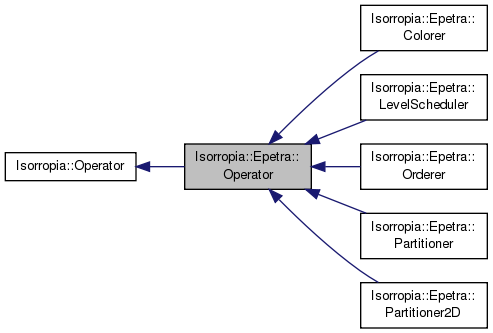

Inheritance diagram for Isorropia::Epetra::Operator:

Collaboration diagram for Isorropia::Epetra::Operator:

Public Member Functions
	Operator (Teuchos::RCP< const Epetra_CrsGraph > input_graph, const Teuchos::ParameterList &paramlist, int base)
	Constructor that accepts an Epetra_CrsGraph object. More...

	Operator (Teuchos::RCP< const Epetra_BlockMap > input_map, const Teuchos::ParameterList &paramlist, int base)
	Constructor that accepts an Epetra_BlockMap object. More...

	Operator (Teuchos::RCP< const Epetra_CrsGraph > input_graph, Teuchos::RCP< const Epetra_MultiVector > input_coords, const Teuchos::ParameterList &paramlist, int base)
	Constructor that accepts an Epetra_CrsGraph object and an Epetra_MultiVector object of coordinates. More...

	Operator (Teuchos::RCP< const Epetra_CrsGraph > input_graph, Teuchos::RCP< CostDescriber > costs, const Teuchos::ParameterList &paramlist, int base)
	Constructor that accepts an Epetra_CrsGraph object, a CostDescriber, an Epetra_MultiVector object of coordinates, and an Epetra_MultiVector object of coordinate weights. More...

	Operator (Teuchos::RCP< const Epetra_CrsGraph > input_graph, Teuchos::RCP< CostDescriber > costs, Teuchos::RCP< const Epetra_MultiVector > coords, Teuchos::RCP< const Epetra_MultiVector > weights, const Teuchos::ParameterList &paramlist, int base)
	Constructor that accepts an Epetra_CrsGraph object, a CostDescriber, an Epetra_MultiVector object of coordinates, and an Epetra_MultiVector object of coordinate weights. More...

	Operator (Teuchos::RCP< const Epetra_RowMatrix > input_matrix, const Teuchos::ParameterList &paramlist, int base)
	Constructor that accepts an Epetra_RowMatrix object. More...

	Operator (Teuchos::RCP< const Epetra_RowMatrix > input_matrix, Teuchos::RCP< const Epetra_MultiVector > coords, const Teuchos::ParameterList &paramlist, int base)
	Constructor that accepts an Epetra_RowMatrix object and an Epetra_MultiVector object of coordinates. More...

	Operator (Teuchos::RCP< const Epetra_RowMatrix > input_matrix, Teuchos::RCP< CostDescriber > costs, const Teuchos::ParameterList &paramlist, int base)
	Constructor that accepts an Epetra_RowMatrix object and a CostDescriber. More...

	Operator (Teuchos::RCP< const Epetra_RowMatrix > input_matrix, Teuchos::RCP< CostDescriber > costs, Teuchos::RCP< const Epetra_MultiVector > coords, Teuchos::RCP< const Epetra_MultiVector > weights, const Teuchos::ParameterList &paramlist, int base)
	Constructor that accepts an Epetra_RowMatrix object, a CostDescriber, an Epetra_MultiVector object of coordinates, and an Epetra_MultiVector object of coordinate weights. More...

	Operator (Teuchos::RCP< const Epetra_MultiVector > coords, const Teuchos::ParameterList &paramlist, int base)
	Constructor that accepts an Epetra_MultiVector object and a ParameterList. More...

	Operator (Teuchos::RCP< const Epetra_MultiVector > coords, Teuchos::RCP< const Epetra_MultiVector > weights, const Teuchos::ParameterList &paramlist, int base)
	Constructor that accepts an Epetra_MultiVector object and a ParameterList. More...

virtual	~Operator ()
	Destructor. More...

void	setParameters (const Teuchos::ParameterList &paramlist)
	setParameters() is an internal method which handles the parameters from a Teuchos::ParameterList object. More...

Teuchos::RCP < Isorropia::Epetra::CostDescriber > &	getCosts ()
	Get the cost object. More...

virtual void	compute (bool force_compute)=0
	Method which does the work of computing a new partitioning/coloring/ordering, depending on the child class used. More...

bool	alreadyComputed () const
	Query whether compute_operation() has already been called. More...

int	numProperties () const
	Return the number of different values used for "properties". More...

int	numLocalProperties () const
	Return the number of different values used for "properties" for this process only. More...

virtual const int &	operator[] (int myElem) const
	Return the new partition ID for a given element that resided locally in the old operation. More...

virtual int	numElemsWithProperty (int property) const
	Return the number of elements in a given partition. More...

virtual void	elemsWithProperty (int property, int *elementList, int len) const
	Fill user-allocated list (of length len) with the global element ids to be located in the given partition. More...

virtual int	extractPropertiesCopy (int len, int &size, int *array) const
	Copy a part of the property array. More...

virtual int	extractPropertiesView (int &size, const int *&array) const
	Give access of the property array that is owned by the current processor. More...

Protected Member Functions
void	computeNumberOfProperties ()

Protected Attributes
Teuchos::RCP< const Epetra_BlockMap >	input_map_

Teuchos::RCP< const Epetra_CrsGraph >	input_graph_

Teuchos::RCP< const Epetra_RowMatrix >	input_matrix_

Teuchos::RCP< const Epetra_MultiVector >	input_coords_

Teuchos::RCP < Isorropia::Epetra::CostDescriber >	costs_

Teuchos::RCP< const Epetra_MultiVector >	weights_

Teuchos::ParameterList	paramlist_

int	exportsSize_

std::vector< int >	imports_

std::vector< int >	properties_

bool	operation_already_computed_

int	global_num_vertex_weights_

int	global_num_graph_edge_weights_

int	global_num_hg_edge_weights_

Teuchos::RCP< Library >	lib_

int	base_

Private Member Functions
void	paramsToUpper (Teuchos::ParameterList &, int &changed, bool rmUnderscore=true)

void	stringToUpper (std::string &s, int &changed, bool rmUnderscore=false)

Private Attributes
int	numberOfProperties_

int	localNumberOfProperties_

std::vector< int >	numberElemsByProperties_

Detailed Description

An implementation of the Partitioner interface that operates on Epetra matrices and linear systems.

Constructor & Destructor Documentation

Isorropia::Epetra::Operator::Operator	(	Teuchos::RCP< const Epetra_CrsGraph >	input_graph,
		const Teuchos::ParameterList &	paramlist,
		int	base
	)

Constructor that accepts an Epetra_CrsGraph object.

Parameters

	input_graph	Matrix-graph object for which a new operation is to be computed.
[in]	paramlist	Teuchos::ParameterList which will be copied to an internal ParameterList attribute.
[in]	base	index base

If the ParameterList object contains a sublist named "Zoltan", then the Zoltan library is used to perform the operation. Also, any parameters in the "Zoltan" sublist will be relayed directly to Zoltan.

Isorropia::Epetra::Operator::Operator	(	Teuchos::RCP< const Epetra_BlockMap >	input_map,
		const Teuchos::ParameterList &	paramlist,
		int	base
	)

Constructor that accepts an Epetra_BlockMap object.

Parameters

[in]	input_map	BlockMap object for which a new operation is to be computed.
[in]	paramlist	Teuchos::ParameterList which will be copied to an internal ParameterList attribute.
[in]	base	If the ParameterList object contains a sublist named "Zoltan", then the Zoltan library is used to perform the operation. Also, any parameters in the "Zoltan" sublist will be relayed directly to Zoltan.

Isorropia::Epetra::Operator::Operator	(	Teuchos::RCP< const Epetra_CrsGraph >	input_graph,
		Teuchos::RCP< const Epetra_MultiVector >	input_coords,
		const Teuchos::ParameterList &	paramlist,
		int	base
	)

Constructor that accepts an Epetra_CrsGraph object and an Epetra_MultiVector object of coordinates.

Parameters

	input_graph	Matrix-graph object for which a new operation is to be computed.
[in]	input_coords	The input geometric coordinates (represented in a multivector)
[in]	paramlist	Teuchos::ParameterList which will be copied to an internal ParameterList attribute.
[in]	base	If the ParameterList object contains a sublist named "Zoltan", then the Zoltan library is used to perform the operation. Also, any parameters in the "Zoltan" sublist will be relayed directly to Zoltan.

Isorropia::Epetra::Operator::Operator	(	Teuchos::RCP< const Epetra_CrsGraph >	input_graph,
		Teuchos::RCP< CostDescriber >	costs,
		const Teuchos::ParameterList &	paramlist,
		int	base
	)

Constructor that accepts an Epetra_CrsGraph object, a CostDescriber, an Epetra_MultiVector object of coordinates, and an Epetra_MultiVector object of coordinate weights.

Parameters

	input_graph	Matrix-graph object for which a new operation is to be computed.
	costs	CostDescriber object which allows for user-specified weights
	paramlist	Teuchos::ParameterList which will be copied to an internal ParameterList attribute.
[in]	base	If the ParameterList object contains a sublist named "Zoltan", then the Zoltan library is used to perform the operation. Also, any parameters in the "Zoltan" sublist will be relayed directly to Zoltan.

Isorropia::Epetra::Operator::Operator	(	Teuchos::RCP< const Epetra_CrsGraph >	input_graph,
		Teuchos::RCP< CostDescriber >	costs,
		Teuchos::RCP< const Epetra_MultiVector >	coords,
		Teuchos::RCP< const Epetra_MultiVector >	weights,
		const Teuchos::ParameterList &	paramlist,
		int	base
	)

Constructor that accepts an Epetra_CrsGraph object, a CostDescriber, an Epetra_MultiVector object of coordinates, and an Epetra_MultiVector object of coordinate weights.

Parameters

	input_graph	Matrix-graph object for which a new operation is to be computed.
	costs	CostDescriber object which allows for user-specified weights
	coords	The input geometric coordinates (represented in a multivector)
	weights	A one or more dimensional weight for each of the The input geometric coordinates
[in]	paramlist	Teuchos::ParameterList which will be copied to an internal ParameterList attribute.
[in]	base	If the ParameterList object contains a sublist named "Zoltan", then the Zoltan library is used to perform the operation. Also, any parameters in the "Zoltan" sublist will be relayed directly to Zoltan.

Isorropia::Epetra::Operator::Operator	(	Teuchos::RCP< const Epetra_RowMatrix >	input_matrix,
		const Teuchos::ParameterList &	paramlist,
		int	base
	)

Constructor that accepts an Epetra_RowMatrix object.

Parameters

	input_matrix	Matrix object for which a new operation is to be computed.
[in]	paramlist	Teuchos::ParameterList which will be copied to an internal ParameterList attribute.
[in]	base	Index base

If the ParameterList object contains a sublist named "Zoltan", then the Zoltan library is used to perform the operation. Also, any parameters in the "Zoltan" sublist will be relayed directly to Zoltan.

Isorropia::Epetra::Operator::Operator	(	Teuchos::RCP< const Epetra_RowMatrix >	input_matrix,
		Teuchos::RCP< const Epetra_MultiVector >	coords,
		const Teuchos::ParameterList &	paramlist,
		int	base
	)

Constructor that accepts an Epetra_RowMatrix object and an Epetra_MultiVector object of coordinates.

Parameters

	input_matrix	Matrix object for which a new operation is to be computed.
	coords	The input geometric coordinates (represented in a multivector)
[in]	paramlist	Teuchos::ParameterList which will be copied to an internal ParameterList attribute.
[in]	base	If the ParameterList object contains a sublist named "Zoltan", then the Zoltan library is used to perform the operation. Also, any parameters in the "Zoltan" sublist will be relayed directly to Zoltan.

Isorropia::Epetra::Operator::Operator	(	Teuchos::RCP< const Epetra_RowMatrix >	input_matrix,
		Teuchos::RCP< CostDescriber >	costs,
		const Teuchos::ParameterList &	paramlist,
		int	base
	)

Constructor that accepts an Epetra_RowMatrix object and a CostDescriber.

Parameters

	input_matrix	Matrix object for which a new operation is to be computed.
	costs	CostDescriber object which allows for user-specified weights
[in]	paramlist	Teuchos::ParameterList which will be copied to an internal ParameterList attribute.
[in]	base	If the ParameterList object contains a sublist named "Zoltan", then the Zoltan library is used to perform the operation. Also, any parameters in the "Zoltan" sublist will be relayed directly to Zoltan.

Isorropia::Epetra::Operator::Operator	(	Teuchos::RCP< const Epetra_RowMatrix >	input_matrix,
		Teuchos::RCP< CostDescriber >	costs,
		Teuchos::RCP< const Epetra_MultiVector >	coords,
		Teuchos::RCP< const Epetra_MultiVector >	weights,
		const Teuchos::ParameterList &	paramlist,
		int	base
	)

Constructor that accepts an Epetra_RowMatrix object, a CostDescriber, an Epetra_MultiVector object of coordinates, and an Epetra_MultiVector object of coordinate weights.

Parameters

	input_matrix	Matrix object for which a new operation is to be computed.
	costs	CostDescriber object which allows for user-specified weights
	coords	The input geometric coordinates (represented in a multivector)
	weights	A one or more dimensional weight for each of the The input geometric coordinates
[in]	paramlist	Teuchos::ParameterList which will be copied to an internal ParameterList attribute.
[in]	base	If the ParameterList object contains a sublist named "Zoltan", then the Zoltan library is used to perform the operation. Also, any parameters in the "Zoltan" sublist will be relayed directly to Zoltan.

Isorropia::Epetra::Operator::Operator	(	Teuchos::RCP< const Epetra_MultiVector >	coords,
		const Teuchos::ParameterList &	paramlist,
		int	base
	)

Constructor that accepts an Epetra_MultiVector object and a ParameterList.

Parameters

	coords	The input geometric coordinates (represented in a multivector)
[in]	paramlist	Teuchos::ParameterList which will be copied to an internal ParameterList attribute.
[in]	base	index base

If the ParameterList object contains a sublist named "Zoltan", then the Zoltan library is used to perform the operation. Also, any parameters in the "Zoltan" sublist will be relayed directly to Zoltan.

Isorropia::Epetra::Operator::Operator	(	Teuchos::RCP< const Epetra_MultiVector >	coords,
		Teuchos::RCP< const Epetra_MultiVector >	weights,
		const Teuchos::ParameterList &	paramlist,
		int	base
	)

Constructor that accepts an Epetra_MultiVector object and a ParameterList.

Parameters

	coords	The input geometric coordinates (represented in a multivector)
	weights	A one or more dimensional weight for each of the The input geometric coordinates
[in]	paramlist	Teuchos::ParameterList which will be copied to an internal ParameterList attribute.
[in]	base	index base

If the ParameterList object contains a sublist named "Zoltan", then the Zoltan library is used to perform the operation. Also, any parameters in the "Zoltan" sublist will be relayed directly to Zoltan.

virtual Isorropia::Epetra::Operator::~Operator ( )

virtual

Destructor.

Reimplemented from Isorropia::Operator.

Member Function Documentation

void Isorropia::Epetra::Operator::setParameters ( const Teuchos::ParameterList & paramlist )

virtual

setParameters() is an internal method which handles the parameters from a Teuchos::ParameterList object.

Implements Isorropia::Operator.

Teuchos::RCP<Isorropia::Epetra::CostDescriber>& Isorropia::Epetra::Operator::getCosts ( )

inline

Get the cost object.

virtual void Isorropia::Epetra::Operator::compute ( bool forceRecomputing )

pure virtual

Method which does the work of computing a new partitioning/coloring/ordering, depending on the child class used.

Parameters

forceRecomputing Optional argument defaults to false. Depending on the implementation, compute() should only perform a computation the first time it is called, and subsequent repeated calls are no-ops. If the user's intent is to re-compute the results (e.g., if parameters or other inputs have been changed), then setting this flag to true will force a new result to be computed.

Implements Isorropia::Operator.

Implemented in Isorropia::Epetra::Partitioner, Isorropia::Epetra::Colorer, Isorropia::Epetra::Partitioner2D, Isorropia::Epetra::Orderer, and Isorropia::Epetra::LevelScheduler.

bool Isorropia::Epetra::Operator::alreadyComputed ( ) const

inlinevirtual

Query whether compute_operation() has already been called.

Implements Isorropia::Operator.

int Isorropia::Epetra::Operator::numProperties ( ) const

inlinevirtual

Return the number of different values used for "properties".

For example, the number of colors or the number of parts used for the overall graph/matrix.

Returns: Global number of values for properties

Remarks: Infact, it returns the upper bound of the interval of taken values. For example, for the colors "1,2,4" , it will return "4"

Implements Isorropia::Operator.

int Isorropia::Epetra::Operator::numLocalProperties ( ) const

inlinevirtual

Return the number of different values used for "properties" for this process only.

Returns: Local number of values for properties

Implements Isorropia::Operator.

virtual const int& Isorropia::Epetra::Operator::operator[] ( int myElem ) const

virtual

Return the new partition ID for a given element that resided locally in the old operation.

Implements Isorropia::Operator.

virtual int Isorropia::Epetra::Operator::numElemsWithProperty ( int property ) const

virtual

Return the number of elements in a given partition.

Implements Isorropia::Operator.

virtual void Isorropia::Epetra::Operator::elemsWithProperty	(	int	property,
		int *	elementList,
		int	len
	)		const

virtual

Fill user-allocated list (of length len) with the global element ids to be located in the given partition.

Implements Isorropia::Operator.

virtual int Isorropia::Epetra::Operator::extractPropertiesCopy	(	int	len,
		int &	size,
		int *	array
	)		const

virtual

Copy a part of the property array.

Parameters

len	[in] of the array given by the user.
size	[out] Number of elements in the array.
array	[out] Array of properties. Allocated by the user with a size of at least `len` elements.

Remarks: Memory space which is not useful in the array is not initialized or used in this method.

See Also: Isorropia::Operator::extractPropertiesView()

Implements Isorropia::Operator.

virtual int Isorropia::Epetra::Operator::extractPropertiesView	(	int &	size,
		const int *&	array
	)		const

virtual

Give access of the property array that is owned by the current processor.

Parameters

size	[out] Number of elements in the array.
array	[out] Pointer to the the properties array inside the object.

Remarks: This pointer is only significant if the object still exists. Otherwise, you must use

See Also: Isorropia::Operator::extractPropertiesCopy().; Isorropia::Operator::extractPropertiesCopy()

Implements Isorropia::Operator.

void Isorropia::Epetra::Operator::paramsToUpper	(	Teuchos::ParameterList &	,
		int &	changed,
		bool	rmUnderscore = `true`
	)

private

void Isorropia::Epetra::Operator::stringToUpper	(	std::string &	s,
		int &	changed,
		bool	rmUnderscore = `false`
	)

private

void Isorropia::Epetra::Operator::computeNumberOfProperties ( )

protected

Member Data Documentation

int Isorropia::Epetra::Operator::numberOfProperties_

private

int Isorropia::Epetra::Operator::localNumberOfProperties_

private

std::vector<int> Isorropia::Epetra::Operator::numberElemsByProperties_

private

Teuchos::RCP<const Epetra_BlockMap> Isorropia::Epetra::Operator::input_map_

protected

Teuchos::RCP<const Epetra_CrsGraph> Isorropia::Epetra::Operator::input_graph_

protected

Teuchos::RCP<const Epetra_RowMatrix> Isorropia::Epetra::Operator::input_matrix_

protected

Teuchos::RCP<const Epetra_MultiVector> Isorropia::Epetra::Operator::input_coords_

protected

Teuchos::RCP<Isorropia::Epetra::CostDescriber> Isorropia::Epetra::Operator::costs_

protected

Teuchos::RCP<const Epetra_MultiVector> Isorropia::Epetra::Operator::weights_

protected

Teuchos::ParameterList Isorropia::Epetra::Operator::paramlist_

protected

int Isorropia::Epetra::Operator::exportsSize_

protected

std::vector<int> Isorropia::Epetra::Operator::imports_

protected

std::vector<int> Isorropia::Epetra::Operator::properties_

protected

bool Isorropia::Epetra::Operator::operation_already_computed_

protected

int Isorropia::Epetra::Operator::global_num_vertex_weights_

protected

int Isorropia::Epetra::Operator::global_num_graph_edge_weights_

protected

int Isorropia::Epetra::Operator::global_num_hg_edge_weights_

protected

Teuchos::RCP<Library> Isorropia::Epetra::Operator::lib_

protected

int Isorropia::Epetra::Operator::base_

protected

The documentation for this class was generated from the following file:

Isorropia_EpetraOperator.hpp

Public Member Functions

Protected Member Functions

Protected Attributes

Private Member Functions

Private Attributes

Detailed Description

Constructor & Destructor Documentation

Member Function Documentation

Member Data Documentation
