Access only local rows and columns of a sparse matrix. More...

#include <Ifpack2_LocalFilter_decl.hpp>

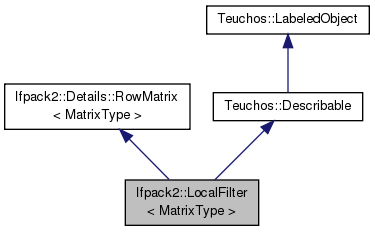

Inheritance diagram for Ifpack2::LocalFilter< MatrixType >:

Public Types
Typedefs
typedef MatrixType::scalar_type	scalar_type
	The type of the entries of the input MatrixType. More...

typedef MatrixType::local_ordinal_type	local_ordinal_type
	The type of local indices in the input MatrixType. More...

typedef MatrixType::global_ordinal_type	global_ordinal_type
	The type of global indices in the input MatrixType. More...

typedef MatrixType::node_type	node_type
	The Node type used by the input MatrixType. More...

typedef MatrixType::global_inds_host_view_type	global_inds_host_view_type

typedef MatrixType::local_inds_host_view_type	local_inds_host_view_type

typedef MatrixType::values_host_view_type	values_host_view_type

typedef MatrixType::nonconst_global_inds_host_view_type	nonconst_global_inds_host_view_type

typedef MatrixType::nonconst_local_inds_host_view_type	nonconst_local_inds_host_view_type

typedef MatrixType::nonconst_values_host_view_type	nonconst_values_host_view_type

typedef Teuchos::ScalarTraits < scalar_type >::magnitudeType	magnitude_type
	The type of the magnitude (absolute value) of a matrix entry. More...

typedef Tpetra::RowMatrix < scalar_type, local_ordinal_type, global_ordinal_type, node_type >	row_matrix_type
	Type of the Tpetra::RowMatrix specialization that this class uses. More...

typedef Tpetra::RowGraph < local_ordinal_type, global_ordinal_type, node_type >	row_graph_type
	Type of the Tpetra::RowGraph specialization that this class uses. More...

typedef Tpetra::Map < local_ordinal_type, global_ordinal_type, node_type >	map_type
	Type of the Tpetra::Map specialization that this class uses. More...

typedef row_matrix_type::mag_type	mag_type

Public Types inherited from Ifpack2::Details::RowMatrix< MatrixType >
using	scalar_type = typename MatrixType::scalar_type

using	local_ordinal_type = typename MatrixType::local_ordinal_type

using	global_ordinal_type = typename MatrixType::global_ordinal_type

using	node_type = typename MatrixType::node_type

Public Member Functions
Implementation of Teuchos::Describable
virtual std::string	description () const
	A one-line description of this object. More...

virtual void	describe (Teuchos::FancyOStream &out, const Teuchos::EVerbosityLevel verbLevel=Teuchos::Describable::verbLevel_default) const
	Print the object to the given output stream. More...

Constructor and destructor
	LocalFilter (const Teuchos::RCP< const row_matrix_type > &A)
	Constructor. More...

virtual	~LocalFilter ()
	Destructor. More...

Matrix Query Methods
virtual Teuchos::RCP< const Teuchos::Comm< int > >	getComm () const
	Returns the communicator. More...

virtual Teuchos::RCP< const map_type >	getRowMap () const
	Returns the Map that describes the row distribution in this matrix. More...

virtual Teuchos::RCP< const map_type >	getColMap () const
	Returns the Map that describes the column distribution in this matrix. More...

virtual Teuchos::RCP< const map_type >	getDomainMap () const
	Returns the Map that describes the domain distribution in this matrix. More...

virtual Teuchos::RCP< const map_type >	getRangeMap () const
	Returns the Map that describes the range distribution in this matrix. More...

virtual Teuchos::RCP< const Tpetra::RowGraph < local_ordinal_type, global_ordinal_type, node_type > >	getGraph () const
	The (locally filtered) matrix's graph. More...

virtual global_size_t	getGlobalNumRows () const
	The number of global rows in this matrix. More...

virtual global_size_t	getGlobalNumCols () const
	The number of global columns in this matrix. More...

virtual size_t	getLocalNumRows () const
	The number of rows owned on the calling process. More...

virtual size_t	getLocalNumCols () const
	The number of columns in the (locally filtered) matrix. More...

virtual global_ordinal_type	getIndexBase () const
	Returns the index base for global indices for this matrix. More...

virtual global_size_t	getGlobalNumEntries () const
	Returns the global number of entries in this matrix. More...

virtual size_t	getLocalNumEntries () const
	Returns the local number of entries in this matrix. More...

virtual local_ordinal_type	getBlockSize () const
	The number of degrees of freedom per mesh point. More...

virtual size_t	getNumEntriesInGlobalRow (global_ordinal_type globalRow) const
	The current number of entries on this node in the specified global row. More...

virtual size_t	getNumEntriesInLocalRow (local_ordinal_type localRow) const
	The current number of entries on this node in the specified local row. More...

virtual size_t	getGlobalMaxNumRowEntries () const
	The maximum number of entries across all rows/columns on all processes. More...

virtual size_t	getLocalMaxNumRowEntries () const
	The maximum number of entries across all rows/columns on this process. More...

virtual bool	hasColMap () const
	Whether this matrix has a well-defined column Map. More...

virtual bool	isLocallyIndexed () const
	Whether the underlying sparse matrix is locally (opposite of globally) indexed. More...

virtual bool	isGloballyIndexed () const
	Whether the underlying sparse matrix is globally (opposite of locally) indexed. More...

virtual bool	isFillComplete () const
	Returns `true` if fillComplete() has been called. More...

virtual bool	supportsRowViews () const
	Returns `true` if RowViews are supported. More...

Methods for getting the entries in a row.
virtual void	getGlobalRowCopy (global_ordinal_type GlobalRow, nonconst_global_inds_host_view_type &Indices, nonconst_values_host_view_type &Values, size_t &NumEntries) const
	Get the entries in the given row, using global indices. More...

virtual void	getLocalRowCopy (local_ordinal_type LocalRow, nonconst_local_inds_host_view_type &Indices, nonconst_values_host_view_type &Values, size_t &NumEntries) const
	Get the entries in the given row, using local indices. More...

virtual void	getGlobalRowView (global_ordinal_type GlobalRow, global_inds_host_view_type &indices, values_host_view_type &values) const
	Extract a const, non-persisting view of global indices in a specified row of the matrix. More...

virtual void	getLocalRowView (local_ordinal_type LocalRow, local_inds_host_view_type &indices, values_host_view_type &values) const
	Extract a const, non-persisting view of local indices in a specified row of the matrix. More...

virtual void	getLocalDiagCopy (Tpetra::Vector< scalar_type, local_ordinal_type, global_ordinal_type, node_type > &diag) const
	Get the diagonal entries of the (locally filtered) matrix. More...

Mathematical methods
virtual void	leftScale (const Tpetra::Vector< scalar_type, local_ordinal_type, global_ordinal_type, node_type > &x)
	Scales the RowMatrix on the left with the Vector x. More...

virtual void	rightScale (const Tpetra::Vector< scalar_type, local_ordinal_type, global_ordinal_type, node_type > &x)
	Scales the RowMatrix on the right with the Vector x. More...

virtual mag_type	getFrobeniusNorm () const
	The Frobenius norm of the (locally filtered) matrix. More...

virtual void	apply (const Tpetra::MultiVector< scalar_type, local_ordinal_type, global_ordinal_type, node_type > &X, Tpetra::MultiVector< scalar_type, local_ordinal_type, global_ordinal_type, node_type > &Y, Teuchos::ETransp mode=Teuchos::NO_TRANS, scalar_type alpha=Teuchos::ScalarTraits< scalar_type >::one(), scalar_type beta=Teuchos::ScalarTraits< scalar_type >::zero()) const
	Compute Y = betaY + alphaA_local*X. More...

virtual bool	hasTransposeApply () const
	Whether this operator supports applying the transpose or conjugate transpose. More...

virtual Teuchos::RCP< const row_matrix_type >	getUnderlyingMatrix () const
	Return matrix that LocalFilter was built on. More...

Public Member Functions inherited from Ifpack2::Details::RowMatrix< MatrixType >
virtual	~RowMatrix ()=default
	Destructor (virtual for memory safety of derived classes) More...

Detailed Description

template<class MatrixType>
class Ifpack2::LocalFilter< MatrixType >

Access only local rows and columns of a sparse matrix.

Template Parameters

MatrixType A specialization of Tpetra::RowMatrix.

Summary

LocalFilter makes a global matrix "appear" local. Solving a linear system with the LocalFilter of a matrix A, if possible, is equivalent to applying one step of nonoverlapping additive Schwarz to A. This class is an implementation detail of Ifpack2. It is not meant for users. It may be useful to Ifpack2 developers who want to implement a "local" preconditioner (i.e., that only works within a single MPI process), and would like the preconditioner to work for a global matrix. For example, ILUT uses LocalFilter to extract and compute the incomplete factorizaton of the "local matrix." This makes the input to ILUT appear like a square matrix, assuming that the domain and range Maps have the same number of entries on each process. This in turn makes the result of ILUT suitable for solving linear systems.

How does it work?

View of the local rows and columns

LocalFilter provides a view of only the local rows and columns of an existing sparse matrix. "Local rows" are those rows in the row Map that are owned by the range Map on the calling process. "Local columns" are those columns in the column Map that are owned by the domain Map on the calling process. The view's communicator contains only the local process (in MPI terms, MPI_COMM_SELF), so each process will have its own distinct view of its local part of the matrix.

Square diagonal block of the original matrix

If the following conditions hold on the Maps of a matrix A, then the view resulting from a LocalFilter of A will be that of a square diagonal block of A:

Domain and range Maps are the same
On every process, the row Map's entries are the same as the range Map's entries, possibly followed by additional remote entries
On every process, the column Map's entries are the same as the domain Map's entries, possibly followed by additional remote entries

These conditions commonly hold for a Tpetra::CrsMatrix constructed without a column Map, after fillComplete() has been called on it, with default domain and range Maps.

Remapping of global indices

The global indices of the view's domain and range Maps will be different than those in the original matrix's domain and range Maps. The global indices of the new (domain, range) Map will be remapped to a consecutive sequence, corresponding exactly to the local indices of the original (domain, range) Map. This ensures that the local indices of the old and new Maps match.

Not necessarily a copy

This class does not necessarily copy the entire sparse matrix. It may choose instead just to "filter out" the nonlocal entries. The effect on the LocalFilter of changing the entries or structure of the original matrix is undefined. LocalFilter may even make different implementation choices on different MPI processes. It may do so because it does not invoke MPI communication outside of the calling process.

Examples

Here is an example of how to apply a LocalFilter to an existing Tpetra sparse matrix:

#include "Ifpack2_LocalFilter.hpp"
// ...
using Teuchos::RCP;
typedef Tpetra::RowMatrix<double> row_matrix_type;
typedef Tpetra::CrsMatrix<double> crs_matrix_type;
RCP<crs_matrix_type> A = ...;
// ... fill the entries of A ...
A->FillComplete ();
Ifpack2::LocalFilter<row_matrix_type> A_local (A);

Here is an example of how to apply a LocalFilter, using A and A_local from the example above.

typedef Tpetra::Vector<double> vec_type;
// Make vectors x and y suitable for A->apply()
vec_type x (A.domainMap ());
vec_type y (A.rangeMap ());
// ... fill x ...
A->apply (x, y);
// Reinterpret x and y as local views suitable for A_local->apply()
RCP<const vec_type> x_local = x.offsetView (A_local.getDomainMap (), 0);
RCP<vec_type> y_local = y.offsetViewNonConst (A_local.getRangeMap (), 0);
// Apply the locally filtered version of A
A_local.apply (*x_local, *y_local);

Member Typedef Documentation

template<class MatrixType>

typedef MatrixType::scalar_type Ifpack2::LocalFilter< MatrixType >::scalar_type

The type of the entries of the input MatrixType.

template<class MatrixType>

typedef MatrixType::local_ordinal_type Ifpack2::LocalFilter< MatrixType >::local_ordinal_type

The type of local indices in the input MatrixType.

template<class MatrixType>

typedef MatrixType::global_ordinal_type Ifpack2::LocalFilter< MatrixType >::global_ordinal_type

The type of global indices in the input MatrixType.

template<class MatrixType>

typedef MatrixType::node_type Ifpack2::LocalFilter< MatrixType >::node_type

The Node type used by the input MatrixType.

template<class MatrixType>

typedef Teuchos::ScalarTraits<scalar_type>::magnitudeType Ifpack2::LocalFilter< MatrixType >::magnitude_type

The type of the magnitude (absolute value) of a matrix entry.

template<class MatrixType>

typedef Tpetra::RowMatrix<scalar_type, local_ordinal_type, global_ordinal_type, node_type> Ifpack2::LocalFilter< MatrixType >::row_matrix_type

Type of the Tpetra::RowMatrix specialization that this class uses.

template<class MatrixType>

typedef Tpetra::RowGraph<local_ordinal_type, global_ordinal_type, node_type> Ifpack2::LocalFilter< MatrixType >::row_graph_type

Type of the Tpetra::RowGraph specialization that this class uses.

template<class MatrixType>

typedef Tpetra::Map<local_ordinal_type, global_ordinal_type, node_type> Ifpack2::LocalFilter< MatrixType >::map_type

Type of the Tpetra::Map specialization that this class uses.

Constructor & Destructor Documentation

template<class MatrixType >

Ifpack2::LocalFilter< MatrixType >::LocalFilter ( const Teuchos::RCP< const row_matrix_type > & A )

explicit

Constructor.

Parameters

A	[in] The sparse matrix to which to apply the local filter.

This class will not modify the input matrix.

template<class MatrixType >

Ifpack2::LocalFilter< MatrixType >::~LocalFilter ( )

virtual

Destructor.

Member Function Documentation

template<class MatrixType >

std::string Ifpack2::LocalFilter< MatrixType >::description ( ) const

virtual

A one-line description of this object.

Reimplemented from Teuchos::Describable.

template<class MatrixType >

void Ifpack2::LocalFilter< MatrixType >::describe	(	Teuchos::FancyOStream &	out,
		const Teuchos::EVerbosityLevel	verbLevel = `Teuchos::Describable::verbLevel_default`
	)		const

virtual

Print the object to the given output stream.

Reimplemented from Teuchos::Describable.

template<class MatrixType >

Teuchos::RCP< const Teuchos::Comm< int > > Ifpack2::LocalFilter< MatrixType >::getComm ( ) const

virtual

Returns the communicator.

template<class MatrixType >

Teuchos::RCP< const Tpetra::Map< typename MatrixType::local_ordinal_type, typename MatrixType::global_ordinal_type, typename MatrixType::node_type > > Ifpack2::LocalFilter< MatrixType >::getRowMap ( ) const

virtual

Returns the Map that describes the row distribution in this matrix.

template<class MatrixType >

Teuchos::RCP< const Tpetra::Map< typename MatrixType::local_ordinal_type, typename MatrixType::global_ordinal_type, typename MatrixType::node_type > > Ifpack2::LocalFilter< MatrixType >::getColMap ( ) const

virtual

Returns the Map that describes the column distribution in this matrix.

template<class MatrixType >

Teuchos::RCP< const Tpetra::Map< typename MatrixType::local_ordinal_type, typename MatrixType::global_ordinal_type, typename MatrixType::node_type > > Ifpack2::LocalFilter< MatrixType >::getDomainMap ( ) const

virtual

Returns the Map that describes the domain distribution in this matrix.

template<class MatrixType >

Teuchos::RCP< const Tpetra::Map< typename MatrixType::local_ordinal_type, typename MatrixType::global_ordinal_type, typename MatrixType::node_type > > Ifpack2::LocalFilter< MatrixType >::getRangeMap ( ) const

virtual

Returns the Map that describes the range distribution in this matrix.

template<class MatrixType >

Teuchos::RCP< const Tpetra::RowGraph< typename MatrixType::local_ordinal_type, typename MatrixType::global_ordinal_type, typename MatrixType::node_type > > Ifpack2::LocalFilter< MatrixType >::getGraph ( ) const

virtual

The (locally filtered) matrix's graph.

template<class MatrixType >

global_size_t Ifpack2::LocalFilter< MatrixType >::getGlobalNumRows ( ) const

virtual

The number of global rows in this matrix.

template<class MatrixType >

global_size_t Ifpack2::LocalFilter< MatrixType >::getGlobalNumCols ( ) const

virtual

The number of global columns in this matrix.

template<class MatrixType >

size_t Ifpack2::LocalFilter< MatrixType >::getLocalNumRows ( ) const

virtual

The number of rows owned on the calling process.

template<class MatrixType >

size_t Ifpack2::LocalFilter< MatrixType >::getLocalNumCols ( ) const

virtual

The number of columns in the (locally filtered) matrix.

template<class MatrixType >

MatrixType::global_ordinal_type Ifpack2::LocalFilter< MatrixType >::getIndexBase ( ) const

virtual

Returns the index base for global indices for this matrix.

template<class MatrixType >

global_size_t Ifpack2::LocalFilter< MatrixType >::getGlobalNumEntries ( ) const

virtual

Returns the global number of entries in this matrix.

template<class MatrixType >

size_t Ifpack2::LocalFilter< MatrixType >::getLocalNumEntries ( ) const

virtual

Returns the local number of entries in this matrix.

template<class MatrixType >

MatrixType::local_ordinal_type Ifpack2::LocalFilter< MatrixType >::getBlockSize ( ) const

virtual

The number of degrees of freedom per mesh point.

template<class MatrixType >

size_t Ifpack2::LocalFilter< MatrixType >::getNumEntriesInGlobalRow ( global_ordinal_type globalRow ) const

virtual

The current number of entries on this node in the specified global row.

Returns: Teuchos::OrdinalTraits<size_t>::invalid() if the specified row is not owned by this process, otherwise the number of entries in that row on this process.

template<class MatrixType >

size_t Ifpack2::LocalFilter< MatrixType >::getNumEntriesInLocalRow ( local_ordinal_type localRow ) const

virtual

The current number of entries on this node in the specified local row.

Returns: Teuchos::OrdinalTraits<size_t>::invalid() if the specified local row is not valid on this process, otherwise the number of entries in that row on this process.

template<class MatrixType >

size_t Ifpack2::LocalFilter< MatrixType >::getGlobalMaxNumRowEntries ( ) const

virtual

The maximum number of entries across all rows/columns on all processes.

template<class MatrixType >

size_t Ifpack2::LocalFilter< MatrixType >::getLocalMaxNumRowEntries ( ) const

virtual

The maximum number of entries across all rows/columns on this process.

template<class MatrixType >

bool Ifpack2::LocalFilter< MatrixType >::hasColMap ( ) const

virtual

Whether this matrix has a well-defined column Map.

template<class MatrixType >

bool Ifpack2::LocalFilter< MatrixType >::isLocallyIndexed ( ) const

virtual

Whether the underlying sparse matrix is locally (opposite of globally) indexed.

template<class MatrixType >

bool Ifpack2::LocalFilter< MatrixType >::isGloballyIndexed ( ) const

virtual

Whether the underlying sparse matrix is globally (opposite of locally) indexed.

template<class MatrixType >

bool Ifpack2::LocalFilter< MatrixType >::isFillComplete ( ) const

virtual

Returns true if fillComplete() has been called.

template<class MatrixType >

bool Ifpack2::LocalFilter< MatrixType >::supportsRowViews ( ) const

virtual

Returns true if RowViews are supported.

template<class MatrixType >

void Ifpack2::LocalFilter< MatrixType >::getGlobalRowCopy	(	global_ordinal_type	GlobalRow,
		nonconst_global_inds_host_view_type &	Indices,
		nonconst_values_host_view_type &	Values,
		size_t &	NumEntries
	)		const

virtual

Get the entries in the given row, using global indices.

Parameters

GlobalRow	[i] Global index of the row for which indices are desired.
Indices	[out] Global indices of the entries in the given row.
Values	[out] Values of the entries in the given row.
NumEntries	[out] Number of entries in the row.

This method throws an exception if either output array is not large enough to hold the data associated with row GlobalRow. If GlobalRow does not belong to the calling process, then Indices and Values are unchanged and NumIndices is Teuchos::OrdinalTraits<size_t>::invalid() on output.

template<class MatrixType >

void Ifpack2::LocalFilter< MatrixType >::getLocalRowCopy	(	local_ordinal_type	LocalRow,
		nonconst_local_inds_host_view_type &	Indices,
		nonconst_values_host_view_type &	Values,
		size_t &	NumEntries
	)		const

virtual

Get the entries in the given row, using local indices.

Parameters

LocalRow	[i] Local index of the row for which indices are desired.
Indices	[out] Local indices of the entries in the given row.
Values	[out] Values of the entries in the given row.
NumEntries	[out] Number of entries in the row.

This method throws an exception if either output array is not large enough to hold the data associated with row LocalRow. If LocalRow does not belong to the calling process, then Indices and Values are unchanged and NumIndices is Teuchos::OrdinalTraits<size_t>::invalid() on output.

template<class MatrixType >

void Ifpack2::LocalFilter< MatrixType >::getGlobalRowView	(	global_ordinal_type	GlobalRow,
		global_inds_host_view_type &	indices,
		values_host_view_type &	values
	)		const

virtual

Extract a const, non-persisting view of global indices in a specified row of the matrix.

Parameters

GlobalRow	[in] Global row number for which indices are desired.
Indices	[out] Global column indices corresponding to values.
Values	[out] Row values

Precondition: isLocallyIndexed() == false

Postcondition: indices.size() == getNumEntriesInGlobalRow(GlobalRow)

Note: If GlobalRow does not belong to this node, then indices is set to null.

template<class MatrixType >

void Ifpack2::LocalFilter< MatrixType >::getLocalRowView	(	local_ordinal_type	LocalRow,
		local_inds_host_view_type &	indices,
		values_host_view_type &	values
	)		const

virtual

Extract a const, non-persisting view of local indices in a specified row of the matrix.

Parameters

LocalRow	[in] Local row number for which indices are desired.
Indices	[out] Local column indices corresponding to values.
Values	[out] Row values

Precondition: isGloballyIndexed() == false

Postcondition: indices.size() == getNumEntriesInLocalRow(LocalRow)

Note: If LocalRow does not belong to this node, then indices is set to null.

template<class MatrixType >

void Ifpack2::LocalFilter< MatrixType >::getLocalDiagCopy ( Tpetra::Vector< scalar_type, local_ordinal_type, global_ordinal_type, node_type > & diag ) const

virtual

Get the diagonal entries of the (locally filtered) matrix.

Parameters

diag	[in/out] On input: a Tpetra::Vector whose Map is the same as the local filter's row Map, which in turn is the same as the original matrix's row Map. On output: filled with the diagonal entries owned by the calling process.

template<class MatrixType >

void Ifpack2::LocalFilter< MatrixType >::leftScale ( const Tpetra::Vector< scalar_type, local_ordinal_type, global_ordinal_type, node_type > & x )

virtual

Scales the RowMatrix on the left with the Vector x.

This matrix will be scaled such that A(i,j) = x(i)*A(i,j) where i denoes the global row number of A and j denotes the global column number of A.

Parameters

x	A vector to left scale this matrix.

template<class MatrixType >

void Ifpack2::LocalFilter< MatrixType >::rightScale ( const Tpetra::Vector< scalar_type, local_ordinal_type, global_ordinal_type, node_type > & x )

virtual

Scales the RowMatrix on the right with the Vector x.

This matrix will be scaled such that A(i,j) = x(j)*A(i,j) where i denoes the global row number of A and j denotes the global column number of A.

Parameters

x	A vector to right scale this matrix.

template<class MatrixType >

LocalFilter< MatrixType >::mag_type Ifpack2::LocalFilter< MatrixType >::getFrobeniusNorm ( ) const

virtual

The Frobenius norm of the (locally filtered) matrix.

This method may return a different value on each process, because this method computes the norm of the locally filtered matrix, which may be different on each process.

The Frobenius norm of a matrix \(A\) is defined as \(\|A\|_F = \sqrt{\sum_{i,j} \|A_{ij}\|^2}\).

template<class MatrixType >

void Ifpack2::LocalFilter< MatrixType >::apply	(	const Tpetra::MultiVector< scalar_type, local_ordinal_type, global_ordinal_type, node_type > &	X,
		Tpetra::MultiVector< scalar_type, local_ordinal_type, global_ordinal_type, node_type > &	Y,
		Teuchos::ETransp	mode = `Teuchos::NO_TRANS`,
		scalar_type	alpha = `Teuchos::ScalarTraits<scalar_type>::one()`,
		scalar_type	beta = `Teuchos::ScalarTraits<scalar_type>::zero()`
	)		const

virtual

Compute Y = beta*Y + alpha*A_local*X.

If beta == 0, apply() must overwrite Y, so that any values in Y (including NaNs) are ignored. If alpha == 0, apply() must short-circuit the operator, so that any values in X (including NaNs) are ignored.

template<class MatrixType >

bool Ifpack2::LocalFilter< MatrixType >::hasTransposeApply ( ) const

virtual

Whether this operator supports applying the transpose or conjugate transpose.

template<class MatrixType >

Teuchos::RCP< const Tpetra::RowMatrix< typename MatrixType::scalar_type, typename MatrixType::local_ordinal_type, typename MatrixType::global_ordinal_type, typename MatrixType::node_type > > Ifpack2::LocalFilter< MatrixType >::getUnderlyingMatrix ( ) const

virtual

Return matrix that LocalFilter was built on.

The documentation for this class was generated from the following files:

Public Types

Public Member Functions

Detailed Description

template<class MatrixType> class Ifpack2::LocalFilter< MatrixType >

Summary

How does it work?

View of the local rows and columns

Square diagonal block of the original matrix

Remapping of global indices

Not necessarily a copy

Examples

Member Typedef Documentation

Constructor & Destructor Documentation

Member Function Documentation

template<class MatrixType>
class Ifpack2::LocalFilter< MatrixType >
