Ifpack2::Details::TriDiSolver< MatrixType, stub > Class Template Reference

"Preconditioner" that uses LAPACK's tridi LU. More...

#include <Ifpack2_Details_TriDiSolver_decl.hpp>

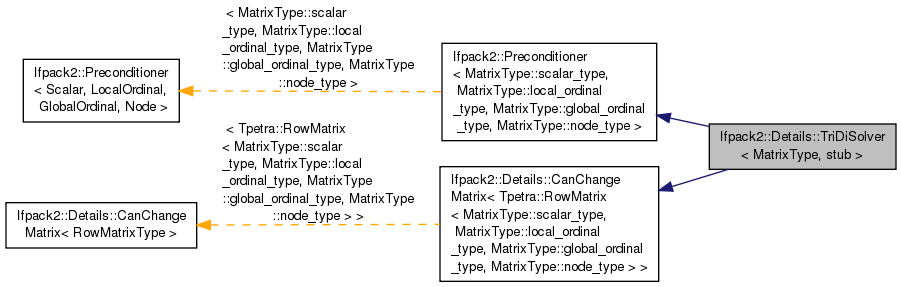

Inheritance diagram for Ifpack2::Details::TriDiSolver< MatrixType, stub >:

Additional Inherited Members
Public Types inherited from Ifpack2::Preconditioner< MatrixType::scalar_type, MatrixType::local_ordinal_type, MatrixType::global_ordinal_type, MatrixType::node_type >
typedef Teuchos::ScalarTraits < MatrixType::scalar_type > ::magnitudeType	magnitude_type
	The type of the magnitude (absolute value) of a matrix entry. More...
Public Member Functions inherited from Ifpack2::Preconditioner< MatrixType::scalar_type, MatrixType::local_ordinal_type, MatrixType::global_ordinal_type, MatrixType::node_type >
virtual	~Preconditioner ()
	Destructor. More...
virtual void	setParameters (const Teuchos::ParameterList &List)=0
	Set this preconditioner's parameters. More...
virtual void	setZeroStartingSolution (bool zeroStartingSolution)
	Set this preconditioner's parameters. More...
virtual void	initialize ()=0
	Set up the graph structure of this preconditioner. More...
virtual bool	isInitialized () const =0
	True if the preconditioner has been successfully initialized, else false. More...
virtual void	compute ()=0
	Set up the numerical values in this preconditioner. More...
virtual bool	isComputed () const =0
	True if the preconditioner has been successfully computed, else false. More...
virtual Teuchos::RCP< const Tpetra::RowMatrix < MatrixType::scalar_type, MatrixType::local_ordinal_type, MatrixType::global_ordinal_type, MatrixType::node_type > >	getMatrix () const =0
	The input matrix given to the constructor. More...
virtual int	getNumInitialize () const =0
	The number of calls to initialize(). More...
virtual int	getNumCompute () const =0
	The number of calls to compute(). More...
virtual int	getNumApply () const =0
	The number of calls to apply(). More...
virtual double	getInitializeTime () const =0
	The time (in seconds) spent in initialize(). More...
virtual double	getComputeTime () const =0
	The time (in seconds) spent in compute(). More...
virtual double	getApplyTime () const =0
	The time (in seconds) spent in apply(). More...
virtual Teuchos::RCP< const Tpetra::Map < MatrixType::local_ordinal_type, MatrixType::global_ordinal_type, MatrixType::node_type > >	getDomainMap () const =0
	The domain Map of this operator. More...
virtual Teuchos::RCP< const Tpetra::Map < MatrixType::local_ordinal_type, MatrixType::global_ordinal_type, MatrixType::node_type > >	getRangeMap () const =0
	The range Map of this operator. More...
virtual void	apply (const Tpetra::MultiVector< MatrixType::scalar_type, MatrixType::local_ordinal_type, MatrixType::global_ordinal_type, MatrixType::node_type > &X, Tpetra::MultiVector< MatrixType::scalar_type, MatrixType::local_ordinal_type, MatrixType::global_ordinal_type, MatrixType::node_type > &Y, Teuchos::ETransp mode=Teuchos::NO_TRANS, MatrixType::scalar_typealpha=Teuchos::ScalarTraits< MatrixType::scalar_type >::one(), MatrixType::scalar_typebeta=Teuchos::ScalarTraits< MatrixType::scalar_type >::zero()) const =0
	Apply the preconditioner to X, putting the result in Y. More...
Public Member Functions inherited from Ifpack2::Details::CanChangeMatrix< Tpetra::RowMatrix< MatrixType::scalar_type, MatrixType::local_ordinal_type, MatrixType::global_ordinal_type, MatrixType::node_type > >
virtual void	setMatrix (const Teuchos::RCP< const Tpetra::RowMatrix< MatrixType::scalar_type, MatrixType::local_ordinal_type, MatrixType::global_ordinal_type, MatrixType::node_type > > &A)=0
	Set the new matrix. More...
virtual	~CanChangeMatrix ()
	Destructor. More...

Detailed Description

template<class MatrixType, const bool stub = ! LapackSupportsScalar<typename MatrixType::scalar_type>::value>
class Ifpack2::Details::TriDiSolver< MatrixType, stub >

"Preconditioner" that uses LAPACK's tridi LU.

Template Parameters

MatrixType	A specialization of Tpetra::RowMatrix.
stub	Whether this is a stub implementation. The default is false. If true, then this class does nothing and its constructor throws an exception. You should always use the default value. This template parameter is an implementation detail; it prevents this class from using LAPACK for types that LAPACK does not support.

Warning

This class only works for the four types supported by LAPACK. Using any other type will result in a run-time error.

---

The documentation for this class was generated from the following file:

• Ifpack2_Details_TriDiSolver_decl.hpp
