Ifpack_DropFilter Class Reference

Ifpack_DropFilter: Filter based on matrix entries. More...

#include <Ifpack_DropFilter.h>

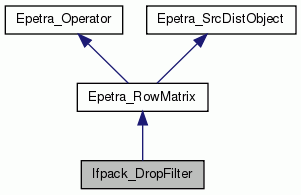

Inheritance diagram for Ifpack_DropFilter:
Inheritance graph
Collaboration diagram for Ifpack_DropFilter:
Collaboration graph

Public Member Functions

 Ifpack_DropFilter (const Teuchos::RefCountPtr< Epetra_RowMatrix > &Matrix, double DropTol)
virtual ~Ifpack_DropFilter ()
virtual int NumMyRowEntries (int MyRow, int &NumEntries) const
 Returns the number of entries in MyRow.
virtual int MaxNumEntries () const
 Returns the maximum number of entries.
virtual int ExtractMyRowCopy (int MyRow, int Length, int &NumEntries, double *Values, int *Indices) const
virtual int ExtractDiagonalCopy (Epetra_Vector &Diagonal) const
virtual int Multiply (bool TransA, const Epetra_MultiVector &X, Epetra_MultiVector &Y) const
virtual int Solve (bool Upper, bool Trans, bool UnitDiagonal, const Epetra_MultiVector &X, Epetra_MultiVector &Y) const
virtual int Apply (const Epetra_MultiVector &X, Epetra_MultiVector &Y) const
virtual int ApplyInverse (const Epetra_MultiVector &X, Epetra_MultiVector &Y) const
virtual int InvRowSums (Epetra_Vector &x) const
virtual int LeftScale (const Epetra_Vector &x)
virtual int InvColSums (Epetra_Vector &x) const
virtual int RightScale (const Epetra_Vector &x)
virtual bool Filled () const
virtual double NormInf () const
virtual double NormOne () const
virtual int NumGlobalNonzeros () const
virtual int NumGlobalRows () const
virtual int NumGlobalCols () const
virtual int NumGlobalDiagonals () const
virtual long long NumGlobalNonzeros64 () const
virtual long long NumGlobalRows64 () const
virtual long long NumGlobalCols64 () const
virtual long long NumGlobalDiagonals64 () const
virtual int NumMyNonzeros () const
virtual int NumMyRows () const
virtual int NumMyCols () const
virtual int NumMyDiagonals () const
virtual bool LowerTriangular () const
virtual bool UpperTriangular () const
virtual const Epetra_MapRowMatrixRowMap () const
virtual const Epetra_MapRowMatrixColMap () const
virtual const Epetra_ImportRowMatrixImporter () const
int SetUseTranspose (bool useTranspose)
bool UseTranspose () const
bool HasNormInf () const
const Epetra_CommComm () const
const Epetra_MapOperatorDomainMap () const
const Epetra_MapOperatorRangeMap () const
const Epetra_BlockMapMap () const
const char * Label () const

Detailed Description

Ifpack_DropFilter: Filter based on matrix entries.

Ifpack_DropFilter enables the dropping of all elements whose absolute value is below a specified threshold.

A typical use is as follows:

Teuchos::RefCountPtr<Epetra_RowMatrix> A;
// first localize the matrix
// drop all elements below this value
double DropTol = 1e-5;
// now create the matrix, elements below DropTol are
// not included in calls to ExtractMyRowCopy(), Multiply()
// and Apply()
Ifpack_DropFilter DropA(LocalA,DropTol)

It is supposed that Ifpack_DropFilter is used on localized matrices.

Marzio Sala, SNL 9214.

Last modified: Oct-04.

Definition at line 81 of file Ifpack_DropFilter.h.

The documentation for this class was generated from the following files:
