Ifpack_OverlappingPartitioner Class Referenceabstract

#include <Ifpack_OverlappingPartitioner.h>

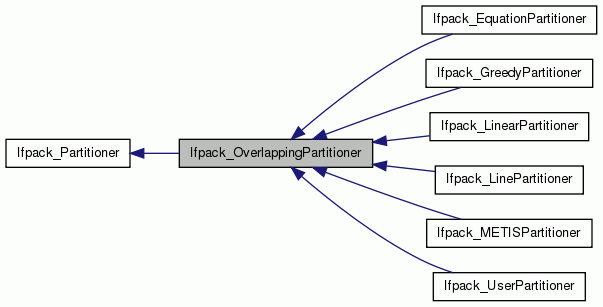

Inheritance diagram for Ifpack_OverlappingPartitioner:
Inheritance graph
[legend]

Public Member Functions

 Ifpack_OverlappingPartitioner (const Ifpack_Graph *Graph)
 Constructor. More...

virtual ~Ifpack_OverlappingPartitioner ()
 Destructor. More...

int NumLocalParts () const
 Returns the number of computed local partitions. More...

int OverlappingLevel () const
 Returns the overlapping level. More...

int operator() (int MyRow) const
 Returns the local non-overlapping partition ID of the specified row. More...

int operator() (int i, int j) const
 Returns the local overlapping partition ID of the j-th node in partition i. More...

int NumRowsInPart (const int Part) const
 Returns the number of rows contained in specified partition. More...

int RowsInPart (const int Part, int *List) const
 Copies into List the rows in the (overlapping) partition Part. More...

const int * NonOverlappingPartition () const
 Returns a pointer to the integer vector containing the non-overlapping partition ID of each local row. More...

virtual int SetParameters (Teuchos::ParameterList &List)
 Sets all the parameters for the partitioner. More...

virtual int SetPartitionParameters (Teuchos::ParameterList &List)=0
 Sets all the parameters for the partitioner. More...

virtual int Compute ()
 Computes the partitions. Returns 0 if successful. More...

virtual int ComputePartitions ()=0
 Computes the partitions. Returns 0 if successful. More...

virtual int ComputeOverlappingPartitions ()
 Computes the partitions. Returns 0 if successful. More...

bool IsComputed ()
 Returns true if partitions have been computed successfully. More...

virtual std::ostream & Print (std::ostream &os) const
 Prints basic information on iostream. This function is used by operator<<. More...

- Public Member Functions inherited from Ifpack_Partitioner
virtual ~Ifpack_Partitioner ()
 Destructor. More...


Protected Member Functions

int NumMyRows () const
 Returns the number of local rows. More...

int NumMyNonzeros () const
 Returns the number of local nonzero elements. More...

int NumGlobalRows () const
 Returns the number of global rows. More...

long long NumGlobalRows64 () const

int MaxNumEntries () const
 Returns the max number of local entries in a row. More...

const Epetra_CommComm () const
 Returns the communicator object of Graph. More...


Protected Attributes

int NumLocalParts_
 Number of local subgraphs. More...

std::vector< int > Partition_
 Partition_[i] contains the ID of non-overlapping part it belongs to. More...

std::vector< std::vector< int > > Parts_
 Parts_[i][j] is the ID of the j-th row contained in the (overlapping) More...

const Ifpack_GraphGraph_
 Reference to the graph to be partitioned. More...

int OverlappingLevel_
 Overlapping level. More...

bool IsComputed_
 If true, the graph has been successfully partitioned. More...

bool verbose_
 If true, information are reported on cout. More...


Detailed Description

Definition at line 87 of file Ifpack_OverlappingPartitioner.h.

Constructor & Destructor Documentation

Ifpack_OverlappingPartitioner::Ifpack_OverlappingPartitioner ( const Ifpack_Graph Graph)

Constructor.

Definition at line 57 of file Ifpack_OverlappingPartitioner.cpp.

Ifpack_OverlappingPartitioner::~Ifpack_OverlappingPartitioner ( )
virtual

Destructor.

Definition at line 67 of file Ifpack_OverlappingPartitioner.cpp.

Member Function Documentation

int Ifpack_OverlappingPartitioner::NumLocalParts ( ) const
inlinevirtual

Returns the number of computed local partitions.

Implements Ifpack_Partitioner.

Definition at line 98 of file Ifpack_OverlappingPartitioner.h.

int Ifpack_OverlappingPartitioner::OverlappingLevel ( ) const
inlinevirtual

Returns the overlapping level.

Implements Ifpack_Partitioner.

Definition at line 104 of file Ifpack_OverlappingPartitioner.h.

int Ifpack_OverlappingPartitioner::operator() ( int  MyRow) const
inlinevirtual

Returns the local non-overlapping partition ID of the specified row.

Returns the non-overlapping partition ID of the specified row.

Parameters
MyRow- (In) local row numbe
Returns
Local ID of non-overlapping partition for MyRow.

Implements Ifpack_Partitioner.

Definition at line 117 of file Ifpack_OverlappingPartitioner.h.

int Ifpack_OverlappingPartitioner::operator() ( int  i,
int  j
) const
inlinevirtual

Returns the local overlapping partition ID of the j-th node in partition i.

Implements Ifpack_Partitioner.

Definition at line 126 of file Ifpack_OverlappingPartitioner.h.

int Ifpack_OverlappingPartitioner::NumRowsInPart ( const int  Part) const
inlinevirtual

Returns the number of rows contained in specified partition.

Implements Ifpack_Partitioner.

Definition at line 138 of file Ifpack_OverlappingPartitioner.h.

int Ifpack_OverlappingPartitioner::RowsInPart ( const int  Part,
int *  List
) const
inlinevirtual

Copies into List the rows in the (overlapping) partition Part.

Implements Ifpack_Partitioner.

Definition at line 143 of file Ifpack_OverlappingPartitioner.h.

const int* Ifpack_OverlappingPartitioner::NonOverlappingPartition ( ) const
inlinevirtual

Returns a pointer to the integer vector containing the non-overlapping partition ID of each local row.

Implements Ifpack_Partitioner.

Definition at line 151 of file Ifpack_OverlappingPartitioner.h.

int Ifpack_OverlappingPartitioner::SetParameters ( Teuchos::ParameterList List)
virtual

Sets all the parameters for the partitioner.

The supported parameters are:

  • "partitioner: overlap" (int, default = 0).
  • "partitioner: local parts" (int, default = 1).
  • "partitioner: print level" (int, default = 0).

Implements Ifpack_Partitioner.

Definition at line 72 of file Ifpack_OverlappingPartitioner.cpp.

virtual int Ifpack_OverlappingPartitioner::SetPartitionParameters ( Teuchos::ParameterList List)
pure virtual

Sets all the parameters for the partitioner.

This function is used by derived classes to set their own parameters. These classes should not derive SetParameters(), so that common parameters can be set just once.

Implemented in Ifpack_LinePartitioner, Ifpack_EquationPartitioner, Ifpack_METISPartitioner, Ifpack_UserPartitioner, Ifpack_GreedyPartitioner, and Ifpack_LinearPartitioner.

int Ifpack_OverlappingPartitioner::Compute ( )
virtual

Computes the partitions. Returns 0 if successful.

Implements Ifpack_Partitioner.

Definition at line 97 of file Ifpack_OverlappingPartitioner.cpp.

virtual int Ifpack_OverlappingPartitioner::ComputePartitions ( )
pure virtual
int Ifpack_OverlappingPartitioner::ComputeOverlappingPartitions ( )
virtual

Computes the partitions. Returns 0 if successful.

Definition at line 149 of file Ifpack_OverlappingPartitioner.cpp.

bool Ifpack_OverlappingPartitioner::IsComputed ( )
inlinevirtual

Returns true if partitions have been computed successfully.

Implements Ifpack_Partitioner.

Definition at line 181 of file Ifpack_OverlappingPartitioner.h.

std::ostream & Ifpack_OverlappingPartitioner::Print ( std::ostream &  os) const
virtual

Prints basic information on iostream. This function is used by operator<<.

Implements Ifpack_Partitioner.

Definition at line 289 of file Ifpack_OverlappingPartitioner.cpp.

int Ifpack_OverlappingPartitioner::NumMyRows ( ) const
protected

Returns the number of local rows.

Definition at line 253 of file Ifpack_OverlappingPartitioner.cpp.

int Ifpack_OverlappingPartitioner::NumMyNonzeros ( ) const
protected

Returns the number of local nonzero elements.

Definition at line 259 of file Ifpack_OverlappingPartitioner.cpp.

int Ifpack_OverlappingPartitioner::NumGlobalRows ( ) const
protected

Returns the number of global rows.

Definition at line 266 of file Ifpack_OverlappingPartitioner.cpp.

long long Ifpack_OverlappingPartitioner::NumGlobalRows64 ( ) const
protected

Definition at line 272 of file Ifpack_OverlappingPartitioner.cpp.

int Ifpack_OverlappingPartitioner::MaxNumEntries ( ) const
protected

Returns the max number of local entries in a row.

Definition at line 277 of file Ifpack_OverlappingPartitioner.cpp.

const Epetra_Comm & Ifpack_OverlappingPartitioner::Comm ( ) const
protected

Returns the communicator object of Graph.

Definition at line 283 of file Ifpack_OverlappingPartitioner.cpp.

Member Data Documentation

int Ifpack_OverlappingPartitioner::NumLocalParts_
protected

Number of local subgraphs.

Definition at line 205 of file Ifpack_OverlappingPartitioner.h.

std::vector<int> Ifpack_OverlappingPartitioner::Partition_
protected

Partition_[i] contains the ID of non-overlapping part it belongs to.

Definition at line 207 of file Ifpack_OverlappingPartitioner.h.

std::vector<std::vector<int> > Ifpack_OverlappingPartitioner::Parts_
protected

Parts_[i][j] is the ID of the j-th row contained in the (overlapping)

Definition at line 210 of file Ifpack_OverlappingPartitioner.h.

const Ifpack_Graph* Ifpack_OverlappingPartitioner::Graph_
protected

Reference to the graph to be partitioned.

Definition at line 212 of file Ifpack_OverlappingPartitioner.h.

int Ifpack_OverlappingPartitioner::OverlappingLevel_
protected

Overlapping level.

Definition at line 214 of file Ifpack_OverlappingPartitioner.h.

bool Ifpack_OverlappingPartitioner::IsComputed_
protected

If true, the graph has been successfully partitioned.

Definition at line 216 of file Ifpack_OverlappingPartitioner.h.

bool Ifpack_OverlappingPartitioner::verbose_
protected

If true, information are reported on cout.

Definition at line 218 of file Ifpack_OverlappingPartitioner.h.


The documentation for this class was generated from the following files:
