Ifpack_CrsRick: A class for constructing and using an incomplete Cholesky (IC) factorization of a given Epetra_CrsMatrix. More...

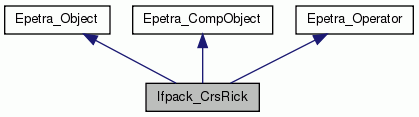

#include <Ifpack_CrsRick.h>
Public Member Functions
Ifpack_CrsRick (const Epetra_CrsMatrix &A, const Ifpack_IlukGraph &Graph)
Ifpack_CrsRick constuctor with variable number of indices per row. More...
Ifpack_CrsRick (const Ifpack_CrsRick &Matrix)
Copy constructor. More...
virtual  ~Ifpack_CrsRick ()
Ifpack_CrsRick Destructor. More...
int  InitValues ()
Initialize L and U with values from user matrix A. More...
bool  ValuesInitialized () const
If values have been initialized, this query returns true, otherwise it returns false. More...
void  SetRelaxValue (double RelaxValue)
Set RIC(k) relaxation parameter. More...
void  SetAbsoluteThreshold (double Athresh)
Set absolute threshold value. More...
void  SetRelativeThreshold (double Rthresh)
Set relative threshold value. More...
void  SetOverlapMode (Epetra_CombineMode OverlapMode)
Set overlap mode type. More...
int  SetParameters (const Teuchos::ParameterList ¶meterlist, bool cerr_warning_if_unused=false)
Set parameters using a Teuchos::ParameterList object. More...
int  Factor ()
Compute IC factor L using the specified graph, diagonal perturbation thresholds and relaxation parameters. More...
bool  Factored () const
If factor is completed, this query returns true, otherwise it returns false. More...
int  Solve (bool Trans, const Epetra_Vector &x, Epetra_Vector &y) const
Returns the result of a Ifpack_CrsRick forward/back solve on a Epetra_Vector x in y. More...
int  Solve (bool Trans, const Epetra_MultiVector &X, Epetra_MultiVector &Y) const
Returns the result of a Ifpack_CrsRick forward/back solve on a Epetra_MultiVector X in Y. More...
int  Multiply (bool Trans, const Epetra_MultiVector &X, Epetra_MultiVector &Y) const
Returns the result of multiplying U, D and U^T in that order on an Epetra_MultiVector X in Y. More...
int  Condest (bool Trans, double &ConditionNumberEstimate) const
Returns the maximum over all the condition number estimate for each local IC set of factors. More...
double  GetRelaxValue ()
Get RIC(k) relaxation parameter. More...
double  GetAbsoluteThreshold ()
Get absolute threshold value. More...
double  GetRelativeThreshold ()
Get relative threshold value. More...
Epetra_CombineMode  GetOverlapMode ()
Get overlap mode type. More...
int  NumGlobalRows () const
Returns the number of global matrix rows. More...
int  NumGlobalCols () const
Returns the number of global matrix columns. More...
int  NumGlobalNonzeros () const
Returns the number of nonzero entries in the global graph. More...
virtual int  NumGlobalDiagonals () const
Returns the number of diagonal entries found in the global input graph. More...
int  NumMyRows () const
Returns the number of local matrix rows. More...
int  NumMyCols () const
Returns the number of local matrix columns. More...
int  NumMyNonzeros () const
Returns the number of nonzero entries in the local graph. More...
virtual int  NumMyDiagonals () const
Returns the number of diagonal entries found in the local input graph. More...
int  IndexBase () const
Returns the index base for row and column indices for this graph. More...
const Ifpack_IlukGraph &  Graph () const
Returns the address of the Ifpack_IlukGraph associated with this factored matrix. More...
const Epetra_Vector &  D () const
Returns the address of the D factor associated with this factored matrix. More...
const Epetra_CrsMatrix &  U () const
Returns the address of the U factor associated with this factored matrix. More...
Public Member Functions inherited from Epetra_Operator
virtual const Epetra_Comm &  Comm () const =0
virtual const Epetra_Comm &  Comm () const =0
Protected Member Functions
void  SetFactored (bool Flag)
void  SetValuesInitialized (bool Flag)
bool  Allocated () const
int  SetAllocated (bool Flag)
Private Member Functions
int  Allocate ()
Private Attributes
const Epetra_CrsMatrix &  A_
const Ifpack_IlukGraph &  Graph_
Epetra_CrsMatrix *  U_
Epetra_Vector *  D_
bool  UseTranspose_
bool  Allocated_
bool  ValuesInitialized_
bool  Factored_
double  RelaxValue_
double  Athresh_
double  Rthresh_
double  Condest_
Epetra_MultiVector *  OverlapX_
Epetra_MultiVector *  OverlapY_
Epetra_CombineMode  OverlapMode_
Friends
std::ostream &  operator<< (std::ostream &os, const Ifpack_CrsRick &A)
<< operator will work for Ifpack_CrsRick. More...
const char *  Label () const
Returns a character string describing the operator. More...
int  SetUseTranspose (bool UseTranspose)
If set true, transpose of this operator will be applied. More...
int  Apply (const Epetra_MultiVector &X, Epetra_MultiVector &Y) const
Returns the result of a Epetra_Operator applied to a Epetra_MultiVector X in Y. More...
int  ApplyInverse (const Epetra_MultiVector &X, Epetra_MultiVector &Y) const
Returns the result of a Epetra_Operator inverse applied to an Epetra_MultiVector X in Y. More...
double  NormInf () const
Returns 0.0 because this class cannot compute Infnorm. More...
bool  HasNormInf () const
Returns false because this class cannot compute an Infnorm. More...
bool  UseTranspose () const
Returns the current UseTranspose setting. More...
const Epetra_Map &  OperatorDomainMap () const
Returns the Epetra_Map object associated with the domain of this operator. More...
const Epetra_Map &  OperatorRangeMap () const
Returns the Epetra_Map object associated with the range of this operator. More...
Ifpack_CrsRick: A class for constructing and using an incomplete Cholesky (IC) factorization of a given Epetra_CrsMatrix.
The Ifpack_CrsRick class computes a "Relaxed" IC factorization with level k fill of a given Epetra_CrsMatrix. The factorization that is produced is a function of several parameters:
The pattern of the matrix  All fill is derived from the original matrix nonzero structure. Level zero fill is defined as the original matrix pattern (nonzero structure), even if the matrix value at an entry is stored as a zero. (Thus it is possible to add entries to the IC factors by adding zero entries the original matrix.)
Level of fill  Starting with the original matrix pattern as level fill of zero, the next level of fill is determined by analyzing the graph of the previous level and determining nonzero fill that is a result of combining entries that were from previous level only (not the current level). This rule limits fill to entries that are direct decendents from the previous level graph. Fill for level k is determined by applying this rule recursively. For sufficiently large values of k, the fill would eventually be complete and an exact Cholesky factorization would be computed. Level of fill is defined during the construction of the Ifpack_IlukGraph object.
Level of overlap  All Ifpack preconditioners work on parallel distributed memory computers by using the row partitioning the user input matrix to determine the partitioning for local IC factors. If the level of overlap is set to zero, the rows of the user matrix that are stored on a given processor are treated as a selfcontained local matrix and all column entries that reach to offprocessor entries are ignored. Setting the level of overlap to one tells Ifpack to increase the size of the local matrix by adding rows that are reached to by rows owned by this processor. Increasing levels of overlap are defined recursively in the same way. For sufficiently large levels of overlap, the entire matrix would be part of each processor's local IC factorization process. Level of overlap is defined during the construction of the Ifpack_IlukGraph object.
Once the factorization is computed, applying the factorization (LL^{T}y = x) results in redundant approximations for any elements of y that correspond to rows that are part of more than one local IC factor. The OverlapMode (changed by calling SetOverlapMode()) defines how these redundancies are handled using the Epetra_CombineMode enum. The default is to zero out all values of y for rows that were not part of the original matrix row distribution.
Fraction of relaxation  Ifpack_CrsRick computes the IC factorization rowbyrow. As entries at a given row are computed, some number of them will be dropped because they do match the prescribed sparsity pattern. The relaxation factor determines how these dropped values will be handled. If the RelaxValue (changed by calling SetRelaxValue()) is zero, then these extra entries will by dropped. This is a classical IC approach. If the RelaxValue is 1, then the sum of the extra entries will be added to the diagonal. This is a classical Modified IC (MIC) approach. If RelaxValue is between 0 and 1, then RelaxValue times the sum of extra entries will be added to the diagonal.
For most situations, RelaxValue should be set to zero. For certain kinds of problems, e.g., reservoir modeling, there is a conservation principle involved such that any operator should obey a zero rowsum property. MIC was designed for these cases and you should set the RelaxValue to 1. For other situations, setting RelaxValue to some nonzero value may improve the stability of factorization, and can be used if the computed IC factors are poorly conditioned.
Estimating Preconditioner Condition Numbers
For illconditioned matrices, we often have difficulty computing usable incomplete factorizations. The most common source of problems is that the factorization may encounter a small or zero pivot, in which case the factorization can fail, or even if the factorization succeeds, the factors may be so poorly conditioned that use of them in the iterative phase produces meaningless results. Before we can fix this problem, we must be able to detect it. To this end, we use a simple but effective condition number estimate for .
The condition of a matrix , called , is defined as in some appropriate norm . gives some indication of how many accurate floating point digits can be expected from operations involving the matrix and its inverse. A condition number approaching the accuracy of a given floating point number system, about 15 decimal digits in IEEE double precision, means that any results involving or may be meaningless.
The norm of a vector is defined as the maximum of the absolute values of the vector entries, and the norm of a matrix C is defined as . A crude lower bound for the is where . It is a lower bound because .
For our purposes, we want to estimate , where and are our incomplete factors. Edmond in his Ph.D. thesis demonstrates that provides an effective estimate for . Furthermore, since finding such that is a basic kernel for applying the preconditioner, computing this estimate of is performed by setting , calling the solve kernel to compute and then computing .
A priori Diagonal Perturbations
Given the above method to estimate the conditioning of the incomplete factors, if we detect that our factorization is too illconditioned we can improve the conditioning by perturbing the matrix diagonal and restarting the factorization using this more diagonally dominant matrix. In order to apply perturbation, prior to starting the factorization, we compute a diagonal perturbation of our matrix and perform the factorization on this perturbed matrix. The overhead cost of perturbing the diagonal is minimal since the first step in computing the incomplete factors is to copy the matrix into the memory space for the incomplete factors. We simply compute the perturbed diagonal at this point.
The actual perturbation values we use are the diagonal values with , , where is the matrix dimension and returns the sign of the diagonal entry. This has the effect of forcing the diagonal values to have minimal magnitude of and to increase each by an amount proportional to , and still keep the sign of the original diagonal entry.
Constructing Ifpack_CrsRick objects
Constructing Ifpack_CrsRick objects is a multistep process. The basic steps are as follows:
Note that, even after a matrix is constructed, it is possible to update existing matrix entries. It is not possible to create new entries.
Counting Floating Point Operations
Each Ifpack_CrsRick object keep track of the number of serial floating point operations performed using the specified object as the this argument to the function. The Flops() function returns this number as a double precision number. Using this information, in conjunction with the Epetra_Time class, one can get accurate parallel performance numbers. The ResetFlops() function resets the floating point counter.
Definition at line 205 of file Ifpack_CrsRick.h.
Ifpack_CrsRick::Ifpack_CrsRick  (  const Epetra_CrsMatrix &  A,
const Ifpack_IlukGraph &  Graph
)
Ifpack_CrsRick constuctor with variable number of indices per row.
Creates a Ifpack_CrsRick object and allocates storage.
In  A  User matrix to be factored.
In  Graph  Graph generated by Ifpack_IlukGraph.
Definition at line 55 of file Ifpack_CrsRick.cpp.
Ifpack_CrsRick::Ifpack_CrsRick  (  const Ifpack_CrsRick &  Matrix  )
Copy constructor.
Definition at line 74 of file Ifpack_CrsRick.cpp.

virtual
Ifpack_CrsRick Destructor.
Definition at line 106 of file Ifpack_CrsRick.cpp.
int Ifpack_CrsRick::InitValues  (  )
Initialize L and U with values from user matrix A.
Copies values from the user's matrix into the nonzero pattern of L and U.
Definition at line 141 of file Ifpack_CrsRick.cpp.

inline
If values have been initialized, this query returns true, otherwise it returns false.
Definition at line 234 of file Ifpack_CrsRick.h.

inline
Set RIC(k) relaxation parameter.
Definition at line 237 of file Ifpack_CrsRick.h.

inline
Set absolute threshold value.
Definition at line 240 of file Ifpack_CrsRick.h.

inline
Set relative threshold value.
Definition at line 243 of file Ifpack_CrsRick.h.

inline
Set overlap mode type.
Definition at line 246 of file Ifpack_CrsRick.h.
int Ifpack_CrsRick::SetParameters  (  const Teuchos::ParameterList &  parameterlist,
bool  cerr_warning_if_unused = false

)
Set parameters using a Teuchos::ParameterList object.
Definition at line 121 of file Ifpack_CrsRick.cpp.
int Ifpack_CrsRick::Factor  (  void  )
Compute IC factor L using the specified graph, diagonal perturbation thresholds and relaxation parameters.
This function computes the RIC(k) factor L using the current:
InitValues() must be called before the factorization can proceed.
Definition at line 234 of file Ifpack_CrsRick.cpp.

inline
If factor is completed, this query returns true, otherwise it returns false.
Definition at line 270 of file Ifpack_CrsRick.h.
int Ifpack_CrsRick::Solve  (  bool  Trans,
const Epetra_Vector &  x,
Epetra_Vector &  y
)  const
Returns the result of a Ifpack_CrsRick forward/back solve on a Epetra_Vector x in y.
In  Trans If true, solve transpose problem.
In  x A Epetra_Vector to solve for.
Out  y A Epetra_Vector containing result.
Definition at line 384 of file Ifpack_CrsRick.cpp.
int Ifpack_CrsRick::Solve  (  bool  Trans,
const Epetra_MultiVector &  X,
Epetra_MultiVector &  Y
)  const
Returns the result of a Ifpack_CrsRick forward/back solve on a Epetra_MultiVector X in Y.
In  Trans If true, solve transpose problem.
In  X  A Epetra_MultiVector of dimension NumVectors to solve for.
Out  Y A Epetra_MultiVector of dimension NumVectorscontaining result.
Definition at line 438 of file Ifpack_CrsRick.cpp.
int Ifpack_CrsRick::Multiply  (  bool  Trans,
const Epetra_MultiVector &  X,
Epetra_MultiVector &  Y
)  const
Returns the result of multiplying U, D and U^T in that order on an Epetra_MultiVector X in Y.
In  Trans If true, multiply by L^T, D and U^T in that order.
In  X  A Epetra_MultiVector of dimension NumVectors to solve for.
Out  Y A Epetra_MultiVector of dimension NumVectorscontaining result.
Definition at line 499 of file Ifpack_CrsRick.cpp.
int Ifpack_CrsRick::Condest  (  bool  Trans,
double &  ConditionNumberEstimate
)  const
Returns the maximum over all the condition number estimate for each local IC set of factors.
This functions computes a local condition number estimate on each processor and return the maximum over all processor of the estimate.
In  Trans If true, solve transpose problem.
Out  ConditionNumberEstimate  The maximum across all processors of the infinitynorm estimate of the condition number of the inverse of LDU.
Definition at line 564 of file Ifpack_CrsRick.cpp.

inline
Get RIC(k) relaxation parameter.
Definition at line 329 of file Ifpack_CrsRick.h.

inline
Get absolute threshold value.
Definition at line 332 of file Ifpack_CrsRick.h.

inline
Get relative threshold value.
Definition at line 335 of file Ifpack_CrsRick.h.

inline
Get overlap mode type.
Definition at line 338 of file Ifpack_CrsRick.h.

inline
Returns the number of global matrix rows.
Definition at line 341 of file Ifpack_CrsRick.h.

inline
Returns the number of global matrix columns.
Definition at line 344 of file Ifpack_CrsRick.h.

inline
Returns the number of nonzero entries in the global graph.
Definition at line 347 of file Ifpack_CrsRick.h.

inlinevirtual
Returns the number of diagonal entries found in the global input graph.
Definition at line 350 of file Ifpack_CrsRick.h.

inline
Returns the number of local matrix rows.
Definition at line 353 of file Ifpack_CrsRick.h.

inline
Returns the number of local matrix columns.
Definition at line 356 of file Ifpack_CrsRick.h.

inline
Returns the number of nonzero entries in the local graph.
Definition at line 359 of file Ifpack_CrsRick.h.

inlinevirtual
Returns the number of diagonal entries found in the local input graph.
Definition at line 362 of file Ifpack_CrsRick.h.

inline
Returns the index base for row and column indices for this graph.
Definition at line 365 of file Ifpack_CrsRick.h.

inline
Returns the address of the Ifpack_IlukGraph associated with this factored matrix.
Definition at line 368 of file Ifpack_CrsRick.h.

inline
Returns the address of the D factor associated with this factored matrix.
Definition at line 371 of file Ifpack_CrsRick.h.

inline
Returns the address of the U factor associated with this factored matrix.
Definition at line 374 of file Ifpack_CrsRick.h.

inlinevirtual
Returns a character string describing the operator.
Implements Epetra_Operator.
Definition at line 379 of file Ifpack_CrsRick.h.

inlinevirtual
If set true, transpose of this operator will be applied.
This flag allows the transpose of the given operator to be used implicitly. Setting this flag affects only the Apply() and ApplyInverse() methods. If the implementation of this interface does not support transpose use, this method should return a value of 1.
In  UseTranspose If true, multiply by the transpose of operator, otherwise just use operator.
Implements Epetra_Operator.
Definition at line 391 of file Ifpack_CrsRick.h.

inlinevirtual
Returns the result of a Epetra_Operator applied to a Epetra_MultiVector X in Y.
Note that this implementation of Apply does NOT perform a forward back solve with the LDU factorization. Instead it applies these operators via multiplication with U, D and L respectively. The ApplyInverse() method performs a solve.
In  X  A Epetra_MultiVector of dimension NumVectors to multiply with matrix.
Out  Y A Epetra_MultiVector of dimension NumVectors containing result.
Implements Epetra_Operator.
Definition at line 405 of file Ifpack_CrsRick.h.

inlinevirtual
Returns the result of a Epetra_Operator inverse applied to an Epetra_MultiVector X in Y.
In this implementation, we use several existing attributes to determine how virtual method ApplyInverse() should call the concrete method Solve(). We pass in the UpperTriangular(), the Epetra_CrsMatrix::UseTranspose(), and NoDiagonal() methods. The most notable warning is that if a matrix has no diagonal values we assume that there is an implicit unit diagonal that should be accounted for when doing a triangular solve.
In  X  A Epetra_MultiVector of dimension NumVectors to solve for.
Out  Y A Epetra_MultiVector of dimension NumVectors containing result.
Implements Epetra_Operator.
Definition at line 422 of file Ifpack_CrsRick.h.

inlinevirtual
Returns 0.0 because this class cannot compute Infnorm.
Implements Epetra_Operator.
Definition at line 426 of file Ifpack_CrsRick.h.

inlinevirtual
Returns false because this class cannot compute an Infnorm.
Implements Epetra_Operator.
Definition at line 429 of file Ifpack_CrsRick.h.

inlinevirtual
Returns the current UseTranspose setting.
Implements Epetra_Operator.
Definition at line 432 of file Ifpack_CrsRick.h.

inlinevirtual
Returns the Epetra_Map object associated with the domain of this operator.
Implements Epetra_Operator.
Definition at line 435 of file Ifpack_CrsRick.h.

inlinevirtual
Returns the Epetra_Map object associated with the range of this operator.
Implements Epetra_Operator.
Definition at line 438 of file Ifpack_CrsRick.h.

inlineprotected
Definition at line 442 of file Ifpack_CrsRick.h.

inlineprotected
Definition at line 443 of file Ifpack_CrsRick.h.

inlineprotected
Definition at line 444 of file Ifpack_CrsRick.h.

inlineprotected
Definition at line 445 of file Ifpack_CrsRick.h.

private
Definition at line 95 of file Ifpack_CrsRick.cpp.

friend
<< operator will work for Ifpack_CrsRick.
Definition at line 584 of file Ifpack_CrsRick.cpp.

private
Definition at line 452 of file Ifpack_CrsRick.h.

private
Definition at line 453 of file Ifpack_CrsRick.h.

private
Definition at line 454 of file Ifpack_CrsRick.h.

private
Definition at line 455 of file Ifpack_CrsRick.h.

private
Definition at line 456 of file Ifpack_CrsRick.h.

private
Definition at line 459 of file Ifpack_CrsRick.h.

private
Definition at line 460 of file Ifpack_CrsRick.h.

private
Definition at line 461 of file Ifpack_CrsRick.h.

private
Definition at line 462 of file Ifpack_CrsRick.h.

private
Definition at line 463 of file Ifpack_CrsRick.h.

private
Definition at line 464 of file Ifpack_CrsRick.h.

mutableprivate
Definition at line 465 of file Ifpack_CrsRick.h.

mutableprivate
Definition at line 467 of file Ifpack_CrsRick.h.

mutableprivate
Definition at line 468 of file Ifpack_CrsRick.h.

private
Definition at line 469 of file Ifpack_CrsRick.h.
