Ifpack_Container: a pure virtual class for creating and solving local linear problems. More...

#include <Ifpack_Container.h>

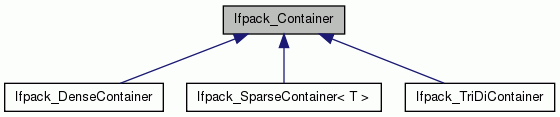

Inheritance diagram for Ifpack_Container:

Public Member Functions
virtual	~Ifpack_Container ()
	Destructor. More...

virtual int	NumRows () const =0
	Returns the number of rows of the matrix and LHS/RHS. More...

virtual int	NumVectors () const =0
	Returns the number of vectors in LHS/RHS. More...

virtual int	SetNumVectors (const int i)=0
	Sets the number of vectors for LHS/RHS. More...

virtual double &	LHS (const int i, const int Vector=0)=0
	Returns the i-th component of the vector Vector of LHS. More...

virtual double &	RHS (const int i, const int Vector=0)=0
	Returns the i-th component of the vector Vector of RHS. More...

virtual int &	ID (const int i)=0
	Returns the ID associated to local row i. More...

virtual int	SetMatrixElement (const int row, const int col, const double value)=0
	Set the matrix element (row,col) to `value`. More...

virtual int	Initialize ()=0
	Initializes the container, by performing all operations that only require matrix structure. More...

virtual int	Compute (const Epetra_RowMatrix &A)=0
	Finalizes the linear system matrix and prepares for the application of the inverse. More...

virtual int	SetParameters (Teuchos::ParameterList &List)=0
	Sets all necessary parameters. More...

virtual bool	IsInitialized () const =0
	Returns `true` is the container has been successfully initialized. More...

virtual bool	IsComputed () const =0
	Returns `true` is the container has been successfully computed. More...

virtual int	Apply ()=0
	Apply the matrix to RHS, results are stored in LHS. More...

virtual int	ApplyInverse ()=0
	Apply the inverse of the matrix to RHS, results are stored in LHS. More...

virtual const char *	Label () const =0
	Returns the label of this container. More...

virtual double	InitializeFlops () const =0
	Returns the flops in Initialize(). More...

virtual double	ComputeFlops () const =0
	Returns the flops in Compute(). More...

virtual double	ApplyFlops () const =0
	Returns the flops in Apply(). More...

virtual double	ApplyInverseFlops () const =0
	Returns the flops in ApplyInverse(). More...

virtual std::ostream &	Print (std::ostream &os) const =0
	Prints out basic information about the container. More...

Detailed Description

Ifpack_Container: a pure virtual class for creating and solving local linear problems.

Class Ifpack_Container provides the abstract interfaces for containers. A "container" is an object that hosts all it is necessary to create, populate, and solve local linear problems. The local linear problem matrix, B, is a submatrix of the local components of a distributed matrix, A. The idea of container is to specify the rows of A that are contained in B, then extract B from A, and compute all it is necessary to solve a linear system in B. Then, set starting solution (if necessary) and right-hand side for B, and solve the linear system in B.

A container should be used in the following manner:

Create an container object, specifying the number of rows of B.
If necessary, set parameters for the solution using SetParameters().
Initialize the container by calling Initialize().
Specify the ID of the local rows of A that are contained in B, using ID().
Prepare the linear system solver using Compute().
set LHS and/or RHS elements using LHS() and RHS().
Solve the linear system using ApplyInverse().
Get the componenets of the computed solution using LHS().

The number of vectors can be set using SetNumVectors(), and it is defaulted to 1.

Containers are currently used by class Ifpack_BlockRelaxation.

Ifpack_Container is a pure virtual class. Two concrete implementations are provided in classes Ifpack_SparseContainer (that stores matrices in sparse the format Epetra_CrsMatrix) and Ifpack_DenseContainer (for relatively small matrices, as matrices are stored as Epetra_SerialDenseMatrix's).

Note

Still to do:

Flops count has to be tested.

Author: Marzio Sala, SNL 9214.

Date: Last update Oct-04.

Definition at line 104 of file Ifpack_Container.h.

Constructor & Destructor Documentation

virtual Ifpack_Container::~Ifpack_Container ( )

inlinevirtual

Destructor.

Definition at line 109 of file Ifpack_Container.h.

Member Function Documentation

virtual int Ifpack_Container::NumRows ( ) const

pure virtual

Returns the number of rows of the matrix and LHS/RHS.

Implemented in Ifpack_TriDiContainer, Ifpack_DenseContainer, and Ifpack_SparseContainer< T >.

virtual int Ifpack_Container::NumVectors ( ) const

pure virtual

Returns the number of vectors in LHS/RHS.

Implemented in Ifpack_TriDiContainer, Ifpack_DenseContainer, and Ifpack_SparseContainer< T >.

virtual int Ifpack_Container::SetNumVectors ( const int i )

pure virtual

Sets the number of vectors for LHS/RHS.

Implemented in Ifpack_TriDiContainer, Ifpack_DenseContainer, and Ifpack_SparseContainer< T >.

virtual double& Ifpack_Container::LHS	(	const int	i,
		const int	Vector = `0`
	)

pure virtual

Returns the i-th component of the vector Vector of LHS.

Implemented in Ifpack_TriDiContainer, Ifpack_DenseContainer, and Ifpack_SparseContainer< T >.

virtual double& Ifpack_Container::RHS	(	const int	i,
		const int	Vector = `0`
	)

pure virtual

Returns the i-th component of the vector Vector of RHS.

Implemented in Ifpack_TriDiContainer, Ifpack_DenseContainer, and Ifpack_SparseContainer< T >.

virtual int& Ifpack_Container::ID ( const int i )

pure virtual

Returns the ID associated to local row i.

The set of (local) rows assigned to this container is defined by calling ID(i) = j, where i (from 0 to NumRows()) indicates the container-row, and j indicates the local row in the calling process.

This is usually used to recorder the local row ID (on calling process) of the i-th row in the container.

Implemented in Ifpack_TriDiContainer, Ifpack_DenseContainer, and Ifpack_SparseContainer< T >.
