GlobiPack::MeritFunc1DBase< Scalar > Class Template Reference

Base class for 1D merit fucntions used in globalization methods. More...

#include <GlobiPack_MeritFunc1DBase.hpp>

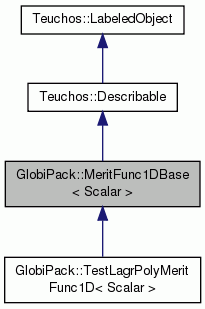

Inheritance diagram for GlobiPack::MeritFunc1DBase< Scalar >:

Public Member Functions
virtual bool	supportsDerivEvals () const =0
	Determine if derivative evaluations are supported or not. More...
virtual void	eval (const Scalar &alpha, const Ptr< Scalar > &phi, const Ptr< Scalar > &Dphi) const =0
	Evaluate the merit function at alpha. More...
Public Member Functions inherited from Teuchos::Describable
DescribableStreamManipulatorState	describe (const Describable &describable, const EVerbosityLevel verbLevel=Describable::verbLevel_default)
std::ostream &	operator<< (std::ostream &os, const DescribableStreamManipulatorState &d)
virtual std::string	description () const
virtual void	describe (FancyOStream &out, const EVerbosityLevel verbLevel=verbLevel_default) const
void	describe (std::ostream &out, const EVerbosityLevel verbLevel=verbLevel_default) const
virtual	~Describable ()
	LabeledObject ()
virtual	~LabeledObject ()
virtual void	setObjectLabel (const std::string &objectLabel)
virtual std::string	getObjectLabel () const

Related Functions
(Note that these are not member functions.)
template<typename Scalar >
ScalarTraits< Scalar > ::magnitudeType	computeValue (const MeritFunc1DBase< Scalar > &phi, const Scalar &alpha)
	Compute the value of the merit function phi(alpha). More...
template<typename Scalar >
PointEval1D< Scalar >	computePoint (const MeritFunc1DBase< Scalar > &phi, const Scalar &alpha, const bool compute_phi=true, const bool compute_Dphi=false)
	Compute a point as an object. More...

Additional Inherited Members
Static Public Attributes inherited from Teuchos::Describable
static const EVerbosityLevel	verbLevel_default

Detailed Description

template<typename Scalar>
class GlobiPack::MeritFunc1DBase< Scalar >

Base class for 1D merit fucntions used in globalization methods.

NOTE: The Scalar type must be a real type since comparions are performed

ToDo: Finish Documentation!

Definition at line 62 of file GlobiPack_MeritFunc1DBase.hpp.

Member Function Documentation

template<typename Scalar>

virtual bool GlobiPack::MeritFunc1DBase< Scalar >::supportsDerivEvals ( ) const

pure virtual

Determine if derivative evaluations are supported or not.

Implemented in GlobiPack::TestLagrPolyMeritFunc1D< Scalar >.

template<typename Scalar>

virtual void GlobiPack::MeritFunc1DBase< Scalar >::eval ( const Scalar &  alpha, const Ptr< Scalar > &  phi, const Ptr< Scalar > &  Dphi  ) const

pure virtual

Evaluate the merit function at alpha.

Parameters

alpha	[in] The value of the independent variable determining the step length. Typically alpha > 0.
phi	[out] The value of the merit function evaluated at alpha.
Dphi	[out] The value of the derivative of the merit function evaluated at alpha.

Preconditions:

• If !is_null(Dphi) then supportsDerivEvals() must be true.

Implemented in GlobiPack::TestLagrPolyMeritFunc1D< Scalar >.

Friends And Related Function Documentation

template<typename Scalar >

ScalarTraits< Scalar >::magnitudeType computeValue ( const MeritFunc1DBase< Scalar > &  phi, const Scalar &  alpha  )

related

Compute the value of the merit function phi(alpha).

Definition at line 99 of file GlobiPack_MeritFunc1DBase.hpp.

template<typename Scalar >

PointEval1D< Scalar > computePoint ( const MeritFunc1DBase< Scalar > &  phi, const Scalar &  alpha, const bool  compute_phi = true, const bool  compute_Dphi = false  )

related

Compute a point as an object.

Definition at line 113 of file GlobiPack_MeritFunc1DBase.hpp.

---

The documentation for this class was generated from the following file:

• GlobiPack_MeritFunc1DBase.hpp
