#include <EpetraExt_HypreIJMatrix.h>

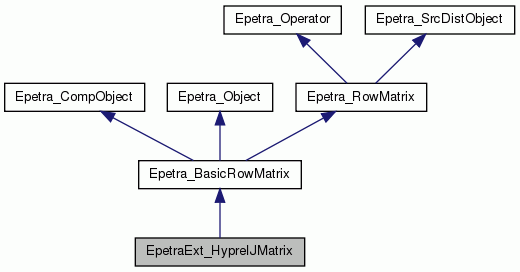

Inheritance diagram for EpetraExt_HypreIJMatrix:

Protected Member Functions
int	InitializeDefaults ()
	Set global variables to default values. More...

int	Hypre_BoomerAMGCreate (MPI_Comm comm, HYPRE_Solver *solver)
	AMG Create passing function. More...

int	Hypre_ParaSailsCreate (MPI_Comm comm, HYPRE_Solver *solver)
	ParaSails Create passing function. More...

int	Hypre_EuclidCreate (MPI_Comm comm, HYPRE_Solver *solver)
	Euclid Create passing function. More...

int	Hypre_AMSCreate (MPI_Comm comm, HYPRE_Solver *solver)
	AMS Create passing function. More...

int	Hypre_ParCSRHybridCreate (MPI_Comm comm, HYPRE_Solver *solver)
	Hybrid Create passing function. More...

int	Hypre_ParCSRPCGCreate (MPI_Comm comm, HYPRE_Solver *solver)
	PCG Create passing function. More...

int	Hypre_ParCSRGMRESCreate (MPI_Comm comm, HYPRE_Solver *solver)
	GMRES Create passing function. More...

int	Hypre_ParCSRFlexGMRESCreate (MPI_Comm comm, HYPRE_Solver *solver)
	FlexGMRES Create passing function. More...

int	Hypre_ParCSRLGMRESCreate (MPI_Comm comm, HYPRE_Solver *solver)
	LGMRES Create passing function. More...

int	Hypre_ParCSRBiCGSTABCreate (MPI_Comm comm, HYPRE_Solver *solver)
	BiCGSTAB Create passing function. More...

int	CreateSolver ()
	Create the solver with selected type. More...

int	CreatePrecond ()
	Create the preconditioner with selected type. More...

int	SetupSolver () const

int	SetupPrecond () const

Protected Member Functions inherited from Epetra_BasicRowMatrix
virtual void	ComputeStructureConstants () const

virtual void	ComputeNumericConstants () const

Protected Attributes
HYPRE_IJMatrix	Matrix_

HYPRE_ParCSRMatrix	ParMatrix_

HYPRE_IJVector	X_hypre

HYPRE_IJVector	Y_hypre

HYPRE_ParVector	par_x

HYPRE_ParVector	par_y

hypre_ParVector *	x_vec

hypre_ParVector *	y_vec

hypre_Vector *	x_local

hypre_Vector *	y_local

HYPRE_Solver	Solver_

HYPRE_Solver	Preconditioner_

int(EpetraExt_HypreIJMatrix::*	SolverCreatePtr_ )(MPI_Comm, HYPRE_Solver *)

int(*	SolverDestroyPtr_ )(HYPRE_Solver)

int(*	SolverSetupPtr_ )(HYPRE_Solver, HYPRE_ParCSRMatrix, HYPRE_ParVector, HYPRE_ParVector)

int(*	SolverSolvePtr_ )(HYPRE_Solver, HYPRE_ParCSRMatrix, HYPRE_ParVector, HYPRE_ParVector)

int(*	SolverPrecondPtr_ )(HYPRE_Solver, HYPRE_PtrToParSolverFcn, HYPRE_PtrToParSolverFcn, HYPRE_Solver)

int(EpetraExt_HypreIJMatrix::*	PrecondCreatePtr_ )(MPI_Comm, HYPRE_Solver *)

int(*	PrecondDestroyPtr_ )(HYPRE_Solver)

int(*	PrecondSetupPtr_ )(HYPRE_Solver, HYPRE_ParCSRMatrix, HYPRE_ParVector, HYPRE_ParVector)

int(*	PrecondSolvePtr_ )(HYPRE_Solver, HYPRE_ParCSRMatrix, HYPRE_ParVector, HYPRE_ParVector)

int	NumMyRows_
	Number of rows on local processor. More...

int	NumGlobalRows_
	Number of rows across all processors. More...

int	NumGlobalCols_
	Number of columns across all processors. More...

int	MyRowStart_
	First row on local processor. More...

int	MyRowEnd_
	Last row on local processor. More...

int	MatType_
	Hypre matrix type (parCSR). More...

bool	TransposeSolve_
	Do a transpose solve, only BoomerAMG. More...

Hypre_Chooser	SolveOrPrec_
	Choose to solve or apply preconditioner. More...

bool *	IsSolverSetup_
	Flag to know if solver needs to be destoyed. More...

bool *	IsPrecondSetup_
	Flag to know if preconditioner needs to be destroyed. More...

Constructors/Destructor
	EpetraExt_HypreIJMatrix (HYPRE_IJMatrix matrix)
	Epetra_HypreIJMatrix constructor. More...

virtual	~EpetraExt_HypreIJMatrix ()
	EpetraExt_HypreIJMatrix Destructor. More...

Extraction methods
int	ExtractMyRowCopy (int MyRow, int Length, int &NumEntries, double Values, int Indices) const
	Returns a copy of the specified local row in user-provided arrays. More...

int	ExtractMyEntryView (int CurEntry, double *&Value, int &RowIndex, int &ColIndex)
	Returns a reference to the ith entry in the matrix, along with its row and column index. More...

int	ExtractMyEntryView (int CurEntry, const double *&Value, int &RowIndex, int &ColIndex) const
	Returns a const reference to the ith entry in the matrix, along with its row and column index. More...

Solver Setup Methods
int	SetParameter (Hypre_Chooser chooser, int(*pt2Func)(HYPRE_Solver, int), int parameter)
	Set a parameter that takes a single int. More...

int	SetParameter (Hypre_Chooser chooser, int(*pt2Func)(HYPRE_Solver, double), double parameter)
	Set a parameter that takes a single double. More...

int	SetParameter (Hypre_Chooser chooser, int(*pt2Func)(HYPRE_Solver, double, int), double parameter1, int parameter2)
	Set a parameter that takes a double then an int. More...

int	SetParameter (Hypre_Chooser chooser, int(*pt2Func)(HYPRE_Solver, int, int), int parameter1, int parameter2)
	Set a parameter that takes two int parameters. More...

int	SetParameter (Hypre_Chooser chooser, int(pt2Func)(HYPRE_Solver, double ), double *parameter)
	Set a parameter that takes a double*. More...

int	SetParameter (Hypre_Chooser chooser, int(pt2Func)(HYPRE_Solver, int ), int *parameter)
	Set a parameter that takes an int*. More...

int	SetParameter (Hypre_Chooser chooser, Hypre_Solver Solver, bool transpose=false)
	Sets the solver that is used by the Solve() and ApplyInverse() methods. Until this is called, the default solver is PCG. More...

int	SetParameter (bool UsePreconditioner)
	Sets the solver to use the selected preconditioner. More...

int	SetParameter (Hypre_Chooser chooser)
	Choose to solve the problem or apply the preconditioner. More...

Computational methods
int	Multiply (bool TransA, const Epetra_MultiVector &X, Epetra_MultiVector &Y) const
	Returns the result of a EpetraExt_HypreIJMatrix multiplied by a Epetra_MultiVector X in Y. More...

int	Solve (bool Upper, bool Trans, bool UnitDiagonal, const Epetra_MultiVector &X, Epetra_MultiVector &Y) const
	Returns the result of a EpetraExt_HypreIJMatrix solving a Epetra_MultiVector X in Y. More...

int	LeftScale (const Epetra_Vector &X)
	Scales the EpetraExt_HypreIJMatrix on the left with a Epetra_Vector x. More...

int	RightScale (const Epetra_Vector &X)
	Scales the EpetraExt_HypreIJMatrix on the right with a Epetra_Vector x. More...

Additional methods required to support the Epetra_Operator interface
int	Apply (const Epetra_MultiVector &X, Epetra_MultiVector &Y) const
	Returns the result of a Epetra_Operator applied to a Epetra_MultiVector X in Y. More...

int	ApplyInverse (const Epetra_MultiVector &X, Epetra_MultiVector &Y) const
	Returns the result of a Epetra_Operator inverse applied to an Epetra_MultiVector X in Y. More...

virtual bool	UseTranspose () const
	Returns the current UseTranspose setting. More...

Additional methods required to implement RowMatrix interface
int	NumMyRowEntries (int MyRow, int &NumEntries) const
	Return the current number of values stored for the specified local row. More...

HYPRE_IJMatrix &	GetMatrix ()
	Return a reference to the Hypre matrix. More...

Additional Inherited Members
Public Member Functions inherited from Epetra_BasicRowMatrix
	Epetra_BasicRowMatrix (const Epetra_Comm &Comm)

virtual	~Epetra_BasicRowMatrix ()

void	SetMaps (const Epetra_Map &RowMap, const Epetra_Map &ColMap)

void	SetMaps (const Epetra_Map &RowMap, const Epetra_Map &ColMap, const Epetra_Map &DomainMap, const Epetra_Map &RangeMap)

virtual int	ExtractDiagonalCopy (Epetra_Vector &Diagonal) const

virtual int	InvRowSums (Epetra_Vector &x) const

virtual int	InvColSums (Epetra_Vector &x) const

virtual bool	Filled () const

bool	LowerTriangular () const

virtual bool	UpperTriangular () const

virtual double	NormInf () const

virtual double	NormOne () const

virtual int	NumGlobalNonzeros () const

virtual int	NumGlobalRows () const

virtual int	NumGlobalCols () const

virtual int	NumGlobalDiagonals () const

virtual int	NumMyNonzeros () const

virtual int	NumMyRows () const

virtual int	NumMyCols () const

virtual int	NumMyDiagonals () const

virtual int	MaxNumEntries () const

virtual const Epetra_Map &	OperatorDomainMap () const

virtual const Epetra_Map &	OperatorRangeMap () const

virtual const Epetra_BlockMap &	Map () const

virtual const Epetra_Map &	RowMatrixRowMap () const

virtual const Epetra_Map &	RowMatrixColMap () const

virtual const Epetra_Import *	RowMatrixImporter () const

virtual const Epetra_Comm &	Comm () const

virtual void	Print (std::ostream &os) const

virtual int	SetUseTranspose (bool use_transpose)

virtual const char *	Label () const

bool	HasNormInf () const

virtual const Epetra_Import *	Importer () const

virtual const Epetra_Export *	Exporter () const

	Epetra_CompObject ()

	Epetra_CompObject (const Epetra_CompObject &Source)

virtual	~Epetra_CompObject ()

void	SetFlopCounter (const Epetra_Flops &FlopCounter_in)

void	SetFlopCounter (const Epetra_CompObject &CompObject)

void	UnsetFlopCounter ()

Epetra_Flops *	GetFlopCounter () const

void	ResetFlops () const

double	Flops () const

void	UpdateFlops (int Flops_in) const

void	UpdateFlops (long int Flops_in) const

void	UpdateFlops (long long Flops_in) const

void	UpdateFlops (double Flops_in) const

void	UpdateFlops (float Flops_in) const

	Epetra_Object (int TracebackModeIn=-1, bool set_label=true)

	Epetra_Object (const char *const Label, int TracebackModeIn=-1)

	Epetra_Object (const Epetra_Object &Object)

virtual	~Epetra_Object ()

virtual int	ReportError (const std::string Message, int ErrorCode) const

virtual void	SetLabel (const char *const Label)

virtual	~Epetra_RowMatrix ()

virtual	~Epetra_Operator ()

virtual	~Epetra_SrcDistObject ()

Static Public Member Functions inherited from Epetra_BasicRowMatrix
static void	SetTracebackMode (int TracebackModeValue)

static int	GetTracebackMode ()

static std::ostream &	GetTracebackStream ()

Detailed Description

Definition at line 105 of file EpetraExt_HypreIJMatrix.h.

Constructor & Destructor Documentation

EpetraExt_HypreIJMatrix::EpetraExt_HypreIJMatrix ( HYPRE_IJMatrix matrix )

Epetra_HypreIJMatrix constructor.

Creates a Epetra_HypreIJMatrix object by encapsulating an existing Hypre matrix.

Parameters

matrix (In) - A completely constructed Hypre IJ matrix.

virtual EpetraExt_HypreIJMatrix::~EpetraExt_HypreIJMatrix ( )

virtual

EpetraExt_HypreIJMatrix Destructor.

Member Function Documentation

int EpetraExt_HypreIJMatrix::ExtractMyRowCopy	(	int	MyRow,
		int	Length,
		int &	NumEntries,
		double *	Values,
		int *	Indices
	)		const

virtual

Returns a copy of the specified local row in user-provided arrays.

Parameters

MyRow	(In) - Local row to extract.
Length	(In) - Length of Values and Indices.
NumEntries	(Out) - Number of nonzero entries extracted.
Values	(Out) - Extracted values for this row.
Indices	(Out) - Extracted local column indices for the corresponding values.

Returns: Integer error code, set to 0 if successful.

Implements Epetra_BasicRowMatrix.

int EpetraExt_HypreIJMatrix::ExtractMyEntryView	(	int	CurEntry,
		double *&	Value,
		int &	RowIndex,
		int &	ColIndex
	)

virtual

Returns a reference to the ith entry in the matrix, along with its row and column index.

Parameters

CurEntry	(In) - Index of local entry (from 0 to NumMyNonzeros()-1) to extract.
Value	(Out) - Extracted reference to current values.
RowIndex	(Out) - Row index for current entry.
ColIndex	(Out) - Column index for current entry.

Returns: Integer error code, set to 0 if successful.

Implements Epetra_BasicRowMatrix.

int EpetraExt_HypreIJMatrix::ExtractMyEntryView	(	int	CurEntry,
		const double *&	Value,
		int &	RowIndex,
		int &	ColIndex
	)		const

virtual

Returns a const reference to the ith entry in the matrix, along with its row and column index.

Parameters

CurEntry	(In) - Index of local entry (from 0 to NumMyNonzeros()-1) to extract.
Value	(Out) - Extracted reference to current values.
RowIndex	(Out) - Row index for current entry.
ColIndex	(Out) - Column index for current entry.

Returns: Integer error code, set to 0 if successful.

Implements Epetra_BasicRowMatrix.

int EpetraExt_HypreIJMatrix::SetParameter	(	Hypre_Chooser	chooser,
		int(*)(HYPRE_Solver, int)	pt2Func,
		int	parameter
	)

Set a parameter that takes a single int.

Parameters

chooser	(In) -A Hypre_Chooser enumerated type set to Solver or Preconditioner, whatever the parameter is setting for.
*pt2Func	(In) -The function that sets the parameter. It must set parameters for the type of solver or preconditioner that was created. An example is if the solver is BoomerAMG, the function to set maximum iterations would be &HYPRE_BoomerAMGSetMaxIter
parameter	(In) -The integer parameter being set.

Returns: Integer error code, set to 0 if successful.

int EpetraExt_HypreIJMatrix::SetParameter	(	Hypre_Chooser	chooser,
		int(*)(HYPRE_Solver, double)	pt2Func,
		double	parameter
	)

Set a parameter that takes a single double.

Parameters

chooser	(In) -A Hypre_Chooser enumerated type set to Solver or Preconditioner, whatever the parameter is setting for.
*pt2Func	(In) -The function that sets the parameter. It must set parameters for the type of solver or preconditioner that was created. An example is if the solver is BoomerAMG, the function to set tolerance would be &HYPRE_BoomerAMGSetTol
parameter	(In) -The double parameter being set.

Returns: Integer error code, set to 0 if successful.

int EpetraExt_HypreIJMatrix::SetParameter	(	Hypre_Chooser	chooser,
		int(*)(HYPRE_Solver, double, int)	pt2Func,
		double	parameter1,
		int	parameter2
	)

Set a parameter that takes a double then an int.

Parameters

chooser	(In) -A Hypre_Chooser enumerated type set to Solver or Preconditioner, whatever the parameter is setting for.
*pt2Func	(In) -The function that sets the parameter. It must set parameters for the type of solver or preconditioner that was created. An example is if the solver is BoomerAMG, the function to set relaxation weight for a given level would be &HYPRE_BoomerAMGSetLevelRelaxWt
parameter1	(In) -The double parameter being set.
parameter2	(In) - The integer parameter being set.

Returns: Integer error code, set to 0 if successful.

int EpetraExt_HypreIJMatrix::SetParameter	(	Hypre_Chooser	chooser,
		int(*)(HYPRE_Solver, int, int)	pt2Func,
		int	parameter1,
		int	parameter2
	)

Set a parameter that takes two int parameters.

Parameters

chooser	(In) -A Hypre_Chooser enumerated type set to Solver or Preconditioner, whatever the parameter is setting for.
*pt2Func	(In) -The function that sets the parameter. It must set parameters for the type of solver or preconditioner that was created. An example is if the solver is BoomerAMG, the function to set relaxation type for a given level would be &HYPRE_BoomerAMGSetCycleRelaxType
parameter1	(In) -The first integer parameter being set.
parameter2	(In) - The second integer parameter being set.

Returns: Integer error code, set to 0 if successful.

int EpetraExt_HypreIJMatrix::SetParameter	(	Hypre_Chooser	chooser,
		int()(HYPRE_Solver, double )	pt2Func,
		double *	parameter
	)

Set a parameter that takes a double*.

Parameters

chooser	(In) -A Hypre_Chooser enumerated type set to Solver or Preconditioner, whatever the parameter is setting for.
*pt2Func	(In) -The function that sets the parameter. It must set parameters for the type of solver or preconditioner that was created. An example is if the solver is BoomerAMG, the function to set relaxation weight would be &HYPRE_BoomerAMGSetRelaxWeight
parameter	(In) -The double* parameter being set.

Returns: Integer error code, set to 0 if successful.

int EpetraExt_HypreIJMatrix::SetParameter	(	Hypre_Chooser	chooser,
		int()(HYPRE_Solver, int )	pt2Func,
		int *	parameter
	)

Set a parameter that takes an int*.

Parameters

chooser	(In) -A Hypre_Chooser enumerated type set to Solver or Preconditioner, whatever the parameter is setting for.
*pt2Func	(In) -The function that sets the parameter. It must set parameters for the type of solver or preconditioner that was created. An example is if the solver is BoomerAMG, the function to set grid relax type would be &HYPRE_BoomerAMGSetGridRelaxType
parameter	(In) -The int* parameter being set.

Returns: Integer error code, set to 0 if successful.

int EpetraExt_HypreIJMatrix::SetParameter	(	Hypre_Chooser	chooser,
		Hypre_Solver	Solver,
		bool	transpose = `false`
	)

Sets the solver that is used by the Solve() and ApplyInverse() methods. Until this is called, the default solver is PCG.

Parameters

chooser	(In) - A Hypre_Chooser enumerated type. If Solver, then we are selecting which solver, if Preconditioner, we are choosing which preconditioner to use.
Solver	(In) -A Hypre_Solver enumerated type to select the solver or preconditioner. Options for solver are: BoomerAMG, AMS, Hybrid, PCG, GMRES, FlexGMRES, LGMRES, and BiCGSTAB. See Hypre Ref Manual for more info on the solvers. Options for Preconditioner are: BoomerAMG, ParaSails, Euclid, and AMS.
transpose	(In) -Optional argument that selects to use a transpose solve. Currently BoomerAMG is the only solver available for transpose solve. It must be the argument for Solver if transpose is true.

Returns: Integer error code, set to 0 if successful.

int EpetraExt_HypreIJMatrix::SetParameter ( bool UsePreconditioner )

Sets the solver to use the selected preconditioner.

Parameters

UsePreconditioner (In) -A boolean, true use preconditioner, false do not use the supplied preconditioner with the solver. The solver and preconditioner must have been selected and the solver must be one of the following solvers: Hybrid, PCG, GMRES, FlexGMRES, LGMRES, BiCGSTAB.

Returns: Integer error code, set to 0 if successful.

int EpetraExt_HypreIJMatrix::SetParameter ( Hypre_Chooser chooser )

Choose to solve the problem or apply the preconditioner.

Parameters

chooser (In) -A Hypre_Chooser enumerated type, either Solver or Preconditioner. The chosen type must have been selected before this method is called.

Returns: Integer error code, set to 0 if successful.

int EpetraExt_HypreIJMatrix::Multiply	(	bool	TransA,
		const Epetra_MultiVector &	X,
		Epetra_MultiVector &	Y
	)		const

virtual

Returns the result of a EpetraExt_HypreIJMatrix multiplied by a Epetra_MultiVector X in Y.

Parameters

TransA	(In) -If true, multiply by the transpose of matrix, otherwise just use matrix.
X	(In) - A Epetra_MultiVector of dimension NumVectors to multiply with matrix.
Y	(Out) -A Epetra_MultiVector of dimension NumVectorscontaining result.

Returns: Integer error code, set to 0 if successful.

Reimplemented from Epetra_BasicRowMatrix.

int EpetraExt_HypreIJMatrix::Solve	(	bool	Upper,
		bool	Trans,
		bool	UnitDiagonal,
		const Epetra_MultiVector &	X,
		Epetra_MultiVector &	Y
	)		const

virtual

Returns the result of a EpetraExt_HypreIJMatrix solving a Epetra_MultiVector X in Y.

Parameters

Upper	(In) -If true, solve Ux = y, otherwise solve Lx = y.
Trans	(In) -If true, solve transpose problem.
UnitDiagonal	(In) -If true, assume diagonal is unit (whether it's stored or not).
X	(In) - A Epetra_MultiVector of dimension NumVectors to solve for.
Y	(Out) -A Epetra_MultiVector of dimension NumVectors containing result.

Returns: Integer error code, set to 0 if successful.

Reimplemented from Epetra_BasicRowMatrix.

int EpetraExt_HypreIJMatrix::LeftScale ( const Epetra_Vector & X )

virtual

Scales the EpetraExt_HypreIJMatrix on the left with a Epetra_Vector x.

The this matrix will be scaled such that A(i,j) = x(i)*A(i,j) where i denotes the row number of A and j denotes the column number of A.

Parameters

X	(In) -A Epetra_Vector to solve for.

Returns: Integer error code, set to 0 if successful.

Reimplemented from Epetra_BasicRowMatrix.

int EpetraExt_HypreIJMatrix::RightScale ( const Epetra_Vector & X )

virtual

Scales the EpetraExt_HypreIJMatrix on the right with a Epetra_Vector x.

The this matrix will be scaled such that A(i,j) = x(j)*A(i,j) where i denotes the global row number of A and j denotes the global column number of A.

Parameters

X	(In) -The Epetra_Vector used for scaling this.

Returns: Integer error code, set to 0 if successful.

Reimplemented from Epetra_BasicRowMatrix.

int EpetraExt_HypreIJMatrix::Apply	(	const Epetra_MultiVector &	X,
		Epetra_MultiVector &	Y
	)		const

inlinevirtual

Returns the result of a Epetra_Operator applied to a Epetra_MultiVector X in Y.

Parameters

X	(In) - A Epetra_MultiVector of dimension NumVectors to multiply with matrix.
Y	(Out) -A Epetra_MultiVector of dimension NumVectors containing result.

Returns: Integer error code, set to 0 if successful.

Reimplemented from Epetra_BasicRowMatrix.

Definition at line 322 of file EpetraExt_HypreIJMatrix.h.

int EpetraExt_HypreIJMatrix::ApplyInverse	(	const Epetra_MultiVector &	X,
		Epetra_MultiVector &	Y
	)		const

inlinevirtual

Returns the result of a Epetra_Operator inverse applied to an Epetra_MultiVector X in Y.

In this implementation, we use several existing attributes to determine how virtual
method ApplyInverse() should call the concrete method Solve().  We pass in the UpperTriangular(),

the EpetraExt_HypreIJMatrix::UseTranspose(), and NoDiagonal() methods. The most notable warning is that if a matrix has no diagonal values we assume that there is an implicit unit diagonal that should be accounted for when doing a triangular solve.

Parameters

X	(In) - A Epetra_MultiVector of dimension NumVectors to solve for.
Y	(Out) -A Epetra_MultiVector of dimension NumVectors containing result.

Returns: Integer error code, set to 0 if successful.

Reimplemented from Epetra_BasicRowMatrix.

Definition at line 337 of file EpetraExt_HypreIJMatrix.h.

virtual bool EpetraExt_HypreIJMatrix::UseTranspose ( ) const

inlinevirtual

Returns the current UseTranspose setting.

Reimplemented from Epetra_BasicRowMatrix.

Definition at line 341 of file EpetraExt_HypreIJMatrix.h.

int EpetraExt_HypreIJMatrix::NumMyRowEntries	(	int	MyRow,
		int &	NumEntries
	)		const

virtual

Return the current number of values stored for the specified local row.

Similar to NumMyEntries() except NumEntries is returned as an argument
and error checking is done on the input value MyRow.

Parameters

MyRow	(In) - Local row.
NumEntries	(Out) - Number of nonzero values.

Returns: Integer error code, set to 0 if successful.

Implements Epetra_BasicRowMatrix.

HYPRE_IJMatrix& EpetraExt_HypreIJMatrix::GetMatrix ( )

inline

Return a reference to the Hypre matrix.

Definition at line 358 of file EpetraExt_HypreIJMatrix.h.

int EpetraExt_HypreIJMatrix::InitializeDefaults ( )

protected

Set global variables to default values.

int EpetraExt_HypreIJMatrix::Hypre_BoomerAMGCreate	(	MPI_Comm	comm,
		HYPRE_Solver *	solver
	)

inlineprotected

AMG Create passing function.

Definition at line 369 of file EpetraExt_HypreIJMatrix.h.

int EpetraExt_HypreIJMatrix::Hypre_ParaSailsCreate	(	MPI_Comm	comm,
		HYPRE_Solver *	solver
	)

inlineprotected

ParaSails Create passing function.

Definition at line 373 of file EpetraExt_HypreIJMatrix.h.

int EpetraExt_HypreIJMatrix::Hypre_EuclidCreate	(	MPI_Comm	comm,
		HYPRE_Solver *	solver
	)

inlineprotected

Euclid Create passing function.

Definition at line 377 of file EpetraExt_HypreIJMatrix.h.

int EpetraExt_HypreIJMatrix::Hypre_AMSCreate	(	MPI_Comm	comm,
		HYPRE_Solver *	solver
	)

inlineprotected

AMS Create passing function.

Definition at line 381 of file EpetraExt_HypreIJMatrix.h.

int EpetraExt_HypreIJMatrix::Hypre_ParCSRHybridCreate	(	MPI_Comm	comm,
		HYPRE_Solver *	solver
	)

inlineprotected

Hybrid Create passing function.

Definition at line 385 of file EpetraExt_HypreIJMatrix.h.

int EpetraExt_HypreIJMatrix::Hypre_ParCSRPCGCreate	(	MPI_Comm	comm,
		HYPRE_Solver *	solver
	)

inlineprotected

PCG Create passing function.

Definition at line 389 of file EpetraExt_HypreIJMatrix.h.

int EpetraExt_HypreIJMatrix::Hypre_ParCSRGMRESCreate	(	MPI_Comm	comm,
		HYPRE_Solver *	solver
	)

inlineprotected

GMRES Create passing function.

Definition at line 393 of file EpetraExt_HypreIJMatrix.h.

int EpetraExt_HypreIJMatrix::Hypre_ParCSRFlexGMRESCreate	(	MPI_Comm	comm,
		HYPRE_Solver *	solver
	)

inlineprotected

FlexGMRES Create passing function.

Definition at line 397 of file EpetraExt_HypreIJMatrix.h.

int EpetraExt_HypreIJMatrix::Hypre_ParCSRLGMRESCreate	(	MPI_Comm	comm,
		HYPRE_Solver *	solver
	)

inlineprotected

LGMRES Create passing function.

Definition at line 401 of file EpetraExt_HypreIJMatrix.h.

int EpetraExt_HypreIJMatrix::Hypre_ParCSRBiCGSTABCreate	(	MPI_Comm	comm,
		HYPRE_Solver *	solver
	)

inlineprotected

BiCGSTAB Create passing function.

Definition at line 405 of file EpetraExt_HypreIJMatrix.h.

int EpetraExt_HypreIJMatrix::CreateSolver ( )

protected

Create the solver with selected type.

int EpetraExt_HypreIJMatrix::CreatePrecond ( )

protected

Create the preconditioner with selected type.

int EpetraExt_HypreIJMatrix::SetupSolver ( ) const

protected

int EpetraExt_HypreIJMatrix::SetupPrecond ( ) const

protected

Member Data Documentation

HYPRE_IJMatrix EpetraExt_HypreIJMatrix::Matrix_

mutableprotected

Definition at line 419 of file EpetraExt_HypreIJMatrix.h.

HYPRE_ParCSRMatrix EpetraExt_HypreIJMatrix::ParMatrix_

mutableprotected

Definition at line 420 of file EpetraExt_HypreIJMatrix.h.

HYPRE_IJVector EpetraExt_HypreIJMatrix::X_hypre

mutableprotected

Definition at line 421 of file EpetraExt_HypreIJMatrix.h.

HYPRE_IJVector EpetraExt_HypreIJMatrix::Y_hypre

mutableprotected

Definition at line 422 of file EpetraExt_HypreIJMatrix.h.

HYPRE_ParVector EpetraExt_HypreIJMatrix::par_x

mutableprotected

Definition at line 423 of file EpetraExt_HypreIJMatrix.h.

HYPRE_ParVector EpetraExt_HypreIJMatrix::par_y

mutableprotected

Definition at line 424 of file EpetraExt_HypreIJMatrix.h.

hypre_ParVector* EpetraExt_HypreIJMatrix::x_vec

mutableprotected

Definition at line 425 of file EpetraExt_HypreIJMatrix.h.

hypre_ParVector* EpetraExt_HypreIJMatrix::y_vec

mutableprotected

Definition at line 426 of file EpetraExt_HypreIJMatrix.h.

hypre_Vector* EpetraExt_HypreIJMatrix::x_local

mutableprotected

Definition at line 427 of file EpetraExt_HypreIJMatrix.h.

hypre_Vector* EpetraExt_HypreIJMatrix::y_local

mutableprotected

Definition at line 428 of file EpetraExt_HypreIJMatrix.h.

HYPRE_Solver EpetraExt_HypreIJMatrix::Solver_

mutableprotected

Definition at line 429 of file EpetraExt_HypreIJMatrix.h.

HYPRE_Solver EpetraExt_HypreIJMatrix::Preconditioner_

mutableprotected

Definition at line 430 of file EpetraExt_HypreIJMatrix.h.

int(EpetraExt_HypreIJMatrix::* EpetraExt_HypreIJMatrix::SolverCreatePtr_)(MPI_Comm, HYPRE_Solver *)

protected

Definition at line 432 of file EpetraExt_HypreIJMatrix.h.

int(* EpetraExt_HypreIJMatrix::SolverDestroyPtr_)(HYPRE_Solver)

protected

Definition at line 433 of file EpetraExt_HypreIJMatrix.h.

int(* EpetraExt_HypreIJMatrix::SolverSetupPtr_)(HYPRE_Solver, HYPRE_ParCSRMatrix, HYPRE_ParVector, HYPRE_ParVector)

protected

Definition at line 434 of file EpetraExt_HypreIJMatrix.h.

int(* EpetraExt_HypreIJMatrix::SolverSolvePtr_)(HYPRE_Solver, HYPRE_ParCSRMatrix, HYPRE_ParVector, HYPRE_ParVector)

protected

Definition at line 435 of file EpetraExt_HypreIJMatrix.h.

int(* EpetraExt_HypreIJMatrix::SolverPrecondPtr_)(HYPRE_Solver, HYPRE_PtrToParSolverFcn, HYPRE_PtrToParSolverFcn, HYPRE_Solver)

protected

Definition at line 436 of file EpetraExt_HypreIJMatrix.h.

int(EpetraExt_HypreIJMatrix::* EpetraExt_HypreIJMatrix::PrecondCreatePtr_)(MPI_Comm, HYPRE_Solver *)

protected

Definition at line 437 of file EpetraExt_HypreIJMatrix.h.

int(* EpetraExt_HypreIJMatrix::PrecondDestroyPtr_)(HYPRE_Solver)

protected

Definition at line 438 of file EpetraExt_HypreIJMatrix.h.

int(* EpetraExt_HypreIJMatrix::PrecondSetupPtr_)(HYPRE_Solver, HYPRE_ParCSRMatrix, HYPRE_ParVector, HYPRE_ParVector)

protected

Definition at line 439 of file EpetraExt_HypreIJMatrix.h.

int(* EpetraExt_HypreIJMatrix::PrecondSolvePtr_)(HYPRE_Solver, HYPRE_ParCSRMatrix, HYPRE_ParVector, HYPRE_ParVector)

protected

Definition at line 440 of file EpetraExt_HypreIJMatrix.h.

int EpetraExt_HypreIJMatrix::NumMyRows_

protected

Number of rows on local processor.

Definition at line 443 of file EpetraExt_HypreIJMatrix.h.

int EpetraExt_HypreIJMatrix::NumGlobalRows_

protected

Number of rows across all processors.

Definition at line 445 of file EpetraExt_HypreIJMatrix.h.

int EpetraExt_HypreIJMatrix::NumGlobalCols_

protected

Number of columns across all processors.

Definition at line 447 of file EpetraExt_HypreIJMatrix.h.

int EpetraExt_HypreIJMatrix::MyRowStart_

protected

First row on local processor.

Definition at line 449 of file EpetraExt_HypreIJMatrix.h.

int EpetraExt_HypreIJMatrix::MyRowEnd_

protected

Last row on local processor.

Definition at line 451 of file EpetraExt_HypreIJMatrix.h.

int EpetraExt_HypreIJMatrix::MatType_

mutableprotected

Hypre matrix type (parCSR).

Definition at line 453 of file EpetraExt_HypreIJMatrix.h.

bool EpetraExt_HypreIJMatrix::TransposeSolve_

protected

Do a transpose solve, only BoomerAMG.

Definition at line 455 of file EpetraExt_HypreIJMatrix.h.

Hypre_Chooser EpetraExt_HypreIJMatrix::SolveOrPrec_

protected

Choose to solve or apply preconditioner.

Definition at line 457 of file EpetraExt_HypreIJMatrix.h.

bool* EpetraExt_HypreIJMatrix::IsSolverSetup_

protected

Flag to know if solver needs to be destoyed.

Definition at line 459 of file EpetraExt_HypreIJMatrix.h.

bool* EpetraExt_HypreIJMatrix::IsPrecondSetup_

protected

Flag to know if preconditioner needs to be destroyed.

Definition at line 461 of file EpetraExt_HypreIJMatrix.h.

The documentation for this class was generated from the following file:

EpetraExt_HypreIJMatrix.h

Protected Member Functions

Protected Attributes

Constructors/Destructor

Extraction methods

Solver Setup Methods

Computational methods

Additional methods required to support the Epetra_Operator interface

Additional methods required to implement RowMatrix interface

Additional Inherited Members

Detailed Description

Constructor & Destructor Documentation

Member Function Documentation

Member Data Documentation
