EpetraExt_BlockDiagMatrix: A class for storing distributed block matrices. More...

#include <EpetraExt_BlockDiagMatrix.h>

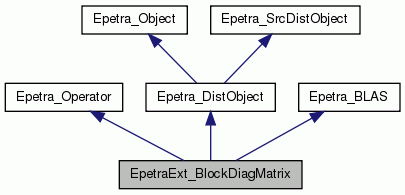

Inheritance diagram for EpetraExt_BlockDiagMatrix:

Public Member Functions
	EpetraExt_BlockDiagMatrix (const Epetra_BlockMap &Map, bool zero_out=true)
	Constructor - This map is the map of the vector this can be applied to. More...

	EpetraExt_BlockDiagMatrix (const EpetraExt_BlockDiagMatrix &Source)
	Copy constructor. More...

virtual	~EpetraExt_BlockDiagMatrix ()
	Destructor. More...

EpetraExt_BlockDiagMatrix &	operator= (const EpetraExt_BlockDiagMatrix &Source)
	= Operator. More...

double *	operator[] (int index)
	Block access function. More...

const double *	operator[] (int index) const
	Block access function. More...

Public Member Functions inherited from Epetra_BLAS
	Epetra_BLAS (void)

	Epetra_BLAS (const Epetra_BLAS &BLAS)

virtual	~Epetra_BLAS (void)

float	ASUM (const int N, const float *X, const int INCX=1) const

double	ASUM (const int N, const double *X, const int INCX=1) const

float	DOT (const int N, const float X, const float Y, const int INCX=1, const int INCY=1) const

double	DOT (const int N, const double X, const double Y, const int INCX=1, const int INCY=1) const

float	NRM2 (const int N, const float *X, const int INCX=1) const

double	NRM2 (const int N, const double *X, const int INCX=1) const

void	SCAL (const int N, const float ALPHA, float *X, const int INCX=1) const

void	SCAL (const int N, const double ALPHA, double *X, const int INCX=1) const

void	COPY (const int N, const float X, float Y, const int INCX=1, const int INCY=1) const

void	COPY (const int N, const double X, double Y, const int INCX=1, const int INCY=1) const

int	IAMAX (const int N, const float *X, const int INCX=1) const

int	IAMAX (const int N, const double *X, const int INCX=1) const

void	AXPY (const int N, const float ALPHA, const float X, float Y, const int INCX=1, const int INCY=1) const

void	AXPY (const int N, const double ALPHA, const double X, double Y, const int INCX=1, const int INCY=1) const

void	GEMV (const char TRANS, const int M, const int N, const float ALPHA, const float A, const int LDA, const float X, const float BETA, float *Y, const int INCX=1, const int INCY=1) const

void	GEMV (const char TRANS, const int M, const int N, const double ALPHA, const double A, const int LDA, const double X, const double BETA, double *Y, const int INCX=1, const int INCY=1) const

void	GEMM (const char TRANSA, const char TRANSB, const int M, const int N, const int K, const float ALPHA, const float A, const int LDA, const float B, const int LDB, const float BETA, float *C, const int LDC) const

void	GEMM (const char TRANSA, const char TRANSB, const int M, const int N, const int K, const double ALPHA, const double A, const int LDA, const double B, const int LDB, const double BETA, double *C, const int LDC) const

void	SYMM (const char SIDE, const char UPLO, const int M, const int N, const float ALPHA, const float A, const int LDA, const float B, const int LDB, const float BETA, float *C, const int LDC) const

void	SYMM (const char SIDE, const char UPLO, const int M, const int N, const double ALPHA, const double A, const int LDA, const double B, const int LDB, const double BETA, double *C, const int LDC) const

void	TRMM (const char SIDE, const char UPLO, const char TRANSA, const char DIAG, const int M, const int N, const float ALPHA, const float A, const int LDA, float B, const int LDB) const

void	TRMM (const char SIDE, const char UPLO, const char TRANSA, const char DIAG, const int M, const int N, const double ALPHA, const double A, const int LDA, double B, const int LDB) const

void	SYRK (const char UPLO, const char TRANS, const int N, const int K, const float ALPHA, const float A, const int LDA, const float BETA, float C, const int LDC) const

void	SYRK (const char UPLO, const char TRANS, const int N, const int K, const double ALPHA, const double A, const int LDA, const double BETA, double C, const int LDC) const

Attribute set methods
virtual int	SetUseTranspose (bool)
	SetUseTranspose - not implemented. More...

virtual int	SetParameters (Teuchos::ParameterList &List)
	SetParameters. More...

virtual int	Compute ()
	Computes the inverse / factorization if such is set on the list. More...

Attribute access functions
virtual const char *	Label () const
	Returns a character std::string describing the operator. More...

virtual bool	UseTranspose () const
	Returns the current UseTranspose setting. More...

virtual bool	HasNormInf () const
	Returns true if the this object can provide an approximate Inf-norm, false otherwise. More...

virtual const Epetra_Comm &	Comm () const
	Returns a pointer to the Epetra_Comm communicator associated with this operator. More...

virtual const Epetra_Map &	OperatorDomainMap () const
	Returns the Epetra_Map object associated with the domain of this operator. More...

virtual const Epetra_Map &	OperatorRangeMap () const
	Returns the Epetra_Map object associated with the range of this operator. More...

virtual const Epetra_BlockMap &	BlockMap () const
	Returns the Epetra_BlockMap object associated with the range of this operator. More...

double *	Values () const
	Returns a pointer to the array containing the blocks. More...

int	BlockSize (int LID) const
	Returns the size of the given block. More...

int	DataSize (int LID) const
	Returns the size of the data in the given block. More...

bool	ConstantBlockSize () const
	Returns true if the element size is constant. More...

int	NumMyBlocks () const
	Returns the number of local blocks. More...

int	NumGlobalBlocks () const
	Returns the number of global blocks. More...

long long	NumGlobalBlocks64 () const

int	NumMyUnknowns () const
	Returns the number of local unknowns. More...

int	NumGlobalUnknowns () const
	Returns the number of global unknowns. More...

long long	NumGlobalUnknowns64 () const

int	NumData () const
	Returns the size of the total Data block. More...

int	GetApplyMode ()
	Gets apply mode info. More...

virtual void	Print (std::ostream &os) const
	Print method. More...

Mathematical functions
virtual int	Apply (const Epetra_MultiVector &, Epetra_MultiVector &) const
	Returns the result of a Epetra_Operator applied to a Epetra_MultiVector X in Y. More...

virtual int	ApplyInverse (const Epetra_MultiVector &X, Epetra_MultiVector &Y) const
	Returns the result of a Epetra_Operator inverse applied to an Epetra_MultiVector X in Y. More...

virtual double	NormInf () const
	NormInf - Not Implemented. More...

void	PutScalar (double value)
	PutScalar function. More...

virtual const Epetra_BlockMap &	DataMap () const
	Returns the Epetra_BlockMap object with the distribution of underlying values. More...

Additional Inherited Members

Detailed Description

EpetraExt_BlockDiagMatrix: A class for storing distributed block matrices.

A dense-block block-diagonal matrix with inversion/factorization capabilities.

This class has a rigid map structure — the Domain and Range maps must be the same.

Definition at line 72 of file EpetraExt_BlockDiagMatrix.h.

Constructor & Destructor Documentation

EpetraExt_BlockDiagMatrix::EpetraExt_BlockDiagMatrix	(	const Epetra_BlockMap &	Map,
		bool	zero_out = `true`
	)

Constructor - This map is the map of the vector this can be applied to.

Definition at line 56 of file EpetraExt_BlockDiagMatrix.cpp.

EpetraExt_BlockDiagMatrix::EpetraExt_BlockDiagMatrix ( const EpetraExt_BlockDiagMatrix & Source )

Copy constructor.

Definition at line 80 of file EpetraExt_BlockDiagMatrix.cpp.

EpetraExt_BlockDiagMatrix::~EpetraExt_BlockDiagMatrix ( )

virtual

Destructor.

Definition at line 71 of file EpetraExt_BlockDiagMatrix.cpp.

Member Function Documentation

EpetraExt_BlockDiagMatrix & EpetraExt_BlockDiagMatrix::operator= ( const EpetraExt_BlockDiagMatrix & Source )

= Operator.

Parameters

In	A - EpetraExt_BlockDiagMatrix to copy.

Returns: EpetraExt_BlockDiagMatrix.

Definition at line 150 of file EpetraExt_BlockDiagMatrix.cpp.

double* EpetraExt_BlockDiagMatrix::operator[] ( int index )

inline

Block access function.

Returns: the pointer V[Index].

Definition at line 98 of file EpetraExt_BlockDiagMatrix.h.

const double* EpetraExt_BlockDiagMatrix::operator[] ( int index ) const

inline

Block access function.

Returns: the pointer V[Index].

Definition at line 103 of file EpetraExt_BlockDiagMatrix.h.

virtual int EpetraExt_BlockDiagMatrix::SetUseTranspose ( bool )

inlinevirtual

SetUseTranspose - not implemented.

Implements Epetra_Operator.

Definition at line 111 of file EpetraExt_BlockDiagMatrix.h.

int EpetraExt_BlockDiagMatrix::SetParameters ( Teuchos::ParameterList & List )

virtual

SetParameters.

Definition at line 127 of file EpetraExt_BlockDiagMatrix.cpp.

int EpetraExt_BlockDiagMatrix::Compute ( )

virtual

Computes the inverse / factorization if such is set on the list.

Definition at line 175 of file EpetraExt_BlockDiagMatrix.cpp.

virtual const char* EpetraExt_BlockDiagMatrix::Label ( ) const

inlinevirtual

Returns a character std::string describing the operator.

Implements Epetra_Operator.

Definition at line 126 of file EpetraExt_BlockDiagMatrix.h.

virtual bool EpetraExt_BlockDiagMatrix::UseTranspose ( ) const

inlinevirtual

Returns the current UseTranspose setting.

Implements Epetra_Operator.

Definition at line 129 of file EpetraExt_BlockDiagMatrix.h.

virtual bool EpetraExt_BlockDiagMatrix::HasNormInf ( ) const

inlinevirtual

Returns true if the this object can provide an approximate Inf-norm, false otherwise.

Implements Epetra_Operator.

Definition at line 132 of file EpetraExt_BlockDiagMatrix.h.

virtual const Epetra_Comm& EpetraExt_BlockDiagMatrix::Comm ( ) const

inlinevirtual

Returns a pointer to the Epetra_Comm communicator associated with this operator.

Implements Epetra_Operator.

Definition at line 135 of file EpetraExt_BlockDiagMatrix.h.

virtual const Epetra_Map& EpetraExt_BlockDiagMatrix::OperatorDomainMap ( ) const

inlinevirtual

Returns the Epetra_Map object associated with the domain of this operator.

Implements Epetra_Operator.

Definition at line 138 of file EpetraExt_BlockDiagMatrix.h.

virtual const Epetra_Map& EpetraExt_BlockDiagMatrix::OperatorRangeMap ( ) const

inlinevirtual

Returns the Epetra_Map object associated with the range of this operator.

Implements Epetra_Operator.

Definition at line 141 of file EpetraExt_BlockDiagMatrix.h.

virtual const Epetra_BlockMap& EpetraExt_BlockDiagMatrix::BlockMap ( ) const

inlinevirtual

Returns the Epetra_BlockMap object associated with the range of this operator.

Definition at line 144 of file EpetraExt_BlockDiagMatrix.h.

double* EpetraExt_BlockDiagMatrix::Values ( ) const

inline

Returns a pointer to the array containing the blocks.

Definition at line 147 of file EpetraExt_BlockDiagMatrix.h.

int EpetraExt_BlockDiagMatrix::BlockSize ( int LID ) const

inline

Returns the size of the given block.

Definition at line 150 of file EpetraExt_BlockDiagMatrix.h.

int EpetraExt_BlockDiagMatrix::DataSize ( int LID ) const

inline

Returns the size of the data in the given block.

Definition at line 153 of file EpetraExt_BlockDiagMatrix.h.

bool EpetraExt_BlockDiagMatrix::ConstantBlockSize ( ) const

inline

Returns true if the element size is constant.

Definition at line 156 of file EpetraExt_BlockDiagMatrix.h.

int EpetraExt_BlockDiagMatrix::NumMyBlocks ( ) const

inline

Returns the number of local blocks.

Definition at line 159 of file EpetraExt_BlockDiagMatrix.h.

int EpetraExt_BlockDiagMatrix::NumGlobalBlocks ( ) const

inline

Returns the number of global blocks.

Definition at line 163 of file EpetraExt_BlockDiagMatrix.h.

long long EpetraExt_BlockDiagMatrix::NumGlobalBlocks64 ( ) const

inline

Definition at line 165 of file EpetraExt_BlockDiagMatrix.h.

int EpetraExt_BlockDiagMatrix::NumMyUnknowns ( ) const

inline

Returns the number of local unknowns.

Definition at line 168 of file EpetraExt_BlockDiagMatrix.h.

int EpetraExt_BlockDiagMatrix::NumGlobalUnknowns ( ) const

inline

Returns the number of global unknowns.

Definition at line 172 of file EpetraExt_BlockDiagMatrix.h.

long long EpetraExt_BlockDiagMatrix::NumGlobalUnknowns64 ( ) const

inline

Definition at line 174 of file EpetraExt_BlockDiagMatrix.h.

int EpetraExt_BlockDiagMatrix::NumData ( ) const

inline

Returns the size of the total Data block.

Definition at line 177 of file EpetraExt_BlockDiagMatrix.h.

int EpetraExt_BlockDiagMatrix::GetApplyMode ( )

inline

Gets apply mode info.

Definition at line 180 of file EpetraExt_BlockDiagMatrix.h.

void EpetraExt_BlockDiagMatrix::Print ( std::ostream & os ) const

virtual

Print method.

Reimplemented from Epetra_DistObject.

Definition at line 307 of file EpetraExt_BlockDiagMatrix.cpp.

virtual int EpetraExt_BlockDiagMatrix::Apply	(	const Epetra_MultiVector &	,
		Epetra_MultiVector &
	)		const

inlinevirtual

Returns the result of a Epetra_Operator applied to a Epetra_MultiVector X in Y.

Parameters

In	X - A Epetra_MultiVector of dimension NumVectors to multiply with matrix.
Out	Y -A Epetra_MultiVector of dimension NumVectors containing result.

Returns: Integer error code, set to 0 if successful.

Implements Epetra_Operator.

Definition at line 199 of file EpetraExt_BlockDiagMatrix.h.

int EpetraExt_BlockDiagMatrix::ApplyInverse	(	const Epetra_MultiVector &	X,
		Epetra_MultiVector &	Y
	)		const

virtual

Returns the result of a Epetra_Operator inverse applied to an Epetra_MultiVector X in Y.

Parameters

In	X - A Epetra_MultiVector of dimension NumVectors to solve for.
Out	Y -A Epetra_MultiVector of dimension NumVectors containing result.

Returns: Integer error code, set to 0 if successful.

Warning: In order to work with AztecOO, any implementation of this method must support the case where X and Y are the same object.

Implements Epetra_Operator.

Definition at line 231 of file EpetraExt_BlockDiagMatrix.cpp.

virtual double EpetraExt_BlockDiagMatrix::NormInf ( ) const

inlinevirtual

NormInf - Not Implemented.

Implements Epetra_Operator.

Definition at line 216 of file EpetraExt_BlockDiagMatrix.h.

void EpetraExt_BlockDiagMatrix::PutScalar ( double value )

PutScalar function.

Definition at line 143 of file EpetraExt_BlockDiagMatrix.cpp.

virtual const Epetra_BlockMap& EpetraExt_BlockDiagMatrix::DataMap ( ) const

inlinevirtual

Returns the Epetra_BlockMap object with the distribution of underlying values.

Definition at line 222 of file EpetraExt_BlockDiagMatrix.h.

The documentation for this class was generated from the following files:

Public Member Functions

Attribute set methods

Attribute access functions

Mathematical functions

Additional Inherited Members

Detailed Description

Constructor & Destructor Documentation

Member Function Documentation
