EpetraExt::ModelEvaluator Class Referenceabstract

Base interface for evaluating a stateless "model". More...

#include <EpetraExt_ModelEvaluator.h>

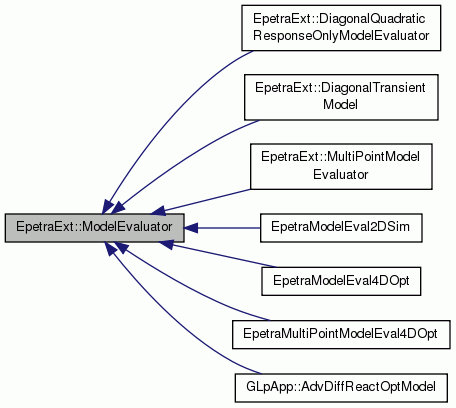

Inheritance diagram for EpetraExt::ModelEvaluator:
Inheritance graph
[legend]

Classes

class  Derivative
 Simple aggregate class that stores a derivative object as a general linear operator or as a multi-vector. More...

class  DerivativeMultiVector
 Simple aggregate class for a derivative object represented as a column-wise multi-vector or its transpose as a row-wise multi-vector. More...

struct  DerivativeProperties

class  DerivativeSupport

class  Evaluation

class  InArgs

class  InArgsSetup

class  MPDerivative
 Simple aggregate class that stores a derivative object as a general linear operator or as a multi-vector. More...

class  MPDerivativeMultiVector
 Simple aggregate class for a derivative object represented as a column-wise multi-vector or its transpose as a row-wise multi-vector. More...

class  OutArgs

class  OutArgsSetup

struct  Preconditioner
 Simple aggregate struct that stores a preconditioner as an Epetra_Operator and a bool, about whether it is inverted or not. More...

class  SGDerivative
 Simple aggregate class that stores a derivative object as a general linear operator or as a multi-vector. More...

class  SGDerivativeMultiVector
 Simple aggregate class for a derivative object represented as a column-wise multi-vector or its transpose as a row-wise multi-vector. More...


Public types

enum  EInArgsMembers {
  IN_ARG_x_dot, IN_ARG_x, IN_ARG_x_dot_poly, IN_ARG_x_poly,
  IN_ARG_x_dot_sg, IN_ARG_x_sg, IN_ARG_x_dot_mp, IN_ARG_x_mp,
  IN_ARG_t, IN_ARG_alpha, IN_ARG_beta, IN_ARG_step_size,
  IN_ARG_stage_number, IN_ARG_x_dotdot, IN_ARG_x_dotdot_poly, IN_ARG_x_dotdot_sg,
  IN_ARG_x_dotdot_mp, IN_ARG_omega, IN_ARG_sg_basis, IN_ARG_sg_quadrature,
  IN_ARG_sg_expansion
}

enum  EInArgs_p_sg { IN_ARG_p_sg }

enum  EInArgs_p_mp { IN_ARG_p_mp }

enum  EEvalType { EVAL_TYPE_EXACT, EVAL_TYPE_APPROX_DERIV, EVAL_TYPE_VERY_APPROX_DERIV }

enum  EDerivativeMultiVectorOrientation { DERIV_MV_BY_COL, DERIV_TRANS_MV_BY_ROW }

enum  EDerivativeLinearOp { DERIV_LINEAR_OP }

enum  EDerivativeLinearity { DERIV_LINEARITY_UNKNOWN, DERIV_LINEARITY_CONST, DERIV_LINEARITY_NONCONST }

enum  ERankStatus { DERIV_RANK_UNKNOWN, DERIV_RANK_FULL, DERIV_RANK_DEFICIENT }

enum  EOutArgsMembers {
  OUT_ARG_f, OUT_ARG_W, OUT_ARG_f_poly, OUT_ARG_f_sg,
  OUT_ARG_W_sg, OUT_ARG_f_mp, OUT_ARG_W_mp, OUT_ARG_WPrec
}

enum  EOutArgsDfDp { OUT_ARG_DfDp }

enum  EOutArgsDgDx_dot { OUT_ARG_DgDx_dot }

enum  EOutArgsDgDx_dotdot { OUT_ARG_DgDx_dotdot }

enum  EOutArgsDgDx { OUT_ARG_DgDx }

enum  EOutArgsDgDp { OUT_ARG_DgDp }

enum  EOutArgsDfDp_sg { OUT_ARG_DfDp_sg }

enum  EOutArgs_g_sg { OUT_ARG_g_sg }

enum  EOutArgsDgDx_dot_sg { OUT_ARG_DgDx_dot_sg }

enum  EOutArgsDgDx_dotdot_sg { OUT_ARG_DgDx_dotdot_sg }

enum  EOutArgsDgDx_sg { OUT_ARG_DgDx_sg }

enum  EOutArgsDgDp_sg { OUT_ARG_DgDp_sg }

enum  EOutArgsDfDp_mp { OUT_ARG_DfDp_mp }

enum  EOutArgs_g_mp { OUT_ARG_g_mp }

enum  EOutArgsDgDx_dot_mp { OUT_ARG_DgDx_dot_mp }

enum  EOutArgsDgDx_dotdot_mp { OUT_ARG_DgDx_dotdot_mp }

enum  EOutArgsDgDx_mp { OUT_ARG_DgDx_mp }

enum  EOutArgsDgDp_mp { OUT_ARG_DgDp_mp }

typedef Teuchos::RCP< const
Stokhos::ProductEpetraVector >
mp_const_vector_t

typedef Teuchos::RCP< const
Stokhos::ProductEpetraMultiVector >
mp_const_multivector_t

typedef Teuchos::RCP< const
Stokhos::ProductEpetraOperator >
mp_const_operator_t

typedef Teuchos::RCP
< Stokhos::ProductEpetraVector >
mp_vector_t

typedef Teuchos::RCP
< Stokhos::ProductEpetraMultiVector >
mp_multivector_t

typedef Teuchos::RCP
< Stokhos::ProductEpetraOperator >
mp_operator_t

static const int NUM_E_IN_ARGS_MEMBERS =21

static const int NUM_E_OUT_ARGS_MEMBERS =9


Destructor

virtual ~ModelEvaluator ()


Vector maps

virtual Teuchos::RCP< const
Epetra_Map
get_x_map () const =0
 . More...

virtual Teuchos::RCP< const
Epetra_Map
get_f_map () const =0
 . More...

virtual Teuchos::RCP< const
Epetra_Map
get_p_map (int l) const
 . More...

virtual Teuchos::RCP< const
Teuchos::Array< std::string > >
get_p_names (int l) const
 Get the names of the parameters associated with parameter subvector l if available. More...

virtual Teuchos::RCP< const
Epetra_Map
get_g_map (int j) const
 . More...

virtual Teuchos::ArrayView
< const std::string >
get_g_names (int j) const
 Get the names of the response functions associated with response subvector j if available. More...


Initial guesses for variables/parameters

virtual Teuchos::RCP< const
Epetra_Vector
get_x_init () const

virtual Teuchos::RCP< const
Epetra_Vector
get_x_dot_init () const

virtual Teuchos::RCP< const
Epetra_Vector
get_x_dotdot_init () const

virtual Teuchos::RCP< const
Epetra_Vector
get_p_init (int l) const

virtual double get_t_init () const


Bounds for variables/parameters

virtual double getInfBound () const
 Return the value of an infinite bound. More...

virtual Teuchos::RCP< const
Epetra_Vector
get_x_lower_bounds () const

virtual Teuchos::RCP< const
Epetra_Vector
get_x_upper_bounds () const

virtual Teuchos::RCP< const
Epetra_Vector
get_p_lower_bounds (int l) const

virtual Teuchos::RCP< const
Epetra_Vector
get_p_upper_bounds (int l) const

virtual double get_t_lower_bound () const

virtual double get_t_upper_bound () const


Factory functions for creating derivative objects

virtual Teuchos::RCP
< Epetra_Operator
create_W () const
 If supported, create a Epetra_Operator object for W to be evaluated. More...

virtual Teuchos::RCP
< EpetraExt::ModelEvaluator::Preconditioner
create_WPrec () const

virtual Teuchos::RCP
< Epetra_Operator
create_DfDp_op (int l) const

virtual Teuchos::RCP
< Epetra_Operator
create_DgDx_dot_op (int j) const

virtual Teuchos::RCP
< Epetra_Operator
create_DgDx_dotdot_op (int j) const

virtual Teuchos::RCP
< Epetra_Operator
create_DgDx_op (int j) const

virtual Teuchos::RCP
< Epetra_Operator
create_DgDp_op (int j, int l) const


Computational functions

virtual InArgs createInArgs () const =0

virtual OutArgs createOutArgs () const =0

virtual void evalModel (const InArgs &inArgs, const OutArgs &outArgs) const =0


Detailed Description

Base interface for evaluating a stateless "model".

ToDo: Finish Documentation!

Definition at line 85 of file EpetraExt_ModelEvaluator.h.

Member Typedef Documentation

typedef Teuchos::RCP<const Stokhos::ProductEpetraVector> EpetraExt::ModelEvaluator::mp_const_vector_t

Definition at line 91 of file EpetraExt_ModelEvaluator.h.

typedef Teuchos::RCP<const Stokhos::ProductEpetraMultiVector> EpetraExt::ModelEvaluator::mp_const_multivector_t

Definition at line 92 of file EpetraExt_ModelEvaluator.h.

typedef Teuchos::RCP<const Stokhos::ProductEpetraOperator > EpetraExt::ModelEvaluator::mp_const_operator_t

Definition at line 93 of file EpetraExt_ModelEvaluator.h.

typedef Teuchos::RCP<Stokhos::ProductEpetraVector> EpetraExt::ModelEvaluator::mp_vector_t

Definition at line 94 of file EpetraExt_ModelEvaluator.h.

typedef Teuchos::RCP<Stokhos::ProductEpetraMultiVector> EpetraExt::ModelEvaluator::mp_multivector_t

Definition at line 95 of file EpetraExt_ModelEvaluator.h.

typedef Teuchos::RCP<Stokhos::ProductEpetraOperator > EpetraExt::ModelEvaluator::mp_operator_t

Definition at line 96 of file EpetraExt_ModelEvaluator.h.

Member Enumeration Documentation

Enumerator
IN_ARG_x_dot
IN_ARG_x
IN_ARG_x_dot_poly

Time derivative vector Taylor polynomial.

IN_ARG_x_poly

Solution vector Taylor polynomial.

IN_ARG_x_dot_sg

Stochastic Galerkin time derivative vector polynomial.

IN_ARG_x_sg

Stochastic Galerkin solution vector polynomial.

IN_ARG_x_dot_mp

Multi-point time derivative vector.

IN_ARG_x_mp

Multi-point solution vector.

IN_ARG_t
IN_ARG_alpha
IN_ARG_beta
IN_ARG_step_size
IN_ARG_stage_number
IN_ARG_x_dotdot
IN_ARG_x_dotdot_poly

Time second derivative vector Taylor polynomial.

IN_ARG_x_dotdot_sg

Stochastic Galerkin time second derivative vector polynomial.

IN_ARG_x_dotdot_mp

Multi-point time second derivative vector.

IN_ARG_omega

Coeff of second derivative term d(x_dotdot)/dx.

IN_ARG_sg_basis

Stochastic Galerkin basis.

IN_ARG_sg_quadrature

Stochastic Galerkin quadrature.

IN_ARG_sg_expansion

Stochastic Galerkin expansion.

Definition at line 99 of file EpetraExt_ModelEvaluator.h.

Enumerator
IN_ARG_p_sg

Definition at line 125 of file EpetraExt_ModelEvaluator.h.

Enumerator
IN_ARG_p_mp

Definition at line 130 of file EpetraExt_ModelEvaluator.h.

Enumerator
EVAL_TYPE_EXACT

Exact function evaluation.

EVAL_TYPE_APPROX_DERIV

An approximate derivative (i.e. for a Jacobian)

EVAL_TYPE_VERY_APPROX_DERIV

A very approximate derivative (i.e. for a preconditioner)

Definition at line 298 of file EpetraExt_ModelEvaluator.h.

Enumerator
DERIV_MV_BY_COL
DERIV_TRANS_MV_BY_ROW

Definition at line 326 of file EpetraExt_ModelEvaluator.h.

Enumerator
DERIV_LINEAR_OP

Definition at line 332 of file EpetraExt_ModelEvaluator.h.

Enumerator
DERIV_LINEARITY_UNKNOWN
DERIV_LINEARITY_CONST
DERIV_LINEARITY_NONCONST

Definition at line 404 of file EpetraExt_ModelEvaluator.h.

Enumerator
DERIV_RANK_UNKNOWN
DERIV_RANK_FULL
DERIV_RANK_DEFICIENT

Definition at line 410 of file EpetraExt_ModelEvaluator.h.

Enumerator
OUT_ARG_f
OUT_ARG_W
OUT_ARG_f_poly

Residual vector Taylor polynomial.

OUT_ARG_f_sg

Stochastic Galerkin residual vector polynomial.

OUT_ARG_W_sg

Stochastic Galerkin "W" operator polyomial.

OUT_ARG_f_mp

Multi-point residual vector.

OUT_ARG_W_mp

Multi-point "W" operator.

OUT_ARG_WPrec

Preconditioner operator (approx Jacobian)

Definition at line 662 of file EpetraExt_ModelEvaluator.h.

Enumerator
OUT_ARG_DfDp

Definition at line 675 of file EpetraExt_ModelEvaluator.h.

Enumerator
OUT_ARG_DgDx_dot

Definition at line 680 of file EpetraExt_ModelEvaluator.h.

Enumerator
OUT_ARG_DgDx_dotdot

Definition at line 685 of file EpetraExt_ModelEvaluator.h.

Enumerator
OUT_ARG_DgDx

Definition at line 690 of file EpetraExt_ModelEvaluator.h.

Enumerator
OUT_ARG_DgDp

Definition at line 695 of file EpetraExt_ModelEvaluator.h.

Enumerator
OUT_ARG_DfDp_sg

Definition at line 700 of file EpetraExt_ModelEvaluator.h.

Enumerator
OUT_ARG_g_sg

Definition at line 705 of file EpetraExt_ModelEvaluator.h.

Enumerator
OUT_ARG_DgDx_dot_sg

Definition at line 710 of file EpetraExt_ModelEvaluator.h.

Enumerator
OUT_ARG_DgDx_dotdot_sg

Definition at line 715 of file EpetraExt_ModelEvaluator.h.

Enumerator
OUT_ARG_DgDx_sg

Definition at line 720 of file EpetraExt_ModelEvaluator.h.

Enumerator
OUT_ARG_DgDp_sg

Definition at line 725 of file EpetraExt_ModelEvaluator.h.

Enumerator
OUT_ARG_DfDp_mp

Definition at line 730 of file EpetraExt_ModelEvaluator.h.

Enumerator
OUT_ARG_g_mp

Definition at line 735 of file EpetraExt_ModelEvaluator.h.

Enumerator
OUT_ARG_DgDx_dot_mp

Definition at line 740 of file EpetraExt_ModelEvaluator.h.

Enumerator
OUT_ARG_DgDx_dotdot_mp

Definition at line 745 of file EpetraExt_ModelEvaluator.h.

Enumerator
OUT_ARG_DgDx_mp

Definition at line 750 of file EpetraExt_ModelEvaluator.h.

Enumerator
OUT_ARG_DgDp_mp

Definition at line 755 of file EpetraExt_ModelEvaluator.h.

Constructor & Destructor Documentation

EpetraExt::ModelEvaluator::~ModelEvaluator ( )
virtual

Definition at line 923 of file EpetraExt_ModelEvaluator.cpp.

Member Function Documentation

virtual Teuchos::RCP<const Epetra_Map> EpetraExt::ModelEvaluator::get_x_map ( ) const
pure virtual
virtual Teuchos::RCP<const Epetra_Map> EpetraExt::ModelEvaluator::get_f_map ( ) const
pure virtual
Teuchos::RCP< const Epetra_Map > EpetraExt::ModelEvaluator::get_p_map ( int  l) const
virtual
Teuchos::RCP< const Teuchos::Array< std::string > > EpetraExt::ModelEvaluator::get_p_names ( int  l) const
virtual

Get the names of the parameters associated with parameter subvector l if available.

Returns
Returns an RCP to a Teuchos::Array<std::string> object that contains the names of the parameters. If returnVal == Teuchos::null, then there are no names available for the parameter subvector p(l). If returnVal->size() == 1, then a single name is given to the entire parameter subvector. If returnVal->size() == get_p_map(l)->GlobalNumElements(), then a name is given to every parameter scalar entry.

The default implementation return returnVal==Teuchos::null which means by default, parameters have no names associated with them.

Reimplemented in EpetraExt::DiagonalTransientModel.

Definition at line 935 of file EpetraExt_ModelEvaluator.cpp.

Teuchos::RCP< const Epetra_Map > EpetraExt::ModelEvaluator::get_g_map ( int  j) const
virtual
Teuchos::ArrayView< const std::string > EpetraExt::ModelEvaluator::get_g_names ( int  j) const
virtual

Get the names of the response functions associated with response subvector j if available.

Returns
Returns an RCP to a Teuchos::Array<std::string> object that contains the names of the responses. If returnVal == Teuchos::null, then there are no names available for the response subvector g(j). If returnVal->size() == 1, then a single name is given to the entire response subvector. If returnVal->size() == get_g_map(j)->GlobalNumElements(), then a name is given to every response scalar entry.

The default implementation return returnVal==Teuchos::null which means by default, responses have no names associated with them.

Definition at line 943 of file EpetraExt_ModelEvaluator.cpp.

Teuchos::RCP< const Epetra_Vector > EpetraExt::ModelEvaluator::get_x_init ( ) const
virtual
Teuchos::RCP< const Epetra_Vector > EpetraExt::ModelEvaluator::get_x_dot_init ( ) const
virtual

Reimplemented in EpetraExt::DiagonalTransientModel.

Definition at line 955 of file EpetraExt_ModelEvaluator.cpp.

Teuchos::RCP< const Epetra_Vector > EpetraExt::ModelEvaluator::get_x_dotdot_init ( ) const
virtual

Definition at line 959 of file EpetraExt_ModelEvaluator.cpp.

Teuchos::RCP< const Epetra_Vector > EpetraExt::ModelEvaluator::get_p_init ( int  l) const
virtual
double EpetraExt::ModelEvaluator::get_t_init ( ) const
virtual

Definition at line 966 of file EpetraExt_ModelEvaluator.cpp.

double EpetraExt::ModelEvaluator::getInfBound ( ) const
virtual

Return the value of an infinite bound.

The default implementation returns 1e+50.

Definition at line 973 of file EpetraExt_ModelEvaluator.cpp.

Teuchos::RCP< const Epetra_Vector > EpetraExt::ModelEvaluator::get_x_lower_bounds ( ) const
virtual
Teuchos::RCP< const Epetra_Vector > EpetraExt::ModelEvaluator::get_x_upper_bounds ( ) const
virtual
Teuchos::RCP< const Epetra_Vector > EpetraExt::ModelEvaluator::get_p_lower_bounds ( int  l) const
virtual
Teuchos::RCP< const Epetra_Vector > EpetraExt::ModelEvaluator::get_p_upper_bounds ( int  l) const
virtual
double EpetraExt::ModelEvaluator::get_t_lower_bound ( ) const
virtual

Definition at line 999 of file EpetraExt_ModelEvaluator.cpp.

double EpetraExt::ModelEvaluator::get_t_upper_bound ( ) const
virtual

Definition at line 1003 of file EpetraExt_ModelEvaluator.cpp.

Teuchos::RCP< Epetra_Operator > EpetraExt::ModelEvaluator::create_W ( ) const
virtual

If supported, create a Epetra_Operator object for W to be evaluated.

Same for preconditioner M

The default implementation returns return.get()==NULL (i.e. implicit solvers are not supported by default).

Reimplemented in GLpApp::AdvDiffReactOptModel, EpetraExt::DiagonalTransientModel, EpetraModelEval4DOpt, EpetraMultiPointModelEval4DOpt, EpetraExt::MultiPointModelEvaluator, and EpetraModelEval2DSim.

Definition at line 1011 of file EpetraExt_ModelEvaluator.cpp.

Teuchos::RCP< EpetraExt::ModelEvaluator::Preconditioner > EpetraExt::ModelEvaluator::create_WPrec ( ) const
virtual

Definition at line 1015 of file EpetraExt_ModelEvaluator.cpp.

Teuchos::RCP< Epetra_Operator > EpetraExt::ModelEvaluator::create_DfDp_op ( int  l) const
virtual

Reimplemented in GLpApp::AdvDiffReactOptModel.

Definition at line 1019 of file EpetraExt_ModelEvaluator.cpp.

Teuchos::RCP< Epetra_Operator > EpetraExt::ModelEvaluator::create_DgDx_dot_op ( int  j) const
virtual

Definition at line 1023 of file EpetraExt_ModelEvaluator.cpp.

Teuchos::RCP< Epetra_Operator > EpetraExt::ModelEvaluator::create_DgDx_dotdot_op ( int  j) const
virtual

Definition at line 1027 of file EpetraExt_ModelEvaluator.cpp.

Teuchos::RCP< Epetra_Operator > EpetraExt::ModelEvaluator::create_DgDx_op ( int  j) const
virtual

Definition at line 1031 of file EpetraExt_ModelEvaluator.cpp.

Teuchos::RCP< Epetra_Operator > EpetraExt::ModelEvaluator::create_DgDp_op ( int  j,
int  l
) const
virtual

Definition at line 1035 of file EpetraExt_ModelEvaluator.cpp.

virtual InArgs EpetraExt::ModelEvaluator::createInArgs ( ) const
pure virtual
virtual OutArgs EpetraExt::ModelEvaluator::createOutArgs ( ) const
pure virtual
virtual void EpetraExt::ModelEvaluator::evalModel ( const InArgs inArgs,
const OutArgs outArgs
) const
pure virtual

Member Data Documentation

const int EpetraExt::ModelEvaluator::NUM_E_IN_ARGS_MEMBERS =21
static

Definition at line 122 of file EpetraExt_ModelEvaluator.h.

const int EpetraExt::ModelEvaluator::NUM_E_OUT_ARGS_MEMBERS =9
static

Definition at line 672 of file EpetraExt_ModelEvaluator.h.


The documentation for this class was generated from the following files:
