#include <EpetraExt_BlockVector.h>

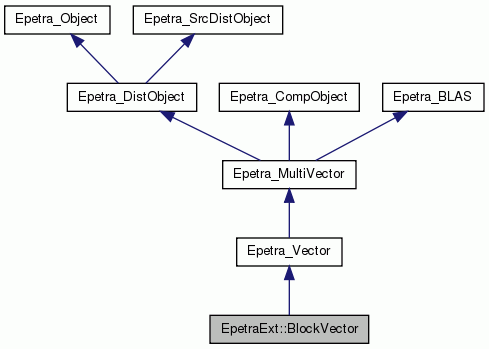

Inheritance diagram for EpetraExt::BlockVector:

Public Member Functions
int	ExtractBlockValues (Epetra_Vector &BaseVec, long long BlockRow) const
	Extract a single block from a Block Vector: block row is global, not a stencil value. More...

int	LoadBlockValues (const Epetra_Vector &BaseVec, long long BlockRow)
	Load a single block into a Block Vector: block row is global, not a stencil value. More...

int	BlockSumIntoGlobalValues (int NumIndices, double Values, int Indices, int BlockRow)
	Load entries into BlockVector with base vector indices offset by BlockRow. More...

int	BlockReplaceGlobalValues (int NumIndices, double Values, int Indices, int BlockRow)
	Load entries into BlockVector with base vector indices offset by BlockRow. More...

int	BlockSumIntoGlobalValues (int NumIndices, double Values, long long Indices, long long BlockRow)
	Load entries into BlockVector with base vector indices offset by BlockRow. More...

int	BlockReplaceGlobalValues (int NumIndices, double Values, long long Indices, long long BlockRow)
	Load entries into BlockVector with base vector indices offset by BlockRow. More...

Teuchos::RCP< const Epetra_Vector >	GetBlock (long long BlockRow) const
	Return Epetra_Vector for given block row. More...

Teuchos::RCP< Epetra_Vector >	GetBlock (long long BlockRow)
	Return Epetra_Vector for given block row. More...

const Epetra_BlockMap &	GetBaseMap () const
	Return base map. More...

Public Member Functions inherited from Epetra_Vector
	Epetra_Vector (const Epetra_BlockMap &Map, bool zeroOut=true)

	Epetra_Vector (const Epetra_Vector &Source)

	Epetra_Vector (Epetra_DataAccess CV, const Epetra_BlockMap &Map, double *V)

	Epetra_Vector (Epetra_DataAccess CV, const Epetra_MultiVector &Source, int Index)

virtual	~Epetra_Vector ()

int	ReplaceGlobalValues (int NumEntries, const double Values, const int Indices)

int	ReplaceMyValues (int NumEntries, const double Values, const int Indices)

int	SumIntoGlobalValues (int NumEntries, const double Values, const int Indices)

int	SumIntoMyValues (int NumEntries, const double Values, const int Indices)

int	ReplaceGlobalValues (int NumEntries, int BlockOffset, const double Values, const int Indices)

int	ReplaceMyValues (int NumEntries, int BlockOffset, const double Values, const int Indices)

int	SumIntoGlobalValues (int NumEntries, int BlockOffset, const double Values, const int Indices)

int	SumIntoMyValues (int NumEntries, int BlockOffset, const double Values, const int Indices)

int	ExtractCopy (double *V) const

int	ExtractView (double **V) const

double &	operator[] (int index)

const double &	operator[] (int index) const

int	ResetView (double *Values_in)

Public Member Functions inherited from Epetra_DistObject
virtual void	Print (std::ostream &os) const

Public Member Functions inherited from Epetra_BLAS
	Epetra_BLAS (void)

	Epetra_BLAS (const Epetra_BLAS &BLAS)

virtual	~Epetra_BLAS (void)

float	ASUM (const int N, const float *X, const int INCX=1) const

double	ASUM (const int N, const double *X, const int INCX=1) const

float	DOT (const int N, const float X, const float Y, const int INCX=1, const int INCY=1) const

double	DOT (const int N, const double X, const double Y, const int INCX=1, const int INCY=1) const

float	NRM2 (const int N, const float *X, const int INCX=1) const

double	NRM2 (const int N, const double *X, const int INCX=1) const

void	SCAL (const int N, const float ALPHA, float *X, const int INCX=1) const

void	SCAL (const int N, const double ALPHA, double *X, const int INCX=1) const

void	COPY (const int N, const float X, float Y, const int INCX=1, const int INCY=1) const

void	COPY (const int N, const double X, double Y, const int INCX=1, const int INCY=1) const

int	IAMAX (const int N, const float *X, const int INCX=1) const

int	IAMAX (const int N, const double *X, const int INCX=1) const

void	AXPY (const int N, const float ALPHA, const float X, float Y, const int INCX=1, const int INCY=1) const

void	AXPY (const int N, const double ALPHA, const double X, double Y, const int INCX=1, const int INCY=1) const

void	GEMV (const char TRANS, const int M, const int N, const float ALPHA, const float A, const int LDA, const float X, const float BETA, float *Y, const int INCX=1, const int INCY=1) const

void	GEMV (const char TRANS, const int M, const int N, const double ALPHA, const double A, const int LDA, const double X, const double BETA, double *Y, const int INCX=1, const int INCY=1) const

void	GEMM (const char TRANSA, const char TRANSB, const int M, const int N, const int K, const float ALPHA, const float A, const int LDA, const float B, const int LDB, const float BETA, float *C, const int LDC) const

void	GEMM (const char TRANSA, const char TRANSB, const int M, const int N, const int K, const double ALPHA, const double A, const int LDA, const double B, const int LDB, const double BETA, double *C, const int LDC) const

void	SYMM (const char SIDE, const char UPLO, const int M, const int N, const float ALPHA, const float A, const int LDA, const float B, const int LDB, const float BETA, float *C, const int LDC) const

void	SYMM (const char SIDE, const char UPLO, const int M, const int N, const double ALPHA, const double A, const int LDA, const double B, const int LDB, const double BETA, double *C, const int LDC) const

void	TRMM (const char SIDE, const char UPLO, const char TRANSA, const char DIAG, const int M, const int N, const float ALPHA, const float A, const int LDA, float B, const int LDB) const

void	TRMM (const char SIDE, const char UPLO, const char TRANSA, const char DIAG, const int M, const int N, const double ALPHA, const double A, const int LDA, double B, const int LDB) const

void	SYRK (const char UPLO, const char TRANS, const int N, const int K, const float ALPHA, const float A, const int LDA, const float BETA, float C, const int LDC) const

void	SYRK (const char UPLO, const char TRANS, const int N, const int K, const double ALPHA, const double A, const int LDA, const double BETA, double C, const int LDC) const

Protected Attributes
Epetra_BlockMap	BaseMap_

long long	Offset_

	BlockVector (const Epetra_BlockMap &BaseMap, const Epetra_BlockMap &GlobalMap)
	BlockVector constuctor with one block row per processor. More...

	BlockVector (Epetra_DataAccess CV, const Epetra_BlockMap &BaseMap, const Epetra_Vector &BlockVec)

	BlockVector (const BlockVector &MV)
	Copy constructor. More...

virtual	~BlockVector ()
	Destructor. More...

Additional Inherited Members
Protected Member Functions inherited from Epetra_DistObject
virtual int	CheckSizes (const Epetra_SrcDistObject &Source)=0

virtual int	CopyAndPermute (const Epetra_SrcDistObject &Source, int NumSameIDs, int NumPermuteIDs, int PermuteToLIDs, int PermuteFromLIDs, const Epetra_OffsetIndex *Indexor, Epetra_CombineMode CombineMode=Zero)=0

virtual int	PackAndPrepare (const Epetra_SrcDistObject &Source, int NumExportIDs, int ExportLIDs, int &LenExports, char &Exports, int &SizeOfPacket, int *Sizes, bool &VarSizes, Epetra_Distributor &Distor)=0

virtual int	UnpackAndCombine (const Epetra_SrcDistObject &Source, int NumImportIDs, int ImportLIDs, int LenImports, char Imports, int &SizeOfPacket, Epetra_Distributor &Distor, Epetra_CombineMode CombineMode, const Epetra_OffsetIndex *Indexor)=0

Detailed Description

Definition at line 66 of file EpetraExt_BlockVector.h.

Constructor & Destructor Documentation

EpetraExt::BlockVector::BlockVector	(	const Epetra_BlockMap &	BaseMap,
		const Epetra_BlockMap &	GlobalMap
	)

BlockVector constuctor with one block row per processor.

Creates a BlockVector object and allocates storage.

Parameters

In	BaseMap - Map determining local structure, can be distrib. over subset of proc.'s
In	GlobalMap - Full map describing the overall global structure, generally generated by the construction of a BlockCrsMatrix object
In	NumBlocks - Number of local blocks

Definition at line 51 of file EpetraExt_BlockVector.cpp.

EpetraExt::BlockVector::BlockVector	(	Epetra_DataAccess	CV,
		const Epetra_BlockMap &	BaseMap,
		const Epetra_Vector &	BlockVec
	)

Creates a BlockVector object from an existing Epetra_Vector.

Parameters

In	Epetra_DataAccess - Enumerated type set to Copy or View.
In	BaseMap - Map determining local structure, can be distrib. over subset of proc.'s
In	BlockVec - Source Epetra vector whose map must be the full map for the block vector

Definition at line 62 of file EpetraExt_BlockVector.cpp.

EpetraExt::BlockVector::BlockVector ( const BlockVector & MV )

Copy constructor.

Definition at line 74 of file EpetraExt_BlockVector.cpp.

EpetraExt::BlockVector::~BlockVector ( )

virtual

Destructor.

Definition at line 82 of file EpetraExt_BlockVector.cpp.

Member Function Documentation

int EpetraExt::BlockVector::ExtractBlockValues	(	Epetra_Vector &	BaseVec,
		long long	BlockRow
	)		const

Extract a single block from a Block Vector: block row is global, not a stencil value.

Definition at line 87 of file EpetraExt_BlockVector.cpp.

int EpetraExt::BlockVector::LoadBlockValues	(	const Epetra_Vector &	BaseVec,
		long long	BlockRow
	)

Load a single block into a Block Vector: block row is global, not a stencil value.

Definition at line 108 of file EpetraExt_BlockVector.cpp.

int EpetraExt::BlockVector::BlockSumIntoGlobalValues	(	int	NumIndices,
		double *	Values,
		int *	Indices,
		int	BlockRow
	)

Load entries into BlockVector with base vector indices offset by BlockRow.

Definition at line 129 of file EpetraExt_BlockVector.cpp.

int EpetraExt::BlockVector::BlockReplaceGlobalValues	(	int	NumIndices,
		double *	Values,
		int *	Indices,
		int	BlockRow
	)

Load entries into BlockVector with base vector indices offset by BlockRow.

Definition at line 150 of file EpetraExt_BlockVector.cpp.

int EpetraExt::BlockVector::BlockSumIntoGlobalValues	(	int	NumIndices,
		double *	Values,
		long long *	Indices,
		long long	BlockRow
	)

Load entries into BlockVector with base vector indices offset by BlockRow.

Definition at line 173 of file EpetraExt_BlockVector.cpp.

int EpetraExt::BlockVector::BlockReplaceGlobalValues	(	int	NumIndices,
		double *	Values,
		long long *	Indices,
		long long	BlockRow
	)

Load entries into BlockVector with base vector indices offset by BlockRow.

Definition at line 194 of file EpetraExt_BlockVector.cpp.

Teuchos::RCP< const Epetra_Vector > EpetraExt::BlockVector::GetBlock ( long long BlockRow ) const

Return Epetra_Vector for given block row.

Definition at line 217 of file EpetraExt_BlockVector.cpp.

Teuchos::RCP< Epetra_Vector > EpetraExt::BlockVector::GetBlock ( long long BlockRow )

Return Epetra_Vector for given block row.

Definition at line 225 of file EpetraExt_BlockVector.cpp.

const Epetra_BlockMap & EpetraExt::BlockVector::GetBaseMap ( ) const

Return base map.

Definition at line 233 of file EpetraExt_BlockVector.cpp.

Member Data Documentation

Epetra_BlockMap EpetraExt::BlockVector::BaseMap_

protected

Definition at line 136 of file EpetraExt_BlockVector.h.

long long EpetraExt::BlockVector::Offset_

protected

Definition at line 138 of file EpetraExt_BlockVector.h.
