Epetra_PETScAIJMatrix Class Reference

Epetra_PETScAIJMatrix: A class for constructing and using real-valued sparse compressed row matrices. More...

#include <EpetraExt_PETScAIJMatrix.h>

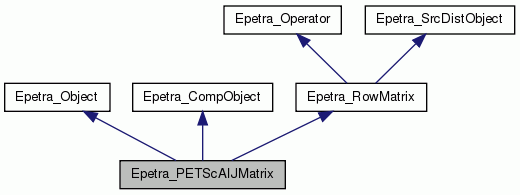

Inheritance diagram for Epetra_PETScAIJMatrix:

Private Types
enum	petscMatrixType { PETSC_SEQ_AIJ, PETSC_MPI_AIJ }

Private Member Functions
int	GetRow (int Row) const

Private Attributes
Mat	Amat_
double *	Values_
int *	Indices_
int	MaxNumEntries_
Epetra_SerialComm *	Comm_
Epetra_Map *	DomainMap_
Epetra_Map *	ColMap_
Epetra_Import *	Importer_
Epetra_MultiVector *	ImportVector_
double	NumGlobalNonzeros_
int	NumMyNonzeros_
int	NumMyRows_
int	NumGlobalRows_
int	NumMyCols_
int	PetscRowStart_
int	PetscRowEnd_
MatType	MatType_
double	NormInf_
double	NormOne_

Constructors/Destructor
	Epetra_PETScAIJMatrix (Mat Amat)
	Epetra_PETScAIJMatrix constructor. More...
virtual	~Epetra_PETScAIJMatrix ()
	Epetra_PETScAIJMatrix Destructor. More...

Extraction methods
int	ExtractMyRowCopy (int MyRow, int Length, int &NumEntries, double *Values, int *Indices) const
	Returns a copy of the specified local row in user-provided arrays. More...
int	ExtractDiagonalCopy (Epetra_Vector &Diagonal) const
	Returns a copy of the main diagonal in a user-provided vector. More...

Computational methods
int	Multiply (bool TransA, const Epetra_MultiVector &X, Epetra_MultiVector &Y) const
	Returns the result of a Epetra_PETScAIJMatrix multiplied by a Epetra_MultiVector X in Y. More...
int	Solve (bool Upper, bool Trans, bool UnitDiagonal, const Epetra_MultiVector &X, Epetra_MultiVector &Y) const
	Returns the result of a Epetra_PETScAIJMatrix multiplied by a Epetra_MultiVector X in Y. More...
int	InvRowSums (Epetra_Vector &x) const
	Computes the sum of absolute values of the rows of the Epetra_PETScAIJMatrix, results returned in x. More...
int	LeftScale (const Epetra_Vector &x)
	Scales the Epetra_PETScAIJMatrix on the left with a Epetra_Vector x. More...
int	InvColSums (Epetra_Vector &x) const
	Computes the sum of absolute values of the columns of the Epetra_PETScAIJMatrix, results returned in x. More...
int	RightScale (const Epetra_Vector &x)
	Scales the Epetra_PETScAIJMatrix on the right with a Epetra_Vector x. More...

Matrix Properties Query Methods
bool	Filled () const
	If FillComplete() has been called, this query returns true, otherwise it returns false. More...
bool	LowerTriangular () const
	If matrix is lower triangular, this query returns true, otherwise it returns false. More...
bool	UpperTriangular () const
	If matrix is upper triangular, this query returns true, otherwise it returns false. More...

Attribute access functions
Mat	Amat () const
	Returns a pointer to the PETSc matrix used to create this object. More...
double	NormInf () const
	Returns the infinity norm of the global matrix. More...
double	NormOne () const
	Returns the one norm of the global matrix. More...
int	NumGlobalNonzeros () const
	Returns the number of nonzero entries in the global matrix. More...
int	NumGlobalRows () const
	Returns the number of global matrix rows. More...
int	NumGlobalCols () const
	Returns the number of global matrix columns. More...
int	NumGlobalDiagonals () const
	Returns the number of global nonzero diagonal entries. More...
long long	NumGlobalNonzeros64 () const
	Returns the number of nonzero entries in the global matrix. More...
long long	NumGlobalRows64 () const
	Returns the number of global matrix rows. More...
long long	NumGlobalCols64 () const
	Returns the number of global matrix columns. More...
long long	NumGlobalDiagonals64 () const
	Returns the number of global nonzero diagonal entries. More...
int	NumMyNonzeros () const
	Returns the number of nonzero entries in the calling processor's portion of the matrix. More...
int	NumMyRows () const
	Returns the number of matrix rows owned by the calling processor. More...
int	NumMyCols () const
	Returns the number of matrix columns owned by the calling processor. More...
int	NumMyDiagonals () const
	Returns the number of local nonzero diagonal entries. More...
const Epetra_Map &	OperatorDomainMap () const
	Returns the Epetra_Map object associated with the domain of this operator. More...
const Epetra_Map &	OperatorRangeMap () const
	Returns the Epetra_Map object associated with the range of this operator (same as domain). More...
const Epetra_BlockMap &	Map () const
	Implement the Epetra_SrcDistObjec::Map() function. More...
const Epetra_Map &	RowMatrixRowMap () const
	Returns the Row Map object needed for implementing Epetra_RowMatrix. More...
const Epetra_Map &	RowMatrixColMap () const
	Returns the Column Map object needed for implementing Epetra_RowMatrix. More...
virtual const Epetra_Import *	RowMatrixImporter () const
	Returns the Epetra_Import object that contains the import operations for distributed operations. More...
const Epetra_Comm &	Comm () const
	Returns a pointer to the Epetra_Comm communicator associated with this matrix. More...

I/O Methods
virtual void	Print (std::ostream &os) const
	Print method. More...

Additional methods required to support the Epetra_Operator interface
const char *	Label () const
	Returns a character string describing the operator. More...
int	SetUseTranspose (bool UseTranspose)
	If set true, transpose of this operator will be applied. More...
int	Apply (const Epetra_MultiVector &X, Epetra_MultiVector &Y) const
	Returns the result of a Epetra_Operator applied to a Epetra_MultiVector X in Y. More...
int	ApplyInverse (const Epetra_MultiVector &X, Epetra_MultiVector &Y) const
	Returns the result of a Epetra_Operator inverse applied to an Epetra_MultiVector X in Y. More...
virtual bool	HasNormInf () const
	Returns true because this class can compute an Inf-norm. More...
virtual bool	UseTranspose () const
	Returns the current UseTranspose setting. More...

Additional methods required to implement RowMatrix interface
int	NumMyRowEntries (int MyRow, int &NumEntries) const
	Return the current number of values stored for the specified local row. More...
int	MaxNumEntries () const
	Returns the maximum of NumMyRowEntries() over all rows. More...

Additional Inherited Members

Detailed Description

Epetra_PETScAIJMatrix: A class for constructing and using real-valued sparse compressed row matrices.

The Epetra_PETScAIJMatrix is a wrapper class for PETSc sequential or parallel AIJ matrices. It is derived from the Epetra_RowMatrix class, and so provides PETSc users access to Trilinos preconditioners. This class is lightweight, i.e., there are no deep copies of matrix data. Whenever possible, class methods utilize callbacks to native PETSc functions. Currently, only sequential and parallel point AIJ PETSc matrix types are supported.

Definition at line 87 of file EpetraExt_PETScAIJMatrix.h.

Member Enumeration Documentation

enum Epetra_PETScAIJMatrix::petscMatrixType

private

Enumerator
PETSC_SEQ_AIJ
PETSC_MPI_AIJ

Definition at line 415 of file EpetraExt_PETScAIJMatrix.h.

Constructor & Destructor Documentation

Epetra_PETScAIJMatrix::Epetra_PETScAIJMatrix

(

Mat

Amat

)

Epetra_PETScAIJMatrix constructor.

Creates a Epetra_PETScAIJMatrix object by encapsulating an existing PETSc matrix.

Parameters

In	Amat - A completely constructed PETSc SEQAIJ or MPIAIJ matrix.

virtual Epetra_PETScAIJMatrix::~Epetra_PETScAIJMatrix ( )

virtual

Epetra_PETScAIJMatrix Destructor.

Member Function Documentation

int Epetra_PETScAIJMatrix::ExtractMyRowCopy ( int  MyRow, int  Length, int &  NumEntries, double *  Values, int *  Indices  ) const

virtual

Returns a copy of the specified local row in user-provided arrays.

Parameters

In	MyRow - Local row to extract.
In	Length - Length of Values and Indices.
Out	NumEntries - Number of nonzero entries extracted.
Out	Values - Extracted values for this row.
Out	Indices - Extracted local column indices for the corresponding values.

Returns

Integer error code, set to 0 if successful.

Implements Epetra_RowMatrix.

int Epetra_PETScAIJMatrix::ExtractDiagonalCopy ( Epetra_Vector &  Diagonal ) const

virtual

Returns a copy of the main diagonal in a user-provided vector.

Parameters

Out	Diagonal - Extracted main diagonal.

Returns

Integer error code, set to 0 if successful.

Implements Epetra_RowMatrix.

int Epetra_PETScAIJMatrix::Multiply ( bool  TransA, const Epetra_MultiVector &  X, Epetra_MultiVector &  Y  ) const

virtual

Returns the result of a Epetra_PETScAIJMatrix multiplied by a Epetra_MultiVector X in Y.

Parameters

In	TransA -If true, multiply by the transpose of matrix, otherwise just use matrix.
In	X - A Epetra_MultiVector of dimension NumVectors to multiply with matrix.
Out	Y -A Epetra_MultiVector of dimension NumVectorscontaining result.

Returns

Integer error code, set to 0 if successful.

Implements Epetra_RowMatrix.

int Epetra_PETScAIJMatrix::Solve ( bool  Upper, bool  Trans, bool  UnitDiagonal, const Epetra_MultiVector &  X, Epetra_MultiVector &  Y  ) const

virtual

Returns the result of a Epetra_PETScAIJMatrix multiplied by a Epetra_MultiVector X in Y.

Parameters

In	Upper -If true, solve Ux = y, otherwise solve Lx = y.
In	Trans -If true, solve transpose problem.
In	UnitDiagonal -If true, assume diagonal is unit (whether it's stored or not).
In	X - A Epetra_MultiVector of dimension NumVectors to solve for.
Out	Y -A Epetra_MultiVector of dimension NumVectors containing result.

Returns

Integer error code, set to 0 if successful.

Implements Epetra_RowMatrix.

int Epetra_PETScAIJMatrix::InvRowSums ( Epetra_Vector &  x ) const

virtual

Computes the sum of absolute values of the rows of the Epetra_PETScAIJMatrix, results returned in x.

  The vector x will return such that x[i] will contain the inverse of sum of the absolute values of the
  \e this matrix will be scaled such that A(i,j) = x(i)*A(i,j) where i denotes the global row number of A
  and j denotes the global column number of A.  Using the resulting vector from this function as input to LeftScale()

will make the infinity norm of the resulting matrix exactly 1.

Parameters

Out	x -A Epetra_Vector containing the row sums of the this matrix.

Warning

It is assumed that the distribution of x is the same as the rows of this.

Returns

Integer error code, set to 0 if successful.

Implements Epetra_RowMatrix.

int Epetra_PETScAIJMatrix::LeftScale ( const Epetra_Vector &  x )

virtual

Scales the Epetra_PETScAIJMatrix on the left with a Epetra_Vector x.

The \e this matrix will be scaled such that A(i,j) = x(i)*A(i,j) where i denotes the row number of A
and j denotes the column number of A.

Parameters

In	x -A Epetra_Vector to solve for.

Returns

Integer error code, set to 0 if successful.

Implements Epetra_RowMatrix.

int Epetra_PETScAIJMatrix::InvColSums ( Epetra_Vector &  x ) const

virtual

Computes the sum of absolute values of the columns of the Epetra_PETScAIJMatrix, results returned in x.

  The vector x will return such that x[j] will contain the inverse of sum of the absolute values of the
  \e this matrix will be sca such that A(i,j) = x(j)*A(i,j) where i denotes the global row number of A
  and j denotes the global column number of A.  Using the resulting vector from this function as input to

RighttScale() will make the one norm of the resulting matrix exactly 1.

Parameters

Out	x -A Epetra_Vector containing the column sums of the this matrix.

Warning

It is assumed that the distribution of x is the same as the rows of this.

Returns

Integer error code, set to 0 if successful.

Implements Epetra_RowMatrix.

int Epetra_PETScAIJMatrix::RightScale ( const Epetra_Vector &  x )

virtual

Scales the Epetra_PETScAIJMatrix on the right with a Epetra_Vector x.

The \e this matrix will be scaled such that A(i,j) = x(j)*A(i,j) where i denotes the global row number of A
and j denotes the global column number of A.

Parameters

In	x -The Epetra_Vector used for scaling this.

Returns

Integer error code, set to 0 if successful.

Implements Epetra_RowMatrix.

bool Epetra_PETScAIJMatrix::Filled ( ) const

inlinevirtual

If FillComplete() has been called, this query returns true, otherwise it returns false.

Implements Epetra_RowMatrix.

Definition at line 220 of file EpetraExt_PETScAIJMatrix.h.

bool Epetra_PETScAIJMatrix::LowerTriangular ( ) const

inlinevirtual

If matrix is lower triangular, this query returns true, otherwise it returns false.

Implements Epetra_RowMatrix.

Definition at line 223 of file EpetraExt_PETScAIJMatrix.h.

bool Epetra_PETScAIJMatrix::UpperTriangular ( ) const

inlinevirtual

If matrix is upper triangular, this query returns true, otherwise it returns false.

Implements Epetra_RowMatrix.

Definition at line 226 of file EpetraExt_PETScAIJMatrix.h.

Mat Epetra_PETScAIJMatrix::Amat ( ) const

inline

Returns a pointer to the PETSc matrix used to create this object.

Definition at line 234 of file EpetraExt_PETScAIJMatrix.h.

double Epetra_PETScAIJMatrix::NormInf ( ) const

virtual

Returns the infinity norm of the global matrix.

Implements Epetra_RowMatrix.

double Epetra_PETScAIJMatrix::NormOne ( ) const

virtual

Returns the one norm of the global matrix.

Implements Epetra_RowMatrix.

int Epetra_PETScAIJMatrix::NumGlobalNonzeros ( ) const

inlinevirtual

Returns the number of nonzero entries in the global matrix.

Implements Epetra_RowMatrix.

Definition at line 250 of file EpetraExt_PETScAIJMatrix.h.

int Epetra_PETScAIJMatrix::NumGlobalRows ( ) const

inlinevirtual

Returns the number of global matrix rows.

Implements Epetra_RowMatrix.

Definition at line 253 of file EpetraExt_PETScAIJMatrix.h.

int Epetra_PETScAIJMatrix::NumGlobalCols ( ) const

inlinevirtual

Returns the number of global matrix columns.

Implements Epetra_RowMatrix.

Definition at line 256 of file EpetraExt_PETScAIJMatrix.h.

int Epetra_PETScAIJMatrix::NumGlobalDiagonals ( ) const

inlinevirtual

Returns the number of global nonzero diagonal entries.

Implements Epetra_RowMatrix.

Definition at line 259 of file EpetraExt_PETScAIJMatrix.h.

long long Epetra_PETScAIJMatrix::NumGlobalNonzeros64 ( ) const

inlinevirtual

Returns the number of nonzero entries in the global matrix.

Implements Epetra_RowMatrix.

Definition at line 262 of file EpetraExt_PETScAIJMatrix.h.

long long Epetra_PETScAIJMatrix::NumGlobalRows64 ( ) const

inlinevirtual

Returns the number of global matrix rows.

Implements Epetra_RowMatrix.

Definition at line 265 of file EpetraExt_PETScAIJMatrix.h.

long long Epetra_PETScAIJMatrix::NumGlobalCols64 ( ) const

inlinevirtual

Returns the number of global matrix columns.

Implements Epetra_RowMatrix.

Definition at line 268 of file EpetraExt_PETScAIJMatrix.h.

long long Epetra_PETScAIJMatrix::NumGlobalDiagonals64 ( ) const

inlinevirtual

Returns the number of global nonzero diagonal entries.

Implements Epetra_RowMatrix.

Definition at line 271 of file EpetraExt_PETScAIJMatrix.h.

int Epetra_PETScAIJMatrix::NumMyNonzeros ( ) const

inlinevirtual

Returns the number of nonzero entries in the calling processor's portion of the matrix.

Implements Epetra_RowMatrix.

Definition at line 274 of file EpetraExt_PETScAIJMatrix.h.

int Epetra_PETScAIJMatrix::NumMyRows ( ) const

inlinevirtual

Returns the number of matrix rows owned by the calling processor.

Implements Epetra_RowMatrix.

Definition at line 277 of file EpetraExt_PETScAIJMatrix.h.

int Epetra_PETScAIJMatrix::NumMyCols ( ) const

inlinevirtual

Returns the number of matrix columns owned by the calling processor.

Implements Epetra_RowMatrix.

Definition at line 280 of file EpetraExt_PETScAIJMatrix.h.

int Epetra_PETScAIJMatrix::NumMyDiagonals ( ) const

inlinevirtual

Returns the number of local nonzero diagonal entries.

Implements Epetra_RowMatrix.

Definition at line 283 of file EpetraExt_PETScAIJMatrix.h.

const Epetra_Map& Epetra_PETScAIJMatrix::OperatorDomainMap ( ) const

inlinevirtual

Returns the Epetra_Map object associated with the domain of this operator.

Implements Epetra_Operator.

Definition at line 286 of file EpetraExt_PETScAIJMatrix.h.

const Epetra_Map& Epetra_PETScAIJMatrix::OperatorRangeMap ( ) const

inlinevirtual

Returns the Epetra_Map object associated with the range of this operator (same as domain).

Implements Epetra_Operator.

Definition at line 289 of file EpetraExt_PETScAIJMatrix.h.

const Epetra_BlockMap& Epetra_PETScAIJMatrix::Map ( ) const

inlinevirtual

Implement the Epetra_SrcDistObjec::Map() function.

Implements Epetra_SrcDistObject.

Definition at line 292 of file EpetraExt_PETScAIJMatrix.h.

const Epetra_Map& Epetra_PETScAIJMatrix::RowMatrixRowMap ( ) const

inlinevirtual

Returns the Row Map object needed for implementing Epetra_RowMatrix.

Implements Epetra_RowMatrix.

Definition at line 295 of file EpetraExt_PETScAIJMatrix.h.

const Epetra_Map& Epetra_PETScAIJMatrix::RowMatrixColMap ( ) const

inlinevirtual

Returns the Column Map object needed for implementing Epetra_RowMatrix.

Implements Epetra_RowMatrix.

Definition at line 298 of file EpetraExt_PETScAIJMatrix.h.

virtual const Epetra_Import* Epetra_PETScAIJMatrix::RowMatrixImporter ( ) const

inlinevirtual

Returns the Epetra_Import object that contains the import operations for distributed operations.

Implements Epetra_RowMatrix.

Definition at line 301 of file EpetraExt_PETScAIJMatrix.h.

const Epetra_Comm& Epetra_PETScAIJMatrix::Comm ( ) const

inlinevirtual

Returns a pointer to the Epetra_Comm communicator associated with this matrix.

Implements Epetra_Operator.

Definition at line 304 of file EpetraExt_PETScAIJMatrix.h.

virtual void Epetra_PETScAIJMatrix::Print ( std::ostream &  os ) const

virtual

Print method.

const char* Epetra_PETScAIJMatrix::Label ( ) const

inlinevirtual

Returns a character string describing the operator.

Implements Epetra_Operator.

Definition at line 319 of file EpetraExt_PETScAIJMatrix.h.

int Epetra_PETScAIJMatrix::SetUseTranspose ( bool  UseTranspose )

inlinevirtual

If set true, transpose of this operator will be applied.

  This flag allows the transpose of the given operator to be used implicitly.  Setting this flag
  affects only the Apply() and ApplyInverse() methods.  If the implementation of this interface

does not support transpose use, this method should return a value of -1.

Parameters

In	UseTranspose -If true, multiply by the transpose of operator, otherwise just use operator.

Returns

Always returns 0.

Implements Epetra_Operator.

Definition at line 331 of file EpetraExt_PETScAIJMatrix.h.

int Epetra_PETScAIJMatrix::Apply ( const Epetra_MultiVector &  X, Epetra_MultiVector &  Y  ) const

inlinevirtual

Returns the result of a Epetra_Operator applied to a Epetra_MultiVector X in Y.

Parameters

In	X - A Epetra_MultiVector of dimension NumVectors to multiply with matrix.
Out	Y -A Epetra_MultiVector of dimension NumVectors containing result.

Returns

Integer error code, set to 0 if successful.

Implements Epetra_Operator.

Definition at line 343 of file EpetraExt_PETScAIJMatrix.h.

int Epetra_PETScAIJMatrix::ApplyInverse ( const Epetra_MultiVector &  X, Epetra_MultiVector &  Y  ) const

inlinevirtual

Returns the result of a Epetra_Operator inverse applied to an Epetra_MultiVector X in Y.

  In this implementation, we use several existing attributes to determine how virtual
  method ApplyInverse() should call the concrete method Solve().  We pass in the UpperTriangular(),

the Epetra_PETScAIJMatrix::UseTranspose(), and NoDiagonal() methods. The most notable warning is that if a matrix has no diagonal values we assume that there is an implicit unit diagonal that should be accounted for when doing a triangular solve.

Parameters

In	X - A Epetra_MultiVector of dimension NumVectors to solve for.
Out	Y -A Epetra_MultiVector of dimension NumVectors containing result.

Returns

Integer error code, set to 0 if successful.

Implements Epetra_Operator.

Definition at line 360 of file EpetraExt_PETScAIJMatrix.h.

virtual bool Epetra_PETScAIJMatrix::HasNormInf ( ) const

inlinevirtual

Returns true because this class can compute an Inf-norm.

Implements Epetra_Operator.

Definition at line 365 of file EpetraExt_PETScAIJMatrix.h.

virtual bool Epetra_PETScAIJMatrix::UseTranspose ( ) const

inlinevirtual

Returns the current UseTranspose setting.

Implements Epetra_Operator.

Definition at line 368 of file EpetraExt_PETScAIJMatrix.h.

int Epetra_PETScAIJMatrix::NumMyRowEntries ( int  MyRow, int &  NumEntries  ) const

virtual

Return the current number of values stored for the specified local row.

Similar to NumMyEntries() except NumEntries is returned as an argument
and error checking is done on the input value MyRow.

Parameters

In	MyRow - Local row.
Out	NumEntries - Number of nonzero values.

Returns

Integer error code, set to 0 if successful.

Implements Epetra_RowMatrix.

int Epetra_PETScAIJMatrix::MaxNumEntries ( ) const

virtual

Returns the maximum of NumMyRowEntries() over all rows.

Implements Epetra_RowMatrix.

int Epetra_PETScAIJMatrix::GetRow ( int  Row ) const

private

Member Data Documentation

Mat Epetra_PETScAIJMatrix::Amat_

private

Definition at line 393 of file EpetraExt_PETScAIJMatrix.h.

double* Epetra_PETScAIJMatrix::Values_

mutableprivate

Definition at line 394 of file EpetraExt_PETScAIJMatrix.h.

int* Epetra_PETScAIJMatrix::Indices_

mutableprivate

Definition at line 395 of file EpetraExt_PETScAIJMatrix.h.

int Epetra_PETScAIJMatrix::MaxNumEntries_

mutableprivate

Definition at line 396 of file EpetraExt_PETScAIJMatrix.h.

Epetra_SerialComm* Epetra_PETScAIJMatrix::Comm_

private

Definition at line 401 of file EpetraExt_PETScAIJMatrix.h.

Epetra_Map* Epetra_PETScAIJMatrix::DomainMap_

private

Definition at line 403 of file EpetraExt_PETScAIJMatrix.h.

Epetra_Map* Epetra_PETScAIJMatrix::ColMap_

private

Definition at line 404 of file EpetraExt_PETScAIJMatrix.h.

Epetra_Import* Epetra_PETScAIJMatrix::Importer_

private

Definition at line 405 of file EpetraExt_PETScAIJMatrix.h.

Epetra_MultiVector* Epetra_PETScAIJMatrix::ImportVector_

mutableprivate

Definition at line 406 of file EpetraExt_PETScAIJMatrix.h.

double Epetra_PETScAIJMatrix::NumGlobalNonzeros_

private

Definition at line 408 of file EpetraExt_PETScAIJMatrix.h.

int Epetra_PETScAIJMatrix::NumMyNonzeros_

private

Definition at line 409 of file EpetraExt_PETScAIJMatrix.h.

int Epetra_PETScAIJMatrix::NumMyRows_

private

Definition at line 410 of file EpetraExt_PETScAIJMatrix.h.

int Epetra_PETScAIJMatrix::NumGlobalRows_

private

Definition at line 411 of file EpetraExt_PETScAIJMatrix.h.

int Epetra_PETScAIJMatrix::NumMyCols_

private

Definition at line 412 of file EpetraExt_PETScAIJMatrix.h.

int Epetra_PETScAIJMatrix::PetscRowStart_

private

Definition at line 413 of file EpetraExt_PETScAIJMatrix.h.

int Epetra_PETScAIJMatrix::PetscRowEnd_

private

Definition at line 414 of file EpetraExt_PETScAIJMatrix.h.

MatType Epetra_PETScAIJMatrix::MatType_

private

Definition at line 416 of file EpetraExt_PETScAIJMatrix.h.

double Epetra_PETScAIJMatrix::NormInf_

mutableprivate

Definition at line 417 of file EpetraExt_PETScAIJMatrix.h.

double Epetra_PETScAIJMatrix::NormOne_

mutableprivate

Definition at line 418 of file EpetraExt_PETScAIJMatrix.h.

---

The documentation for this class was generated from the following file:

• EpetraExt_PETScAIJMatrix.h
