EpetraExt_PointToBlockDiagPermute: A class for managing point-to-block-diagonal permutations. More...

#include <EpetraExt_PointToBlockDiagPermute.h>

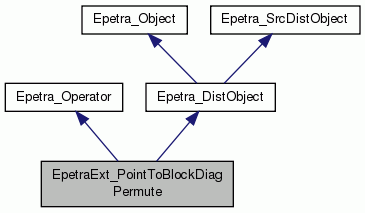

Inheritance diagram for EpetraExt_PointToBlockDiagPermute:

Private Member Functions
int	ExtractBlockDiagonal ()
	Pulls the block diagonal of the matrix and then builds the BDMat_. More...

int	SetupContiguousMode ()
	Setup/Cleanup for Contiguous Mode. More...

int	CleanupContiguousMode ()

void	UpdateImportVector (int NumVectors) const

void	UpdateExportVector (int NumVectors) const

template<typename int_type >
Epetra_FECrsMatrix *	TCreateFECrsMatrix ()

template<typename int_type >
int	TSetupContiguousMode ()

template<typename int_type >
int	TExtractBlockDiagonal ()

template<typename int_type >
int	TSetParameters (Teuchos::ParameterList &List)

template<typename int_type >
const int_type *	Blockids_const_ptr () const

template<typename int_type >
int_type *&	Blockids_ref ()

template<>
const int *	Blockids_const_ptr () const

template<>
int *&	Blockids_ref ()

template<>
const long long *	Blockids_const_ptr () const

template<>
long long *&	Blockids_ref ()

Private Attributes
Teuchos::ParameterList	List_

const Epetra_CrsMatrix *	Matrix_

bool	PurelyLocalMode_

bool	ContiguousBlockMode_

int	ContiguousBlockSize_

int	NumBlocks_

int *	Blockstart_

int *	Blockids_int_

long long *	Blockids_LL_

Epetra_BlockMap *	BDMap_

Epetra_Map *	CompatibleMap_

EpetraExt_BlockDiagMatrix *	BDMat_

Epetra_Import *	Importer_

Epetra_Export *	Exporter_

Epetra_MultiVector *	ImportVector_

Epetra_MultiVector *	ExportVector_

	EpetraExt_PointToBlockDiagPermute (const Epetra_CrsMatrix &MAT)
	@ Name Constructors More...

Destructor
virtual	~EpetraExt_PointToBlockDiagPermute ()
	Destructor. More...

Attribute set methods
virtual int	SetParameters (Teuchos::ParameterList &List)
	Sets the parameter list. More...

virtual int	SetUseTranspose (bool)
	Set whether to use the transpose. More...

virtual int	Compute ()
	Extracts the block-diagonal, builds maps, etc. More...

Mathematical functions
virtual int	Apply (const Epetra_MultiVector &X, Epetra_MultiVector &Y) const
	Returns the result of a Epetra_Operator applied to a Epetra_MultiVector X in Y. More...

virtual int	ApplyInverse (const Epetra_MultiVector &X, Epetra_MultiVector &Y) const
	Returns the result of a Epetra_Operator inverse applied to an Epetra_MultiVector X in Y. More...

virtual double	NormInf () const
	Returns the infinity norm of the global matrix - NOT IMPLEMENTED. More...

Attribute access functions
virtual const char *	Label () const
	Return a string describing the operator. More...

virtual bool	UseTranspose () const
	Return the current UseTranspose setting. More...

virtual bool	HasNormInf () const
	Return true if the this object can provide an approximate Inf-norm, false otherwise. More...

virtual const Epetra_Comm &	Comm () const
	Return a pointer to the Epetra_Comm communicator associated with this operator. More...

virtual const Epetra_Map &	OperatorDomainMap () const
	Return the Epetra_Map object associated with the domain of this operator. More...

virtual const Epetra_Map &	OperatorRangeMap () const
	Return the Epetra_Map object associated with the range of this operator. More...

virtual const EpetraExt_BlockDiagMatrix &	BlockMatrix ()
	Return the block matrix. Only call this after calling Compute. More...

virtual Epetra_FECrsMatrix *	CreateFECrsMatrix ()
	Create an Epetra_FECrsMatrix from the BlockDiagMatrix. More...

Miscellaneous
virtual void	Print (std::ostream &os) const
	Print information about this object to the given output stream. More...

Import/Export Methods
int	Import (const Epetra_SrcDistObject &A, const Epetra_Import &Importer, Epetra_CombineMode CombineMode, const Epetra_OffsetIndex *Indexor=0)
	Imports an Epetra_DistObject using the Epetra_Import object. More...

int	Import (const Epetra_SrcDistObject &A, const Epetra_Export &Exporter, Epetra_CombineMode CombineMode, const Epetra_OffsetIndex *Indexor=0)
	Imports an Epetra_DistObject using the Epetra_Export object. More...

int	Export (const Epetra_SrcDistObject &A, const Epetra_Import &Importer, Epetra_CombineMode CombineMode, const Epetra_OffsetIndex *Indexor=0)
	Exports an Epetra_DistObject using the Epetra_Import object. More...

int	Export (const Epetra_SrcDistObject &A, const Epetra_Export &Exporter, Epetra_CombineMode CombineMode, const Epetra_OffsetIndex *Indexor=0)
	Exports an Epetra_DistObject using the Epetra_Export object. More...

Internal utilities
virtual int	CheckSizes (const Epetra_SrcDistObject &Source)
	Allows the source and target (this) objects to be compared for compatibility, return nonzero if not. More...

virtual int	CopyAndPermute (const Epetra_SrcDistObject &Source, int NumSameIDs, int NumPermuteIDs, int PermuteToLIDs, int PermuteFromLIDs, const Epetra_OffsetIndex *Indexor, Epetra_CombineMode CombineMode=Zero)
	Perform ID copies and permutations that are on processor. More...

virtual int	PackAndPrepare (const Epetra_SrcDistObject &Source, int NumExportIDs, int ExportLIDs, int &LenExports, char &Exports, int &SizeOfPacket, int *Sizes, bool &VarSizes, Epetra_Distributor &Distor)
	Perform any packing or preparation required for call to DoTransfer(). More...

virtual int	UnpackAndCombine (const Epetra_SrcDistObject &Source, int NumImportIDs, int ImportLIDs, int LenImports, char Imports, int &SizeOfPacket, Epetra_Distributor &Distor, Epetra_CombineMode CombineMode, const Epetra_OffsetIndex *Indexor)
	Perform any unpacking and combining after call to DoTransfer(). More...

Additional Inherited Members
Public Member Functions inherited from Epetra_SrcDistObject
virtual const Epetra_BlockMap &	Map () const =0

Detailed Description

EpetraExt_PointToBlockDiagPermute: A class for managing point-to-block-diagonal permutations.

Manages point-to-block-diagonal permutations (and vice versa) as well as service routines for extracting block diagonals from matrices.

Definition at line 78 of file EpetraExt_PointToBlockDiagPermute.h.

Constructor & Destructor Documentation

EpetraExt_PointToBlockDiagPermute::EpetraExt_PointToBlockDiagPermute ( const Epetra_CrsMatrix & MAT )

@ Name Constructors

Constructor

Definition at line 58 of file EpetraExt_PointToBlockDiagPermute.cpp.

EpetraExt_PointToBlockDiagPermute::~EpetraExt_PointToBlockDiagPermute ( )

virtual

Destructor.

Definition at line 83 of file EpetraExt_PointToBlockDiagPermute.cpp.

Member Function Documentation

int EpetraExt_PointToBlockDiagPermute::SetParameters ( Teuchos::ParameterList & List )

virtual

Sets the parameter list.

Definition at line 137 of file EpetraExt_PointToBlockDiagPermute.cpp.

virtual int EpetraExt_PointToBlockDiagPermute::SetUseTranspose ( bool )

inlinevirtual

Set whether to use the transpose.

Returns: 0 if this class can change its transpose state, else nonzero.

This class does NOT know how to apply its transpose, so this method always returns an error code.

Implements Epetra_Operator.

Definition at line 106 of file EpetraExt_PointToBlockDiagPermute.h.

int EpetraExt_PointToBlockDiagPermute::Compute ( )

virtual

Extracts the block-diagonal, builds maps, etc.

Definition at line 155 of file EpetraExt_PointToBlockDiagPermute.cpp.

int EpetraExt_PointToBlockDiagPermute::Apply	(	const Epetra_MultiVector &	X,
		Epetra_MultiVector &	Y
	)		const

virtual

Returns the result of a Epetra_Operator applied to a Epetra_MultiVector X in Y.

Parameters

In	X - A Epetra_MultiVector of dimension NumVectors to multiply with matrix.
Out	Y -A Epetra_MultiVector of dimension NumVectors containing result.

Returns: Integer error code, set to 0 if successful.

Implements Epetra_Operator.

Definition at line 162 of file EpetraExt_PointToBlockDiagPermute.cpp.

int EpetraExt_PointToBlockDiagPermute::ApplyInverse	(	const Epetra_MultiVector &	X,
		Epetra_MultiVector &	Y
	)		const

virtual

Returns the result of a Epetra_Operator inverse applied to an Epetra_MultiVector X in Y.

Parameters

In	X - A Epetra_MultiVector of dimension NumVectors to solve for.
Out	Y -A Epetra_MultiVector of dimension NumVectors containing result.

Returns: Integer error code, set to 0 if successful.

Warning: In order to work with AztecOO, any implementation of this method must support the case where X and Y are the same object.

Implements Epetra_Operator.

Definition at line 169 of file EpetraExt_PointToBlockDiagPermute.cpp.

virtual double EpetraExt_PointToBlockDiagPermute::NormInf ( ) const

inlinevirtual

Returns the infinity norm of the global matrix - NOT IMPLEMENTED.

Implements Epetra_Operator.

Definition at line 142 of file EpetraExt_PointToBlockDiagPermute.h.

virtual const char* EpetraExt_PointToBlockDiagPermute::Label ( ) const

inlinevirtual

Return a string describing the operator.

Implements Epetra_Operator.

Definition at line 149 of file EpetraExt_PointToBlockDiagPermute.h.

virtual bool EpetraExt_PointToBlockDiagPermute::UseTranspose ( ) const

inlinevirtual

Return the current UseTranspose setting.

Implements Epetra_Operator.

Definition at line 152 of file EpetraExt_PointToBlockDiagPermute.h.

virtual bool EpetraExt_PointToBlockDiagPermute::HasNormInf ( ) const

inlinevirtual

Return true if the this object can provide an approximate Inf-norm, false otherwise.

Implements Epetra_Operator.

Definition at line 155 of file EpetraExt_PointToBlockDiagPermute.h.

virtual const Epetra_Comm& EpetraExt_PointToBlockDiagPermute::Comm ( ) const

inlinevirtual

Return a pointer to the Epetra_Comm communicator associated with this operator.

Implements Epetra_Operator.

Definition at line 158 of file EpetraExt_PointToBlockDiagPermute.h.

virtual const Epetra_Map& EpetraExt_PointToBlockDiagPermute::OperatorDomainMap ( ) const

inlinevirtual

Return the Epetra_Map object associated with the domain of this operator.

Implements Epetra_Operator.

Definition at line 161 of file EpetraExt_PointToBlockDiagPermute.h.

virtual const Epetra_Map& EpetraExt_PointToBlockDiagPermute::OperatorRangeMap ( ) const

inlinevirtual

Return the Epetra_Map object associated with the range of this operator.

Implements Epetra_Operator.

Definition at line 164 of file EpetraExt_PointToBlockDiagPermute.h.

virtual const EpetraExt_BlockDiagMatrix& EpetraExt_PointToBlockDiagPermute::BlockMatrix ( )

inlinevirtual

Return the block matrix. Only call this after calling Compute.

Definition at line 167 of file EpetraExt_PointToBlockDiagPermute.h.

Epetra_FECrsMatrix * EpetraExt_PointToBlockDiagPermute::CreateFECrsMatrix ( )

virtual

Create an Epetra_FECrsMatrix from the BlockDiagMatrix.

This is generally only useful if you want to do a matrix-matrix multiply.

Definition at line 602 of file EpetraExt_PointToBlockDiagPermute.cpp.

void EpetraExt_PointToBlockDiagPermute::Print ( std::ostream & os ) const

virtual

Print information about this object to the given output stream.

Reimplemented from Epetra_DistObject.

Definition at line 221 of file EpetraExt_PointToBlockDiagPermute.cpp.

int EpetraExt_PointToBlockDiagPermute::Import	(	const Epetra_SrcDistObject &	A,
		const Epetra_Import &	Importer,
		Epetra_CombineMode	CombineMode,
		const Epetra_OffsetIndex *	Indexor = `0`
	)

Imports an Epetra_DistObject using the Epetra_Import object.

Parameters

In	Source - Distributed object that will be imported into the "\e this" object.
In	Importer - A Epetra_Import object specifying the communication required.
In	CombineMode - A Epetra_CombineMode enumerated type specifying how results should be combined on the receiving processor.

Returns: Integer error code, set to 0 if successful.

Definition at line 651 of file EpetraExt_PointToBlockDiagPermute.cpp.

int EpetraExt_PointToBlockDiagPermute::Import	(	const Epetra_SrcDistObject &	A,
		const Epetra_Export &	Exporter,
		Epetra_CombineMode	CombineMode,
		const Epetra_OffsetIndex *	Indexor = `0`
	)

Imports an Epetra_DistObject using the Epetra_Export object.

Parameters

In	Source - Distributed object that will be imported into the "\e this" object.
In	Exporter - A Epetra_Export object specifying the communication required.
In	CombineMode - A Epetra_CombineMode enumerated type specifying how results should be combined on the receiving processor.

Returns: Integer error code, set to 0 if successful.

Definition at line 656 of file EpetraExt_PointToBlockDiagPermute.cpp.

int EpetraExt_PointToBlockDiagPermute::Export	(	const Epetra_SrcDistObject &	A,
		const Epetra_Import &	Importer,
		Epetra_CombineMode	CombineMode,
		const Epetra_OffsetIndex *	Indexor = `0`
	)

Exports an Epetra_DistObject using the Epetra_Import object.

Parameters

In	Source - Distributed object that will be exported to the "\e this" object.
In	Importer - A Epetra_Import object specifying the communication required.
In	CombineMode - A Epetra_CombineMode enumerated type specifying how results should be combined on the receiving processor.

Returns: Integer error code, set to 0 if successful.

Definition at line 661 of file EpetraExt_PointToBlockDiagPermute.cpp.

int EpetraExt_PointToBlockDiagPermute::Export	(	const Epetra_SrcDistObject &	A,
		const Epetra_Export &	Exporter,
		Epetra_CombineMode	CombineMode,
		const Epetra_OffsetIndex *	Indexor = `0`
	)

Exports an Epetra_DistObject using the Epetra_Export object.

Parameters

In	Source - Distributed object that will be exported to the "\e this" multivector.
In	Exporter - A Epetra_Export object specifying the communication required.
In	CombineMode - A Epetra_CombineMode enumerated type specifying how results should be combined on the receiving processor.

Returns: Integer error code, set to 0 if successful.

Definition at line 666 of file EpetraExt_PointToBlockDiagPermute.cpp.

int EpetraExt_PointToBlockDiagPermute::CheckSizes ( const Epetra_SrcDistObject & Source )

protectedvirtual

Allows the source and target (this) objects to be compared for compatibility, return nonzero if not.

Implements Epetra_DistObject.

Definition at line 672 of file EpetraExt_PointToBlockDiagPermute.cpp.

int EpetraExt_PointToBlockDiagPermute::CopyAndPermute	(	const Epetra_SrcDistObject &	Source,
		int	NumSameIDs,
		int	NumPermuteIDs,
		int *	PermuteToLIDs,
		int *	PermuteFromLIDs,
		const Epetra_OffsetIndex *	Indexor,
		Epetra_CombineMode	CombineMode = `Zero`
	)

protectedvirtual

Perform ID copies and permutations that are on processor.

Implements Epetra_DistObject.

Definition at line 678 of file EpetraExt_PointToBlockDiagPermute.cpp.

int EpetraExt_PointToBlockDiagPermute::PackAndPrepare	(	const Epetra_SrcDistObject &	Source,
		int	NumExportIDs,
		int *	ExportLIDs,
		int &	LenExports,
		char *&	Exports,
		int &	SizeOfPacket,
		int *	Sizes,
		bool &	VarSizes,
		Epetra_Distributor &	Distor
	)

protectedvirtual

Perform any packing or preparation required for call to DoTransfer().

Implements Epetra_DistObject.

Definition at line 690 of file EpetraExt_PointToBlockDiagPermute.cpp.

int EpetraExt_PointToBlockDiagPermute::UnpackAndCombine	(	const Epetra_SrcDistObject &	Source,
		int	NumImportIDs,
		int *	ImportLIDs,
		int	LenImports,
		char *	Imports,
		int &	SizeOfPacket,
		Epetra_Distributor &	Distor,
		Epetra_CombineMode	CombineMode,
		const Epetra_OffsetIndex *	Indexor
	)

protectedvirtual

Perform any unpacking and combining after call to DoTransfer().

Implements Epetra_DistObject.

Definition at line 704 of file EpetraExt_PointToBlockDiagPermute.cpp.

int EpetraExt_PointToBlockDiagPermute::ExtractBlockDiagonal ( )

private

Pulls the block diagonal of the matrix and then builds the BDMat_.

Definition at line 489 of file EpetraExt_PointToBlockDiagPermute.cpp.

int EpetraExt_PointToBlockDiagPermute::SetupContiguousMode ( )

private

Setup/Cleanup for Contiguous Mode.

Definition at line 538 of file EpetraExt_PointToBlockDiagPermute.cpp.

int EpetraExt_PointToBlockDiagPermute::CleanupContiguousMode ( )

private

Definition at line 555 of file EpetraExt_PointToBlockDiagPermute.cpp.

void EpetraExt_PointToBlockDiagPermute::UpdateImportVector ( int NumVectors ) const

private

Definition at line 619 of file EpetraExt_PointToBlockDiagPermute.cpp.

void EpetraExt_PointToBlockDiagPermute::UpdateExportVector ( int NumVectors ) const

private

Definition at line 633 of file EpetraExt_PointToBlockDiagPermute.cpp.

template<typename int_type >

Epetra_FECrsMatrix * EpetraExt_PointToBlockDiagPermute::TCreateFECrsMatrix ( )

private

Definition at line 570 of file EpetraExt_PointToBlockDiagPermute.cpp.

template<typename int_type >

int EpetraExt_PointToBlockDiagPermute::TSetupContiguousMode ( )

private

Definition at line 507 of file EpetraExt_PointToBlockDiagPermute.cpp.

template<typename int_type >

int EpetraExt_PointToBlockDiagPermute::TExtractBlockDiagonal ( )

private

Definition at line 230 of file EpetraExt_PointToBlockDiagPermute.cpp.

template<typename int_type >

int EpetraExt_PointToBlockDiagPermute::TSetParameters ( Teuchos::ParameterList & List )

private

Definition at line 97 of file EpetraExt_PointToBlockDiagPermute.cpp.

template<typename int_type >

const int_type* EpetraExt_PointToBlockDiagPermute::Blockids_const_ptr ( ) const

private

template<typename int_type >

int_type*& EpetraExt_PointToBlockDiagPermute::Blockids_ref ( )

private

template<>

const int* EpetraExt_PointToBlockDiagPermute::Blockids_const_ptr ( ) const

inlineprivate

Definition at line 339 of file EpetraExt_PointToBlockDiagPermute.h.

template<>

int*& EpetraExt_PointToBlockDiagPermute::Blockids_ref ( )

inlineprivate

Definition at line 341 of file EpetraExt_PointToBlockDiagPermute.h.

template<>

const long long* EpetraExt_PointToBlockDiagPermute::Blockids_const_ptr ( ) const

inlineprivate

Definition at line 344 of file EpetraExt_PointToBlockDiagPermute.h.

template<>

long long*& EpetraExt_PointToBlockDiagPermute::Blockids_ref ( )

inlineprivate

Definition at line 345 of file EpetraExt_PointToBlockDiagPermute.h.

Member Data Documentation

Teuchos::ParameterList EpetraExt_PointToBlockDiagPermute::List_

private

Definition at line 297 of file EpetraExt_PointToBlockDiagPermute.h.

const Epetra_CrsMatrix* EpetraExt_PointToBlockDiagPermute::Matrix_

private

Definition at line 298 of file EpetraExt_PointToBlockDiagPermute.h.

bool EpetraExt_PointToBlockDiagPermute::PurelyLocalMode_

private

Definition at line 299 of file EpetraExt_PointToBlockDiagPermute.h.

bool EpetraExt_PointToBlockDiagPermute::ContiguousBlockMode_

private

Definition at line 302 of file EpetraExt_PointToBlockDiagPermute.h.

int EpetraExt_PointToBlockDiagPermute::ContiguousBlockSize_

private

Definition at line 303 of file EpetraExt_PointToBlockDiagPermute.h.

int EpetraExt_PointToBlockDiagPermute::NumBlocks_

private

Definition at line 305 of file EpetraExt_PointToBlockDiagPermute.h.

int* EpetraExt_PointToBlockDiagPermute::Blockstart_

private

Definition at line 306 of file EpetraExt_PointToBlockDiagPermute.h.

int* EpetraExt_PointToBlockDiagPermute::Blockids_int_

private

Definition at line 307 of file EpetraExt_PointToBlockDiagPermute.h.

long long* EpetraExt_PointToBlockDiagPermute::Blockids_LL_

private

Definition at line 309 of file EpetraExt_PointToBlockDiagPermute.h.

Epetra_BlockMap* EpetraExt_PointToBlockDiagPermute::BDMap_

private

Definition at line 311 of file EpetraExt_PointToBlockDiagPermute.h.

Epetra_Map* EpetraExt_PointToBlockDiagPermute::CompatibleMap_

private

Definition at line 312 of file EpetraExt_PointToBlockDiagPermute.h.

EpetraExt_BlockDiagMatrix* EpetraExt_PointToBlockDiagPermute::BDMat_

private

Definition at line 313 of file EpetraExt_PointToBlockDiagPermute.h.

Epetra_Import* EpetraExt_PointToBlockDiagPermute::Importer_

private

Definition at line 314 of file EpetraExt_PointToBlockDiagPermute.h.

Epetra_Export* EpetraExt_PointToBlockDiagPermute::Exporter_

private

Definition at line 315 of file EpetraExt_PointToBlockDiagPermute.h.

Epetra_MultiVector* EpetraExt_PointToBlockDiagPermute::ImportVector_

mutableprivate

Definition at line 316 of file EpetraExt_PointToBlockDiagPermute.h.

Epetra_MultiVector* EpetraExt_PointToBlockDiagPermute::ExportVector_

mutableprivate

Definition at line 317 of file EpetraExt_PointToBlockDiagPermute.h.

The documentation for this class was generated from the following files:

Private Member Functions

Private Attributes

Destructor

Attribute set methods

Mathematical functions

Attribute access functions

Miscellaneous

Import/Export Methods

Internal utilities

Additional Inherited Members

Detailed Description

Constructor & Destructor Documentation

Member Function Documentation

Member Data Documentation
