Simple transient diagonal model for an implicit or explicit ODE. More...

#include <EpetraExt_DiagonalTransientModel.hpp>

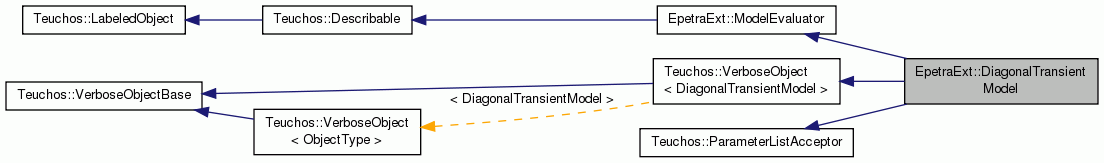

Inheritance diagram for EpetraExt::DiagonalTransientModel:

Public Types
enum	EGammaFit { GAMMA_FIT_LINEAR, GAMMA_FIT_RANDOM }

Public Types inherited from EpetraExt::ModelEvaluator
enum	EInArgsMembers { IN_ARG_x_dot, IN_ARG_x, IN_ARG_x_dot_poly, IN_ARG_x_poly, IN_ARG_x_dot_sg, IN_ARG_x_sg, IN_ARG_x_dot_mp, IN_ARG_x_mp, IN_ARG_t, IN_ARG_alpha, IN_ARG_beta, IN_ARG_step_size, IN_ARG_stage_number, IN_ARG_x_dotdot, IN_ARG_x_dotdot_poly, IN_ARG_x_dotdot_sg, IN_ARG_x_dotdot_mp, IN_ARG_omega, IN_ARG_sg_basis, IN_ARG_sg_quadrature, IN_ARG_sg_expansion }

enum	EInArgs_p_sg { IN_ARG_p_sg }

enum	EInArgs_p_mp { IN_ARG_p_mp }

enum	EEvalType { EVAL_TYPE_EXACT, EVAL_TYPE_APPROX_DERIV, EVAL_TYPE_VERY_APPROX_DERIV }

enum	EDerivativeMultiVectorOrientation { DERIV_MV_BY_COL, DERIV_TRANS_MV_BY_ROW }

enum	EDerivativeLinearOp { DERIV_LINEAR_OP }

enum	EDerivativeLinearity { DERIV_LINEARITY_UNKNOWN, DERIV_LINEARITY_CONST, DERIV_LINEARITY_NONCONST }

enum	ERankStatus { DERIV_RANK_UNKNOWN, DERIV_RANK_FULL, DERIV_RANK_DEFICIENT }

enum	EOutArgsMembers { OUT_ARG_f, OUT_ARG_W, OUT_ARG_f_poly, OUT_ARG_f_sg, OUT_ARG_W_sg, OUT_ARG_f_mp, OUT_ARG_W_mp, OUT_ARG_WPrec }

enum	EOutArgsDfDp { OUT_ARG_DfDp }

enum	EOutArgsDgDx_dot { OUT_ARG_DgDx_dot }

enum	EOutArgsDgDx_dotdot { OUT_ARG_DgDx_dotdot }

enum	EOutArgsDgDx { OUT_ARG_DgDx }

enum	EOutArgsDgDp { OUT_ARG_DgDp }

enum	EOutArgsDfDp_sg { OUT_ARG_DfDp_sg }

enum	EOutArgs_g_sg { OUT_ARG_g_sg }

enum	EOutArgsDgDx_dot_sg { OUT_ARG_DgDx_dot_sg }

enum	EOutArgsDgDx_dotdot_sg { OUT_ARG_DgDx_dotdot_sg }

enum	EOutArgsDgDx_sg { OUT_ARG_DgDx_sg }

enum	EOutArgsDgDp_sg { OUT_ARG_DgDp_sg }

enum	EOutArgsDfDp_mp { OUT_ARG_DfDp_mp }

enum	EOutArgs_g_mp { OUT_ARG_g_mp }

enum	EOutArgsDgDx_dot_mp { OUT_ARG_DgDx_dot_mp }

enum	EOutArgsDgDx_dotdot_mp { OUT_ARG_DgDx_dotdot_mp }

enum	EOutArgsDgDx_mp { OUT_ARG_DgDx_mp }

enum	EOutArgsDgDp_mp { OUT_ARG_DgDp_mp }

typedef Teuchos::RCP< const Stokhos::ProductEpetraVector >	mp_const_vector_t

typedef Teuchos::RCP< const Stokhos::ProductEpetraMultiVector >	mp_const_multivector_t

typedef Teuchos::RCP< const Stokhos::ProductEpetraOperator >	mp_const_operator_t

typedef Teuchos::RCP < Stokhos::ProductEpetraVector >	mp_vector_t

typedef Teuchos::RCP < Stokhos::ProductEpetraMultiVector >	mp_multivector_t

typedef Teuchos::RCP < Stokhos::ProductEpetraOperator >	mp_operator_t

Private Types
typedef Teuchos::Array< double >	coeff_s_t

typedef Teuchos::Array< int >	coeff_s_idx_t

typedef Teuchos::Array < Teuchos::RCP< const Epetra_Map > >	RCP_Eptra_Map_Array_t

typedef Teuchos::Array < Teuchos::RCP< Epetra_Vector > >	RCP_Eptra_Vector_Array_t

typedef Teuchos::Array < Teuchos::RCP< Teuchos::Array < std::string > > >	RCP_Array_String_Array_t

Private Member Functions
void	initialize ()

void	set_coeff_s_p (const Teuchos::RCP< const Epetra_Vector > &coeff_s_p) const

void	unset_coeff_s_p () const

int	coeff_s_idx (int i) const

double	coeff_s (int i) const

Private Attributes
Teuchos::RCP < Teuchos::ParameterList >	paramList_

Teuchos::RCP< Epetra_Comm >	epetra_comm_

Teuchos::RCP< Epetra_Map >	epetra_map_

bool	implicit_

int	numElements_

double	gamma_min_

double	gamma_max_

coeff_s_t	coeff_s_

coeff_s_idx_t	coeff_s_idx_

EGammaFit	gamma_fit_

double	x0_

bool	exactSolutionAsResponse_

Teuchos::RCP< Epetra_Vector >	gamma_

Teuchos::RCP< Epetra_CrsGraph >	W_graph_

int	Np_

int	np_

int	Ng_

RCP_Eptra_Map_Array_t	map_p_

RCP_Array_String_Array_t	names_p_

RCP_Eptra_Map_Array_t	map_g_

RCP_Eptra_Vector_Array_t	p_init_

Teuchos::RCP< Epetra_Vector >	x_init_

Teuchos::RCP< Epetra_Vector >	x_dot_init_

Teuchos::RCP< const Epetra_Vector >	coeff_s_p_

bool	isIntialized_

Related Functions
(Note that these are not member functions.)
Teuchos::RCP < DiagonalTransientModel >	diagonalTransientModel (Teuchos::RCP< Epetra_Comm > const &epetra_comm, Teuchos::RCP< Teuchos::ParameterList > const &paramList=Teuchos::null)
	Nonmember constructor. More...

Constructors, Initializers, Misc.
	DiagonalTransientModel (Teuchos::RCP< Epetra_Comm > const &epetra_comm)

Teuchos::RCP< const Epetra_Vector >	get_gamma () const
	Return the model vector `gamma`,. More...

Teuchos::RCP< const Epetra_Vector >	getExactSolution (const double t, const Epetra_Vector *coeff_s_p=0) const
	Return the exact solution as a function of time. More...

Teuchos::RCP< const Epetra_MultiVector >	getExactSensSolution (const double t, const Epetra_Vector *coeff_s_p=0) const
	Return the exact sensitivity of x as a function of time. More...

Overridden from ParameterListAcceptor
void	setParameterList (Teuchos::RCP< Teuchos::ParameterList > const &paramList)

Teuchos::RCP < Teuchos::ParameterList >	getNonconstParameterList ()

Teuchos::RCP < Teuchos::ParameterList >	unsetParameterList ()

Teuchos::RCP< const Teuchos::ParameterList >	getParameterList () const

Teuchos::RCP< const Teuchos::ParameterList >	getValidParameters () const

Overridden from EpetraExt::ModelEvaluator .
Teuchos::RCP< const Epetra_Map >	get_x_map () const

Teuchos::RCP< const Epetra_Map >	get_f_map () const

Teuchos::RCP< const Epetra_Map >	get_p_map (int l) const
	. More...

Teuchos::RCP< const Teuchos::Array< std::string > >	get_p_names (int l) const
	. More...

Teuchos::RCP< const Epetra_Map >	get_g_map (int j) const
	. More...

Teuchos::RCP< const Epetra_Vector >	get_x_init () const

Teuchos::RCP< const Epetra_Vector >	get_x_dot_init () const

Teuchos::RCP< const Epetra_Vector >	get_p_init (int l) const

Teuchos::RCP< Epetra_Operator >	create_W () const

InArgs	createInArgs () const

OutArgs	createOutArgs () const

void	evalModel (const InArgs &inArgs, const OutArgs &outArgs) const

Additional Inherited Members
Public Member Functions inherited from EpetraExt::ModelEvaluator
virtual	~ModelEvaluator ()

virtual Teuchos::ArrayView < const std::string >	get_g_names (int j) const
	Get the names of the response functions associated with response subvector j if available. More...

virtual Teuchos::RCP< const Epetra_Vector >	get_x_dotdot_init () const

virtual double	get_t_init () const

virtual double	getInfBound () const
	Return the value of an infinite bound. More...

virtual Teuchos::RCP< const Epetra_Vector >	get_x_lower_bounds () const

virtual Teuchos::RCP< const Epetra_Vector >	get_x_upper_bounds () const

virtual Teuchos::RCP< const Epetra_Vector >	get_p_lower_bounds (int l) const

virtual Teuchos::RCP< const Epetra_Vector >	get_p_upper_bounds (int l) const

virtual double	get_t_lower_bound () const

virtual double	get_t_upper_bound () const

virtual Teuchos::RCP < EpetraExt::ModelEvaluator::Preconditioner >	create_WPrec () const

virtual Teuchos::RCP < Epetra_Operator >	create_DfDp_op (int l) const

virtual Teuchos::RCP < Epetra_Operator >	create_DgDx_dot_op (int j) const

virtual Teuchos::RCP < Epetra_Operator >	create_DgDx_dotdot_op (int j) const

virtual Teuchos::RCP < Epetra_Operator >	create_DgDx_op (int j) const

virtual Teuchos::RCP < Epetra_Operator >	create_DgDp_op (int j, int l) const

Public Member Functions inherited from Teuchos::Describable
DescribableStreamManipulatorState	describe (const Describable &describable, const EVerbosityLevel verbLevel=Describable::verbLevel_default)

std::ostream &	operator<< (std::ostream &os, const DescribableStreamManipulatorState &d)

virtual std::string	description () const

virtual void	describe (FancyOStream &out, const EVerbosityLevel verbLevel=verbLevel_default) const

void	describe (std::ostream &out, const EVerbosityLevel verbLevel=verbLevel_default) const

virtual	~Describable ()

	LabeledObject ()

virtual	~LabeledObject ()

virtual void	setObjectLabel (const std::string &objectLabel)

virtual std::string	getObjectLabel () const

Public Member Functions inherited from Teuchos::VerboseObject< DiagonalTransientModel >
TEUCHOSPARAMETERLIST_LIB_DLL_EXPORT RCP< const ParameterList >	getValidVerboseObjectSublist ()

TEUCHOSPARAMETERLIST_LIB_DLL_EXPORT void	setupVerboseObjectSublist (ParameterList *paramList)

TEUCHOSPARAMETERLIST_LIB_DLL_EXPORT void	readVerboseObjectSublist (ParameterList paramList, RCP< FancyOStream > oStream, EVerbosityLevel *verbLevel)

void	readVerboseObjectSublist (ParameterList paramList, VerboseObject< DiagonalTransientModel > verboseObject)

	VerboseObject (const EVerbosityLevel verbLevel=VERB_DEFAULT, const RCP< FancyOStream > &oStream=Teuchos::null)

virtual const VerboseObject &	setVerbLevel (const EVerbosityLevel verbLevel) const

virtual const VerboseObject &	setOverridingVerbLevel (const EVerbosityLevel verbLevel) const

virtual EVerbosityLevel	getVerbLevel () const

Static Public Member Functions inherited from Teuchos::VerboseObject< DiagonalTransientModel >
static void	setDefaultVerbLevel (const EVerbosityLevel defaultVerbLevel)

static EVerbosityLevel	getDefaultVerbLevel ()

Static Public Attributes inherited from EpetraExt::ModelEvaluator
static const int	NUM_E_IN_ARGS_MEMBERS =21

static const int	NUM_E_OUT_ARGS_MEMBERS =9

Static Public Attributes inherited from Teuchos::Describable
static const EVerbosityLevel	verbLevel_default

Protected Member Functions inherited from Teuchos::VerboseObject< DiagonalTransientModel >
void	initializeVerboseObject (const EVerbosityLevel verbLevel=VERB_DEFAULT, const RCP< FancyOStream > &oStream=Teuchos::null)

Detailed Description

Simple transient diagonal model for an implicit or explicit ODE.

The explicit ODE form of the model is:

 x_dot(i) = f_hat(x(i), gamma(i), s(i), t), for i = 0...n-1, on t in [0,t_f]

where:

 f_hat(x(i), gamma(i), s(i), t) = gama(i)*x(i) + exp(gamma(i)*t)*sin(s(i),t)

The implicit ODE form of the model i:

 f(i)(x_dot(i), x(i), t) = x_dot(i) - f_hat(x(i), gamma(i), s(i), t),

   for i = 0...n-1, on t in [0,t_f]

This is a diagonal problem so it does not make the greatest test problem but it does make it easy to derive tests for as a starter.

The coefficients s can be exposed as model parameters and are called coeff_s_p in the code. The selection of the coefficients is handled through the

ToDo: Finish Documentation!

Definition at line 99 of file EpetraExt_DiagonalTransientModel.hpp.

Member Typedef Documentation

typedef Teuchos::Array<double> EpetraExt::DiagonalTransientModel::coeff_s_t

private

Definition at line 186 of file EpetraExt_DiagonalTransientModel.hpp.

typedef Teuchos::Array<int> EpetraExt::DiagonalTransientModel::coeff_s_idx_t

private

Definition at line 187 of file EpetraExt_DiagonalTransientModel.hpp.

typedef Teuchos::Array<Teuchos::RCP<const Epetra_Map> > EpetraExt::DiagonalTransientModel::RCP_Eptra_Map_Array_t

private

Definition at line 188 of file EpetraExt_DiagonalTransientModel.hpp.

typedef Teuchos::Array<Teuchos::RCP<Epetra_Vector> > EpetraExt::DiagonalTransientModel::RCP_Eptra_Vector_Array_t

private

Definition at line 189 of file EpetraExt_DiagonalTransientModel.hpp.

typedef Teuchos::Array<Teuchos::RCP<Teuchos::Array<std::string> > > EpetraExt::DiagonalTransientModel::RCP_Array_String_Array_t

private

Definition at line 190 of file EpetraExt_DiagonalTransientModel.hpp.

Member Enumeration Documentation

enum EpetraExt::DiagonalTransientModel::EGammaFit

Enumerator
GAMMA_FIT_LINEAR
GAMMA_FIT_RANDOM

Definition at line 179 of file EpetraExt_DiagonalTransientModel.hpp.

Constructor & Destructor Documentation

EpetraExt::DiagonalTransientModel::DiagonalTransientModel ( Teuchos::RCP< Epetra_Comm > const & epetra_comm )

Definition at line 166 of file EpetraExt_DiagonalTransientModel.cpp.

Member Function Documentation

Teuchos::RCP< const Epetra_Vector > EpetraExt::DiagonalTransientModel::get_gamma ( ) const

Return the model vector gamma,.

Definition at line 185 of file EpetraExt_DiagonalTransientModel.cpp.

Teuchos::RCP< const Epetra_Vector > EpetraExt::DiagonalTransientModel::getExactSolution	(	const double	t,
		const Epetra_Vector *	coeff_s_p = `0`
	)		const

Return the exact solution as a function of time.

Definition at line 192 of file EpetraExt_DiagonalTransientModel.cpp.

Teuchos::RCP< const Epetra_MultiVector > EpetraExt::DiagonalTransientModel::getExactSensSolution	(	const double	t,
		const Epetra_Vector *	coeff_s_p = `0`
	)		const

Return the exact sensitivity of x as a function of time.

Definition at line 211 of file EpetraExt_DiagonalTransientModel.cpp.

void EpetraExt::DiagonalTransientModel::setParameterList ( Teuchos::RCP< Teuchos::ParameterList > const & paramList )

virtual

Implements Teuchos::ParameterListAcceptor.

Definition at line 237 of file EpetraExt_DiagonalTransientModel.cpp.

Teuchos::RCP< Teuchos::ParameterList > EpetraExt::DiagonalTransientModel::getNonconstParameterList ( )

virtual

Implements Teuchos::ParameterListAcceptor.

Definition at line 260 of file EpetraExt_DiagonalTransientModel.cpp.

Teuchos::RCP< Teuchos::ParameterList > EpetraExt::DiagonalTransientModel::unsetParameterList ( )

virtual

Implements Teuchos::ParameterListAcceptor.

Definition at line 267 of file EpetraExt_DiagonalTransientModel.cpp.

Teuchos::RCP< const Teuchos::ParameterList > EpetraExt::DiagonalTransientModel::getParameterList ( ) const

virtual

Reimplemented from Teuchos::ParameterListAcceptor.

Definition at line 276 of file EpetraExt_DiagonalTransientModel.cpp.

Teuchos::RCP< const Teuchos::ParameterList > EpetraExt::DiagonalTransientModel::getValidParameters ( ) const

virtual

Reimplemented from Teuchos::ParameterListAcceptor.

Definition at line 283 of file EpetraExt_DiagonalTransientModel.cpp.

Teuchos::RCP< const Epetra_Map > EpetraExt::DiagonalTransientModel::get_x_map ( ) const

virtual

Implements EpetraExt::ModelEvaluator.

Definition at line 327 of file EpetraExt_DiagonalTransientModel.cpp.

Teuchos::RCP< const Epetra_Map > EpetraExt::DiagonalTransientModel::get_f_map ( ) const

virtual

Implements EpetraExt::ModelEvaluator.

Definition at line 334 of file EpetraExt_DiagonalTransientModel.cpp.

Teuchos::RCP< const Epetra_Map > EpetraExt::DiagonalTransientModel::get_p_map ( int l ) const

virtual

.

Reimplemented from EpetraExt::ModelEvaluator.

Definition at line 341 of file EpetraExt_DiagonalTransientModel.cpp.

Teuchos::RCP< const Teuchos::Array< std::string > > EpetraExt::DiagonalTransientModel::get_p_names ( int l ) const

virtual

.

Reimplemented from EpetraExt::ModelEvaluator.

Definition at line 351 of file EpetraExt_DiagonalTransientModel.cpp.

Teuchos::RCP< const Epetra_Map > EpetraExt::DiagonalTransientModel::get_g_map ( int j ) const

virtual

.

Reimplemented from EpetraExt::ModelEvaluator.

Definition at line 361 of file EpetraExt_DiagonalTransientModel.cpp.

Teuchos::RCP< const Epetra_Vector > EpetraExt::DiagonalTransientModel::get_x_init ( ) const

virtual

Reimplemented from EpetraExt::ModelEvaluator.

Definition at line 371 of file EpetraExt_DiagonalTransientModel.cpp.

Teuchos::RCP< const Epetra_Vector > EpetraExt::DiagonalTransientModel::get_x_dot_init ( ) const

virtual

Reimplemented from EpetraExt::ModelEvaluator.

Definition at line 378 of file EpetraExt_DiagonalTransientModel.cpp.

Teuchos::RCP< const Epetra_Vector > EpetraExt::DiagonalTransientModel::get_p_init ( int l ) const

virtual

Reimplemented from EpetraExt::ModelEvaluator.

Definition at line 385 of file EpetraExt_DiagonalTransientModel.cpp.

Teuchos::RCP< Epetra_Operator > EpetraExt::DiagonalTransientModel::create_W ( ) const

virtual

Reimplemented from EpetraExt::ModelEvaluator.

Definition at line 395 of file EpetraExt_DiagonalTransientModel.cpp.

EpetraExt::ModelEvaluator::InArgs EpetraExt::DiagonalTransientModel::createInArgs ( ) const

virtual

Implements EpetraExt::ModelEvaluator.

Definition at line 404 of file EpetraExt_DiagonalTransientModel.cpp.

EpetraExt::ModelEvaluator::OutArgs EpetraExt::DiagonalTransientModel::createOutArgs ( ) const

virtual

Implements EpetraExt::ModelEvaluator.

Definition at line 420 of file EpetraExt_DiagonalTransientModel.cpp.

void EpetraExt::DiagonalTransientModel::evalModel	(	const InArgs &	inArgs,
		const OutArgs &	outArgs
	)		const

virtual

Implements EpetraExt::ModelEvaluator.

Definition at line 457 of file EpetraExt_DiagonalTransientModel.cpp.

void EpetraExt::DiagonalTransientModel::initialize ( )

private

Definition at line 566 of file EpetraExt_DiagonalTransientModel.cpp.

void EpetraExt::DiagonalTransientModel::set_coeff_s_p ( const Teuchos::RCP< const Epetra_Vector > & coeff_s_p ) const

private

Definition at line 735 of file EpetraExt_DiagonalTransientModel.cpp.

void EpetraExt::DiagonalTransientModel::unset_coeff_s_p ( ) const

private

Definition at line 746 of file EpetraExt_DiagonalTransientModel.cpp.

int EpetraExt::DiagonalTransientModel::coeff_s_idx ( int i ) const

inlineprivate

Definition at line 235 of file EpetraExt_DiagonalTransientModel.hpp.

double EpetraExt::DiagonalTransientModel::coeff_s ( int i ) const

inlineprivate

Definition at line 240 of file EpetraExt_DiagonalTransientModel.hpp.

Friends And Related Function Documentation

Teuchos::RCP< DiagonalTransientModel > diagonalTransientModel	(	Teuchos::RCP< Epetra_Comm > const &	epetra_comm,
		Teuchos::RCP< Teuchos::ParameterList > const &	paramList = `Teuchos::null`
	)
