Belos::StatusTestResNorm< ScalarType, MV, OP > Class Template Referenceabstract

An abstract class of StatusTest for stopping criteria using residual norms. More...

#include <BelosStatusTestResNorm.hpp>

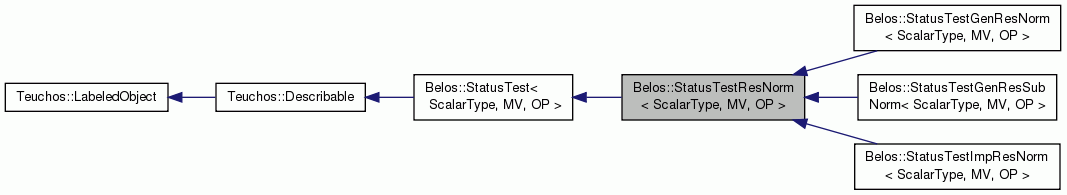

Inheritance diagram for Belos::StatusTestResNorm< ScalarType, MV, OP >:
Inheritance graph
[legend]

Public Types

typedef Teuchos::ScalarTraits
< ScalarType >
SCT

typedef SCT::magnitudeType MagnitudeType

typedef MultiVecTraits
< ScalarType, MV >
MVT


Public Member Functions

Form and parameter definition methods.
virtual int setTolerance (MagnitudeType tolerance)=0
 Set the value of the tolerance. More...

virtual int setQuorum (int quorum)=0
 Sets the number of residuals that must pass the convergence test before Passed is returned. More...

virtual int setShowMaxResNormOnly (bool showMaxResNormOnly)=0
 Set whether the only maximum residual norm is displayed when the print() method is called. More...

virtual int defineScaleForm (ScaleType TypeOfScaling, NormType TypeOfNorm, MagnitudeType ScaleValue=Teuchos::ScalarTraits< MagnitudeType >::one())=0
 Define the form of the scaling for the residual. More...

Methods to access data members.
virtual int getQuorum () const =0
 Returns the number of residuals that must pass the convergence test before Passed is returned. More...

virtual bool getShowMaxResNormOnly ()=0
 Returns whether the only maximum residual norm is displayed when the print() method is called. More...

virtual std::vector< int > convIndices ()=0
 Returns the std::vector containing the indices of the residuals that passed the test. More...

virtual MagnitudeType getTolerance () const =0
 Returns the value of the tolerance, $ \tau $, set in the constructor. More...

virtual const std::vector
< MagnitudeType > *
getTestValue () const =0
 Returns the test value, $ \frac{\|r\|}{\sigma} $, computed in most recent call to CheckStatus. More...

virtual Teuchos::RCP< MV > getSolution ()=0
 Returns the current solution estimate that was computed for the most recent residual test. More...

virtual bool getLOADetected () const =0
 Returns a boolean indicating a loss of accuracy has been detected in computing the residual. More...

- Public Member Functions inherited from Belos::StatusTest< ScalarType, MV, OP >
 StatusTest ()
 Constructor. More...

virtual ~StatusTest ()
 Destructor. More...

virtual StatusType checkStatus (Iteration< ScalarType, MV, OP > *iSolver)=0
 Check convergence status: Unconverged, Converged, Failed. More...

virtual StatusType getStatus () const =0
 Return the result of the most recent CheckStatus call. More...

virtual void reset ()=0
 Informs the convergence test that it should reset its internal configuration to the initialized state. More...

virtual void print (std::ostream &os, int indent=0) const =0
 Output formatted description of stopping test to output stream. More...

virtual void printStatus (std::ostream &os, StatusType type) const
 Output the result of the most recent CheckStatus call. More...

- Public Member Functions inherited from Teuchos::Describable
virtual std::string description () const

virtual void describe (FancyOStream &out, const EVerbosityLevel verbLevel=verbLevel_default) const

void describe (std::ostream &out, const EVerbosityLevel verbLevel=verbLevel_default) const

virtual ~Describable ()

 LabeledObject ()

virtual ~LabeledObject ()

virtual void setObjectLabel (const std::string &objectLabel)

virtual std::string getObjectLabel () const

DescribableStreamManipulatorState describe (const Describable &describable, const EVerbosityLevel verbLevel=Describable::verbLevel_default)

std::ostream & operator<< (std::ostream &os, const DescribableStreamManipulatorState &d)


Additional Inherited Members

- Static Public Attributes inherited from Teuchos::Describable
static const EVerbosityLevel verbLevel_default


Detailed Description

template<class ScalarType, class MV, class OP>
class Belos::StatusTestResNorm< ScalarType, MV, OP >

An abstract class of StatusTest for stopping criteria using residual norms.

Definition at line 30 of file BelosStatusTestResNorm.hpp.

Member Typedef Documentation

template<class ScalarType , class MV , class OP >
typedef Teuchos::ScalarTraits<ScalarType> Belos::StatusTestResNorm< ScalarType, MV, OP >::SCT

Definition at line 35 of file BelosStatusTestResNorm.hpp.

template<class ScalarType , class MV , class OP >
typedef SCT::magnitudeType Belos::StatusTestResNorm< ScalarType, MV, OP >::MagnitudeType

Definition at line 36 of file BelosStatusTestResNorm.hpp.

template<class ScalarType , class MV , class OP >
typedef MultiVecTraits<ScalarType,MV> Belos::StatusTestResNorm< ScalarType, MV, OP >::MVT

Definition at line 37 of file BelosStatusTestResNorm.hpp.

Member Function Documentation

template<class ScalarType , class MV , class OP >
virtual int Belos::StatusTestResNorm< ScalarType, MV, OP >::setTolerance ( MagnitudeType  tolerance)
pure virtual

Set the value of the tolerance.

We allow the tolerance to be reset for cases where, in the process of testing the residual, we find that the initial tolerance was too tight or too lax.

Implemented in Belos::StatusTestGenResNorm< ScalarType, MV, OP >, and Belos::StatusTestGenResSubNorm< ScalarType, MV, OP >.

template<class ScalarType , class MV , class OP >
virtual int Belos::StatusTestResNorm< ScalarType, MV, OP >::setQuorum ( int  quorum)
pure virtual

Sets the number of residuals that must pass the convergence test before Passed is returned.

Note
If quorum=-1 then all residuals must pass the convergence test before Passed is returned.

Implemented in Belos::StatusTestImpResNorm< ScalarType, MV, OP >, Belos::StatusTestGenResNorm< ScalarType, MV, OP >, and Belos::StatusTestGenResSubNorm< ScalarType, MV, OP >.

template<class ScalarType , class MV , class OP >
virtual int Belos::StatusTestResNorm< ScalarType, MV, OP >::setShowMaxResNormOnly ( bool  showMaxResNormOnly)
pure virtual

Set whether the only maximum residual norm is displayed when the print() method is called.

Implemented in Belos::StatusTestImpResNorm< ScalarType, MV, OP >, Belos::StatusTestGenResNorm< ScalarType, MV, OP >, and Belos::StatusTestGenResSubNorm< ScalarType, MV, OP >.

template<class ScalarType , class MV , class OP >
virtual int Belos::StatusTestResNorm< ScalarType, MV, OP >::defineScaleForm ( ScaleType  TypeOfScaling,
NormType  TypeOfNorm,
MagnitudeType  ScaleValue = Teuchos::ScalarTraitsMagnitudeType >::one()
)
pure virtual

Define the form of the scaling for the residual.

Implemented in Belos::StatusTestGenResNorm< ScalarType, MV, OP >, and Belos::StatusTestGenResSubNorm< ScalarType, MV, OP >.

template<class ScalarType , class MV , class OP >
virtual int Belos::StatusTestResNorm< ScalarType, MV, OP >::getQuorum ( ) const
pure virtual

Returns the number of residuals that must pass the convergence test before Passed is returned.

Note
If quorum=-1 then all residuals must pass the convergence test before Passed is returned.

Implemented in Belos::StatusTestImpResNorm< ScalarType, MV, OP >, Belos::StatusTestGenResNorm< ScalarType, MV, OP >, and Belos::StatusTestGenResSubNorm< ScalarType, MV, OP >.

template<class ScalarType , class MV , class OP >
virtual bool Belos::StatusTestResNorm< ScalarType, MV, OP >::getShowMaxResNormOnly ( )
pure virtual

Returns whether the only maximum residual norm is displayed when the print() method is called.

Implemented in Belos::StatusTestImpResNorm< ScalarType, MV, OP >, Belos::StatusTestGenResNorm< ScalarType, MV, OP >, and Belos::StatusTestGenResSubNorm< ScalarType, MV, OP >.

template<class ScalarType , class MV , class OP >
virtual std::vector<int> Belos::StatusTestResNorm< ScalarType, MV, OP >::convIndices ( )
pure virtual

Returns the std::vector containing the indices of the residuals that passed the test.

Implemented in Belos::StatusTestImpResNorm< ScalarType, MV, OP >, Belos::StatusTestGenResNorm< ScalarType, MV, OP >, and Belos::StatusTestGenResSubNorm< ScalarType, MV, OP >.

template<class ScalarType , class MV , class OP >
virtual MagnitudeType Belos::StatusTestResNorm< ScalarType, MV, OP >::getTolerance ( ) const
pure virtual
template<class ScalarType , class MV , class OP >
virtual const std::vector<MagnitudeType>* Belos::StatusTestResNorm< ScalarType, MV, OP >::getTestValue ( ) const
pure virtual
template<class ScalarType , class MV , class OP >
virtual Teuchos::RCP<MV> Belos::StatusTestResNorm< ScalarType, MV, OP >::getSolution ( )
pure virtual

Returns the current solution estimate that was computed for the most recent residual test.

Note
This method will return a null pointer if no vector was computed.

Implemented in Belos::StatusTestImpResNorm< ScalarType, MV, OP >, Belos::StatusTestGenResNorm< ScalarType, MV, OP >, and Belos::StatusTestGenResSubNorm< ScalarType, MV, OP >.

template<class ScalarType , class MV , class OP >
virtual bool Belos::StatusTestResNorm< ScalarType, MV, OP >::getLOADetected ( ) const
pure virtual

Returns a boolean indicating a loss of accuracy has been detected in computing the residual.

Implemented in Belos::StatusTestImpResNorm< ScalarType, MV, OP >, Belos::StatusTestGenResNorm< ScalarType, MV, OP >, and Belos::StatusTestGenResSubNorm< ScalarType, MV, OP >.


The documentation for this class was generated from the following file:
