A Belos::StatusTest debugging class for storing the absolute residual norms generated during a solve. More...

#include <BelosStatusTestLogResNorm.hpp>

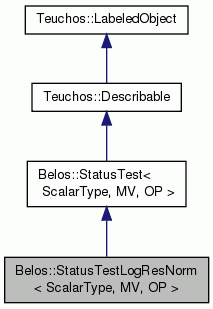

Inheritance diagram for Belos::StatusTestLogResNorm< ScalarType, MV, OP >:

Public Types
typedef Teuchos::ScalarTraits < ScalarType >::magnitudeType	MagnitudeType
	The type of the magnitude (absolute value) of a ScalarType. More...

Public Member Functions
Constructor/Destructor.
	StatusTestLogResNorm (int maxIters)
	Constructor. More...

virtual	~StatusTestLogResNorm ()
	Destructor. More...

Status methods
StatusType	checkStatus (Iteration< ScalarType, MV, OP > *iSolver)
	Check convergence status of the iterative solver: Unconverged, Converged, Failed. More...

StatusType	getStatus () const
	Return the result of the most recent CheckStatus call. More...

Reset methods
void	reset ()
	Resets the status test to the initial internal state. More...

void	setMaxIters (int maxIters)
	Sets the maximum number of iterations allowed so internal storage can be resized. More...

Accessor methods
int	getMaxIters () const
	Returns the maximum number of iterations set in the constructor. More...

int	getNumIters () const
	Returns the current number of iterations from the most recent StatusTest call. More...

const std::vector< typename Teuchos::ScalarTraits < ScalarType >::magnitudeType > &	getLogResNorm () const
	Returns the log of the absolute residual norm from the iteration. More...

Print methods
void	print (std::ostream &os, int indent=0) const
	Output formatted description of stopping test to output stream. More...

void	printStatus (std::ostream &os, StatusType type) const
	Print message for each status specific to this stopping test. More...

Overridden from Teuchos::Describable
std::string	description () const
	Method to return description of the debugging status test. More...

Public Member Functions inherited from Belos::StatusTest< ScalarType, MV, OP >
	StatusTest ()
	Constructor. More...

virtual	~StatusTest ()
	Destructor. More...

Public Member Functions inherited from Teuchos::Describable
virtual void	describe (FancyOStream &out, const EVerbosityLevel verbLevel=verbLevel_default) const

void	describe (std::ostream &out, const EVerbosityLevel verbLevel=verbLevel_default) const

virtual	~Describable ()

	LabeledObject ()

virtual	~LabeledObject ()

virtual void	setObjectLabel (const std::string &objectLabel)

virtual std::string	getObjectLabel () const

DescribableStreamManipulatorState	describe (const Describable &describable, const EVerbosityLevel verbLevel=Describable::verbLevel_default)

std::ostream &	operator<< (std::ostream &os, const DescribableStreamManipulatorState &d)

Additional Inherited Members
Static Public Attributes inherited from Teuchos::Describable
static const EVerbosityLevel	verbLevel_default

Detailed Description

template<class ScalarType, class MV, class OP>
class Belos::StatusTestLogResNorm< ScalarType, MV, OP >

A Belos::StatusTest debugging class for storing the absolute residual norms generated during a solve.

This implementation of the Belos::StatusTest base class stores the absolute residual norm provided by the iteration throughout an entire solve.

Note: This debugging status test will only work for single-rhs, single block solves.

Definition at line 35 of file BelosStatusTestLogResNorm.hpp.

Member Typedef Documentation

template<class ScalarType , class MV , class OP >

typedef Teuchos::ScalarTraits<ScalarType>::magnitudeType Belos::StatusTestLogResNorm< ScalarType, MV, OP >::MagnitudeType

The type of the magnitude (absolute value) of a ScalarType.

Definition at line 39 of file BelosStatusTestLogResNorm.hpp.

Constructor & Destructor Documentation

template<class ScalarType , class MV , class OP >

Belos::StatusTestLogResNorm< ScalarType, MV, OP >::StatusTestLogResNorm ( int maxIters )

Constructor.

Definition at line 140 of file BelosStatusTestLogResNorm.hpp.

template<class ScalarType , class MV , class OP >

virtual Belos::StatusTestLogResNorm< ScalarType, MV, OP >::~StatusTestLogResNorm ( )

inlinevirtual

Destructor.

Definition at line 56 of file BelosStatusTestLogResNorm.hpp.

Member Function Documentation

template<class ScalarType , class MV , class OP >

StatusType Belos::StatusTestLogResNorm< ScalarType, MV, OP >::checkStatus ( Iteration< ScalarType, MV, OP > * iSolver )

virtual

Check convergence status of the iterative solver: Unconverged, Converged, Failed.

This method checks to see if the convergence criteria are met using the current information from the iterative solver.

Implements Belos::StatusTest< ScalarType, MV, OP >.

Definition at line 153 of file BelosStatusTestLogResNorm.hpp.

template<class ScalarType , class MV , class OP >

StatusType Belos::StatusTestLogResNorm< ScalarType, MV, OP >::getStatus ( ) const

inlinevirtual

Return the result of the most recent CheckStatus call.

Implements Belos::StatusTest< ScalarType, MV, OP >.

Definition at line 69 of file BelosStatusTestLogResNorm.hpp.

template<class ScalarType , class MV , class OP >

void Belos::StatusTestLogResNorm< ScalarType, MV, OP >::reset ( )

virtual

Resets the status test to the initial internal state.

Implements Belos::StatusTest< ScalarType, MV, OP >.

Definition at line 180 of file BelosStatusTestLogResNorm.hpp.

template<class ScalarType , class MV , class OP >

void Belos::StatusTestLogResNorm< ScalarType, MV, OP >::setMaxIters ( int maxIters )

inline

Sets the maximum number of iterations allowed so internal storage can be resized.

Definition at line 80 of file BelosStatusTestLogResNorm.hpp.

template<class ScalarType , class MV , class OP >

int Belos::StatusTestLogResNorm< ScalarType, MV, OP >::getMaxIters ( ) const

inline

Returns the maximum number of iterations set in the constructor.

Definition at line 88 of file BelosStatusTestLogResNorm.hpp.

template<class ScalarType , class MV , class OP >

int Belos::StatusTestLogResNorm< ScalarType, MV, OP >::getNumIters ( ) const

inline

Returns the current number of iterations from the most recent StatusTest call.

Definition at line 91 of file BelosStatusTestLogResNorm.hpp.

template<class ScalarType , class MV , class OP >

const std::vector<typename Teuchos::ScalarTraits<ScalarType>::magnitudeType>& Belos::StatusTestLogResNorm< ScalarType, MV, OP >::getLogResNorm ( ) const

inline

Returns the log of the absolute residual norm from the iteration.

Definition at line 95 of file BelosStatusTestLogResNorm.hpp.

template<class ScalarType , class MV , class OP >

void Belos::StatusTestLogResNorm< ScalarType, MV, OP >::print	(	std::ostream &	os,
		int	indent = `0`
	)		const

virtual

Output formatted description of stopping test to output stream.

Implements Belos::StatusTest< ScalarType, MV, OP >.

Definition at line 188 of file BelosStatusTestLogResNorm.hpp.

template<class ScalarType , class MV , class OP >

void Belos::StatusTestLogResNorm< ScalarType, MV, OP >::printStatus	(	std::ostream &	os,
		StatusType	type
	)		const

virtual

Print message for each status specific to this stopping test.

Reimplemented from Belos::StatusTest< ScalarType, MV, OP >.

Definition at line 197 of file BelosStatusTestLogResNorm.hpp.

template<class ScalarType , class MV , class OP >

std::string Belos::StatusTestLogResNorm< ScalarType, MV, OP >::description ( ) const

inlinevirtual

Method to return description of the debugging status test.

Reimplemented from Teuchos::Describable.

Definition at line 114 of file BelosStatusTestLogResNorm.hpp.

The documentation for this class was generated from the following file:

BelosStatusTestLogResNorm.hpp
