Belos::LSQRStatusTest< ScalarType, MV, OP > Class Template Reference

A Belos::StatusTest class for specifying convergence of LSQR. The outer status tests passes if an inner status passes a user specified number of times consecutively. The inner status test depends on information specific to LSQR iteration. More...

#include <BelosLSQRStatusTest.hpp>

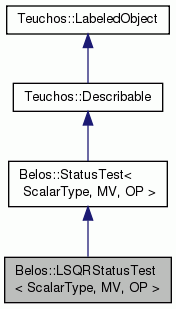

Inheritance diagram for Belos::LSQRStatusTest< ScalarType, MV, OP >:
Inheritance graph
[legend]

Public Types

typedef Teuchos::ScalarTraits
< ScalarType >
SCT

typedef SCT::magnitudeType MagnitudeType

typedef Belos::MultiVecTraits
< ScalarType, MV >
MVT


Public Member Functions

Constructor/Destructor.
 LSQRStatusTest (MagnitudeType condMax=0.0, int term_iter_max=1, MagnitudeType rel_rhs_err=0.0, MagnitudeType rel_mat_err=0.0)
 Constructor. More...

virtual ~LSQRStatusTest ()
 Destructor. More...

Status method
Belos::StatusType checkStatus (Belos::Iteration< ScalarType, MV, OP > *iSolver)
 Check convergence status of the iterative solver: Unconverged, Converged, Failed. More...

Belos::StatusType getStatus () const
 Return the result of the most recent CheckStatus call. More...

Reset methods
void reset ()
 Resets the status test to the initial internal state. More...

int setCondLim (MagnitudeType condMax)
 Set the tolerances. More...

int setTermIterMax (int term_iter_max)

int setRelRhsErr (MagnitudeType rel_rhs_err)

int setRelMatErr (MagnitudeType rel_mat_err)

Accessor methods
MagnitudeType getCondMaxLim () const
 Returns the value of the upper limit of the condition number of Abar set in the constructor. More...

int getTermIterMax () const
 Returns the number of successful convergent iterations required set in the constructor. More...

MagnitudeType getRelRhsErr () const
 Returns the value of the estimate of the relative error in the data defining b set in the constructor. More...

MagnitudeType getMatErr () const
 Returns the value of the estimate of the relative error in the data defining A set in the constructor. More...

MagnitudeType getMatCondNum () const
 Returns the value of the observed condition number of Abar. More...

MagnitudeType getMatNorm () const
 Returns the value of the observed (Frobenius) norm of A. More...

int getTermIter () const
 !Returns the current number of successful iterations from the most recent StatusTest call. More...

MagnitudeType getResidNorm () const
 Returns the value of the observed norm of the residual r = b-Ax. More...

MagnitudeType getLSResidNorm () const
 Returns the value of the observed norm of the Least Squares residual A^T r. More...

Print methods
void print (std::ostream &os, int indent=0) const
 Output formatted description of stopping test to output stream. More...

void printStatus (std::ostream &os, Belos::StatusType type) const
 Print message for each status specific to this stopping test. More...

Misc.
Belos::StatusType firstCallCheckStatusSetup (Belos::Iteration< ScalarType, MV, OP > *iSolver)
 Called in checkStatus exactly once, on the first call to checkStatus. More...

Overridden from Teuchos::Describable
std::string description () const
 Method to return description of the maximum iteration status test. More...

- Public Member Functions inherited from Belos::StatusTest< ScalarType, MV, OP >
 StatusTest ()
 Constructor. More...

virtual ~StatusTest ()
 Destructor. More...

- Public Member Functions inherited from Teuchos::Describable
virtual void describe (FancyOStream &out, const EVerbosityLevel verbLevel=verbLevel_default) const

void describe (std::ostream &out, const EVerbosityLevel verbLevel=verbLevel_default) const

virtual ~Describable ()

 LabeledObject ()

virtual ~LabeledObject ()

virtual void setObjectLabel (const std::string &objectLabel)

virtual std::string getObjectLabel () const

DescribableStreamManipulatorState describe (const Describable &describable, const EVerbosityLevel verbLevel=Describable::verbLevel_default)

std::ostream & operator<< (std::ostream &os, const DescribableStreamManipulatorState &d)


Additional Inherited Members

- Static Public Attributes inherited from Teuchos::Describable
static const EVerbosityLevel verbLevel_default


Detailed Description

template<class ScalarType, class MV, class OP>
class Belos::LSQRStatusTest< ScalarType, MV, OP >

A Belos::StatusTest class for specifying convergence of LSQR. The outer status tests passes if an inner status passes a user specified number of times consecutively. The inner status test depends on information specific to LSQR iteration.

Definition at line 33 of file BelosLSQRStatusTest.hpp.

Member Typedef Documentation

template<class ScalarType , class MV , class OP >
typedef Teuchos::ScalarTraits<ScalarType> Belos::LSQRStatusTest< ScalarType, MV, OP >::SCT

Definition at line 38 of file BelosLSQRStatusTest.hpp.

template<class ScalarType , class MV , class OP >
typedef SCT::magnitudeType Belos::LSQRStatusTest< ScalarType, MV, OP >::MagnitudeType

Definition at line 39 of file BelosLSQRStatusTest.hpp.

template<class ScalarType , class MV , class OP >
typedef Belos::MultiVecTraits<ScalarType,MV> Belos::LSQRStatusTest< ScalarType, MV, OP >::MVT

Definition at line 40 of file BelosLSQRStatusTest.hpp.

Constructor & Destructor Documentation

template<class ScalarType , class MV , class OP >
Belos::LSQRStatusTest< ScalarType, MV, OP >::LSQRStatusTest ( MagnitudeType  condMax = 0.0,
int  term_iter_max = 1,
MagnitudeType  rel_rhs_err = 0.0,
MagnitudeType  rel_mat_err = 0.0
)

Constructor.

 The constructor has four optional arguments, specifying the maximum observed condition number of Abar,

the number of successive convergent iterations, an estimate of the relative error in the data defining the right-hand side (b), and an estimate of the relative error in the data defining the coefficinet matrix (A). The default termIterMax is 1, and the other three parameters default to 0. The defaults specified in LSQRSolMgr are more realistic.

Definition at line 209 of file BelosLSQRStatusTest.hpp.

template<class ScalarType , class MV , class OP >
Belos::LSQRStatusTest< ScalarType, MV, OP >::~LSQRStatusTest ( )
virtual

Destructor.

Definition at line 227 of file BelosLSQRStatusTest.hpp.

Member Function Documentation

template<class ScalarType , class MV , class OP >
Belos::StatusType Belos::LSQRStatusTest< ScalarType, MV, OP >::checkStatus ( Belos::Iteration< ScalarType, MV, OP > *  iSolver)
virtual

Check convergence status of the iterative solver: Unconverged, Converged, Failed.

This method checks if the convergence criteria are met using the current information from the iterative solver.

Implements Belos::StatusTest< ScalarType, MV, OP >.

Definition at line 237 of file BelosLSQRStatusTest.hpp.

template<class ScalarType , class MV , class OP >
Belos::StatusType Belos::LSQRStatusTest< ScalarType, MV, OP >::getStatus ( ) const
inlinevirtual

Return the result of the most recent CheckStatus call.

Implements Belos::StatusTest< ScalarType, MV, OP >.

Definition at line 69 of file BelosLSQRStatusTest.hpp.

template<class ScalarType , class MV , class OP >
void Belos::LSQRStatusTest< ScalarType, MV, OP >::reset ( )
virtual

Resets the status test to the initial internal state.

Implements Belos::StatusTest< ScalarType, MV, OP >.

Definition at line 231 of file BelosLSQRStatusTest.hpp.

template<class ScalarType , class MV , class OP >
int Belos::LSQRStatusTest< ScalarType, MV, OP >::setCondLim ( MagnitudeType  condMax)
inline

Set the tolerances.

Definition at line 80 of file BelosLSQRStatusTest.hpp.

template<class ScalarType , class MV , class OP >
int Belos::LSQRStatusTest< ScalarType, MV, OP >::setTermIterMax ( int  term_iter_max)
inline

Definition at line 85 of file BelosLSQRStatusTest.hpp.

template<class ScalarType , class MV , class OP >
int Belos::LSQRStatusTest< ScalarType, MV, OP >::setRelRhsErr ( MagnitudeType  rel_rhs_err)
inline

Definition at line 91 of file BelosLSQRStatusTest.hpp.

template<class ScalarType , class MV , class OP >
int Belos::LSQRStatusTest< ScalarType, MV, OP >::setRelMatErr ( MagnitudeType  rel_mat_err)
inline

Definition at line 95 of file BelosLSQRStatusTest.hpp.

template<class ScalarType , class MV , class OP >
MagnitudeType Belos::LSQRStatusTest< ScalarType, MV, OP >::getCondMaxLim ( ) const
inline

Returns the value of the upper limit of the condition number of Abar set in the constructor.

Definition at line 105 of file BelosLSQRStatusTest.hpp.

template<class ScalarType , class MV , class OP >
int Belos::LSQRStatusTest< ScalarType, MV, OP >::getTermIterMax ( ) const
inline

Returns the number of successful convergent iterations required set in the constructor.

Definition at line 108 of file BelosLSQRStatusTest.hpp.

template<class ScalarType , class MV , class OP >
MagnitudeType Belos::LSQRStatusTest< ScalarType, MV, OP >::getRelRhsErr ( ) const
inline

Returns the value of the estimate of the relative error in the data defining b set in the constructor.

Definition at line 111 of file BelosLSQRStatusTest.hpp.

template<class ScalarType , class MV , class OP >
MagnitudeType Belos::LSQRStatusTest< ScalarType, MV, OP >::getMatErr ( ) const
inline

Returns the value of the estimate of the relative error in the data defining A set in the constructor.

Definition at line 114 of file BelosLSQRStatusTest.hpp.

template<class ScalarType , class MV , class OP >
MagnitudeType Belos::LSQRStatusTest< ScalarType, MV, OP >::getMatCondNum ( ) const
inline

Returns the value of the observed condition number of Abar.

Definition at line 117 of file BelosLSQRStatusTest.hpp.

template<class ScalarType , class MV , class OP >
MagnitudeType Belos::LSQRStatusTest< ScalarType, MV, OP >::getMatNorm ( ) const
inline

Returns the value of the observed (Frobenius) norm of A.

Definition at line 120 of file BelosLSQRStatusTest.hpp.

template<class ScalarType , class MV , class OP >
int Belos::LSQRStatusTest< ScalarType, MV, OP >::getTermIter ( ) const
inline

!Returns the current number of successful iterations from the most recent StatusTest call.

Definition at line 123 of file BelosLSQRStatusTest.hpp.

template<class ScalarType , class MV , class OP >
MagnitudeType Belos::LSQRStatusTest< ScalarType, MV, OP >::getResidNorm ( ) const
inline

Returns the value of the observed norm of the residual r = b-Ax.

Definition at line 126 of file BelosLSQRStatusTest.hpp.

template<class ScalarType , class MV , class OP >
MagnitudeType Belos::LSQRStatusTest< ScalarType, MV, OP >::getLSResidNorm ( ) const
inline

Returns the value of the observed norm of the Least Squares residual A^T r.

Definition at line 129 of file BelosLSQRStatusTest.hpp.

template<class ScalarType , class MV , class OP >
void Belos::LSQRStatusTest< ScalarType, MV, OP >::print ( std::ostream &  os,
int  indent = 0
) const
virtual

Output formatted description of stopping test to output stream.

Implements Belos::StatusTest< ScalarType, MV, OP >.

Definition at line 363 of file BelosLSQRStatusTest.hpp.

template<class ScalarType , class MV , class OP >
void Belos::LSQRStatusTest< ScalarType, MV, OP >::printStatus ( std::ostream &  os,
Belos::StatusType  type
) const
virtual

Print message for each status specific to this stopping test.

Reimplemented from Belos::StatusTest< ScalarType, MV, OP >.

Definition at line 373 of file BelosLSQRStatusTest.hpp.

template<class ScalarType , class MV , class OP >
Belos::StatusType Belos::LSQRStatusTest< ScalarType, MV, OP >::firstCallCheckStatusSetup ( Belos::Iteration< ScalarType, MV, OP > *  iSolver)

Called in checkStatus exactly once, on the first call to checkStatus.

template<class ScalarType , class MV , class OP >
std::string Belos::LSQRStatusTest< ScalarType, MV, OP >::description ( ) const
inlinevirtual

Method to return description of the maximum iteration status test.

Reimplemented from Teuchos::Describable.

Definition at line 156 of file BelosLSQRStatusTest.hpp.


The documentation for this class was generated from the following file:
