The Belos::BiCGStabSolMgr provides a powerful and fully-featured solver manager over the pseudo-block BiCGStab iteration. More...

#include <BelosBiCGStabSolMgr.hpp>

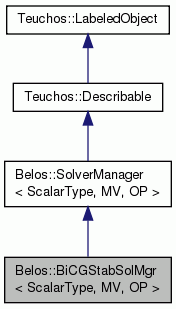

Inheritance diagram for Belos::BiCGStabSolMgr< ScalarType, MV, OP >:

[legend]

Public Member Functions
Constructors/Destructor
	BiCGStabSolMgr ()
	Empty constructor for BiCGStabSolMgr. This constructor takes no arguments and sets the default values for the solver. The linear problem must be passed in using setProblem() before solve() is called on this object. The solver values can be changed using setParameters(). More...

	BiCGStabSolMgr (const Teuchos::RCP< LinearProblem< ScalarType, MV, OP > > &problem, const Teuchos::RCP< Teuchos::ParameterList > &pl)
	Basic constructor for BiCGStabSolMgr. More...

virtual	~BiCGStabSolMgr ()
	Destructor. More...

Teuchos::RCP< SolverManager < ScalarType, MV, OP > >	clone () const override
	clone for Inverted Injection (DII) More...

Accessor methods
const LinearProblem < ScalarType, MV, OP > &	getProblem () const override
	Return a reference to the linear problem being solved by this solver manager. More...

Teuchos::RCP< const Teuchos::ParameterList >	getValidParameters () const override
	Get a parameter list containing the valid parameters for this object. More...

Teuchos::RCP< const Teuchos::ParameterList >	getCurrentParameters () const override
	Get a parameter list containing the current parameters for this object. More...

Teuchos::Array< Teuchos::RCP < Teuchos::Time > >	getTimers () const
	Return the timers for this object. More...

MagnitudeType	achievedTol () const override
	Tolerance achieved by the last `solve()` invocation. More...

int	getNumIters () const override
	Get the iteration count for the most recent call to `solve()`. More...

bool	isLOADetected () const override
	Return whether a loss of accuracy was detected by this solver during the most current solve. More...

Set methods
void	setProblem (const Teuchos::RCP< LinearProblem< ScalarType, MV, OP > > &problem) override
	Set the linear problem that needs to be solved. More...

void	setParameters (const Teuchos::RCP< Teuchos::ParameterList > &params) override
	Set the parameters the solver manager should use to solve the linear problem. More...

Reset methods
void	reset (const ResetType type) override
	Performs a reset of the solver manager specified by the `ResetType`. This informs the solver manager that the solver should prepare for the next call to solve by resetting certain elements of the iterative solver strategy. More...

Solver application methods
ReturnType	solve () override
	This method performs possibly repeated calls to the underlying linear solver's iterate() routine until the problem has been solved (as decided by the solver manager) or the solver manager decides to quit. More...

Overridden from Teuchos::Describable
std::string	description () const override
	Method to return description of the block BiCGStab solver manager. More...

Public Member Functions inherited from Belos::SolverManager< ScalarType, MV, OP >
	SolverManager ()
	Empty constructor. More...

virtual	~SolverManager ()
	Destructor. More...

virtual void	setUserConvStatusTest (const Teuchos::RCP< StatusTest< ScalarType, MV, OP > > &, const typename StatusTestCombo< ScalarType, MV, OP >::ComboType &=StatusTestCombo< ScalarType, MV, OP >::SEQ)
	Set user-defined convergence status test. More...

virtual void	setDebugStatusTest (const Teuchos::RCP< StatusTest< ScalarType, MV, OP > > &)
	Set user-defined debug status test. More...

Public Member Functions inherited from Teuchos::Describable
virtual void	describe (FancyOStream &out, const EVerbosityLevel verbLevel=verbLevel_default) const

void	describe (std::ostream &out, const EVerbosityLevel verbLevel=verbLevel_default) const

virtual	~Describable ()

	LabeledObject ()

virtual	~LabeledObject ()

virtual void	setObjectLabel (const std::string &objectLabel)

virtual std::string	getObjectLabel () const

DescribableStreamManipulatorState	describe (const Describable &describable, const EVerbosityLevel verbLevel=Describable::verbLevel_default)

std::ostream &	operator<< (std::ostream &os, const DescribableStreamManipulatorState &d)

Additional Inherited Members
Static Public Attributes inherited from Teuchos::Describable
static const EVerbosityLevel	verbLevel_default

Detailed Description

template<class ScalarType, class MV, class OP>
class Belos::BiCGStabSolMgr< ScalarType, MV, OP >

The Belos::BiCGStabSolMgr provides a powerful and fully-featured solver manager over the pseudo-block BiCGStab iteration.

Author: Alicia Klinvex

Definition at line 65 of file BelosBiCGStabSolMgr.hpp.

Constructor & Destructor Documentation

template<class ScalarType , class MV , class OP >

Belos::BiCGStabSolMgr< ScalarType, MV, OP >::BiCGStabSolMgr ( )

Empty constructor for BiCGStabSolMgr. This constructor takes no arguments and sets the default values for the solver. The linear problem must be passed in using setProblem() before solve() is called on this object. The solver values can be changed using setParameters().

Definition at line 261 of file BelosBiCGStabSolMgr.hpp.

template<class ScalarType , class MV , class OP >

Belos::BiCGStabSolMgr< ScalarType, MV, OP >::BiCGStabSolMgr	(	const Teuchos::RCP< LinearProblem< ScalarType, MV, OP > > &	problem,
		const Teuchos::RCP< Teuchos::ParameterList > &	pl
	)

Basic constructor for BiCGStabSolMgr.

This constructor accepts the LinearProblem to be solved in addition to a parameter list of options for the solver manager. These options include the following:

"Maximum Iterations" - a int specifying the maximum number of iterations the underlying solver is allowed to perform.
"Verbosity" - a sum of MsgType specifying the verbosity. Default: Belos::Errors
"Output Style" - a OutputType specifying the style of output. Default: Belos::General
"Convergence Tolerance" - a MagnitudeType specifying the level that residual norms must reach to decide convergence.

Definition at line 279 of file BelosBiCGStabSolMgr.hpp.

template<class ScalarType , class MV , class OP >

virtual Belos::BiCGStabSolMgr< ScalarType, MV, OP >::~BiCGStabSolMgr ( )

inlinevirtual

Destructor.

Definition at line 99 of file BelosBiCGStabSolMgr.hpp.

Member Function Documentation

template<class ScalarType , class MV , class OP >

Teuchos::RCP<SolverManager<ScalarType, MV, OP> > Belos::BiCGStabSolMgr< ScalarType, MV, OP >::clone ( ) const

inlineoverridevirtual

clone for Inverted Injection (DII)

Implements Belos::SolverManager< ScalarType, MV, OP >.

Definition at line 102 of file BelosBiCGStabSolMgr.hpp.

template<class ScalarType , class MV , class OP >

const LinearProblem<ScalarType,MV,OP>& Belos::BiCGStabSolMgr< ScalarType, MV, OP >::getProblem ( ) const

inlineoverridevirtual

Return a reference to the linear problem being solved by this solver manager.

Implements Belos::SolverManager< ScalarType, MV, OP >.

Definition at line 110 of file BelosBiCGStabSolMgr.hpp.

template<class ScalarType , class MV , class OP >

Teuchos::RCP< const Teuchos::ParameterList > Belos::BiCGStabSolMgr< ScalarType, MV, OP >::getValidParameters ( ) const

overridevirtual

Get a parameter list containing the valid parameters for this object.

Implements Belos::SolverManager< ScalarType, MV, OP >.

Definition at line 524 of file BelosBiCGStabSolMgr.hpp.

template<class ScalarType , class MV , class OP >

Teuchos::RCP<const Teuchos::ParameterList> Belos::BiCGStabSolMgr< ScalarType, MV, OP >::getCurrentParameters ( ) const

inlineoverridevirtual

Get a parameter list containing the current parameters for this object.

Implements Belos::SolverManager< ScalarType, MV, OP >.

Definition at line 120 of file BelosBiCGStabSolMgr.hpp.

template<class ScalarType , class MV , class OP >

Teuchos::Array<Teuchos::RCP<Teuchos::Time> > Belos::BiCGStabSolMgr< ScalarType, MV, OP >::getTimers ( ) const

inline

Return the timers for this object.

The timers are ordered as follows:

time spent in solve() routine

Definition at line 127 of file BelosBiCGStabSolMgr.hpp.

template<class ScalarType , class MV , class OP >

MagnitudeType Belos::BiCGStabSolMgr< ScalarType, MV, OP >::achievedTol ( ) const

inlineoverridevirtual

Tolerance achieved by the last solve() invocation.

This is the maximum over all right-hand sides' achieved convergence tolerances, and is set whether or not the solve actually managed to achieve the desired convergence tolerance.

Warning: This result may not be meaningful if there was a loss of accuracy during the solve. You should first call isLOADetected() to check for a loss of accuracy during the last solve.

Reimplemented from Belos::SolverManager< ScalarType, MV, OP >.

Definition at line 142 of file BelosBiCGStabSolMgr.hpp.

template<class ScalarType , class MV , class OP >

int Belos::BiCGStabSolMgr< ScalarType, MV, OP >::getNumIters ( ) const

inlineoverridevirtual

Get the iteration count for the most recent call to solve().

Implements Belos::SolverManager< ScalarType, MV, OP >.

Definition at line 147 of file BelosBiCGStabSolMgr.hpp.

template<class ScalarType , class MV , class OP >

bool Belos::BiCGStabSolMgr< ScalarType, MV, OP >::isLOADetected ( ) const

inlineoverridevirtual

Return whether a loss of accuracy was detected by this solver during the most current solve.

Note: This flag will be reset the next time solve() is called.

Implements Belos::SolverManager< ScalarType, MV, OP >.

Definition at line 154 of file BelosBiCGStabSolMgr.hpp.

template<class ScalarType , class MV , class OP >

void Belos::BiCGStabSolMgr< ScalarType, MV, OP >::setProblem ( const Teuchos::RCP< LinearProblem< ScalarType, MV, OP > > & problem )

inlineoverridevirtual

Set the linear problem that needs to be solved.

Implements Belos::SolverManager< ScalarType, MV, OP >.

Definition at line 162 of file BelosBiCGStabSolMgr.hpp.

template<class ScalarType , class MV , class OP >

void Belos::BiCGStabSolMgr< ScalarType, MV, OP >::setParameters ( const Teuchos::RCP< Teuchos::ParameterList > & params )

overridevirtual

Set the parameters the solver manager should use to solve the linear problem.

Implements Belos::SolverManager< ScalarType, MV, OP >.

Definition at line 308 of file BelosBiCGStabSolMgr.hpp.

template<class ScalarType , class MV , class OP >

void Belos::BiCGStabSolMgr< ScalarType, MV, OP >::reset ( const ResetType type )

inlineoverridevirtual

Performs a reset of the solver manager specified by the ResetType. This informs the solver manager that the solver should prepare for the next call to solve by resetting certain elements of the iterative solver strategy.

Implements Belos::SolverManager< ScalarType, MV, OP >.

Definition at line 175 of file BelosBiCGStabSolMgr.hpp.

template<class ScalarType , class MV , class OP >

ReturnType Belos::BiCGStabSolMgr< ScalarType, MV, OP >::solve ( )

overridevirtual

This method performs possibly repeated calls to the underlying linear solver's iterate() routine until the problem has been solved (as decided by the solver manager) or the solver manager decides to quit.

This method calls BiCGStabIter::iterate(), which will return either because a specially constructed status test evaluates to Passed or an std::exception is thrown.

A return from BiCGStabIter::iterate() signifies one of the following scenarios:

the maximum number of restarts has been exceeded. In this scenario, the current solutions to the linear system will be placed in the linear problem and return Unconverged.
global convergence has been met. In this case, the current solutions to the linear system will be placed in the linear problem and the solver manager will return Converged

Returns

ReturnType specifying:

Converged: the linear problem was solved to the specification required by the solver manager.
Unconverged: the linear problem was not solved to the specification desired by the solver manager.

Implements Belos::SolverManager< ScalarType, MV, OP >.

Definition at line 579 of file BelosBiCGStabSolMgr.hpp.

template<class ScalarType , class MV , class OP >

std::string Belos::BiCGStabSolMgr< ScalarType, MV, OP >::description ( ) const

overridevirtual

Method to return description of the block BiCGStab solver manager.

Reimplemented from Teuchos::Describable.

Definition at line 827 of file BelosBiCGStabSolMgr.hpp.

The documentation for this class was generated from the following file:

BelosBiCGStabSolMgr.hpp
