MINRES linear solver solution manager. More...

#include <BelosMinresSolMgr.hpp>

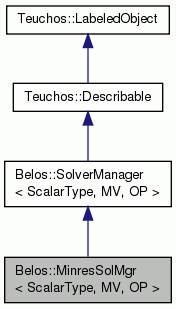

Inheritance diagram for Belos::MinresSolMgr< ScalarType, MV, OP >:

Private Types
typedef MultiVecTraits < ScalarType, MV >	MVT

typedef OperatorTraits < ScalarType, MV, OP >	OPT

typedef Teuchos::ScalarTraits < ScalarType >	SCT

typedef Teuchos::ScalarTraits < ScalarType >::magnitudeType	MagnitudeType

typedef Teuchos::ScalarTraits < MagnitudeType >	MST

Private Attributes
Teuchos::RCP< LinearProblem < ScalarType, MV, OP > >	problem_
	Linear problem to solve. More...

Teuchos::RCP< OutputManager < ScalarType > >	printer_
	Output manager. More...

Teuchos::RCP< std::ostream >	outputStream_

Teuchos::RCP< StatusTest < ScalarType, MV, OP > >	sTest_
	The full status test. More...

Teuchos::RCP < StatusTestMaxIters < ScalarType, MV, OP > >	maxIterTest_
	The status test for maximum iteration count. More...

Teuchos::RCP< StatusTest < ScalarType, MV, OP > >	convTest_
	The combined status test for convergence. More...

Teuchos::RCP < StatusTestGenResNorm < ScalarType, MV, OP > >	impConvTest_
	The implicit (a.k.a. More...

Teuchos::RCP < StatusTestGenResNorm < ScalarType, MV, OP > >	expConvTest_
	The explicit residual norm test. More...

Teuchos::RCP< StatusTestOutput < ScalarType, MV, OP > >	outputTest_
	The "status test" that handles output. More...

Teuchos::RCP< const Teuchos::ParameterList >	defaultParams_
	List of default parameters. More...

Teuchos::RCP < Teuchos::ParameterList >	params_
	List of current parameters. More...

MagnitudeType	convtol_
	Current relative residual 2-norm convergence tolerance. More...

MagnitudeType	achievedTol_
	Tolerance achieved by the last `solve()` invocation. More...

int	maxIters_
	Maximum number of iterations before stopping. More...

int	numIters_
	Current number of iterations. More...

int	blockSize_
	Current block size (i.e., number of right-hand sides): always 1 (one). More...

int	verbosity_
	Current output verbosity. More...

int	outputStyle_
	Current output style. More...

int	outputFreq_
	Current frequency of output. More...

std::string	label_
	Timer label. More...

Teuchos::RCP< Teuchos::Time >	timerSolve_
	Total time to solution. More...

bool	parametersSet_
	Whether the solver manager's parameters have been set. More...

MinresSolMgr Exceptions
static Teuchos::RCP< const Teuchos::ParameterList >	defaultParameters ()
	List of valid MINRES parameters and their default values. More...

static void	validateProblem (const Teuchos::RCP< LinearProblem< ScalarType, MV, OP > > &problem)
	Validate the given linear problem. More...

Constructors/Destructor
	MinresSolMgr ()
	Default constructor. More...

	MinresSolMgr (const Teuchos::RCP< LinearProblem< ScalarType, MV, OP > > &problem, const Teuchos::RCP< Teuchos::ParameterList > &params)
	Basic constructor for MinresSolMgr. More...

virtual	~MinresSolMgr ()
	Destructor. More...

Teuchos::RCP< SolverManager < ScalarType, MV, OP > >	clone () const override
	clone for Inverted Injection (DII) More...

Accessor methods
const LinearProblem < ScalarType, MV, OP > &	getProblem () const override
	Return the linear problem to be solved. More...

Teuchos::RCP< const Teuchos::ParameterList >	getValidParameters () const override
	Return the list of default parameters for this object. More...

Teuchos::RCP< const Teuchos::ParameterList >	getCurrentParameters () const override
	Return the list of current parameters for this object. More...

Teuchos::Array< Teuchos::RCP < Teuchos::Time > >	getTimers () const
	Return all timers for this object. More...

MagnitudeType	achievedTol () const override
	Tolerance achieved by the last `solve()` invocation. More...

int	getNumIters () const override
	Get the iteration count for the most recent call to `solve()`. More...

bool	isLOADetected () const override
	Whether a loss of accuracy was detected in the solver. More...

Set methods (overridden from \c SolverManager)
void	setProblem (const Teuchos::RCP< LinearProblem< ScalarType, MV, OP > > &problem) override
	Set the linear problem that needs to be solved. More...

void	setParameters (const Teuchos::RCP< Teuchos::ParameterList > &params) override
	Set the parameters to use when solving the linear problem. More...

Reset methods (overridden from \c SolverManager)
void	reset (const ResetType type) override
	Reset the solver manager. More...

Solver application methods (overridden from \c SolverManager)
ReturnType	solve () override
	Iterate until the status test tells us to stop. More...

Overridden from Teuchos::Describable
std::string	description () const override

Additional Inherited Members
Public Member Functions inherited from Belos::SolverManager< ScalarType, MV, OP >
	SolverManager ()
	Empty constructor. More...

virtual	~SolverManager ()
	Destructor. More...

virtual void	setUserConvStatusTest (const Teuchos::RCP< StatusTest< ScalarType, MV, OP > > &, const typename StatusTestCombo< ScalarType, MV, OP >::ComboType &=StatusTestCombo< ScalarType, MV, OP >::SEQ)
	Set user-defined convergence status test. More...

virtual void	setDebugStatusTest (const Teuchos::RCP< StatusTest< ScalarType, MV, OP > > &)
	Set user-defined debug status test. More...

Public Member Functions inherited from Teuchos::Describable
DescribableStreamManipulatorState	describe (const Describable &describable, const EVerbosityLevel verbLevel=Describable::verbLevel_default)

std::ostream &	operator<< (std::ostream &os, const DescribableStreamManipulatorState &d)

virtual void	describe (FancyOStream &out, const EVerbosityLevel verbLevel=verbLevel_default) const

void	describe (std::ostream &out, const EVerbosityLevel verbLevel=verbLevel_default) const

virtual	~Describable ()

	LabeledObject ()

virtual	~LabeledObject ()

virtual void	setObjectLabel (const std::string &objectLabel)

virtual std::string	getObjectLabel () const

Static Public Attributes inherited from Teuchos::Describable
static const EVerbosityLevel	verbLevel_default

Detailed Description

template<class ScalarType, class MV, class OP>
class Belos::MinresSolMgr< ScalarType, MV, OP >

MINRES linear solver solution manager.

Author: Nico Schl"omer

The Minimal Residual Method (MINRES) is a Krylov subspace method for solving symmetric (in real arithmetic, or Hermitian in complex arithmetic), nonsingular, but possibly indefinite linear systems

Definition at line 81 of file BelosMinresSolMgr.hpp.

Member Typedef Documentation

template<class ScalarType, class MV, class OP>

typedef MultiVecTraits<ScalarType,MV> Belos::MinresSolMgr< ScalarType, MV, OP >::MVT

private

Definition at line 84 of file BelosMinresSolMgr.hpp.

template<class ScalarType, class MV, class OP>

typedef OperatorTraits<ScalarType,MV,OP> Belos::MinresSolMgr< ScalarType, MV, OP >::OPT

private

Definition at line 85 of file BelosMinresSolMgr.hpp.

template<class ScalarType, class MV, class OP>

typedef Teuchos::ScalarTraits<ScalarType> Belos::MinresSolMgr< ScalarType, MV, OP >::SCT

private

Definition at line 86 of file BelosMinresSolMgr.hpp.

template<class ScalarType, class MV, class OP>

typedef Teuchos::ScalarTraits<ScalarType>::magnitudeType Belos::MinresSolMgr< ScalarType, MV, OP >::MagnitudeType

private

Definition at line 87 of file BelosMinresSolMgr.hpp.

template<class ScalarType, class MV, class OP>

typedef Teuchos::ScalarTraits< MagnitudeType > Belos::MinresSolMgr< ScalarType, MV, OP >::MST

private

Definition at line 88 of file BelosMinresSolMgr.hpp.

Constructor & Destructor Documentation

template<class ScalarType , class MV , class OP >

Belos::MinresSolMgr< ScalarType, MV, OP >::MinresSolMgr ( )

Default constructor.

This constructor takes no arguments and sets the default values for the solver. The linear problem must be passed in using setProblem() before solve() is called on this object, otherwise an exception is thrown. The solver's parameters (which this constructor sets to their default values) may be changed using setParameters().

Definition at line 422 of file BelosMinresSolMgr.hpp.

template<class ScalarType , class MV , class OP >

Belos::MinresSolMgr< ScalarType, MV, OP >::MinresSolMgr	(	const Teuchos::RCP< LinearProblem< ScalarType, MV, OP > > &	problem,
		const Teuchos::RCP< Teuchos::ParameterList > &	params
	)

Basic constructor for MinresSolMgr.

Parameters

problem [in/out] The LinearProblem to be solved

params

[in/out] Parameter list of options for the solver manager. Parameters not provided will be filled in with default values. These are the options accepted by the solver manager:

"Block Size" - an int specifying the block size to be used by the underlying MINRES solver. Default: 1 (which is the only valid value!)
"Convergence Tolerance" - a MagnitudeType specifying the level that residual norms must reach to decide convergence. Default value: 1e-8.
"Maximum Iterations" - an int specifying the maximum number of iterations the underlying solver is allowed to perform. Default: 1000
"Verbosity" - a sum of MsgType (stored as an int) specifying the verbosity. Default value: Belos::Errors
"Output Style" - a OutputType specifying the style of output. Default value: Belos::General
"Output Stream" - a reference-counted pointer to the output stream where all solver output is sent. Default value: Teuchos::rcp(&std::cout,false)
"Output Frequency" - an int specifying how often (in terms of number of iterations) intermediate convergence information should be written to the output stream. Default value: -1 (which means no intermediate convergence information is ever written to the output stream)
"Timer Label" - an std::string to use as a prefix for the timer labels. Default value: "Belos"

We accept the "Num Blocks" parameter for compatibility with other Belos solvers, but ignore it, since it is not relevant to MINRES. ("Num Blocks" specifies the restart length, but our MINRES implementation does not restart.)

Definition at line 439 of file BelosMinresSolMgr.hpp.

template<class ScalarType, class MV, class OP>

virtual Belos::MinresSolMgr< ScalarType, MV, OP >::~MinresSolMgr ( )

inlinevirtual

Destructor.

Definition at line 153 of file BelosMinresSolMgr.hpp.

Member Function Documentation

template<class ScalarType , class MV , class OP >

Teuchos::RCP< const Teuchos::ParameterList > Belos::MinresSolMgr< ScalarType, MV, OP >::defaultParameters ( )

static

List of valid MINRES parameters and their default values.

One way to set up this solver manager with nondefault parameters, is to make a deep non-const copy of the default parameters, and change the parameters you want to change.

Note: This is a class ("static") method, so that it can be called before you have constructed a MinresSolMgr object (useful for you, so you can have valid parameters before constructing one), or within the MinresSolMgr constructor (useful for me, so I can set default parameters).

Definition at line 370 of file BelosMinresSolMgr.hpp.

template<class ScalarType, class MV, class OP>

Teuchos::RCP<SolverManager<ScalarType, MV, OP> > Belos::MinresSolMgr< ScalarType, MV, OP >::clone ( ) const

inlineoverridevirtual

clone for Inverted Injection (DII)

Implements Belos::SolverManager< ScalarType, MV, OP >.

Definition at line 156 of file BelosMinresSolMgr.hpp.

template<class ScalarType, class MV, class OP>

const LinearProblem<ScalarType,MV,OP>& Belos::MinresSolMgr< ScalarType, MV, OP >::getProblem ( ) const

inlineoverridevirtual

Return the linear problem to be solved.

Implements Belos::SolverManager< ScalarType, MV, OP >.

Definition at line 165 of file BelosMinresSolMgr.hpp.

template<class ScalarType, class MV, class OP>

Teuchos::RCP<const Teuchos::ParameterList> Belos::MinresSolMgr< ScalarType, MV, OP >::getValidParameters ( ) const

inlineoverridevirtual

Return the list of default parameters for this object.

Implements Belos::SolverManager< ScalarType, MV, OP >.

Definition at line 170 of file BelosMinresSolMgr.hpp.

template<class ScalarType, class MV, class OP>

Teuchos::RCP<const Teuchos::ParameterList> Belos::MinresSolMgr< ScalarType, MV, OP >::getCurrentParameters ( ) const

inlineoverridevirtual

Return the list of current parameters for this object.

Implements Belos::SolverManager< ScalarType, MV, OP >.

Definition at line 178 of file BelosMinresSolMgr.hpp.

template<class ScalarType, class MV, class OP>

Teuchos::Array<Teuchos::RCP<Teuchos::Time> > Belos::MinresSolMgr< ScalarType, MV, OP >::getTimers ( ) const

inline

Return all timers for this object.

Currently only one timer is being used, which is the total time spent in the solve() routine. Thus, the returned Array currently has only one element.

Warning: If setParameters() has not yet been called, or if you change the timer label, that invalidates the pointer timer(s).

Definition at line 191 of file BelosMinresSolMgr.hpp.

template<class ScalarType, class MV, class OP>

MagnitudeType Belos::MinresSolMgr< ScalarType, MV, OP >::achievedTol ( ) const

inlineoverridevirtual

Tolerance achieved by the last solve() invocation.

This is the maximum over all right-hand sides' achieved convergence tolerances, and is set whether or not the solve actually managed to achieve the desired convergence tolerance.

Reimplemented from Belos::SolverManager< ScalarType, MV, OP >.

Definition at line 200 of file BelosMinresSolMgr.hpp.

template<class ScalarType, class MV, class OP>

int Belos::MinresSolMgr< ScalarType, MV, OP >::getNumIters ( ) const

inlineoverridevirtual

Get the iteration count for the most recent call to solve().

Implements Belos::SolverManager< ScalarType, MV, OP >.

Definition at line 205 of file BelosMinresSolMgr.hpp.

template<class ScalarType, class MV, class OP>

bool Belos::MinresSolMgr< ScalarType, MV, OP >::isLOADetected ( ) const

inlineoverridevirtual

Whether a loss of accuracy was detected in the solver.

Warning: This implementation of MINRES does not currently attempt to detect a loss of accuracy in the solver; thus we always return false (for now).

Implements Belos::SolverManager< ScalarType, MV, OP >.

Definition at line 214 of file BelosMinresSolMgr.hpp.

template<class ScalarType, class MV, class OP>

void Belos::MinresSolMgr< ScalarType, MV, OP >::setProblem ( const Teuchos::RCP< LinearProblem< ScalarType, MV, OP > > & problem )

inlineoverridevirtual

Set the linear problem that needs to be solved.

Implements Belos::SolverManager< ScalarType, MV, OP >.

Definition at line 222 of file BelosMinresSolMgr.hpp.

template<class ScalarType , class MV , class OP >

void Belos::MinresSolMgr< ScalarType, MV, OP >::setParameters ( const Teuchos::RCP< Teuchos::ParameterList > & params )

overridevirtual

Set the parameters to use when solving the linear problem.

Parameters

params [in/out] List of parameters to use when solving the linear problem. This list will be modified as necessary to include default parameters that need not be provided. If params is null, then this method uses default parameters.

Note: The ParameterList returned by getValidParameters() has all the parameters that the solver understands, possibly including human-readable documentation and validators.

Implements Belos::SolverManager< ScalarType, MV, OP >.

Definition at line 477 of file BelosMinresSolMgr.hpp.

template<class ScalarType, class MV, class OP>

void Belos::MinresSolMgr< ScalarType, MV, OP >::reset ( const ResetType type )

inlineoverridevirtual

Reset the solver manager.

Reset the solver manager in a way specified by the ResetType parameter. This informs the solver manager that the solver should prepare for the next call to solve by resetting certain elements of the iterative solver strategy.

Implements Belos::SolverManager< ScalarType, MV, OP >.

Definition at line 236 of file BelosMinresSolMgr.hpp.

template<class ScalarType , class MV , class OP >

ReturnType Belos::MinresSolMgr< ScalarType, MV, OP >::solve ( )

overridevirtual

Iterate until the status test tells us to stop.

This method implements SolverManager::solve() (which see).

MINRES' implementation of this method invokes MinresIter::iterate(), which will return either because a specially constructed status test that evaluates to Passed, or an std::exception is thrown.

A return from MinresIter::iterate() signifies one of the following scenarios:

the maximum number of iterations has been exceeded. In this scenario, the current solutions to the linear system will be placed in the linear problem and return Unconverged.
global convergence has been met. In this case, the current solutions to the linear system will be placed in the linear problem and the solver manager will return Converged.

Implements Belos::SolverManager< ScalarType, MV, OP >.

Definition at line 640 of file BelosMinresSolMgr.hpp.

template<class ScalarType , class MV , class OP >

std::string Belos::MinresSolMgr< ScalarType, MV, OP >::description ( ) const

overridevirtual

Reimplemented from Teuchos::Describable.

Definition at line 814 of file BelosMinresSolMgr.hpp.

template<class ScalarType , class MV , class OP >

void Belos::MinresSolMgr< ScalarType, MV, OP >::validateProblem ( const Teuchos::RCP< LinearProblem< ScalarType, MV, OP > > & problem )

staticprivate

Validate the given linear problem.

We do this by raising std::invalid_argument (with an informative message) if the problem is null or its essential components are null.

Definition at line 455 of file BelosMinresSolMgr.hpp.

Member Data Documentation

template<class ScalarType, class MV, class OP>

Teuchos::RCP<LinearProblem<ScalarType,MV,OP> > Belos::MinresSolMgr< ScalarType, MV, OP >::problem_

private

Linear problem to solve.

Definition at line 277 of file BelosMinresSolMgr.hpp.

template<class ScalarType, class MV, class OP>

Teuchos::RCP<OutputManager<ScalarType> > Belos::MinresSolMgr< ScalarType, MV, OP >::printer_

private

Output manager.

Definition at line 280 of file BelosMinresSolMgr.hpp.

template<class ScalarType, class MV, class OP>

Teuchos::RCP<std::ostream> Belos::MinresSolMgr< ScalarType, MV, OP >::outputStream_

private

Definition at line 281 of file BelosMinresSolMgr.hpp.

template<class ScalarType, class MV, class OP>

Teuchos::RCP<StatusTest<ScalarType,MV,OP> > Belos::MinresSolMgr< ScalarType, MV, OP >::sTest_

private

The full status test.

sTest_ is an OR combination of maxIterTest_ and convTest_. If you reallocate either of these, you have to give them to sTest_ again. If you reallocate sTest_, you have to tell outputTest_.

Definition at line 289 of file BelosMinresSolMgr.hpp.

template<class ScalarType, class MV, class OP>

Teuchos::RCP<StatusTestMaxIters<ScalarType,MV,OP> > Belos::MinresSolMgr< ScalarType, MV, OP >::maxIterTest_

private

The status test for maximum iteration count.

If you reallocate this, sTest_ needs the new RCP.

Definition at line 294 of file BelosMinresSolMgr.hpp.

template<class ScalarType, class MV, class OP>

Teuchos::RCP<StatusTest<ScalarType,MV,OP> > Belos::MinresSolMgr< ScalarType, MV, OP >::convTest_

private

The combined status test for convergence.

If you reallocate this, sTest_ needs the new RCP.

Definition at line 299 of file BelosMinresSolMgr.hpp.

template<class ScalarType, class MV, class OP>

Teuchos::RCP<StatusTestGenResNorm<ScalarType,MV,OP> > Belos::MinresSolMgr< ScalarType, MV, OP >::impConvTest_

private

The implicit (a.k.a.

"recursive") residual norm test.

If you reallocate this, convTest_ needs the new RCP.

Definition at line 304 of file BelosMinresSolMgr.hpp.

template<class ScalarType, class MV, class OP>

Teuchos::RCP<StatusTestGenResNorm<ScalarType,MV,OP> > Belos::MinresSolMgr< ScalarType, MV, OP >::expConvTest_

private

The explicit residual norm test.

If you reallocate this, convTest_ needs the new RCP.

Definition at line 309 of file BelosMinresSolMgr.hpp.

template<class ScalarType, class MV, class OP>

Teuchos::RCP<StatusTestOutput<ScalarType,MV,OP> > Belos::MinresSolMgr< ScalarType, MV, OP >::outputTest_

private

The "status test" that handles output.

This object keeps a pointer to printer_ and sTest_. If you reallocate either of them, outputTest_ needs to know.

Definition at line 315 of file BelosMinresSolMgr.hpp.

template<class ScalarType, class MV, class OP>

Teuchos::RCP<const Teuchos::ParameterList> Belos::MinresSolMgr< ScalarType, MV, OP >::defaultParams_

mutableprivate

List of default parameters.

This is declared "mutable" because it is computed on demand.

Definition at line 320 of file BelosMinresSolMgr.hpp.

template<class ScalarType, class MV, class OP>

Teuchos::RCP<Teuchos::ParameterList> Belos::MinresSolMgr< ScalarType, MV, OP >::params_

private

List of current parameters.

Definition at line 323 of file BelosMinresSolMgr.hpp.

template<class ScalarType, class MV, class OP>

MagnitudeType Belos::MinresSolMgr< ScalarType, MV, OP >::convtol_

private

Current relative residual 2-norm convergence tolerance.

Definition at line 326 of file BelosMinresSolMgr.hpp.

template<class ScalarType, class MV, class OP>

MagnitudeType Belos::MinresSolMgr< ScalarType, MV, OP >::achievedTol_

private

Tolerance achieved by the last solve() invocation.

Definition at line 329 of file BelosMinresSolMgr.hpp.

template<class ScalarType, class MV, class OP>

int Belos::MinresSolMgr< ScalarType, MV, OP >::maxIters_

private

Maximum number of iterations before stopping.

Definition at line 332 of file BelosMinresSolMgr.hpp.

template<class ScalarType, class MV, class OP>

int Belos::MinresSolMgr< ScalarType, MV, OP >::numIters_

private

Current number of iterations.

Definition at line 335 of file BelosMinresSolMgr.hpp.

template<class ScalarType, class MV, class OP>

int Belos::MinresSolMgr< ScalarType, MV, OP >::blockSize_

private

Current block size (i.e., number of right-hand sides): always 1 (one).

Definition at line 338 of file BelosMinresSolMgr.hpp.

template<class ScalarType, class MV, class OP>

int Belos::MinresSolMgr< ScalarType, MV, OP >::verbosity_

private

Current output verbosity.

Definition at line 341 of file BelosMinresSolMgr.hpp.

template<class ScalarType, class MV, class OP>

int Belos::MinresSolMgr< ScalarType, MV, OP >::outputStyle_

private

Current output style.

Definition at line 344 of file BelosMinresSolMgr.hpp.

template<class ScalarType, class MV, class OP>

int Belos::MinresSolMgr< ScalarType, MV, OP >::outputFreq_

private

Current frequency of output.

Definition at line 347 of file BelosMinresSolMgr.hpp.

template<class ScalarType, class MV, class OP>

std::string Belos::MinresSolMgr< ScalarType, MV, OP >::label_

private

Timer label.

Definition at line 350 of file BelosMinresSolMgr.hpp.

template<class ScalarType, class MV, class OP>

Teuchos::RCP<Teuchos::Time> Belos::MinresSolMgr< ScalarType, MV, OP >::timerSolve_

private

Total time to solution.

Definition at line 353 of file BelosMinresSolMgr.hpp.

template<class ScalarType, class MV, class OP>

bool Belos::MinresSolMgr< ScalarType, MV, OP >::parametersSet_

private

Whether the solver manager's parameters have been set.

Definition at line 356 of file BelosMinresSolMgr.hpp.

The documentation for this class was generated from the following file:

BelosMinresSolMgr.hpp

Private Types

Private Attributes

MinresSolMgr Exceptions

Constructors/Destructor

Accessor methods

Set methods (overridden from \c SolverManager)

Reset methods (overridden from \c SolverManager)

Solver application methods (overridden from \c SolverManager)

Overridden from Teuchos::Describable

Additional Inherited Members

Detailed Description

template<class ScalarType, class MV, class OP> class Belos::MinresSolMgr< ScalarType, MV, OP >

Member Typedef Documentation

Constructor & Destructor Documentation

Member Function Documentation

Member Data Documentation

template<class ScalarType, class MV, class OP>
class Belos::MinresSolMgr< ScalarType, MV, OP >
