Class Amesos_Umfpack: An object-oriented wrapper for UMFPACK. More...

#include <Amesos_Umfpack.h>

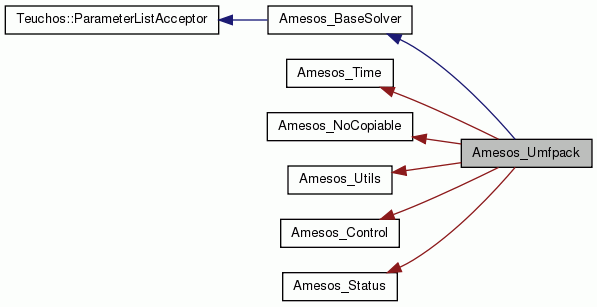

Inheritance diagram for Amesos_Umfpack:

Private Attributes
void *	Symbolic
	Umfpack internal opaque object. More...

void *	Numeric
	Umfpack internal opaque object. More...

std::vector< int >	Ap
	Ap, Ai, Aval form the compressed row storage used by Umfpack. More...

std::vector< int >	Ai

std::vector< double >	Aval

int	IsLocal_
	1 if Problem_->GetOperator() is stored entirely on process 0 More...

int	numentries_
	Number of non-zero entries in Problem_->GetOperator() More...

int	NumGlobalElements_
	Number of rows and columns in the Problem_->GetOperator() More...

Teuchos::RCP< Epetra_Map >	SerialMap_
	Points to a Serial Map (unused if IsLocal == 1 ) More...

Epetra_RowMatrix *	SerialMatrix_
	Points to a Serial Copy of A. More...

Teuchos::RCP< Epetra_CrsMatrix >	SerialCrsMatrixA_

bool	UseTranspose_
	If `true`, solve the problem with the transpose. More...

const Epetra_LinearProblem *	Problem_
	Pointer to the linear problem to solve. More...

double	Rcond_
	Reciprocal condition number estimate. More...

bool	RcondValidOnAllProcs_

Teuchos::RCP< Epetra_Import >	ImportToSerial_
	Importer from distributed to serial (all rows on process 0). More...

int	MtxConvTime_
	Quick access pointers to internal timer data. More...

int	MtxRedistTime_

int	VecRedistTime_

int	SymFactTime_

int	NumFactTime_

int	SolveTime_

int	OverheadTime_

Private Attributes inherited from Amesos_Control
double	AddToDiag_
	Add `this` value to the diagonal. More...

bool	refactorize_

double	rcond_threshold_
	If error is greater than `this` value, perform symbolic and numeric factorization with full partial pivoting. More...

int	ScaleMethod_

bool	AddZeroToDiag_
	Adds zero to diagonal of redistributed matrix (some solvers choke on a matrix with a partly empty diag) More...

int	MatrixProperty_
	Set the matrix property. More...

int	MaxProcesses_

bool	Reindex_
	If true, the Amesos class should reindex the matrix to standard indexing (i.e. More...

Private Attributes inherited from Amesos_Status
bool	IsSymbolicFactorizationOK_
	If `true`, SymbolicFactorization() has been successfully called. More...

bool	IsNumericFactorizationOK_
	If `true`, NumericFactorization() has been successfully called. More...

bool	PrintTiming_
	If `true`, prints timing information in the destructor. More...

bool	PrintStatus_
	If `true`, print additional information in the destructor. More...

bool	ComputeVectorNorms_
	If `true`, prints the norms of X and B in Solve(). More...

bool	ComputeTrueResidual_
	If `true`, computes the true residual in Solve(). More...

int	verbose_
	Toggles the output level. More...

int	debug_
	Sets the level of debug_ output. More...

int	NumSymbolicFact_
	Number of symbolic factorization phases. More...

int	NumNumericFact_
	Number of numeric factorization phases. More...

int	NumSolve_
	Number of solves. More...

double	Threshold_

int	MyPID_

int	NumProcs_

	Amesos_Umfpack (const Epetra_LinearProblem &LinearProblem)
	Amesos_Umfpack Constructor. More...

	~Amesos_Umfpack (void)
	Amesos_Umfpack Destructor. More...

int	SymbolicFactorization ()
	Performs SymbolicFactorization on the matrix A. More...

int	NumericFactorization ()
	Performs NumericFactorization on the matrix A. More...

int	Solve ()
	Solves A X = B (or A^T x = B) More...

const Epetra_LinearProblem *	GetProblem () const
	Returns the Epetra_LinearProblem. More...

bool	MatrixShapeOK () const
	Returns true if UMFPACK can handle this matrix shape. More...

int	SetUseTranspose (bool UseTranspose_in)
	If set true, X will be set to the solution of A^T X = B (not A X = B) More...

bool	UseTranspose () const
	Returns the current UseTranspose setting. More...

const Epetra_Comm &	Comm () const
	Returns a pointer to the Epetra_Comm communicator associated with this operator. More...

double	GetRcond () const
	Returns an estimate of the reciprocal of the condition number. More...

int	SetParameters (Teuchos::ParameterList &ParameterList)
	Updates internal variables. More...

int	NumSymbolicFact () const
	Returns the number of symbolic factorizations performed by this object. More...

int	NumNumericFact () const
	Returns the number of numeric factorizations performed by this object. More...

int	NumSolve () const
	Returns the number of solves performed by this object. More...

void	PrintTiming () const
	Prints timing information. More...

void	PrintStatus () const
	Prints information about the factorization and solution phases. More...

void	GetTiming (Teuchos::ParameterList &TimingParameterList) const
	Extracts timing information from the current solver and places it in the parameter list. More...

Epetra_RowMatrix *	Matrix ()
	Returns a pointer to the linear system matrix. More...

int	ConvertToSerial (const bool FirstTime)
	Converts matrix to a serial Epetra_CrsMatrix. More...

int	ConvertToUmfpackCRS ()

int	PerformSymbolicFactorization ()

int	PerformNumericFactorization ()

const Epetra_Import &	Importer () const

const Epetra_Map &	SerialMap () const

const Epetra_CrsMatrix &	SerialCrsMatrix () const

Epetra_CrsMatrix &	SerialCrsMatrix ()

Additional Inherited Members
Public Member Functions inherited from Amesos_BaseSolver
virtual	~Amesos_BaseSolver ()
	Destructor. More...

virtual void	setParameterList (Teuchos::RCP< Teuchos::ParameterList > const &paramList)
	Redefined from Teuchos::ParameterListAcceptor (Does Not Work) More...

virtual Teuchos::RCP < Teuchos::ParameterList >	getNonconstParameterList ()
	This is an empty stub. More...

virtual Teuchos::RCP < Teuchos::ParameterList >	unsetParameterList ()
	This is an empty stub. More...

Public Member Functions inherited from Teuchos::ParameterListAcceptor
virtual RCP< const ParameterList >	getParameterList () const

virtual RCP< const ParameterList >	getValidParameters () const

Private Member Functions inherited from Amesos_Time
	Amesos_Time ()
	Default constructor to create `size` timers. More...

virtual	~Amesos_Time ()
	Default destructor. More...

void	CreateTimer (const Epetra_Comm &Comm, int size=1)
	Initializes the Time object. More...

void	ResetTimer (const int timerID=0)
	Resets the internally stored time object. More...

int	AddTime (const std::string what, int dataID, const int timerID=0)
	Adds to field `what` the time elapsed since last call to ResetTimer(). More...

double	GetTime (const std::string what) const
	Gets the cumulative time using the string. More...

double	GetTime (const int dataID) const
	Gets the cumulative time using the dataID. More...

void	GetTiming (Teuchos::ParameterList &list) const
	Load up the current timing information into the parameter list. More...

Private Member Functions inherited from Amesos_NoCopiable
	Amesos_NoCopiable ()
	Default constructor. More...

	~Amesos_NoCopiable ()
	Default destructor. More...

Private Member Functions inherited from Amesos_Utils
	Amesos_Utils ()
	Default constructor. More...

	~Amesos_Utils ()
	Default destructor. More...

void	ComputeTrueResidual (const Epetra_RowMatrix &Matrix, const Epetra_MultiVector &X, const Epetra_MultiVector &B, const bool UseTranspose, const std::string prefix) const
	Computes the true residual, B - Matrix * X, and prints the results. More...

void	ComputeVectorNorms (const Epetra_MultiVector &X, const Epetra_MultiVector &B, const std::string prefix) const
	Computes the norms of X and B and print the results. More...

void	PrintLine () const
	Prints line on std::cout. More...

void	SetMaxProcesses (int &MaxProcesses, const Epetra_RowMatrix &A)

Private Member Functions inherited from Amesos_Control
	Amesos_Control ()
	Default constructor. More...

	~Amesos_Control ()
	Default destructor. More...

void	SetControlParameters (const Teuchos::ParameterList &ParameterList)

Private Member Functions inherited from Amesos_Status
	Amesos_Status ()
	Default constructor. More...

	~Amesos_Status ()
	Default destructor. More...

void	SetStatusParameters (const Teuchos::ParameterList &ParameterList)

Detailed Description

Class Amesos_Umfpack: An object-oriented wrapper for UMFPACK.

Amesos_Umfpack will solve a linear systems of equations: A X = B using Epetra objects and the UMFPACK solver library, where A is an Epetra_RowMatrix and X and B are Epetra_MultiVector objects.

Definition at line 76 of file Amesos_Umfpack.h.

Constructor & Destructor Documentation

Amesos_Umfpack::Amesos_Umfpack ( const Epetra_LinearProblem & LinearProblem )

Amesos_Umfpack Constructor.

Creates an Amesos_Umfpack instance, using an Epetra_LinearProblem, passing in an already-defined Epetra_LinearProblem object.

Note: The operator in LinearProblem must be an Epetra_RowMatrix.

Definition at line 50 of file Amesos_Umfpack.cpp.

Amesos_Umfpack::~Amesos_Umfpack ( void )

Amesos_Umfpack Destructor.

Completely deletes an Amesos_Umfpack object.

Definition at line 86 of file Amesos_Umfpack.cpp.

Member Function Documentation

int Amesos_Umfpack::SymbolicFactorization ( )

virtual

Performs SymbolicFactorization on the matrix A.

In addition to performing symbolic factorization on the matrix A, the call to SymbolicFactorization() implies that no change will be made to the non-zero structure of the underlying matrix without a subsequent call to SymbolicFactorization().

Preconditions:

GetProblem().GetOperator() != 0 (return -1)
MatrixShapeOk(GetProblem().GetOperator()) == true (return -6)

Postconditions:

Symbolic Factorization will be performed (or marked to be performed) allowing NumericFactorization() and Solve() to be called.

Returns: Integer error code, set to 0 if successful.

Implements Amesos_BaseSolver.

Definition at line 389 of file Amesos_Umfpack.cpp.

int Amesos_Umfpack::NumericFactorization ( )

virtual

Performs NumericFactorization on the matrix A.

In addition to performing numeric factorization on the matrix A, the call to NumericFactorization() implies that no change will be made to the underlying matrix without a subsequent call to NumericFactorization().

Preconditions:

GetProblem().GetOperator() != 0 (return -1)
MatrixShapeOk(GetProblem().GetOperator()) == true (return -6)
The non-zero structure of the matrix should not have changed since the last call to SymbolicFactorization(). (return -2 if the number of non-zeros changes) Other changes can have arbitrary consequences.
The distribution of the matrix should not have changed since the last call to SymbolicFactorization()
The matrix should be indexed from 0 to n-1, unless the parameter "Reindex" was set to "true" prior to the call to SymbolicFactorization(). (return -3 - if caught)
The paremeter "Reindex" should not be set to "true" except on CrsMatrices. (return -4)
The paremeter "Reindex" should not be set to "true" unless Amesos was built with EpetraExt, i.e. with –enable-epetraext on the configure line. (return -4)
Internal errors retur -5.

Postconditions:

Numeric Factorization will be performed (or marked to be performed) allowing Solve() to be performed correctly despite a potential change in in the matrix values (though not in the non-zero structure).

Returns: Integer error code, set to 0 if successful.

Implements Amesos_BaseSolver.

Definition at line 429 of file Amesos_Umfpack.cpp.

int Amesos_Umfpack::Solve ( )

virtual

Solves A X = B (or A^T x = B)

Preconditions:

GetProblem().GetOperator() != 0 (return -1)
MatrixShapeOk(GetProblem().GetOperator()) == true (return -6)
GetProblem()->CheckInput (see Epetra_LinearProblem::CheckInput() for return values)
The non-zero structure of the matrix should not have changed since the last call to SymbolicFactorization().
The distribution of the matrix should not have changed since the last call to SymbolicFactorization()
The matrix should not have changed since the last call to NumericFactorization().

Postconditions:

X will be set such that A X = B (or A^T X = B), within the limits of the accuracy of the underlying solver.

Returns: Integer error code, set to 0 if successful.

Implements Amesos_BaseSolver.

Definition at line 469 of file Amesos_Umfpack.cpp.

const Epetra_LinearProblem* Amesos_Umfpack::GetProblem ( ) const

inlinevirtual

Returns the Epetra_LinearProblem.

Warning! Do not call return->SetOperator(...) to attempt to change the Epetra_Operator object (even if the new matrix has the same structure). This new operator matrix will be ignored!

Implements Amesos_BaseSolver.

Definition at line 113 of file Amesos_Umfpack.h.

bool Amesos_Umfpack::MatrixShapeOK ( ) const

virtual

Returns true if UMFPACK can handle this matrix shape.

Returns true if the matrix shape is one that UMFPACK can handle. UMFPACK only works with square matrices.

Implements Amesos_BaseSolver.

Definition at line 378 of file Amesos_Umfpack.cpp.

int Amesos_Umfpack::SetUseTranspose ( bool UseTranspose )

inlinevirtual

If set true, X will be set to the solution of A^T X = B (not A X = B)

If the implementation of this interface does not support transpose use, this method should return a value of -1.

Preconditions:

SetUseTranspose() should be called prior to the call to SymbolicFactorization() If NumericFactorization() or Solve() is called after SetUseTranspose() without an intervening call to SymbolicFactorization() the result is implementation dependent.

Postconditions:

The next factorization and solve will be performed with the new value of UseTranspose.

Parameters

UseTranspose – (In) If true, solve A^T X = B, otherwise solve A X = B.

Returns: Integer error code, set to 0 if successful. Set to -1 if this implementation does not support transpose.

Implements Amesos_BaseSolver.

Definition at line 121 of file Amesos_Umfpack.h.

bool Amesos_Umfpack::UseTranspose ( ) const

inlinevirtual

Returns the current UseTranspose setting.

Implements Amesos_BaseSolver.

Definition at line 123 of file Amesos_Umfpack.h.

const Epetra_Comm& Amesos_Umfpack::Comm ( ) const

inlinevirtual

Returns a pointer to the Epetra_Comm communicator associated with this operator.

Implements Amesos_BaseSolver.

Definition at line 125 of file Amesos_Umfpack.h.

double Amesos_Umfpack::GetRcond ( ) const

Returns an estimate of the reciprocal of the condition number.

Definition at line 368 of file Amesos_Umfpack.cpp.

int Amesos_Umfpack::SetParameters ( Teuchos::ParameterList & ParameterList )

virtual

Updates internal variables.

  <br \>Preconditions:<ul>
  <li>None.</li>
  </ul>

  <br \>Postconditions:<ul>
  <li>Internal variables controlling the factorization and solve will
  be updated and take effect on all subseuent calls to NumericFactorization()
  and Solve().</li>
  <li>All parameters whose value are to differ from the default values must

be included in ParameterList. Parameters not specified in ParameterList revert to their default values.

Returns: Integer error code, set to 0 if successful.

Implements Amesos_BaseSolver.

Definition at line 236 of file Amesos_Umfpack.cpp.

int Amesos_Umfpack::NumSymbolicFact ( ) const

inlinevirtual

Returns the number of symbolic factorizations performed by this object.

Implements Amesos_BaseSolver.

Definition at line 138 of file Amesos_Umfpack.h.

int Amesos_Umfpack::NumNumericFact ( ) const

inlinevirtual

Returns the number of numeric factorizations performed by this object.

Implements Amesos_BaseSolver.

Definition at line 141 of file Amesos_Umfpack.h.

int Amesos_Umfpack::NumSolve ( ) const

inlinevirtual

Returns the number of solves performed by this object.

Implements Amesos_BaseSolver.

Definition at line 144 of file Amesos_Umfpack.h.

void Amesos_Umfpack::PrintTiming ( ) const

virtual

Prints timing information.

Implements Amesos_BaseSolver.

Definition at line 605 of file Amesos_Umfpack.cpp.

void Amesos_Umfpack::PrintStatus ( ) const

virtual

Prints information about the factorization and solution phases.

Implements Amesos_BaseSolver.

Definition at line 585 of file Amesos_Umfpack.cpp.

void Amesos_Umfpack::GetTiming ( Teuchos::ParameterList & TimingParameterList ) const

inlinevirtual

Extracts timing information from the current solver and places it in the parameter list.

Reimplemented from Amesos_BaseSolver.

Definition at line 153 of file Amesos_Umfpack.h.

Epetra_RowMatrix* Amesos_Umfpack::Matrix ( )

inlineprivate

Returns a pointer to the linear system matrix.

Definition at line 161 of file Amesos_Umfpack.h.

int Amesos_Umfpack::ConvertToSerial ( const bool FirstTime )

private

Converts matrix to a serial Epetra_CrsMatrix.

Definition at line 101 of file Amesos_Umfpack.cpp.

int Amesos_Umfpack::ConvertToUmfpackCRS ( )

private

Definition at line 181 of file Amesos_Umfpack.cpp.

int Amesos_Umfpack::PerformSymbolicFactorization ( )

private

Definition at line 251 of file Amesos_Umfpack.cpp.

int Amesos_Umfpack::PerformNumericFactorization ( )

private

Definition at line 286 of file Amesos_Umfpack.cpp.

const Epetra_Import& Amesos_Umfpack::Importer ( ) const

inlineprivate

Definition at line 207 of file Amesos_Umfpack.h.

const Epetra_Map& Amesos_Umfpack::SerialMap ( ) const

inlineprivate

Definition at line 212 of file Amesos_Umfpack.h.

const Epetra_CrsMatrix& Amesos_Umfpack::SerialCrsMatrix ( ) const

inlineprivate

Definition at line 217 of file Amesos_Umfpack.h.

Epetra_CrsMatrix& Amesos_Umfpack::SerialCrsMatrix ( )

inlineprivate

Definition at line 222 of file Amesos_Umfpack.h.

Member Data Documentation

void* Amesos_Umfpack::Symbolic

private

Umfpack internal opaque object.

Definition at line 230 of file Amesos_Umfpack.h.

void* Amesos_Umfpack::Numeric

private

Umfpack internal opaque object.

Definition at line 232 of file Amesos_Umfpack.h.

std::vector<int> Amesos_Umfpack::Ap

private

Ap, Ai, Aval form the compressed row storage used by Umfpack.

Definition at line 235 of file Amesos_Umfpack.h.

std::vector<int> Amesos_Umfpack::Ai

private

Definition at line 236 of file Amesos_Umfpack.h.

std::vector<double> Amesos_Umfpack::Aval

private

Definition at line 237 of file Amesos_Umfpack.h.

int Amesos_Umfpack::IsLocal_

private

1 if Problem_->GetOperator() is stored entirely on process 0

Definition at line 240 of file Amesos_Umfpack.h.

int Amesos_Umfpack::numentries_

private

Number of non-zero entries in Problem_->GetOperator()

Definition at line 242 of file Amesos_Umfpack.h.

int Amesos_Umfpack::NumGlobalElements_

private

Number of rows and columns in the Problem_->GetOperator()

Definition at line 244 of file Amesos_Umfpack.h.

Teuchos::RCP<Epetra_Map> Amesos_Umfpack::SerialMap_

private

Points to a Serial Map (unused if IsLocal == 1 )

Definition at line 247 of file Amesos_Umfpack.h.

Epetra_RowMatrix* Amesos_Umfpack::SerialMatrix_

private

Points to a Serial Copy of A.

Definition at line 252 of file Amesos_Umfpack.h.

Teuchos::RCP<Epetra_CrsMatrix> Amesos_Umfpack::SerialCrsMatrixA_

private

Definition at line 254 of file Amesos_Umfpack.h.

bool Amesos_Umfpack::UseTranspose_

private

If true, solve the problem with the transpose.

Definition at line 257 of file Amesos_Umfpack.h.

const Epetra_LinearProblem* Amesos_Umfpack::Problem_

private

Pointer to the linear problem to solve.

Definition at line 259 of file Amesos_Umfpack.h.

double Amesos_Umfpack::Rcond_

mutableprivate

Reciprocal condition number estimate.

Definition at line 261 of file Amesos_Umfpack.h.

bool Amesos_Umfpack::RcondValidOnAllProcs_

mutableprivate

Definition at line 263 of file Amesos_Umfpack.h.

Teuchos::RCP<Epetra_Import> Amesos_Umfpack::ImportToSerial_

private

Importer from distributed to serial (all rows on process 0).

Definition at line 265 of file Amesos_Umfpack.h.

int Amesos_Umfpack::MtxConvTime_

private

Quick access pointers to internal timer data.

Definition at line 268 of file Amesos_Umfpack.h.

int Amesos_Umfpack::MtxRedistTime_

private

Definition at line 268 of file Amesos_Umfpack.h.

int Amesos_Umfpack::VecRedistTime_

private

Definition at line 268 of file Amesos_Umfpack.h.

int Amesos_Umfpack::SymFactTime_

private

Definition at line 269 of file Amesos_Umfpack.h.

int Amesos_Umfpack::NumFactTime_

private

Definition at line 269 of file Amesos_Umfpack.h.

int Amesos_Umfpack::SolveTime_

private

Definition at line 269 of file Amesos_Umfpack.h.

int Amesos_Umfpack::OverheadTime_

private

Definition at line 269 of file Amesos_Umfpack.h.

The documentation for this class was generated from the following files:

Private Attributes

Additional Inherited Members

Detailed Description

Constructor & Destructor Documentation

Member Function Documentation

Member Data Documentation
