Amesos_TestRowMatrix Class Reference

Amesos_TestRowMatrix: a class to test Epetra_RowMatrix based codes. More...

#include <Amesos_TestRowMatrix.h>

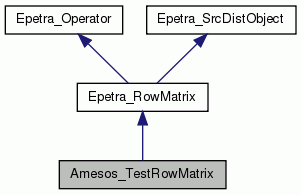

Inheritance diagram for Amesos_TestRowMatrix:
Inheritance graph
[legend]

Public Member Functions

int SetUseTranspose (bool UseTranspose_in)
 Sets use transpose (not implemented). More...

bool UseTranspose () const
 Returns the current UseTranspose setting. More...

bool HasNormInf () const
 Returns true if the this object can provide an approximate Inf-norm, false otherwise. More...

const Epetra_Comm & Comm () const
 Returns a pointer to the Epetra_Comm communicator associated with this operator. More...

const Epetra_Map & OperatorDomainMap () const
 Returns the Epetra_Map object associated with the domain of this operator. More...

const Epetra_Map & OperatorRangeMap () const
 Returns the Epetra_Map object associated with the range of this operator. More...

const Epetra_BlockMap & Map () const

const char * Label () const


Private Member Functions

Epetra_RowMatrix & Matrix ()

const Epetra_RowMatrix & Matrix () const


Private Attributes

Epetra_RowMatrix * Matrix_
 Pointer to the matrix to be preconditioned. More...

 Amesos_TestRowMatrix (Epetra_RowMatrix *Matrix_in)
 Constructor. More...

virtual ~Amesos_TestRowMatrix ()
 Destructor. More...

virtual int NumMyRowEntries (int MyRow, int &NumEntries) const
 Returns the number of nonzero entries in MyRow. More...

virtual int MaxNumEntries () const
 Returns the maximum of NumMyRowEntries() over all rows. More...

virtual int ExtractMyRowCopy (int MyRow, int Length, int &NumEntries, double *Values, int *Indices) const
 Returns a copy of the specified local row in user-provided arrays. More...

virtual int ExtractDiagonalCopy (Epetra_Vector &Diagonal) const
 Returns a copy of the main diagonal in a user-provided vector. More...

virtual int Multiply (bool TransA, const Epetra_MultiVector &X, Epetra_MultiVector &Y) const
 Returns the result of a Epetra_RowMatrix multiplied by a Epetra_MultiVector X in Y. More...

virtual int Solve (bool Upper, bool Trans, bool UnitDiagonal, const Epetra_MultiVector &X, Epetra_MultiVector &Y) const
 Returns result of a local-only solve using a triangular Epetra_RowMatrix with Epetra_MultiVectors X and Y (NOT IMPLEMENTED). More...

virtual int Apply (const Epetra_MultiVector &X, Epetra_MultiVector &Y) const

virtual int ApplyInverse (const Epetra_MultiVector &X, Epetra_MultiVector &Y) const

virtual int InvRowSums (Epetra_Vector &x) const
 Computes the sum of absolute values of the rows of the Epetra_RowMatrix, results returned in x (NOT IMPLEMENTED). More...

virtual int LeftScale (const Epetra_Vector &x)
 Scales the Epetra_RowMatrix on the left with a Epetra_Vector x (NOT IMPLEMENTED). More...

virtual int InvColSums (Epetra_Vector &x) const
 Computes the sum of absolute values of the columns of the Epetra_RowMatrix, results returned in x (NOT IMPLEMENTED). More...

virtual int RightScale (const Epetra_Vector &x)
 Scales the Epetra_RowMatrix on the right with a Epetra_Vector x (NOT IMPLEMENTED). More...

virtual bool Filled () const
 If FillComplete() has been called, this query returns true, otherwise it returns false. More...

virtual double NormInf () const
 Returns the infinity norm of the global matrix. More...

virtual double NormOne () const
 Returns the one norm of the global matrix. More...

virtual int NumGlobalNonzeros () const
 Returns the number of nonzero entries in the global matrix. More...

virtual int NumGlobalRows () const
 Returns the number of global matrix rows. More...

virtual int NumGlobalCols () const
 Returns the number of global matrix columns. More...

virtual int NumGlobalDiagonals () const
 Returns the number of global nonzero diagonal entries, based on global row/column index comparisons. More...

virtual long long NumGlobalNonzeros64 () const
 Returns the number of nonzero entries in the global matrix. More...

virtual long long NumGlobalRows64 () const
 Returns the number of global matrix rows. More...

virtual long long NumGlobalCols64 () const
 Returns the number of global matrix columns. More...

virtual long long NumGlobalDiagonals64 () const
 Returns the number of global nonzero diagonal entries, based on global row/column index comparisons. More...

virtual int NumMyNonzeros () const
 Returns the number of nonzero entries in the calling processor's portion of the matrix. More...

virtual int NumMyRows () const
 Returns the number of matrix rows owned by the calling processor. More...

virtual int NumMyCols () const
 Returns the number of matrix columns owned by the calling processor. More...

virtual int NumMyDiagonals () const
 Returns the number of local nonzero diagonal entries, based on global row/column index comparisons. More...

virtual bool LowerTriangular () const
 If matrix is lower triangular in local index space, this query returns true, otherwise it returns false. More...

virtual bool UpperTriangular () const
 If matrix is upper triangular in local index space, this query returns true, otherwise it returns false. More...

virtual const Epetra_Map & RowMatrixRowMap () const
 Returns the Epetra_Map object associated with the rows of this matrix. More...

virtual const Epetra_Map & RowMatrixColMap () const
 Returns the Epetra_Map object associated with the columns of this matrix. More...

virtual const Epetra_Import * RowMatrixImporter () const
 Returns the Epetra_Import object that contains the import operations for distributed operations. More...


Detailed Description

Amesos_TestRowMatrix: a class to test Epetra_RowMatrix based codes.

Class Amesos_TestRowMatrix enables the creation of a Epetra_RowMatrix derived class for testing purposed. This class requires another Epetra_RowMatrix as input, and minimic the behavior of this matrix. However, as it this object is not derived from Epetra_CrsMatrix or Epetra_VbrMatrix, a dynamic_cast will not result in any Epetra_CrsMatrix or Epetra_VrbMatrix object.

Author
Marzio Sala, SNL 9214
Date
Sep-04

Definition at line 36 of file Amesos_TestRowMatrix.h.

Constructor & Destructor Documentation

Amesos_TestRowMatrix::Amesos_TestRowMatrix ( Epetra_RowMatrix *  Matrix_in)
inline

Constructor.

Definition at line 41 of file Amesos_TestRowMatrix.h.

virtual Amesos_TestRowMatrix::~Amesos_TestRowMatrix ( )
inlinevirtual

Destructor.

Definition at line 48 of file Amesos_TestRowMatrix.h.

Member Function Documentation

virtual int Amesos_TestRowMatrix::NumMyRowEntries ( int  MyRow,
int &  NumEntries
) const
inlinevirtual

Returns the number of nonzero entries in MyRow.

Parameters
MyRow- (In) Local row.
NumEntries- (Out) Number of nonzero values present.
Returns
Integer error code, set to 0 if successful.

Implements Epetra_RowMatrix.

Definition at line 64 of file Amesos_TestRowMatrix.h.

virtual int Amesos_TestRowMatrix::MaxNumEntries ( ) const
inlinevirtual

Returns the maximum of NumMyRowEntries() over all rows.

Implements Epetra_RowMatrix.

Definition at line 70 of file Amesos_TestRowMatrix.h.

virtual int Amesos_TestRowMatrix::ExtractMyRowCopy ( int  MyRow,
int  Length,
int &  NumEntries,
double *  Values,
int *  Indices
) const
inlinevirtual

Returns a copy of the specified local row in user-provided arrays.

Parameters
MyRow- (In) Local row to extract.
Length- (In) Length of Values and Indices.
NumEntries- (Out) Number of nonzero entries extracted.
Values- (Out) Extracted values for this row.
Indices- (Out) Extracted global column indices for the corresponding values.
Returns
Integer error code, set to 0 if successful.

Implements Epetra_RowMatrix.

Definition at line 90 of file Amesos_TestRowMatrix.h.

virtual int Amesos_TestRowMatrix::ExtractDiagonalCopy ( Epetra_Vector &  Diagonal) const
inlinevirtual

Returns a copy of the main diagonal in a user-provided vector.

Parameters
Diagonal- (Out) Extracted main diagonal.
Returns
Integer error code, set to 0 if successful.

Implements Epetra_RowMatrix.

Definition at line 103 of file Amesos_TestRowMatrix.h.

virtual int Amesos_TestRowMatrix::Multiply ( bool  TransA,
const Epetra_MultiVector &  X,
Epetra_MultiVector &  Y
) const
inlinevirtual

Returns the result of a Epetra_RowMatrix multiplied by a Epetra_MultiVector X in Y.

Parameters
TransA-(In) If true, multiply by the transpose of matrix, otherwise just use matrix.
X- (In) A Epetra_MultiVector of dimension NumVectors to multiply with matrix.
Y-(Out) A Epetra_MultiVector of dimension NumVectorscontaining result.
Returns
Integer error code, set to 0 if successful.

Implements Epetra_RowMatrix.

Definition at line 122 of file Amesos_TestRowMatrix.h.

virtual int Amesos_TestRowMatrix::Solve ( bool  Upper,
bool  Trans,
bool  UnitDiagonal,
const Epetra_MultiVector &  X,
Epetra_MultiVector &  Y
) const
inlinevirtual

Returns result of a local-only solve using a triangular Epetra_RowMatrix with Epetra_MultiVectors X and Y (NOT IMPLEMENTED).

Implements Epetra_RowMatrix.

Definition at line 128 of file Amesos_TestRowMatrix.h.

virtual int Amesos_TestRowMatrix::Apply ( const Epetra_MultiVector &  X,
Epetra_MultiVector &  Y
) const
inlinevirtual

Implements Epetra_Operator.

Definition at line 134 of file Amesos_TestRowMatrix.h.

virtual int Amesos_TestRowMatrix::ApplyInverse ( const Epetra_MultiVector &  X,
Epetra_MultiVector &  Y
) const
inlinevirtual

Implements Epetra_Operator.

Definition at line 140 of file Amesos_TestRowMatrix.h.

virtual int Amesos_TestRowMatrix::InvRowSums ( Epetra_Vector &  x) const
inlinevirtual

Computes the sum of absolute values of the rows of the Epetra_RowMatrix, results returned in x (NOT IMPLEMENTED).

Implements Epetra_RowMatrix.

Definition at line 146 of file Amesos_TestRowMatrix.h.

virtual int Amesos_TestRowMatrix::LeftScale ( const Epetra_Vector &  x)
inlinevirtual

Scales the Epetra_RowMatrix on the left with a Epetra_Vector x (NOT IMPLEMENTED).

Implements Epetra_RowMatrix.

Definition at line 152 of file Amesos_TestRowMatrix.h.

virtual int Amesos_TestRowMatrix::InvColSums ( Epetra_Vector &  x) const
inlinevirtual

Computes the sum of absolute values of the columns of the Epetra_RowMatrix, results returned in x (NOT IMPLEMENTED).

Implements Epetra_RowMatrix.

Definition at line 158 of file Amesos_TestRowMatrix.h.

virtual int Amesos_TestRowMatrix::RightScale ( const Epetra_Vector &  x)
inlinevirtual

Scales the Epetra_RowMatrix on the right with a Epetra_Vector x (NOT IMPLEMENTED).

Implements Epetra_RowMatrix.

Definition at line 165 of file Amesos_TestRowMatrix.h.

virtual bool Amesos_TestRowMatrix::Filled ( ) const
inlinevirtual

If FillComplete() has been called, this query returns true, otherwise it returns false.

Implements Epetra_RowMatrix.

Definition at line 175 of file Amesos_TestRowMatrix.h.

virtual double Amesos_TestRowMatrix::NormInf ( ) const
inlinevirtual

Returns the infinity norm of the global matrix.

Implements Epetra_RowMatrix.

Definition at line 184 of file Amesos_TestRowMatrix.h.

virtual double Amesos_TestRowMatrix::NormOne ( ) const
inlinevirtual

Returns the one norm of the global matrix.

Implements Epetra_RowMatrix.

Definition at line 193 of file Amesos_TestRowMatrix.h.

virtual int Amesos_TestRowMatrix::NumGlobalNonzeros ( ) const
inlinevirtual

Returns the number of nonzero entries in the global matrix.

Implements Epetra_RowMatrix.

Definition at line 200 of file Amesos_TestRowMatrix.h.

virtual int Amesos_TestRowMatrix::NumGlobalRows ( ) const
inlinevirtual

Returns the number of global matrix rows.

Implements Epetra_RowMatrix.

Definition at line 206 of file Amesos_TestRowMatrix.h.

virtual int Amesos_TestRowMatrix::NumGlobalCols ( ) const
inlinevirtual

Returns the number of global matrix columns.

Implements Epetra_RowMatrix.

Definition at line 212 of file Amesos_TestRowMatrix.h.

virtual int Amesos_TestRowMatrix::NumGlobalDiagonals ( ) const
inlinevirtual

Returns the number of global nonzero diagonal entries, based on global row/column index comparisons.

Implements Epetra_RowMatrix.

Definition at line 218 of file Amesos_TestRowMatrix.h.

virtual long long Amesos_TestRowMatrix::NumGlobalNonzeros64 ( ) const
inlinevirtual

Returns the number of nonzero entries in the global matrix.

Implements Epetra_RowMatrix.

Definition at line 225 of file Amesos_TestRowMatrix.h.

virtual long long Amesos_TestRowMatrix::NumGlobalRows64 ( ) const
inlinevirtual

Returns the number of global matrix rows.

Implements Epetra_RowMatrix.

Definition at line 231 of file Amesos_TestRowMatrix.h.

virtual long long Amesos_TestRowMatrix::NumGlobalCols64 ( ) const
inlinevirtual

Returns the number of global matrix columns.

Implements Epetra_RowMatrix.

Definition at line 237 of file Amesos_TestRowMatrix.h.

virtual long long Amesos_TestRowMatrix::NumGlobalDiagonals64 ( ) const
inlinevirtual

Returns the number of global nonzero diagonal entries, based on global row/column index comparisons.

Implements Epetra_RowMatrix.

Definition at line 243 of file Amesos_TestRowMatrix.h.

virtual int Amesos_TestRowMatrix::NumMyNonzeros ( ) const
inlinevirtual

Returns the number of nonzero entries in the calling processor's portion of the matrix.

Implements Epetra_RowMatrix.

Definition at line 249 of file Amesos_TestRowMatrix.h.

virtual int Amesos_TestRowMatrix::NumMyRows ( ) const
inlinevirtual

Returns the number of matrix rows owned by the calling processor.

Implements Epetra_RowMatrix.

Definition at line 255 of file Amesos_TestRowMatrix.h.

virtual int Amesos_TestRowMatrix::NumMyCols ( ) const
inlinevirtual

Returns the number of matrix columns owned by the calling processor.

Implements Epetra_RowMatrix.

Definition at line 261 of file Amesos_TestRowMatrix.h.

virtual int Amesos_TestRowMatrix::NumMyDiagonals ( ) const
inlinevirtual

Returns the number of local nonzero diagonal entries, based on global row/column index comparisons.

Implements Epetra_RowMatrix.

Definition at line 267 of file Amesos_TestRowMatrix.h.

virtual bool Amesos_TestRowMatrix::LowerTriangular ( ) const
inlinevirtual

If matrix is lower triangular in local index space, this query returns true, otherwise it returns false.

Implements Epetra_RowMatrix.

Definition at line 273 of file Amesos_TestRowMatrix.h.

virtual bool Amesos_TestRowMatrix::UpperTriangular ( ) const
inlinevirtual

If matrix is upper triangular in local index space, this query returns true, otherwise it returns false.

Implements Epetra_RowMatrix.

Definition at line 279 of file Amesos_TestRowMatrix.h.

virtual const Epetra_Map& Amesos_TestRowMatrix::RowMatrixRowMap ( ) const
inlinevirtual

Returns the Epetra_Map object associated with the rows of this matrix.

Implements Epetra_RowMatrix.

Definition at line 285 of file Amesos_TestRowMatrix.h.

virtual const Epetra_Map& Amesos_TestRowMatrix::RowMatrixColMap ( ) const
inlinevirtual

Returns the Epetra_Map object associated with the columns of this matrix.

Implements Epetra_RowMatrix.

Definition at line 290 of file Amesos_TestRowMatrix.h.

virtual const Epetra_Import* Amesos_TestRowMatrix::RowMatrixImporter ( ) const
inlinevirtual

Returns the Epetra_Import object that contains the import operations for distributed operations.

Implements Epetra_RowMatrix.

Definition at line 296 of file Amesos_TestRowMatrix.h.

int Amesos_TestRowMatrix::SetUseTranspose ( bool  UseTranspose_in)
inlinevirtual

Sets use transpose (not implemented).

Implements Epetra_Operator.

Definition at line 313 of file Amesos_TestRowMatrix.h.

bool Amesos_TestRowMatrix::UseTranspose ( ) const
inlinevirtual

Returns the current UseTranspose setting.

Implements Epetra_Operator.

Definition at line 319 of file Amesos_TestRowMatrix.h.

bool Amesos_TestRowMatrix::HasNormInf ( ) const
inlinevirtual

Returns true if the this object can provide an approximate Inf-norm, false otherwise.

Implements Epetra_Operator.

Definition at line 325 of file Amesos_TestRowMatrix.h.

const Epetra_Comm& Amesos_TestRowMatrix::Comm ( ) const
inlinevirtual

Returns a pointer to the Epetra_Comm communicator associated with this operator.

Implements Epetra_Operator.

Definition at line 331 of file Amesos_TestRowMatrix.h.

const Epetra_Map& Amesos_TestRowMatrix::OperatorDomainMap ( ) const
inlinevirtual

Returns the Epetra_Map object associated with the domain of this operator.

Implements Epetra_Operator.

Definition at line 337 of file Amesos_TestRowMatrix.h.

const Epetra_Map& Amesos_TestRowMatrix::OperatorRangeMap ( ) const
inlinevirtual

Returns the Epetra_Map object associated with the range of this operator.

Implements Epetra_Operator.

Definition at line 343 of file Amesos_TestRowMatrix.h.

const Epetra_BlockMap& Amesos_TestRowMatrix::Map ( ) const
inlinevirtual

Implements Epetra_SrcDistObject.

Definition at line 349 of file Amesos_TestRowMatrix.h.

const char* Amesos_TestRowMatrix::Label ( ) const
inlinevirtual

Implements Epetra_Operator.

Definition at line 354 of file Amesos_TestRowMatrix.h.

Epetra_RowMatrix& Amesos_TestRowMatrix::Matrix ( )
inlineprivate

Definition at line 362 of file Amesos_TestRowMatrix.h.

const Epetra_RowMatrix& Amesos_TestRowMatrix::Matrix ( ) const
inlineprivate

Definition at line 367 of file Amesos_TestRowMatrix.h.

Member Data Documentation

Epetra_RowMatrix* Amesos_TestRowMatrix::Matrix_
private

Pointer to the matrix to be preconditioned.

Definition at line 373 of file Amesos_TestRowMatrix.h.

The documentation for this class was generated from the following file:
Generated on Thu Nov 21 2024 09:19:34 for Amesos Package Browser (Single Doxygen Collection) by   doxygen 1.8.5
