Amesos_Taucs: An interface to the TAUCS package. More...

#include <Amesos_Taucs.h>

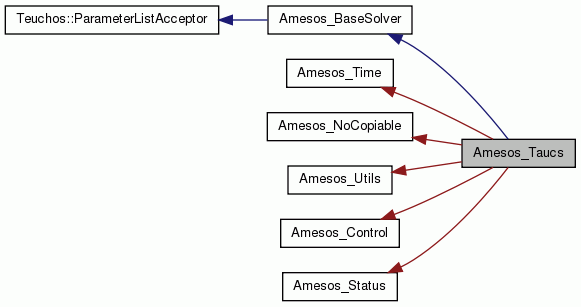

Inheritance diagram for Amesos_Taucs:

Private Attributes
bool	UseTranspose_
	If `true`, the transpose of A is used. More...

Teuchos::RCP< Epetra_Map >	SerialMap_

Teuchos::RCP< Epetra_CrsMatrix >	SerialCrsMatrix_

Teuchos::RCP< Epetra_RowMatrix >	SerialMatrix_

Teuchos::RCP< Epetra_Import >	Importer_

const Epetra_Map *	Map_

const Epetra_RowMatrix *	Matrix_

const Epetra_LinearProblem *	Problem_
	Pointer to the linear system problem. More...

int	MtxConvTime_
	Quick accessor pointer to internal timing data. More...

int	MtxRedistTime_

int	VecRedistTime_

int	SymFactTime_

int	NumFactTime_

int	SolveTime_

Teuchos::RCP< Amesos_Taucs_Pimpl >	PrivateTaucsData_

Private Attributes inherited from Amesos_Control
double	AddToDiag_
	Add `this` value to the diagonal. More...

bool	refactorize_

double	rcond_threshold_
	If error is greater than `this` value, perform symbolic and numeric factorization with full partial pivoting. More...

int	ScaleMethod_

bool	AddZeroToDiag_
	Adds zero to diagonal of redistributed matrix (some solvers choke on a matrix with a partly empty diag) More...

int	MatrixProperty_
	Set the matrix property. More...

int	MaxProcesses_

bool	Reindex_
	If true, the Amesos class should reindex the matrix to standard indexing (i.e. More...

Private Attributes inherited from Amesos_Status
bool	IsSymbolicFactorizationOK_
	If `true`, SymbolicFactorization() has been successfully called. More...

bool	IsNumericFactorizationOK_
	If `true`, NumericFactorization() has been successfully called. More...

bool	PrintTiming_
	If `true`, prints timing information in the destructor. More...

bool	PrintStatus_
	If `true`, print additional information in the destructor. More...

bool	ComputeVectorNorms_
	If `true`, prints the norms of X and B in Solve(). More...

bool	ComputeTrueResidual_
	If `true`, computes the true residual in Solve(). More...

int	verbose_
	Toggles the output level. More...

int	debug_
	Sets the level of debug_ output. More...

int	NumSymbolicFact_
	Number of symbolic factorization phases. More...

int	NumNumericFact_
	Number of numeric factorization phases. More...

int	NumSolve_
	Number of solves. More...

double	Threshold_

int	MyPID_

int	NumProcs_

	Amesos_Taucs (const Epetra_LinearProblem &LinearProblem)
	Default constructor. More...

	~Amesos_Taucs (void)
	Default destructor. More...

int	SymbolicFactorization ()
	Performs SymbolicFactorization on the matrix A. More...

int	NumericFactorization ()
	Performs NumericFactorization on the matrix A. More...

int	Solve ()
	Solves A X = B (or A^T x = B) More...

const Epetra_LinearProblem *	GetProblem () const
	Returns the Epetra_LinearProblem. More...

bool	MatrixShapeOK () const
	Returns true if the solver can handle this matrix shape. More...

int	SetUseTranspose (bool UseTranspose)
	Amesos_Taucs supports only symmetric matrices, hence transpose is irrelevant, but harmless. More...

bool	UseTranspose () const
	Returns the current UseTranspose setting. More...

const Epetra_Comm &	Comm () const
	Returns a pointer to the Epetra_Comm communicator associated with this operator. More...

int	SetParameters (Teuchos::ParameterList &ParameterList)
	Updates internal variables. More...

int	NumSymbolicFact () const
	Returns the number of symbolic factorizations performed by this object. More...

int	NumNumericFact () const
	Returns the number of numeric factorizations performed by this object. More...

int	NumSolve () const
	Returns the number of solves performed by this object. More...

void	PrintTiming () const
	Prints timing information. More...

void	PrintStatus () const
	Prints status information. More...

void	GetTiming (Teuchos::ParameterList &TimingParameterList) const
	Extracts timing information from the current solver and places it in the parameter list. More...

const Epetra_Map &	Map () const
	Returns a reference to the RowMatrixRowMap(). More...

const Epetra_RowMatrix &	Matrix () const
	Returns a reference to the linear system matrix. More...

Epetra_Map &	SerialMap ()
	Returns a reference to the already allocated SerialMap. More...

Epetra_RowMatrix &	SerialMatrix ()
	Returns a reference to the SerialMatrix. More...

Epetra_CrsMatrix &	SerialCrsMatrix ()
	Returns a reference to the already SerialMatrix as Crs (if allocated). More...

Epetra_Import &	Importer ()
	Returns a reference to the already allocated Importer. More...

int	ConvertToSerial ()
	Constructs a matrix with all rows on processor 0. More...

int	ConvertToTaucs ()
	Converts the Epetra_RowMatrix into TAUCS format. More...

int	PerformSymbolicFactorization ()
	Performs the symbolic factorization. More...

int	PerformNumericFactorization ()
	Performs the numeric factorization. More...

Additional Inherited Members
Public Member Functions inherited from Amesos_BaseSolver
virtual	~Amesos_BaseSolver ()
	Destructor. More...

virtual void	setParameterList (Teuchos::RCP< Teuchos::ParameterList > const &paramList)
	Redefined from Teuchos::ParameterListAcceptor (Does Not Work) More...

virtual Teuchos::RCP < Teuchos::ParameterList >	getNonconstParameterList ()
	This is an empty stub. More...

virtual Teuchos::RCP < Teuchos::ParameterList >	unsetParameterList ()
	This is an empty stub. More...

Public Member Functions inherited from Teuchos::ParameterListAcceptor
virtual RCP< const ParameterList >	getParameterList () const

virtual RCP< const ParameterList >	getValidParameters () const

Private Member Functions inherited from Amesos_Time
	Amesos_Time ()
	Default constructor to create `size` timers. More...

virtual	~Amesos_Time ()
	Default destructor. More...

void	CreateTimer (const Epetra_Comm &Comm, int size=1)
	Initializes the Time object. More...

void	ResetTimer (const int timerID=0)
	Resets the internally stored time object. More...

int	AddTime (const std::string what, int dataID, const int timerID=0)
	Adds to field `what` the time elapsed since last call to ResetTimer(). More...

double	GetTime (const std::string what) const
	Gets the cumulative time using the string. More...

double	GetTime (const int dataID) const
	Gets the cumulative time using the dataID. More...

void	GetTiming (Teuchos::ParameterList &list) const
	Load up the current timing information into the parameter list. More...

Private Member Functions inherited from Amesos_NoCopiable
	Amesos_NoCopiable ()
	Default constructor. More...

	~Amesos_NoCopiable ()
	Default destructor. More...

Private Member Functions inherited from Amesos_Utils
	Amesos_Utils ()
	Default constructor. More...

	~Amesos_Utils ()
	Default destructor. More...

void	ComputeTrueResidual (const Epetra_RowMatrix &Matrix, const Epetra_MultiVector &X, const Epetra_MultiVector &B, const bool UseTranspose, const std::string prefix) const
	Computes the true residual, B - Matrix * X, and prints the results. More...

void	ComputeVectorNorms (const Epetra_MultiVector &X, const Epetra_MultiVector &B, const std::string prefix) const
	Computes the norms of X and B and print the results. More...

void	PrintLine () const
	Prints line on std::cout. More...

void	SetMaxProcesses (int &MaxProcesses, const Epetra_RowMatrix &A)

Private Member Functions inherited from Amesos_Control
	Amesos_Control ()
	Default constructor. More...

	~Amesos_Control ()
	Default destructor. More...

void	SetControlParameters (const Teuchos::ParameterList &ParameterList)

Private Member Functions inherited from Amesos_Status
	Amesos_Status ()
	Default constructor. More...

	~Amesos_Status ()
	Default destructor. More...

void	SetStatusParameters (const Teuchos::ParameterList &ParameterList)

Detailed Description

Amesos_Taucs: An interface to the TAUCS package.

Interface to TAUCS.

Author: Marzio Sala, SNL 9214

Date: Last updated on June 2005; Last updated on 24-May-05.

Definition at line 79 of file Amesos_Taucs.h.

Constructor & Destructor Documentation

Amesos_Taucs::Amesos_Taucs ( const Epetra_LinearProblem & LinearProblem )

Default constructor.

Definition at line 88 of file Amesos_Taucs.cpp.

Amesos_Taucs::~Amesos_Taucs ( void )

Default destructor.

Definition at line 101 of file Amesos_Taucs.cpp.

Member Function Documentation

int Amesos_Taucs::SymbolicFactorization ( )

virtual

Performs SymbolicFactorization on the matrix A.

In addition to performing symbolic factorization on the matrix A, the call to SymbolicFactorization() implies that no change will be made to the non-zero structure of the underlying matrix without a subsequent call to SymbolicFactorization().

Preconditions:

GetProblem().GetOperator() != 0 (return -1)
MatrixShapeOk(GetProblem().GetOperator()) == true (return -6)

Postconditions:

Symbolic Factorization will be performed (or marked to be performed) allowing NumericFactorization() and Solve() to be called.

Returns: Integer error code, set to 0 if successful.

Implements Amesos_BaseSolver.

Definition at line 307 of file Amesos_Taucs.cpp.

int Amesos_Taucs::NumericFactorization ( )

virtual

Performs NumericFactorization on the matrix A.

In addition to performing numeric factorization on the matrix A, the call to NumericFactorization() implies that no change will be made to the underlying matrix without a subsequent call to NumericFactorization().

Preconditions:

GetProblem().GetOperator() != 0 (return -1)
MatrixShapeOk(GetProblem().GetOperator()) == true (return -6)
The non-zero structure of the matrix should not have changed since the last call to SymbolicFactorization(). (return -2 if the number of non-zeros changes) Other changes can have arbitrary consequences.
The distribution of the matrix should not have changed since the last call to SymbolicFactorization()
The matrix should be indexed from 0 to n-1, unless the parameter "Reindex" was set to "true" prior to the call to SymbolicFactorization(). (return -3 - if caught)
The paremeter "Reindex" should not be set to "true" except on CrsMatrices. (return -4)
The paremeter "Reindex" should not be set to "true" unless Amesos was built with EpetraExt, i.e. with –enable-epetraext on the configure line. (return -4)
Internal errors retur -5.

Postconditions:

Numeric Factorization will be performed (or marked to be performed) allowing Solve() to be performed correctly despite a potential change in in the matrix values (though not in the non-zero structure).

Returns: Integer error code, set to 0 if successful.

Implements Amesos_BaseSolver.

Definition at line 351 of file Amesos_Taucs.cpp.

int Amesos_Taucs::Solve ( )

virtual

Solves A X = B (or A^T x = B)

Preconditions:

GetProblem().GetOperator() != 0 (return -1)
MatrixShapeOk(GetProblem().GetOperator()) == true (return -6)
GetProblem()->CheckInput (see Epetra_LinearProblem::CheckInput() for return values)
The non-zero structure of the matrix should not have changed since the last call to SymbolicFactorization().
The distribution of the matrix should not have changed since the last call to SymbolicFactorization()
The matrix should not have changed since the last call to NumericFactorization().

Postconditions:

X will be set such that A X = B (or A^T X = B), within the limits of the accuracy of the underlying solver.

Returns: Integer error code, set to 0 if successful.

Implements Amesos_BaseSolver.

Definition at line 375 of file Amesos_Taucs.cpp.

const Epetra_LinearProblem* Amesos_Taucs::GetProblem ( ) const

inlinevirtual

Returns the Epetra_LinearProblem.

Warning! Do not call return->SetOperator(...) to attempt to change the Epetra_Operator object (even if the new matrix has the same structure). This new operator matrix will be ignored!

Implements Amesos_BaseSolver.

Definition at line 108 of file Amesos_Taucs.h.

bool Amesos_Taucs::MatrixShapeOK ( ) const

virtual

Returns true if the solver can handle this matrix shape.

Returns true if the matrix shape is one that the underlying sparse direct solver can handle. Classes that work only on square matrices should return false for rectangular matrices. Classes that work only on symmetric matrices whould return false for non-symmetric matrices.

Implements Amesos_BaseSolver.

Definition at line 294 of file Amesos_Taucs.cpp.

int Amesos_Taucs::SetUseTranspose ( bool UseTranspose )

inlinevirtual

Amesos_Taucs supports only symmetric matrices, hence transpose is irrelevant, but harmless.

Implements Amesos_BaseSolver.

Definition at line 118 of file Amesos_Taucs.h.

bool Amesos_Taucs::UseTranspose ( ) const

inlinevirtual

Returns the current UseTranspose setting.

Implements Amesos_BaseSolver.

Definition at line 120 of file Amesos_Taucs.h.

const Epetra_Comm& Amesos_Taucs::Comm ( ) const

inlinevirtual

Returns a pointer to the Epetra_Comm communicator associated with this operator.

Implements Amesos_BaseSolver.

Definition at line 122 of file Amesos_Taucs.h.

int Amesos_Taucs::SetParameters ( Teuchos::ParameterList & ParameterList )

virtual

Updates internal variables.

  <br \>Preconditions:<ul>
  <li>None.</li>
  </ul>

  <br \>Postconditions:<ul>
  <li>Internal variables controlling the factorization and solve will
  be updated and take effect on all subseuent calls to NumericFactorization()
  and Solve().</li>
  <li>All parameters whose value are to differ from the default values must

be included in ParameterList. Parameters not specified in ParameterList revert to their default values.

Returns: Integer error code, set to 0 if successful.

Implements Amesos_BaseSolver.

Definition at line 230 of file Amesos_Taucs.cpp.

int Amesos_Taucs::NumSymbolicFact ( ) const

inlinevirtual

Returns the number of symbolic factorizations performed by this object.

Implements Amesos_BaseSolver.

Definition at line 127 of file Amesos_Taucs.h.

int Amesos_Taucs::NumNumericFact ( ) const

inlinevirtual

Returns the number of numeric factorizations performed by this object.

Implements Amesos_BaseSolver.

Definition at line 130 of file Amesos_Taucs.h.

int Amesos_Taucs::NumSolve ( ) const

inlinevirtual

Returns the number of solves performed by this object.

Implements Amesos_BaseSolver.

Definition at line 133 of file Amesos_Taucs.h.

void Amesos_Taucs::PrintTiming ( ) const

virtual

Prints timing information.

Implements Amesos_BaseSolver.

Definition at line 492 of file Amesos_Taucs.cpp.

void Amesos_Taucs::PrintStatus ( ) const

virtual

Prints status information.

Implements Amesos_BaseSolver.

Definition at line 463 of file Amesos_Taucs.cpp.

void Amesos_Taucs::GetTiming ( Teuchos::ParameterList & TimingParameterList ) const

inlinevirtual

Extracts timing information from the current solver and places it in the parameter list.

Reimplemented from Amesos_BaseSolver.

Definition at line 142 of file Amesos_Taucs.h.

const Epetra_Map& Amesos_Taucs::Map ( ) const

inlineprivate

Returns a reference to the RowMatrixRowMap().

Definition at line 150 of file Amesos_Taucs.h.

const Epetra_RowMatrix& Amesos_Taucs::Matrix ( ) const

inlineprivate

Returns a reference to the linear system matrix.

Definition at line 156 of file Amesos_Taucs.h.

Epetra_Map& Amesos_Taucs::SerialMap ( )

inlineprivate

Returns a reference to the already allocated SerialMap.

Definition at line 162 of file Amesos_Taucs.h.

Epetra_RowMatrix& Amesos_Taucs::SerialMatrix ( )

inlineprivate

Returns a reference to the SerialMatrix.

Definition at line 168 of file Amesos_Taucs.h.

Epetra_CrsMatrix& Amesos_Taucs::SerialCrsMatrix ( )

inlineprivate

Returns a reference to the already SerialMatrix as Crs (if allocated).

Definition at line 174 of file Amesos_Taucs.h.

Epetra_Import& Amesos_Taucs::Importer ( )

inlineprivate

Returns a reference to the already allocated Importer.

Definition at line 180 of file Amesos_Taucs.h.

int Amesos_Taucs::ConvertToSerial ( )

private

Constructs a matrix with all rows on processor 0.

Definition at line 124 of file Amesos_Taucs.cpp.

int Amesos_Taucs::ConvertToTaucs ( )

private

Converts the Epetra_RowMatrix into TAUCS format.

Definition at line 159 of file Amesos_Taucs.cpp.

int Amesos_Taucs::PerformSymbolicFactorization ( )

private

Performs the symbolic factorization.

Definition at line 242 of file Amesos_Taucs.cpp.

int Amesos_Taucs::PerformNumericFactorization ( )

private

Performs the numeric factorization.

Definition at line 270 of file Amesos_Taucs.cpp.

Member Data Documentation

bool Amesos_Taucs::UseTranspose_

private

If true, the transpose of A is used.

Definition at line 200 of file Amesos_Taucs.h.

Teuchos::RCP<Epetra_Map> Amesos_Taucs::SerialMap_

private

Definition at line 202 of file Amesos_Taucs.h.

Teuchos::RCP<Epetra_CrsMatrix> Amesos_Taucs::SerialCrsMatrix_

private

Definition at line 203 of file Amesos_Taucs.h.

Teuchos::RCP<Epetra_RowMatrix> Amesos_Taucs::SerialMatrix_

private

Definition at line 204 of file Amesos_Taucs.h.

Teuchos::RCP<Epetra_Import> Amesos_Taucs::Importer_

private

Definition at line 205 of file Amesos_Taucs.h.

const Epetra_Map* Amesos_Taucs::Map_

private

Definition at line 207 of file Amesos_Taucs.h.

const Epetra_RowMatrix* Amesos_Taucs::Matrix_

private

Definition at line 208 of file Amesos_Taucs.h.

const Epetra_LinearProblem* Amesos_Taucs::Problem_

private

Pointer to the linear system problem.

Definition at line 211 of file Amesos_Taucs.h.

int Amesos_Taucs::MtxConvTime_

private

Quick accessor pointer to internal timing data.

Definition at line 214 of file Amesos_Taucs.h.

int Amesos_Taucs::MtxRedistTime_

private

Definition at line 214 of file Amesos_Taucs.h.

int Amesos_Taucs::VecRedistTime_

private

Definition at line 214 of file Amesos_Taucs.h.

int Amesos_Taucs::SymFactTime_

private

Definition at line 215 of file Amesos_Taucs.h.

int Amesos_Taucs::NumFactTime_

private

Definition at line 215 of file Amesos_Taucs.h.

int Amesos_Taucs::SolveTime_

private

Definition at line 215 of file Amesos_Taucs.h.

Teuchos::RCP<Amesos_Taucs_Pimpl> Amesos_Taucs::PrivateTaucsData_

private

Definition at line 221 of file Amesos_Taucs.h.

The documentation for this class was generated from the following files:

Private Attributes

Additional Inherited Members

Detailed Description

Constructor & Destructor Documentation

Member Function Documentation

Member Data Documentation
