Amesos_Superlu: Amesos interface to Xioye Li's SuperLU 3.0 serial code. More...

#include <Amesos_Superlu.h>

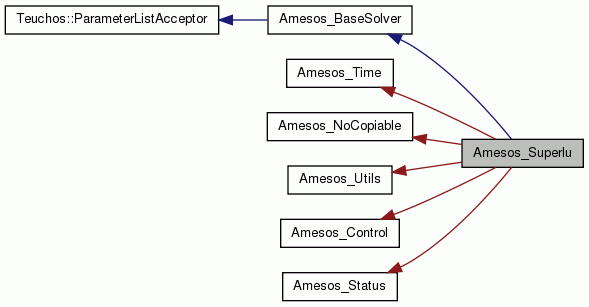

Inheritance diagram for Amesos_Superlu:

Private Attributes
SLUData *	data_
	Main structure for SuperLU. More...

std::vector< double >	berr_

std::vector< double >	ferr_

std::vector< int >	perm_r_

std::vector< int >	perm_c_

std::vector< int >	etree_

std::vector< double >	R_

std::vector< double >	C_

char	equed_

double *	DummyArray
	stores the matrix in SuperLU format. More...

std::vector< int >	Ap_
	stores the matrix in SuperLU format. More...

std::vector< int >	Ai_
	stores the matrix in SuperLU format. More...

std::vector< double >	Aval_

long long	NumGlobalRows_
	Global size of the matrix. More...

long long	NumGlobalNonzeros_
	Global number of nonzeros in the matrix. More...

bool	UseTranspose_
	If `true`, solve the linear system with the transpose of the matrix. More...

bool	FactorizationOK_
	If `true`, the factorization has been successfully computed. More...

bool	FactorizationDone_

bool	ReuseSymbolic_

int	iam_
	Process number (i.e. Comm().MyPID() More...

int	MtxConvTime_
	Quick access pointer to internal timing data. More...

int	MtxRedistTime_

int	VecRedistTime_

int	NumFactTime_

int	SolveTime_

int	OverheadTime_

Teuchos::RCP< Epetra_Map >	SerialMap_
	Contains a map with all elements assigned to processor 0. More...

Teuchos::RCP< Epetra_CrsMatrix >	SerialCrsMatrixA_
	Contains a matrix with all rows assigned to processor 0. More...

Teuchos::RCP< Epetra_Import >	ImportToSerial_
	Importer from distributed to SerialMap_. More...

Epetra_RowMatrix *	SerialMatrix_
	For parallel runs, stores the matrix defined on SerialMap_. More...

const Epetra_LinearProblem *	Problem_
	Pointer to the user's defined linear problem. More...

Epetra_RowMatrix *	RowMatrixA_
	Pointer to the linear system matrix. More...

Private Attributes inherited from Amesos_Control
double	AddToDiag_
	Add `this` value to the diagonal. More...

bool	refactorize_

double	rcond_threshold_
	If error is greater than `this` value, perform symbolic and numeric factorization with full partial pivoting. More...

int	ScaleMethod_

bool	AddZeroToDiag_
	Adds zero to diagonal of redistributed matrix (some solvers choke on a matrix with a partly empty diag) More...

int	MatrixProperty_
	Set the matrix property. More...

int	MaxProcesses_

bool	Reindex_
	If true, the Amesos class should reindex the matrix to standard indexing (i.e. More...

Private Attributes inherited from Amesos_Status
bool	IsSymbolicFactorizationOK_
	If `true`, SymbolicFactorization() has been successfully called. More...

bool	IsNumericFactorizationOK_
	If `true`, NumericFactorization() has been successfully called. More...

bool	PrintTiming_
	If `true`, prints timing information in the destructor. More...

bool	PrintStatus_
	If `true`, print additional information in the destructor. More...

bool	ComputeVectorNorms_
	If `true`, prints the norms of X and B in Solve(). More...

bool	ComputeTrueResidual_
	If `true`, computes the true residual in Solve(). More...

int	verbose_
	Toggles the output level. More...

int	debug_
	Sets the level of debug_ output. More...

int	NumSymbolicFact_
	Number of symbolic factorization phases. More...

int	NumNumericFact_
	Number of numeric factorization phases. More...

int	NumSolve_
	Number of solves. More...

double	Threshold_

int	MyPID_

int	NumProcs_

	Amesos_Superlu (const Epetra_LinearProblem &LinearProblem)
	Amesos_Superlu Constructor. More...

	~Amesos_Superlu ()
	Amesos_Superlu Destructor. More...

int	SymbolicFactorization ()
	Performs SymbolicFactorization on the matrix A. More...

int	NumericFactorization ()
	Performs NumericFactorization on the matrix A. More...

int	Solve ()
	Solves A X = B (or A^T x = B) More...

const Epetra_LinearProblem *	GetProblem () const
	Returns the Epetra_LinearProblem. More...

bool	MatrixShapeOK () const
	Returns true if the solver can handle this matrix shape. More...

int	SetUseTranspose (bool useTheTranspose)
	If set true, X will be set to the solution of A^T X = B (not A X = B) More...

bool	UseTranspose () const
	Returns the current UseTranspose setting. More...

const Epetra_Comm &	Comm () const
	Returns a pointer to the Epetra_Comm communicator associated with this operator. More...

int	SetParameters (Teuchos::ParameterList &ParameterList)
	Updates internal variables. More...

int	NumSymbolicFact () const
	Returns the number of symbolic factorizations performed by this object. More...

int	NumNumericFact () const
	Returns the number of numeric factorizations performed by this object. More...

int	NumSolve () const
	Returns the number of solves performed by this object. More...

void	PrintTiming () const
	Prints timing information. More...

void	PrintStatus () const
	Prints status information. More...

void	GetTiming (Teuchos::ParameterList &TimingParameterList) const
	Extracts timing information from the current solver and places it in the parameter list. More...

const Epetra_Map &	SerialMap () const
	Returns a reference to the serial map. More...

const Epetra_Import &	ImportToSerial () const
	Returns a reference to the importer. More...

int	Factor ()
	Factors the matrix, no previous factorization available. More...

int	ReFactor ()
	Re-factors the matrix. More...

int	ConvertToSerial ()
	Sets up the matrix on processor 0. More...

int	PerformNumericFactorization ()
	PerformNumericFactorization - Call Superlu to perform numeric factorization. More...

Additional Inherited Members
Public Member Functions inherited from Amesos_BaseSolver
virtual	~Amesos_BaseSolver ()
	Destructor. More...

virtual void	setParameterList (Teuchos::RCP< Teuchos::ParameterList > const &paramList)
	Redefined from Teuchos::ParameterListAcceptor (Does Not Work) More...

virtual Teuchos::RCP < Teuchos::ParameterList >	getNonconstParameterList ()
	This is an empty stub. More...

virtual Teuchos::RCP < Teuchos::ParameterList >	unsetParameterList ()
	This is an empty stub. More...

Public Member Functions inherited from Teuchos::ParameterListAcceptor
virtual RCP< const ParameterList >	getParameterList () const

virtual RCP< const ParameterList >	getValidParameters () const

Private Member Functions inherited from Amesos_Time
	Amesos_Time ()
	Default constructor to create `size` timers. More...

virtual	~Amesos_Time ()
	Default destructor. More...

void	CreateTimer (const Epetra_Comm &Comm, int size=1)
	Initializes the Time object. More...

void	ResetTimer (const int timerID=0)
	Resets the internally stored time object. More...

int	AddTime (const std::string what, int dataID, const int timerID=0)
	Adds to field `what` the time elapsed since last call to ResetTimer(). More...

double	GetTime (const std::string what) const
	Gets the cumulative time using the string. More...

double	GetTime (const int dataID) const
	Gets the cumulative time using the dataID. More...

void	GetTiming (Teuchos::ParameterList &list) const
	Load up the current timing information into the parameter list. More...

Private Member Functions inherited from Amesos_NoCopiable
	Amesos_NoCopiable ()
	Default constructor. More...

	~Amesos_NoCopiable ()
	Default destructor. More...

Private Member Functions inherited from Amesos_Utils
	Amesos_Utils ()
	Default constructor. More...

	~Amesos_Utils ()
	Default destructor. More...

void	ComputeTrueResidual (const Epetra_RowMatrix &Matrix, const Epetra_MultiVector &X, const Epetra_MultiVector &B, const bool UseTranspose, const std::string prefix) const
	Computes the true residual, B - Matrix * X, and prints the results. More...

void	ComputeVectorNorms (const Epetra_MultiVector &X, const Epetra_MultiVector &B, const std::string prefix) const
	Computes the norms of X and B and print the results. More...

void	PrintLine () const
	Prints line on std::cout. More...

void	SetMaxProcesses (int &MaxProcesses, const Epetra_RowMatrix &A)

Private Member Functions inherited from Amesos_Control
	Amesos_Control ()
	Default constructor. More...

	~Amesos_Control ()
	Default destructor. More...

void	SetControlParameters (const Teuchos::ParameterList &ParameterList)

Private Member Functions inherited from Amesos_Status
	Amesos_Status ()
	Default constructor. More...

	~Amesos_Status ()
	Default destructor. More...

void	SetStatusParameters (const Teuchos::ParameterList &ParameterList)

Detailed Description

Amesos_Superlu: Amesos interface to Xioye Li's SuperLU 3.0 serial code.

Class Amesos_Superlu solves the linear systems of equations A X = B, where A is defined as an Epetra_RowMatrix, and X and B are two Epetra_MultiVector's.

Date: Last updated on 28-Apr-05.

Definition at line 98 of file Amesos_Superlu.h.

Constructor & Destructor Documentation

Amesos_Superlu::Amesos_Superlu ( const Epetra_LinearProblem & LinearProblem )

Amesos_Superlu Constructor.

Creates an Amesos_Superlu instance, using an Epetra_LinearProblem, passing in an already-defined Epetra_LinearProblem object.

Note: The operator in LinearProblem must be an Epetra_RowMatrix.

Definition at line 76 of file Amesos_Superlu.cpp.

Amesos_Superlu::~Amesos_Superlu ( void )

Amesos_Superlu Destructor.

Definition at line 119 of file Amesos_Superlu.cpp.

Member Function Documentation

int Amesos_Superlu::SymbolicFactorization ( )

virtual

Performs SymbolicFactorization on the matrix A.

In addition to performing symbolic factorization on the matrix A, the call to SymbolicFactorization() implies that no change will be made to the non-zero structure of the underlying matrix without a subsequent call to SymbolicFactorization().

Preconditions:

GetProblem().GetOperator() != 0 (return -1)
MatrixShapeOk(GetProblem().GetOperator()) == true (return -6)

Postconditions:

Symbolic Factorization will be performed (or marked to be performed) allowing NumericFactorization() and Solve() to be called.

Returns: Integer error code, set to 0 if successful.

Implements Amesos_BaseSolver.

Definition at line 409 of file Amesos_Superlu.cpp.

int Amesos_Superlu::NumericFactorization ( )

virtual

Performs NumericFactorization on the matrix A.

In addition to performing numeric factorization on the matrix A, the call to NumericFactorization() implies that no change will be made to the underlying matrix without a subsequent call to NumericFactorization().

Preconditions:

GetProblem().GetOperator() != 0 (return -1)
MatrixShapeOk(GetProblem().GetOperator()) == true (return -6)
The non-zero structure of the matrix should not have changed since the last call to SymbolicFactorization(). (return -2 if the number of non-zeros changes) Other changes can have arbitrary consequences.
The distribution of the matrix should not have changed since the last call to SymbolicFactorization()
The matrix should be indexed from 0 to n-1, unless the parameter "Reindex" was set to "true" prior to the call to SymbolicFactorization(). (return -3 - if caught)
The paremeter "Reindex" should not be set to "true" except on CrsMatrices. (return -4)
The paremeter "Reindex" should not be set to "true" unless Amesos was built with EpetraExt, i.e. with –enable-epetraext on the configure line. (return -4)
Internal errors retur -5.

Postconditions:

Numeric Factorization will be performed (or marked to be performed) allowing Solve() to be performed correctly despite a potential change in in the matrix values (though not in the non-zero structure).

Returns: Integer error code, set to 0 if successful.

Implements Amesos_BaseSolver.

Definition at line 417 of file Amesos_Superlu.cpp.

int Amesos_Superlu::Solve ( )

virtual

Solves A X = B (or A^T x = B)

Preconditions:

GetProblem().GetOperator() != 0 (return -1)
MatrixShapeOk(GetProblem().GetOperator()) == true (return -6)
GetProblem()->CheckInput (see Epetra_LinearProblem::CheckInput() for return values)
The non-zero structure of the matrix should not have changed since the last call to SymbolicFactorization().
The distribution of the matrix should not have changed since the last call to SymbolicFactorization()
The matrix should not have changed since the last call to NumericFactorization().

Postconditions:

X will be set such that A X = B (or A^T X = B), within the limits of the accuracy of the underlying solver.

Returns: Integer error code, set to 0 if successful.

Implements Amesos_BaseSolver.

Definition at line 504 of file Amesos_Superlu.cpp.

const Epetra_LinearProblem* Amesos_Superlu::GetProblem ( ) const

inlinevirtual

Returns the Epetra_LinearProblem.

Warning! Do not call return->SetOperator(...) to attempt to change the Epetra_Operator object (even if the new matrix has the same structure). This new operator matrix will be ignored!

Implements Amesos_BaseSolver.

Definition at line 133 of file Amesos_Superlu.h.

bool Amesos_Superlu::MatrixShapeOK ( ) const

virtual

Returns true if the solver can handle this matrix shape.

Returns true if the matrix shape is one that the underlying sparse direct solver can handle. Classes that work only on square matrices should return false for rectangular matrices. Classes that work only on symmetric matrices whould return false for non-symmetric matrices.

Implements Amesos_BaseSolver.

Definition at line 156 of file Amesos_Superlu.cpp.

int Amesos_Superlu::SetUseTranspose ( bool UseTranspose )

inlinevirtual

If set true, X will be set to the solution of A^T X = B (not A X = B)

If the implementation of this interface does not support transpose use, this method should return a value of -1.

Preconditions:

SetUseTranspose() should be called prior to the call to SymbolicFactorization() If NumericFactorization() or Solve() is called after SetUseTranspose() without an intervening call to SymbolicFactorization() the result is implementation dependent.

Postconditions:

The next factorization and solve will be performed with the new value of UseTranspose.

Parameters

UseTranspose – (In) If true, solve A^T X = B, otherwise solve A X = B.

Returns: Integer error code, set to 0 if successful. Set to -1 if this implementation does not support transpose.

Implements Amesos_BaseSolver.

Definition at line 137 of file Amesos_Superlu.h.

bool Amesos_Superlu::UseTranspose ( ) const

inlinevirtual

Returns the current UseTranspose setting.

Implements Amesos_BaseSolver.

Definition at line 141 of file Amesos_Superlu.h.

const Epetra_Comm& Amesos_Superlu::Comm ( ) const

inlinevirtual

Returns a pointer to the Epetra_Comm communicator associated with this operator.

Implements Amesos_BaseSolver.

Definition at line 143 of file Amesos_Superlu.h.

int Amesos_Superlu::SetParameters ( Teuchos::ParameterList & ParameterList )

virtual

Updates internal variables.

  <br \>Preconditions:<ul>
  <li>None.</li>
  </ul>

  <br \>Postconditions:<ul>
  <li>Internal variables controlling the factorization and solve will
  be updated and take effect on all subseuent calls to NumericFactorization()
  and Solve().</li>
  <li>All parameters whose value are to differ from the default values must

be included in ParameterList. Parameters not specified in ParameterList revert to their default values.

Returns: Integer error code, set to 0 if successful.

Implements Amesos_BaseSolver.

Definition at line 139 of file Amesos_Superlu.cpp.

int Amesos_Superlu::NumSymbolicFact ( ) const

inlinevirtual

Returns the number of symbolic factorizations performed by this object.

Implements Amesos_BaseSolver.

Definition at line 148 of file Amesos_Superlu.h.

int Amesos_Superlu::NumNumericFact ( ) const

inlinevirtual

Returns the number of numeric factorizations performed by this object.

Implements Amesos_BaseSolver.

Definition at line 151 of file Amesos_Superlu.h.

int Amesos_Superlu::NumSolve ( ) const

inlinevirtual

Returns the number of solves performed by this object.

Implements Amesos_BaseSolver.

Definition at line 154 of file Amesos_Superlu.h.

void Amesos_Superlu::PrintTiming ( ) const

virtual

Prints timing information.

Implements Amesos_BaseSolver.

Definition at line 694 of file Amesos_Superlu.cpp.

void Amesos_Superlu::PrintStatus ( ) const

virtual

Prints status information.

Implements Amesos_BaseSolver.

Definition at line 669 of file Amesos_Superlu.cpp.

void Amesos_Superlu::GetTiming ( Teuchos::ParameterList & TimingParameterList ) const

inlinevirtual

Extracts timing information from the current solver and places it in the parameter list.

Reimplemented from Amesos_BaseSolver.

Definition at line 163 of file Amesos_Superlu.h.

const Epetra_Map& Amesos_Superlu::SerialMap ( ) const

inlineprivate

Returns a reference to the serial map.

Definition at line 172 of file Amesos_Superlu.h.

const Epetra_Import& Amesos_Superlu::ImportToSerial ( ) const

inlineprivate

Returns a reference to the importer.

Definition at line 179 of file Amesos_Superlu.h.

int Amesos_Superlu::Factor ( void )

private

Factors the matrix, no previous factorization available.

Definition at line 267 of file Amesos_Superlu.cpp.

int Amesos_Superlu::ReFactor ( )

private

Re-factors the matrix.

Definition at line 332 of file Amesos_Superlu.cpp.

int Amesos_Superlu::ConvertToSerial ( )

private

Sets up the matrix on processor 0.

Definition at line 166 of file Amesos_Superlu.cpp.

int Amesos_Superlu::PerformNumericFactorization ( )

private

PerformNumericFactorization - Call Superlu to perform numeric factorization.

Member Data Documentation

SLUData* Amesos_Superlu::data_

private

Main structure for SuperLU.

Definition at line 199 of file Amesos_Superlu.h.

std::vector<double> Amesos_Superlu::berr_

private

Definition at line 200 of file Amesos_Superlu.h.

std::vector<double> Amesos_Superlu::ferr_

private

Definition at line 201 of file Amesos_Superlu.h.

std::vector<int> Amesos_Superlu::perm_r_

private

Definition at line 202 of file Amesos_Superlu.h.

std::vector<int> Amesos_Superlu::perm_c_

private

Definition at line 203 of file Amesos_Superlu.h.

std::vector<int> Amesos_Superlu::etree_

private

Definition at line 204 of file Amesos_Superlu.h.

std::vector<double> Amesos_Superlu::R_

private

Definition at line 205 of file Amesos_Superlu.h.

std::vector<double> Amesos_Superlu::C_

private

Definition at line 206 of file Amesos_Superlu.h.

char Amesos_Superlu::equed_

private

Definition at line 207 of file Amesos_Superlu.h.

double* Amesos_Superlu::DummyArray

private

stores the matrix in SuperLU format.

Definition at line 209 of file Amesos_Superlu.h.

std::vector<int> Amesos_Superlu::Ap_

private

stores the matrix in SuperLU format.

Definition at line 212 of file Amesos_Superlu.h.

std::vector<int> Amesos_Superlu::Ai_

private

stores the matrix in SuperLU format.

Definition at line 214 of file Amesos_Superlu.h.

std::vector<double> Amesos_Superlu::Aval_

private

Definition at line 216 of file Amesos_Superlu.h.

long long Amesos_Superlu::NumGlobalRows_

private

Global size of the matrix.

Definition at line 218 of file Amesos_Superlu.h.

long long Amesos_Superlu::NumGlobalNonzeros_

private

Global number of nonzeros in the matrix.

Definition at line 220 of file Amesos_Superlu.h.

bool Amesos_Superlu::UseTranspose_

private

If true, solve the linear system with the transpose of the matrix.

Definition at line 222 of file Amesos_Superlu.h.

bool Amesos_Superlu::FactorizationOK_

private

If true, the factorization has been successfully computed.

Definition at line 224 of file Amesos_Superlu.h.

bool Amesos_Superlu::FactorizationDone_

private

Definition at line 225 of file Amesos_Superlu.h.

bool Amesos_Superlu::ReuseSymbolic_

private

Definition at line 226 of file Amesos_Superlu.h.

int Amesos_Superlu::iam_

private

Process number (i.e. Comm().MyPID()

Definition at line 228 of file Amesos_Superlu.h.

int Amesos_Superlu::MtxConvTime_

private

Quick access pointer to internal timing data.

Definition at line 230 of file Amesos_Superlu.h.

int Amesos_Superlu::MtxRedistTime_

private

Definition at line 230 of file Amesos_Superlu.h.

int Amesos_Superlu::VecRedistTime_

private

Definition at line 230 of file Amesos_Superlu.h.

int Amesos_Superlu::NumFactTime_

private

Definition at line 231 of file Amesos_Superlu.h.

int Amesos_Superlu::SolveTime_

private

Definition at line 231 of file Amesos_Superlu.h.

int Amesos_Superlu::OverheadTime_

private

Definition at line 231 of file Amesos_Superlu.h.

Teuchos::RCP<Epetra_Map> Amesos_Superlu::SerialMap_

private

Contains a map with all elements assigned to processor 0.

Definition at line 233 of file Amesos_Superlu.h.

Teuchos::RCP<Epetra_CrsMatrix> Amesos_Superlu::SerialCrsMatrixA_

private

Contains a matrix with all rows assigned to processor 0.

Definition at line 235 of file Amesos_Superlu.h.

Teuchos::RCP<Epetra_Import> Amesos_Superlu::ImportToSerial_

private

Importer from distributed to SerialMap_.

Definition at line 237 of file Amesos_Superlu.h.

Epetra_RowMatrix* Amesos_Superlu::SerialMatrix_

private

For parallel runs, stores the matrix defined on SerialMap_.

Definition at line 239 of file Amesos_Superlu.h.

const Epetra_LinearProblem* Amesos_Superlu::Problem_

private

Pointer to the user's defined linear problem.

Definition at line 241 of file Amesos_Superlu.h.

Epetra_RowMatrix* Amesos_Superlu::RowMatrixA_

private

Pointer to the linear system matrix.

Definition at line 243 of file Amesos_Superlu.h.

The documentation for this class was generated from the following files:

Private Attributes

Additional Inherited Members

Detailed Description

Constructor & Destructor Documentation

Member Function Documentation

Member Data Documentation
