Amesos_Scalapack: A serial and parallel dense solver. For now, we implement only the unsymmetric ScaLAPACK solver. More...

#include <Amesos_Scalapack.h>

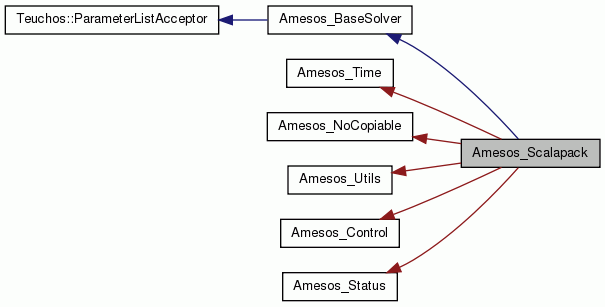

Inheritance diagram for Amesos_Scalapack:

[legend]

Protected Attributes
int	iam_

int	NumGlobalElements_

int	NumGlobalNonzeros_

int	nprow_

int	npcol_

int	ictxt_

int	m_per_p_

int	DescA_ [10]

Epetra_Map *	ScaLAPACK1DMap_

Epetra_CrsMatrix *	ScaLAPACK1DMatrix_

Epetra_Map *	VectorMap_

std::vector< double >	DenseA_

std::vector< int >	Ipiv_

int	NumOurRows_

int	NumOurColumns_

bool	UseTranspose_

const Epetra_LinearProblem *	Problem_

double	ConTime_

double	SymTime_

double	NumTime_

double	SolTime_

double	VecTime_

double	MatTime_

bool	TwoD_distribution_

int	grid_nb_

int	mypcol_

int	myprow_

Epetra_CrsMatrix *	FatOut_

int	nb_

int	lda_

Epetra_Time *	Time_

Private Member Functions
int	RedistributeA ()

int	ConvertToScalapack ()

int	PerformNumericFactorization ()

Private Member Functions inherited from Amesos_Time
	Amesos_Time ()
	Default constructor to create `size` timers. More...

virtual	~Amesos_Time ()
	Default destructor. More...

void	CreateTimer (const Epetra_Comm &Comm, int size=1)
	Initializes the Time object. More...

void	ResetTimer (const int timerID=0)
	Resets the internally stored time object. More...

int	AddTime (const std::string what, int dataID, const int timerID=0)
	Adds to field `what` the time elapsed since last call to ResetTimer(). More...

double	GetTime (const std::string what) const
	Gets the cumulative time using the string. More...

double	GetTime (const int dataID) const
	Gets the cumulative time using the dataID. More...

void	GetTiming (Teuchos::ParameterList &list) const
	Load up the current timing information into the parameter list. More...

Private Member Functions inherited from Amesos_NoCopiable
	Amesos_NoCopiable ()
	Default constructor. More...

	~Amesos_NoCopiable ()
	Default destructor. More...

Private Member Functions inherited from Amesos_Utils
	Amesos_Utils ()
	Default constructor. More...

	~Amesos_Utils ()
	Default destructor. More...

void	ComputeTrueResidual (const Epetra_RowMatrix &Matrix, const Epetra_MultiVector &X, const Epetra_MultiVector &B, const bool UseTranspose, const std::string prefix) const
	Computes the true residual, B - Matrix * X, and prints the results. More...

void	ComputeVectorNorms (const Epetra_MultiVector &X, const Epetra_MultiVector &B, const std::string prefix) const
	Computes the norms of X and B and print the results. More...

void	PrintLine () const
	Prints line on std::cout. More...

void	SetMaxProcesses (int &MaxProcesses, const Epetra_RowMatrix &A)

Private Member Functions inherited from Amesos_Control
	Amesos_Control ()
	Default constructor. More...

	~Amesos_Control ()
	Default destructor. More...

void	SetControlParameters (const Teuchos::ParameterList &ParameterList)

Private Member Functions inherited from Amesos_Status
	Amesos_Status ()
	Default constructor. More...

	~Amesos_Status ()
	Default destructor. More...

void	SetStatusParameters (const Teuchos::ParameterList &ParameterList)

	Amesos_Scalapack (const Epetra_LinearProblem &LinearProblem)
	Amesos_Scalapack Constructor. More...

	~Amesos_Scalapack (void)
	Amesos_Scalapack Destructor. More...

int	SymbolicFactorization ()
	Performs SymbolicFactorization on the matrix A. More...

int	NumericFactorization ()
	Performs NumericFactorization on the matrix A. More...

int	Solve ()
	Solves A X = B (or A^T X = B) More...

const Epetra_LinearProblem *	GetProblem () const
	Get a pointer to the Problem. More...

bool	MatrixShapeOK () const
	Returns true if SCALAPACK can handle this matrix shape. More...

int	SetUseTranspose (bool UseTranspose)
	SetUseTranpose(true) is more efficient in Amesos_Scalapack. More...

bool	UseTranspose () const
	Returns the current UseTranspose setting. More...

const Epetra_Comm &	Comm () const
	Returns a pointer to the Epetra_Comm communicator associated with this matrix. More...

int	SetParameters (Teuchos::ParameterList &ParameterList)
	Updates internal variables. More...

int	NumSymbolicFact () const
	Returns the number of symbolic factorizations performed by this object. More...

int	NumNumericFact () const
	Returns the number of numeric factorizations performed by this object. More...

int	NumSolve () const
	Returns the number of solves performed by this object. More...

void	PrintTiming () const
	Print timing information. More...

void	PrintStatus () const
	Print information about the factorization and solution phases. More...

void	GetTiming (Teuchos::ParameterList &TimingParameterList) const
	Extracts timing information from the current solver and places it in the parameter list. More...

Additional Inherited Members
Public Member Functions inherited from Amesos_BaseSolver
virtual	~Amesos_BaseSolver ()
	Destructor. More...

virtual void	setParameterList (Teuchos::RCP< Teuchos::ParameterList > const &paramList)
	Redefined from Teuchos::ParameterListAcceptor (Does Not Work) More...

virtual Teuchos::RCP < Teuchos::ParameterList >	getNonconstParameterList ()
	This is an empty stub. More...

virtual Teuchos::RCP < Teuchos::ParameterList >	unsetParameterList ()
	This is an empty stub. More...

Public Member Functions inherited from Teuchos::ParameterListAcceptor
virtual RCP< const ParameterList >	getParameterList () const

virtual RCP< const ParameterList >	getValidParameters () const

Private Attributes inherited from Amesos_Control
double	AddToDiag_
	Add `this` value to the diagonal. More...

bool	refactorize_

double	rcond_threshold_
	If error is greater than `this` value, perform symbolic and numeric factorization with full partial pivoting. More...

int	ScaleMethod_

bool	AddZeroToDiag_
	Adds zero to diagonal of redistributed matrix (some solvers choke on a matrix with a partly empty diag) More...

int	MatrixProperty_
	Set the matrix property. More...

int	MaxProcesses_

bool	Reindex_
	If true, the Amesos class should reindex the matrix to standard indexing (i.e. More...

Private Attributes inherited from Amesos_Status
bool	IsSymbolicFactorizationOK_
	If `true`, SymbolicFactorization() has been successfully called. More...

bool	IsNumericFactorizationOK_
	If `true`, NumericFactorization() has been successfully called. More...

bool	PrintTiming_
	If `true`, prints timing information in the destructor. More...

bool	PrintStatus_
	If `true`, print additional information in the destructor. More...

bool	ComputeVectorNorms_
	If `true`, prints the norms of X and B in Solve(). More...

bool	ComputeTrueResidual_
	If `true`, computes the true residual in Solve(). More...

int	verbose_
	Toggles the output level. More...

int	debug_
	Sets the level of debug_ output. More...

int	NumSymbolicFact_
	Number of symbolic factorization phases. More...

int	NumNumericFact_
	Number of numeric factorization phases. More...

int	NumSolve_
	Number of solves. More...

double	Threshold_

int	MyPID_

int	NumProcs_

Detailed Description

Amesos_Scalapack: A serial and parallel dense solver. For now, we implement only the unsymmetric ScaLAPACK solver.

 Amesos_Scalapack, an object-oriented wrapper for LAPACK and ScaLAPACK,

will solve a linear systems of equations: A X = B using Epetra objects and the ScaLAPACK library, where A is an Epetra_RowMatrix and X and B are Epetra_MultiVector objects.

Amesos_Scalapack can be competitive for matrices that are not particularly sparse. ScaLAPACK solves matrices for which the fill-in is roughly 10% to 20% of the matrix size in time comparable to that achieve by other Amesos classes. Amesos_Scalapack scales well and hence its performance advantage will be largest when large number of processes are involved.

Amesos_Scalapack uses the ScaLAPACK functions PDGETRF and PDGETRS if more than one process is used. If only one process is used, Amesos_ScaLAPACK uses the LAPACK function PDGETRF and PDGETRS.

AmesosScaLAPACK uses full partial pivoting and will therefore provide answers that are at least as accurate as any direct sparse solver.

AmesosScalapack makes sense under the following circumstances:

There is sufficient memory to store the entrie dense matrix. 8*n^2/p bytes will be required on each process. -AND- one of the following
- The matrix is relatively small and dense. Amesos_Scalapack will solve matrices less than 100 by 100 faster than other Amesos classes unless the matrices are very sparse.
- The matrix is relatively dense and many processes are available. If a thousand processes are available, Amesos_Scalapack should be competetive with other sparse direct solvers even for matrices whose L and U factors contain only 5% non-zeros.
- The matrix is quite dense. Amesos_Scalapack will be well on any matrix whose L and U factors contain 20% or more non-zeros.
- Execution time is less important than robustness. Amesos_Scalapack is among the most robust parallel direct solvers.

Common control parameters :

Amesos_Scalapack supports the following parameters which are common to across multiple Amesos solvers:

ParamList.set("MaxProcs", int MaximumProcessesToUse );
By default, this is set to -1, which causes Amesos_Scalapack to use a heuristic to determine how many processes to use. If set to a postive value, MaximumProcessesToUse, Amesos_Scalapack will use MaximumProcessesToUse provided that there are that many processes available. Testing should be performed with MaximumProcessesToUse set to some value larger than one to force parallel execution.
ParamList.set("PrintTiming", bool );
ParamList.set("PrintStatus", bool );
ParamList.set("ComputeVectorNorms", bool );
ParamList.set("ComputeTrueResidual", bool );
ParamList.set("OutputLevel", int );
ParamList.set("DebugLevel", int );
ParamList.set("ComputeTrueResidual", bool );

Amesos_Scalapack supports the following parameters specific to Amesos_Scalapack.
Teuchos::ParameterList ScalapackParams = ParameterList.sublist("Scalapack") ;

ScalapackParams.set("2D distribution", bool );
By default this is set "true". In general, because a two dimensional data distribution generally produces faster results. However, in some cases, a one dimensional data distribution may provide faster execution time. The code for the one dimensional data distribution uses a different data redistribution algorithm and uses the transpose of the matrix internally (all of which is transparent to the user).
ScalapackParams.set("grid_nb", bool );
By default this is set to 32. On some machines, it may be possible to improve performance by up to 10% by changing the value of grid_nb. (16,24,48,64 or 128) are reasonable values to try. For testing on small matrices, small values of grid_nb will (if "MaxProcs" is set to a value greater than 1) force the code to execute in parallel.

Limitations:

None of the following limitations would be particularly difficult to remove.

The present implementation limits the number of right hand sides to the number of rows assigned to each process. i.e. nrhs < n/p.

The present implementation does not take advantage of symmetric or symmetric positive definite matrices, although ScaLAPACK has separate routines to take advantages of such matrices.

Definition at line 152 of file Amesos_Scalapack.h.

Constructor & Destructor Documentation

Amesos_Scalapack::Amesos_Scalapack ( const Epetra_LinearProblem & LinearProblem )

Amesos_Scalapack Constructor.

Creates an Amesos_Scalapack instance, using an Epetra_LinearProblem, passing in an already-defined Epetra_LinearProblem object.

Note: The operator in LinearProblem must be an Epetra_RowMatrix.

Definition at line 50 of file Amesos_Scalapack.cpp.

Amesos_Scalapack::~Amesos_Scalapack ( void )

Amesos_Scalapack Destructor.

Completely deletes an Amesos_Scalapack object.

Definition at line 71 of file Amesos_Scalapack.cpp.

Member Function Documentation

int Amesos_Scalapack::SymbolicFactorization ( )

virtual

Performs SymbolicFactorization on the matrix A.

There is no symbolic factorization phase in ScaLAPACK, as it operates only on dense matrices. Hence, Amesos_Scalapack::SymbolicFactorization() takes no action.

Returns: Integer error code, set to 0 if successful.

Implements Amesos_BaseSolver.

Definition at line 778 of file Amesos_Scalapack.cpp.

int Amesos_Scalapack::NumericFactorization ( )

virtual

Performs NumericFactorization on the matrix A.

In addition to performing numeric factorization

on the matrix A, the call to NumericFactorization() implies that no change will be made to the underlying matrix without a subsequent call to NumericFactorization().

preconditions:

GetProblem().GetOperator() != 0 (return -1)
MatrixShapeOk(GetProblem().GetOperator()) == true (return -6) NOT IMPLEMENTED
The non-zero structure of the matrix should not have changed since the last call to SymbolicFactorization(). Irrelevant for Amesos_Scalapack.
The distribution of the matrix should not have changed since the last call to SymbolicFactorization(). Irrelevant for Amesos_Scalapack.

postconditions:

nprow_, npcol_, DescA_
DenseA will be factored
Ipiv_ contains the pivots

Returns: Integer error code, set to 0 if successful.

Implements Amesos_BaseSolver.

Definition at line 789 of file Amesos_Scalapack.cpp.

int Amesos_Scalapack::Solve ( void )

virtual

Solves A X = B (or A^T X = B)

preconditions:

GetProblem().GetOperator() != 0 (return -1)
MatrixShapeOk(GetProblem().GetOperator()) == true (return -6) NOT IMPLEMENTED
X and B must have the same shape (NOT CHECKED)
X and B must have fewer than nb right hand sides. EPETRA_CHK_ERR(-2)
GetProblem()->CheckInput (see Epetra_LinearProblem::CheckInput() for return values)
The matrix should not have changed since the last call to NumericFactorization().

postconditions:

X will be set such that A X = B (or A^T X = B), within the limits of the accuracy of the the Scalapack solver.

Returns: Integer error code, set to 0 if successful.

Implements Amesos_BaseSolver.

Definition at line 810 of file Amesos_Scalapack.cpp.

const Epetra_LinearProblem* Amesos_Scalapack::GetProblem ( ) const

inlinevirtual

Get a pointer to the Problem.

Implements Amesos_BaseSolver.

Definition at line 252 of file Amesos_Scalapack.h.

bool Amesos_Scalapack::MatrixShapeOK ( ) const

virtual

Returns true if SCALAPACK can handle this matrix shape.

Returns true if the matrix shape is one that SCALAPACK can handle. SCALAPACK only works with square matrices.

Implements Amesos_BaseSolver.

Definition at line 769 of file Amesos_Scalapack.cpp.

int Amesos_Scalapack::SetUseTranspose ( bool UseTranspose )

inlinevirtual

SetUseTranpose(true) is more efficient in Amesos_Scalapack.

If SetUseTranspose() is set to true,
- A^T X = B

  is computed
else
- A X = B

  is computed

Implements Amesos_BaseSolver.

Definition at line 273 of file Amesos_Scalapack.h.

bool Amesos_Scalapack::UseTranspose ( ) const

inlinevirtual

Returns the current UseTranspose setting.

Implements Amesos_BaseSolver.

Definition at line 276 of file Amesos_Scalapack.h.

const Epetra_Comm& Amesos_Scalapack::Comm ( ) const

inlinevirtual

Returns a pointer to the Epetra_Comm communicator associated with this matrix.

Implements Amesos_BaseSolver.

Definition at line 279 of file Amesos_Scalapack.h.

int Amesos_Scalapack::SetParameters ( Teuchos::ParameterList & ParameterList )

virtual

Updates internal variables.

  <br \>Preconditions:<ul>
  <li>None.</li>
  </ul>

  <br \>Postconditions:<ul>
  <li>Internal variables controlling the factorization and solve will
  be updated and take effect on all subsequent calls to NumericFactorization()
  and Solve().</li>
  <li>All parameters whose value are to differ from the default values must

be included in ParameterList. Parameters not specified in ParameterList revert to their default values.

Returns: Integer error code, set to 0 if successful.

Implements Amesos_BaseSolver.

Definition at line 657 of file Amesos_Scalapack.cpp.

int Amesos_Scalapack::NumSymbolicFact ( ) const

inlinevirtual

Returns the number of symbolic factorizations performed by this object.

Implements Amesos_BaseSolver.

Definition at line 301 of file Amesos_Scalapack.h.

int Amesos_Scalapack::NumNumericFact ( ) const

inlinevirtual

Returns the number of numeric factorizations performed by this object.

Implements Amesos_BaseSolver.

Definition at line 304 of file Amesos_Scalapack.h.

int Amesos_Scalapack::NumSolve ( ) const

inlinevirtual

Returns the number of solves performed by this object.

Implements Amesos_BaseSolver.

Definition at line 307 of file Amesos_Scalapack.h.

void Amesos_Scalapack::PrintTiming ( ) const

virtual

Print timing information.

Implements Amesos_BaseSolver.

Definition at line 1015 of file Amesos_Scalapack.cpp.

void Amesos_Scalapack::PrintStatus ( ) const

virtual

Print information about the factorization and solution phases.

Implements Amesos_BaseSolver.

Definition at line 994 of file Amesos_Scalapack.cpp.

void Amesos_Scalapack::GetTiming ( Teuchos::ParameterList & TimingParameterList ) const

inlinevirtual

Extracts timing information from the current solver and places it in the parameter list.

Reimplemented from Amesos_BaseSolver.

Definition at line 316 of file Amesos_Scalapack.h.

int Amesos_Scalapack::RedistributeA ( )

private

Definition at line 124 of file Amesos_Scalapack.cpp.

int Amesos_Scalapack::ConvertToScalapack ( )

private

Definition at line 510 of file Amesos_Scalapack.cpp.

int Amesos_Scalapack::PerformNumericFactorization ( )

private

Definition at line 694 of file Amesos_Scalapack.cpp.

Member Data Documentation

int Amesos_Scalapack::iam_

protected

Definition at line 361 of file Amesos_Scalapack.h.

int Amesos_Scalapack::NumGlobalElements_

protected

Definition at line 363 of file Amesos_Scalapack.h.

int Amesos_Scalapack::NumGlobalNonzeros_

protected

Definition at line 364 of file Amesos_Scalapack.h.

int Amesos_Scalapack::nprow_

protected

Definition at line 369 of file Amesos_Scalapack.h.

int Amesos_Scalapack::npcol_

protected

Definition at line 370 of file Amesos_Scalapack.h.

int Amesos_Scalapack::ictxt_

protected

Definition at line 371 of file Amesos_Scalapack.h.

int Amesos_Scalapack::m_per_p_

protected

Definition at line 372 of file Amesos_Scalapack.h.

int Amesos_Scalapack::DescA_[10]

protected

Definition at line 373 of file Amesos_Scalapack.h.

Epetra_Map* Amesos_Scalapack::ScaLAPACK1DMap_

protected

Definition at line 375 of file Amesos_Scalapack.h.

Epetra_CrsMatrix* Amesos_Scalapack::ScaLAPACK1DMatrix_

protected

Definition at line 377 of file Amesos_Scalapack.h.

Epetra_Map* Amesos_Scalapack::VectorMap_

protected

Definition at line 379 of file Amesos_Scalapack.h.

std::vector<double> Amesos_Scalapack::DenseA_

protected

Definition at line 380 of file Amesos_Scalapack.h.

std::vector<int> Amesos_Scalapack::Ipiv_

protected

Definition at line 381 of file Amesos_Scalapack.h.

int Amesos_Scalapack::NumOurRows_

protected

Definition at line 382 of file Amesos_Scalapack.h.

int Amesos_Scalapack::NumOurColumns_

protected

Definition at line 383 of file Amesos_Scalapack.h.

bool Amesos_Scalapack::UseTranspose_

protected

Definition at line 386 of file Amesos_Scalapack.h.

const Epetra_LinearProblem* Amesos_Scalapack::Problem_

protected

Definition at line 387 of file Amesos_Scalapack.h.

double Amesos_Scalapack::ConTime_

protected

Definition at line 391 of file Amesos_Scalapack.h.

double Amesos_Scalapack::SymTime_

protected

Definition at line 392 of file Amesos_Scalapack.h.

double Amesos_Scalapack::NumTime_

protected

Definition at line 393 of file Amesos_Scalapack.h.

double Amesos_Scalapack::SolTime_

protected

Definition at line 394 of file Amesos_Scalapack.h.

double Amesos_Scalapack::VecTime_

protected

Definition at line 395 of file Amesos_Scalapack.h.

double Amesos_Scalapack::MatTime_

protected

Definition at line 396 of file Amesos_Scalapack.h.

bool Amesos_Scalapack::TwoD_distribution_

protected

Definition at line 401 of file Amesos_Scalapack.h.

int Amesos_Scalapack::grid_nb_

protected

Definition at line 402 of file Amesos_Scalapack.h.

int Amesos_Scalapack::mypcol_

protected

Definition at line 403 of file Amesos_Scalapack.h.

int Amesos_Scalapack::myprow_

protected

Definition at line 404 of file Amesos_Scalapack.h.

Epetra_CrsMatrix* Amesos_Scalapack::FatOut_

protected

Definition at line 405 of file Amesos_Scalapack.h.

int Amesos_Scalapack::nb_

protected

Definition at line 410 of file Amesos_Scalapack.h.

int Amesos_Scalapack::lda_

protected

Definition at line 411 of file Amesos_Scalapack.h.

Epetra_Time* Amesos_Scalapack::Time_

protected

Definition at line 413 of file Amesos_Scalapack.h.

The documentation for this class was generated from the following files:

Protected Attributes

Private Member Functions

Additional Inherited Members

Detailed Description

Common control parameters :

Limitations:

Constructor & Destructor Documentation

Member Function Documentation

Member Data Documentation
