Amesos_Mumps: An object-oriented wrapper for the double precision version of MUMPS. More...

#include <Amesos_Mumps.h>

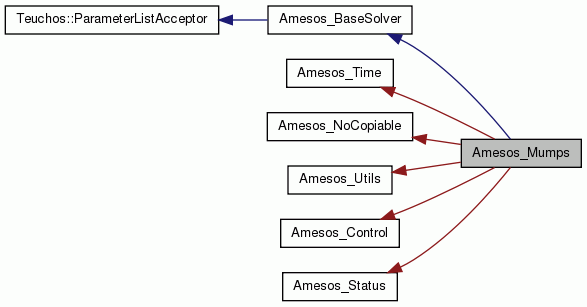

Inheritance diagram for Amesos_Mumps:

Public Member Functions
bool	MatrixShapeOK () const
	Returns true if the solver can handle this matrix shape. More...

const Epetra_Comm &	Comm () const
	Returns a pointer to the Epetra_Comm communicator associated with this matrix. More...

const Epetra_LinearProblem *	GetProblem () const
	Gets a pointer to the Epetra_LinearProblem. More...

Public Member Functions inherited from Amesos_BaseSolver
virtual	~Amesos_BaseSolver ()
	Destructor. More...

virtual void	setParameterList (Teuchos::RCP< Teuchos::ParameterList > const &paramList)
	Redefined from Teuchos::ParameterListAcceptor (Does Not Work) More...

virtual Teuchos::RCP < Teuchos::ParameterList >	getNonconstParameterList ()
	This is an empty stub. More...

virtual Teuchos::RCP < Teuchos::ParameterList >	unsetParameterList ()
	This is an empty stub. More...

Public Member Functions inherited from Teuchos::ParameterListAcceptor
virtual RCP< const ParameterList >	getParameterList () const

virtual RCP< const ParameterList >	getValidParameters () const

Protected Member Functions
Epetra_RowMatrix &	Matrix ()
	Returns a reference to the linear system matrix. More...

const Epetra_RowMatrix &	Matrix () const

Epetra_Map &	RedistrMap ()
	Returns a reference to the map for redistributed matrix. More...

Epetra_Import &	RedistrImporter ()
	Returns a reference for the redistributed importer. More...

Epetra_RowMatrix &	RedistrMatrix (const bool ImportMatrix=false)
	Returns a reference to the redistributed matrix, imports it is `ImportMatrix` is true. More...

Epetra_Map &	SerialMap ()
	Returns a reference to the map with all elements on process 0. More...

Epetra_Import &	SerialImporter ()
	Returns a reference to the importer for SerialMap(). More...

int	ConvertToTriplet (const bool OnlyValues)
	Converts to MUMPS format (COO format). More...

int	CheckError ()
	Checks for MUMPS error, prints them if any. See MUMPS' manual. More...

void	CheckParameters ()
	Check input parameters. More...

void	SetICNTLandCNTL ()

Protected Attributes
bool	IsConvertToTripletOK_
	`true` if matrix has already been converted to COO format More...

bool	IsComputeSchurComplementOK_
	`true` if the Schur complement has been computed (need to free memory) More...

bool	NoDestroy_

std::vector< int >	Row
	row indices of nonzero elements More...

std::vector< int >	Col
	column indices of nonzero elements More...

std::vector< double >	Val
	values of nonzero elements More...

int	MaxProcs_
	Maximum number of processors in the MUMPS' communicator. More...

bool	UseTranspose_
	If `true`, solve the problem with AT. More...

int	MtxConvTime_
	Quick access pointers to the internal timers. More...

int	MtxRedistTime_

int	VecRedistTime_

int	SymFactTime_

int	NumFactTime_

int	SolveTime_

double *	RowSca_
	Row and column scaling. More...

double *	ColSca_

int *	PermIn_
	PermIn for MUMPS. More...

int	NumSchurComplementRows_
	Number of rows in the Schur complement (if required) More...

int *	SchurComplementRows_
	Rows for the Schur complement (if required) More...

RCP< Epetra_CrsMatrix >	CrsSchurComplement_
	Pointer to the Schur complement, as CrsMatrix. More...

RCP< Epetra_SerialDenseMatrix >	DenseSchurComplement_
	Pointer to the Schur complement,as DenseMatrix. More...

const Epetra_LinearProblem *	Problem_
	Pointer to the linear problem to be solved. More...

RCP< Epetra_Map >	RedistrMap_
	Redistributed matrix. More...

RCP< Epetra_Import >	RedistrImporter_
	Redistributed importer (from Matrix().RowMatrixRowMap() to RedistrMatrix().RowMatrixRowMap()). More...

RCP< Epetra_CrsMatrix >	RedistrMatrix_
	Redistributed matrix (only if MaxProcs_ > 1). More...

RCP< Epetra_Map >	SerialMap_
	Map with all elements on process 0 (for solution and rhs). More...

RCP< Epetra_Import >	SerialImporter_
	Importer from Matrix.OperatorDomainMap() to SerialMap_. More...

DMUMPS_STRUC_C	MDS

std::map< int, int >	ICNTL

std::map< int, double >	CNTL

	Amesos_Mumps (const Epetra_LinearProblem &LinearProblem)
	Amesos_Mumps Constructor. More...

	~Amesos_Mumps (void)
	Amesos_Mumps Destructor. More...

int	SymbolicFactorization ()
	Performs SymbolicFactorization on the matrix A. More...

int	NumericFactorization ()
	Performs NumericFactorization on the matrix A. More...

int	Solve ()
	Solves A X = B (or A^T x = B) More...

void	Destroy ()
	Destroys all data associated with this object. More...

int	SetUseTranspose (bool UseTranspose_in)
	If set true, X will be set to the solution of A^T X = B (not A X = B) More...

bool	UseTranspose () const
	Returns the current UseTranspose setting. More...

int	SetParameters (Teuchos::ParameterList &ParameterList)
	Updates internal variables. More...

int	NumSymbolicFact () const
	Returns the number of symbolic factorizations performed by this object. More...

int	NumNumericFact () const
	Returns the number of numeric factorizations performed by this object. More...

int	NumSolve () const
	Returns the number of solves performed by this object. More...

void	PrintTiming () const
	Prints timing information. More...

void	PrintStatus () const
	Prints information about the factorization and solution phases. More...

void	GetTiming (Teuchos::ParameterList &TimingParameterList) const
	Extracts timing information from the current solver and places it in the parameter list. More...

int	SetPrecscaling (double ColSca, double RowSca)
	Set prescaling. More...

int	SetRowScaling (double *RowSca)
	Set row scaling. More...

int	SetColScaling (double *ColSca)
	Set column scaling. More...

int	SetOrdering (int *PermIn)
	Sets ordering. More...

double *	GetRINFO ()
	Gets the pointer to the RINFO array (defined on all processes). More...

int *	GetINFO ()
	Gets the pointer to the INFO array (defined on all processes). More...

double *	GetRINFOG ()
	Gets the pointer to the RINFOG array (defined on host only). More...

int *	GetINFOG ()
	Get the pointer to the INFOG array (defined on host only). More...

void	SetICNTL (int pos, int value)
	Set ICNTL[pos] to value. pos is expressed in FORTRAN style (starting from 1). More...

void	SetCNTL (int pos, double value)
	Set CNTL[pos] to value. pos is expressed in FORTRAN style (starting from 1). More...

Additional Inherited Members
Private Member Functions inherited from Amesos_Time
	Amesos_Time ()
	Default constructor to create `size` timers. More...

virtual	~Amesos_Time ()
	Default destructor. More...

void	CreateTimer (const Epetra_Comm &Comm, int size=1)
	Initializes the Time object. More...

void	ResetTimer (const int timerID=0)
	Resets the internally stored time object. More...

int	AddTime (const std::string what, int dataID, const int timerID=0)
	Adds to field `what` the time elapsed since last call to ResetTimer(). More...

double	GetTime (const std::string what) const
	Gets the cumulative time using the string. More...

double	GetTime (const int dataID) const
	Gets the cumulative time using the dataID. More...

void	GetTiming (Teuchos::ParameterList &list) const
	Load up the current timing information into the parameter list. More...

Private Member Functions inherited from Amesos_NoCopiable
	Amesos_NoCopiable ()
	Default constructor. More...

	~Amesos_NoCopiable ()
	Default destructor. More...

Private Member Functions inherited from Amesos_Utils
	Amesos_Utils ()
	Default constructor. More...

	~Amesos_Utils ()
	Default destructor. More...

void	ComputeTrueResidual (const Epetra_RowMatrix &Matrix, const Epetra_MultiVector &X, const Epetra_MultiVector &B, const bool UseTranspose, const std::string prefix) const
	Computes the true residual, B - Matrix * X, and prints the results. More...

void	ComputeVectorNorms (const Epetra_MultiVector &X, const Epetra_MultiVector &B, const std::string prefix) const
	Computes the norms of X and B and print the results. More...

void	PrintLine () const
	Prints line on std::cout. More...

void	SetMaxProcesses (int &MaxProcesses, const Epetra_RowMatrix &A)

Private Member Functions inherited from Amesos_Control
	Amesos_Control ()
	Default constructor. More...

	~Amesos_Control ()
	Default destructor. More...

void	SetControlParameters (const Teuchos::ParameterList &ParameterList)

Private Member Functions inherited from Amesos_Status
	Amesos_Status ()
	Default constructor. More...

	~Amesos_Status ()
	Default destructor. More...

void	SetStatusParameters (const Teuchos::ParameterList &ParameterList)

Private Attributes inherited from Amesos_Control
double	AddToDiag_
	Add `this` value to the diagonal. More...

bool	refactorize_

double	rcond_threshold_
	If error is greater than `this` value, perform symbolic and numeric factorization with full partial pivoting. More...

int	ScaleMethod_

bool	AddZeroToDiag_
	Adds zero to diagonal of redistributed matrix (some solvers choke on a matrix with a partly empty diag) More...

int	MatrixProperty_
	Set the matrix property. More...

int	MaxProcesses_

bool	Reindex_
	If true, the Amesos class should reindex the matrix to standard indexing (i.e. More...

Private Attributes inherited from Amesos_Status
bool	IsSymbolicFactorizationOK_
	If `true`, SymbolicFactorization() has been successfully called. More...

bool	IsNumericFactorizationOK_
	If `true`, NumericFactorization() has been successfully called. More...

bool	PrintTiming_
	If `true`, prints timing information in the destructor. More...

bool	PrintStatus_
	If `true`, print additional information in the destructor. More...

bool	ComputeVectorNorms_
	If `true`, prints the norms of X and B in Solve(). More...

bool	ComputeTrueResidual_
	If `true`, computes the true residual in Solve(). More...

int	verbose_
	Toggles the output level. More...

int	debug_
	Sets the level of debug_ output. More...

int	NumSymbolicFact_
	Number of symbolic factorization phases. More...

int	NumNumericFact_
	Number of numeric factorization phases. More...

int	NumSolve_
	Number of solves. More...

double	Threshold_

int	MyPID_

int	NumProcs_

Detailed Description

Amesos_Mumps: An object-oriented wrapper for the double precision version of MUMPS.

Amesos_Mumps is an interface to the the double precision version of the sparse parallel direct solver MUMPS. Given an Epetra_RowMatrix A, and two Epetra_MultiVectors X and B, the solution with Amesos_Mumps reads as follows:

Epetra_LinearProblem Problem; Amesos_BaseSolver * Solver; Amesos Amesos_Factory;
Solver = Amesos_Factory.Create("Amesos_Mumps", Problem);
if( Solver == 0 ) std::cerr << "library not available" << std::endl;
Problem.SetMatrix(&A);
Solver->SymbolicFactorization();
Solver->NumericFactorization();
Problem.SetLHS(&X);
Problem.SetLHS(&B);
Solver->Solve();

A number of parameters is available to tune the performances of MUMPS. We refer to the Amesos Reference Guide for a detailed overview of these parameters. Here, we just recall that it is possible to solve the linear system on a subset of the processes contained in the Comm object of the Epetra_LinearProblem.

Amesos_Mumps accepts any Epetra_RowMatrix derived class. However, special functions are available for Epetra_CrsMatrix and Epetra_VbrMatrix objects.

As Amesos is based on Epetra, and Epetra is only double-precision, we still require an Epetra_LinearProblem composed by a double-precision matrix, and two double-precision vectors. The solution vector is casted to double after solution. Single precision may be of interest if Amesos is used with ML, to solve the coarse problem (for which single-precision can be enough in term of numerical error, and usually save memory and CPU time).

Amesos_Mumps is based on Amesos_EpetraBaseSolver, that is derived from Amesos_BaseSolver. The main redistribution utilities, as well as a getrow function, is obtained by EpetraBaseSolver.

Warning: This interface is compatible with MUMPS 4.5.4.

Date: Last modified 26-Jan-06

Author: Marzio Sala, ETHZ.

Definition at line 118 of file Amesos_Mumps.h.

Constructor & Destructor Documentation

Amesos_Mumps::Amesos_Mumps ( const Epetra_LinearProblem & LinearProblem )

Amesos_Mumps Constructor.

Creates an Amesos_Mumps instance, using an Epetra_LinearProblem,

Definition at line 51 of file Amesos_Mumps.cpp.

Amesos_Mumps::~Amesos_Mumps ( void )

Amesos_Mumps Destructor.

Deletes an Amesos_Mumps object.

Definition at line 165 of file Amesos_Mumps.cpp.

Member Function Documentation

int Amesos_Mumps::SymbolicFactorization ( )

virtual

Performs SymbolicFactorization on the matrix A.

In addition to performing symbolic factorization on the matrix A, the call to SymbolicFactorization() implies that no change will be made to the non-zero structure of the underlying matrix without a subsequent call to SymbolicFactorization().

Preconditions:

GetProblem().GetOperator() != 0 (return -1)
MatrixShapeOk(GetProblem().GetOperator()) == true (return -6)

Postconditions:

Symbolic Factorization will be performed (or marked to be performed) allowing NumericFactorization() and Solve() to be called.

Returns: Integer error code, set to 0 if successful.

Implements Amesos_BaseSolver.

Definition at line 415 of file Amesos_Mumps.cpp.

int Amesos_Mumps::NumericFactorization ( )

virtual

Performs NumericFactorization on the matrix A.

In addition to performing numeric factorization on the matrix A, the call to NumericFactorization() implies that no change will be made to the underlying matrix without a subsequent call to NumericFactorization().

Preconditions:

GetProblem().GetOperator() != 0 (return -1)
MatrixShapeOk(GetProblem().GetOperator()) == true (return -6)
The non-zero structure of the matrix should not have changed since the last call to SymbolicFactorization(). (return -2 if the number of non-zeros changes) Other changes can have arbitrary consequences.
The distribution of the matrix should not have changed since the last call to SymbolicFactorization()
The matrix should be indexed from 0 to n-1, unless the parameter "Reindex" was set to "true" prior to the call to SymbolicFactorization(). (return -3 - if caught)
The paremeter "Reindex" should not be set to "true" except on CrsMatrices. (return -4)
The paremeter "Reindex" should not be set to "true" unless Amesos was built with EpetraExt, i.e. with –enable-epetraext on the configure line. (return -4)
Internal errors retur -5.

Postconditions:

Numeric Factorization will be performed (or marked to be performed) allowing Solve() to be performed correctly despite a potential change in in the matrix values (though not in the non-zero structure).

Returns: Integer error code, set to 0 if successful.

Implements Amesos_BaseSolver.

Definition at line 574 of file Amesos_Mumps.cpp.

int Amesos_Mumps::Solve ( )

virtual

Solves A X = B (or A^T x = B)

Preconditions:

GetProblem().GetOperator() != 0 (return -1)
MatrixShapeOk(GetProblem().GetOperator()) == true (return -6)
GetProblem()->CheckInput (see Epetra_LinearProblem::CheckInput() for return values)
The non-zero structure of the matrix should not have changed since the last call to SymbolicFactorization().
The distribution of the matrix should not have changed since the last call to SymbolicFactorization()
The matrix should not have changed since the last call to NumericFactorization().

Postconditions:

X will be set such that A X = B (or A^T X = B), within the limits of the accuracy of the underlying solver.

Returns: Integer error code, set to 0 if successful.

Implements Amesos_BaseSolver.

Definition at line 620 of file Amesos_Mumps.cpp.

void Amesos_Mumps::Destroy ( )

Destroys all data associated with this object.

Definition at line 134 of file Amesos_Mumps.cpp.

int Amesos_Mumps::SetUseTranspose ( bool UseTranspose )

inlinevirtual

If set true, X will be set to the solution of A^T X = B (not A X = B)

If the implementation of this interface does not support transpose use, this method should return a value of -1.

Preconditions:

SetUseTranspose() should be called prior to the call to SymbolicFactorization() If NumericFactorization() or Solve() is called after SetUseTranspose() without an intervening call to SymbolicFactorization() the result is implementation dependent.

Postconditions:

The next factorization and solve will be performed with the new value of UseTranspose.

Parameters

UseTranspose – (In) If true, solve A^T X = B, otherwise solve A X = B.

Returns: Integer error code, set to 0 if successful. Set to -1 if this implementation does not support transpose.

Implements Amesos_BaseSolver.

Definition at line 151 of file Amesos_Mumps.h.

bool Amesos_Mumps::UseTranspose ( ) const

inlinevirtual

Returns the current UseTranspose setting.

Implements Amesos_BaseSolver.

Definition at line 159 of file Amesos_Mumps.h.

int Amesos_Mumps::SetParameters ( Teuchos::ParameterList & ParameterList )

virtual

Updates internal variables.

  <br \>Preconditions:<ul>
  <li>None.</li>
  </ul>

  <br \>Postconditions:<ul>
  <li>Internal variables controlling the factorization and solve will
  be updated and take effect on all subseuent calls to NumericFactorization()
  and Solve().</li>
  <li>All parameters whose value are to differ from the default values must

be included in ParameterList. Parameters not specified in ParameterList revert to their default values.

Returns: Integer error code, set to 0 if successful.

Implements Amesos_BaseSolver.

Definition at line 299 of file Amesos_Mumps.cpp.

int Amesos_Mumps::NumSymbolicFact ( ) const

inlinevirtual

Returns the number of symbolic factorizations performed by this object.

Implements Amesos_BaseSolver.

Definition at line 168 of file Amesos_Mumps.h.

int Amesos_Mumps::NumNumericFact ( ) const

inlinevirtual

Returns the number of numeric factorizations performed by this object.

Implements Amesos_BaseSolver.

Definition at line 171 of file Amesos_Mumps.h.

int Amesos_Mumps::NumSolve ( ) const

inlinevirtual

Returns the number of solves performed by this object.

Implements Amesos_BaseSolver.

Definition at line 174 of file Amesos_Mumps.h.

void Amesos_Mumps::PrintTiming ( ) const

virtual

Prints timing information.

In the destruction phase, prints out detailed information about the various phases: symbolic and numeric factorization, solution, gather/scatter for vectors and matrices.

Implements Amesos_BaseSolver.

Definition at line 843 of file Amesos_Mumps.cpp.

void Amesos_Mumps::PrintStatus ( ) const

virtual

Prints information about the factorization and solution phases.

In the destruction phase, prints out some information furnished by MUMPS, like the amount of required memory, the MFLOPS.

Implements Amesos_BaseSolver.

Definition at line 767 of file Amesos_Mumps.cpp.

void Amesos_Mumps::GetTiming ( Teuchos::ParameterList & TimingParameterList ) const

inlinevirtual

Extracts timing information from the current solver and places it in the parameter list.

Reimplemented from Amesos_BaseSolver.

Definition at line 194 of file Amesos_Mumps.h.

int Amesos_Mumps::SetPrecscaling	(	double *	ColSca,
		double *	RowSca
	)

inline

Set prescaling.

Use double precision vectors of size N (global dimension of the matrix) as scaling for columns and rows. ColSca and RowSca must be defined on the host only, and allocated by the user, if the user sets ICNTL(8) = -1.

Both input vectors are float with –enable-amesos-smumps, double otherwise.

Definition at line 239 of file Amesos_Mumps.h.

int Amesos_Mumps::SetRowScaling ( double * RowSca )

inline

Set row scaling.

Use double precision vectors of size N (global dimension of the matrix) for row scaling.

Parameters

RowSca (In) -float pointer with –enable-amesos-smumps, double pointer otherwise.

Definition at line 252 of file Amesos_Mumps.h.

int Amesos_Mumps::SetColScaling ( double * ColSca )

inline

Set column scaling.

Use double precision vectors of size N (global dimension of the matrix) for column scaling.

Parameters

ColSca (In) - float pointer with –enable-amesos-smumps, double pointer otherwise.

Definition at line 264 of file Amesos_Mumps.h.

int Amesos_Mumps::SetOrdering ( int * PermIn )

inline

Sets ordering.

Use integer vectors of size N (global dimension of the matrix) as given ordering. PermIn must be defined on the host only, and allocated by the user, if the user sets ICNTL(7) = 1.

Definition at line 275 of file Amesos_Mumps.h.

double * Amesos_Mumps::GetRINFO ( )

Gets the pointer to the RINFO array (defined on all processes).

Gets the pointer to the internally stored RINFO array, of type float if option –enable-amesos-smumps is enabled, double otherwise.

Definition at line 975 of file Amesos_Mumps.cpp.

int * Amesos_Mumps::GetINFO ( )

Gets the pointer to the INFO array (defined on all processes).

Gets the pointer to the internally stored INFO array, of type int.

Definition at line 981 of file Amesos_Mumps.cpp.

double * Amesos_Mumps::GetRINFOG ( )

Gets the pointer to the RINFOG array (defined on host only).

Gets the pointer to the internally stored RINFOG array (defined on the host process only), of type float if option –enable-amesos-smumps is enabled, double otherwise.

Definition at line 987 of file Amesos_Mumps.cpp.

int * Amesos_Mumps::GetINFOG ( )

Get the pointer to the INFOG array (defined on host only).

Gets the pointer to the internally stored INFOG (defined on the host process only) array, of type int.

Definition at line 993 of file Amesos_Mumps.cpp.

void Amesos_Mumps::SetICNTL	(	int	pos,
		int	value
	)

Set ICNTL[pos] to value. pos is expressed in FORTRAN style (starting from 1).

Definition at line 241 of file Amesos_Mumps.cpp.

void Amesos_Mumps::SetCNTL	(	int	pos,
		double	value
	)

Set CNTL[pos] to value. pos is expressed in FORTRAN style (starting from 1).

Definition at line 248 of file Amesos_Mumps.cpp.

bool Amesos_Mumps::MatrixShapeOK ( ) const

inlinevirtual

Returns true if the solver can handle this matrix shape.

Returns true if the matrix shape is one that the underlying sparse direct solver can handle. Classes that work only on square matrices should return false for rectangular matrices. Classes that work only on symmetric matrices whould return false for non-symmetric matrices.

Implements Amesos_BaseSolver.

Definition at line 314 of file Amesos_Mumps.h.

const Epetra_Comm& Amesos_Mumps::Comm ( ) const

inlinevirtual

Returns a pointer to the Epetra_Comm communicator associated with this matrix.

Implements Amesos_BaseSolver.

Definition at line 325 of file Amesos_Mumps.h.

const Epetra_LinearProblem* Amesos_Mumps::GetProblem ( ) const

inlinevirtual

Gets a pointer to the Epetra_LinearProblem.

Implements Amesos_BaseSolver.

Definition at line 328 of file Amesos_Mumps.h.

Epetra_RowMatrix & Amesos_Mumps::Matrix ( )

protected

Returns a reference to the linear system matrix.

Definition at line 885 of file Amesos_Mumps.cpp.

const Epetra_RowMatrix & Amesos_Mumps::Matrix ( ) const

protected

Definition at line 893 of file Amesos_Mumps.cpp.

Epetra_Map & Amesos_Mumps::RedistrMap ( )

protected

Returns a reference to the map for redistributed matrix.

Definition at line 901 of file Amesos_Mumps.cpp.

Epetra_Import & Amesos_Mumps::RedistrImporter ( )

protected

Returns a reference for the redistributed importer.

Definition at line 919 of file Amesos_Mumps.cpp.

Epetra_RowMatrix & Amesos_Mumps::RedistrMatrix ( const bool ImportMatrix = false )

protected

Returns a reference to the redistributed matrix, imports it is ImportMatrix is true.

Definition at line 931 of file Amesos_Mumps.cpp.

Epetra_Map & Amesos_Mumps::SerialMap ( )

protected

Returns a reference to the map with all elements on process 0.

Definition at line 952 of file Amesos_Mumps.cpp.

Epetra_Import & Amesos_Mumps::SerialImporter ( )

protected

Returns a reference to the importer for SerialMap().

Definition at line 965 of file Amesos_Mumps.cpp.

int Amesos_Mumps::ConvertToTriplet ( const bool OnlyValues )

protected

Converts to MUMPS format (COO format).

Definition at line 171 of file Amesos_Mumps.cpp.

int Amesos_Mumps::CheckError ( )

protected

Checks for MUMPS error, prints them if any. See MUMPS' manual.

Definition at line 814 of file Amesos_Mumps.cpp.

void Amesos_Mumps::CheckParameters ( )

protected

Check input parameters.

Definition at line 372 of file Amesos_Mumps.cpp.

void Amesos_Mumps::SetICNTLandCNTL ( )

protected

Definition at line 254 of file Amesos_Mumps.cpp.

Member Data Documentation

bool Amesos_Mumps::IsConvertToTripletOK_

protected

true if matrix has already been converted to COO format

Definition at line 364 of file Amesos_Mumps.h.

bool Amesos_Mumps::IsComputeSchurComplementOK_

protected

true if the Schur complement has been computed (need to free memory)

Definition at line 366 of file Amesos_Mumps.h.

bool Amesos_Mumps::NoDestroy_

protected

Definition at line 369 of file Amesos_Mumps.h.

std::vector<int> Amesos_Mumps::Row

protected

row indices of nonzero elements

Definition at line 372 of file Amesos_Mumps.h.

std::vector<int> Amesos_Mumps::Col

protected

column indices of nonzero elements

Definition at line 374 of file Amesos_Mumps.h.

std::vector<double> Amesos_Mumps::Val

protected

values of nonzero elements

Definition at line 376 of file Amesos_Mumps.h.

int Amesos_Mumps::MaxProcs_

protected

Maximum number of processors in the MUMPS' communicator.

Definition at line 379 of file Amesos_Mumps.h.

bool Amesos_Mumps::UseTranspose_

protected

If true, solve the problem with AT.

Definition at line 382 of file Amesos_Mumps.h.

int Amesos_Mumps::MtxConvTime_

protected

Quick access pointers to the internal timers.

Definition at line 385 of file Amesos_Mumps.h.

int Amesos_Mumps::MtxRedistTime_

protected

Definition at line 385 of file Amesos_Mumps.h.

int Amesos_Mumps::VecRedistTime_

protected

Definition at line 385 of file Amesos_Mumps.h.

int Amesos_Mumps::SymFactTime_

protected

Definition at line 386 of file Amesos_Mumps.h.

int Amesos_Mumps::NumFactTime_

protected

Definition at line 386 of file Amesos_Mumps.h.

int Amesos_Mumps::SolveTime_

protected

Definition at line 386 of file Amesos_Mumps.h.

double* Amesos_Mumps::RowSca_

protected

Row and column scaling.

Definition at line 389 of file Amesos_Mumps.h.

double * Amesos_Mumps::ColSca_

protected

Definition at line 389 of file Amesos_Mumps.h.

int* Amesos_Mumps::PermIn_

protected

PermIn for MUMPS.

Definition at line 392 of file Amesos_Mumps.h.

int Amesos_Mumps::NumSchurComplementRows_

protected

Number of rows in the Schur complement (if required)

Definition at line 395 of file Amesos_Mumps.h.

int* Amesos_Mumps::SchurComplementRows_

protected

Rows for the Schur complement (if required)

Definition at line 397 of file Amesos_Mumps.h.

RCP<Epetra_CrsMatrix> Amesos_Mumps::CrsSchurComplement_

protected

Pointer to the Schur complement, as CrsMatrix.

Definition at line 400 of file Amesos_Mumps.h.

RCP<Epetra_SerialDenseMatrix> Amesos_Mumps::DenseSchurComplement_

protected

Pointer to the Schur complement,as DenseMatrix.

Definition at line 402 of file Amesos_Mumps.h.

const Epetra_LinearProblem* Amesos_Mumps::Problem_

protected

Pointer to the linear problem to be solved.

Definition at line 410 of file Amesos_Mumps.h.

RCP<Epetra_Map> Amesos_Mumps::RedistrMap_

protected

Redistributed matrix.

Definition at line 413 of file Amesos_Mumps.h.

RCP<Epetra_Import> Amesos_Mumps::RedistrImporter_

protected

Redistributed importer (from Matrix().RowMatrixRowMap() to RedistrMatrix().RowMatrixRowMap()).

Definition at line 415 of file Amesos_Mumps.h.

RCP<Epetra_CrsMatrix> Amesos_Mumps::RedistrMatrix_

protected

Redistributed matrix (only if MaxProcs_ > 1).

Definition at line 417 of file Amesos_Mumps.h.

RCP<Epetra_Map> Amesos_Mumps::SerialMap_

protected

Map with all elements on process 0 (for solution and rhs).

Definition at line 419 of file Amesos_Mumps.h.

RCP<Epetra_Import> Amesos_Mumps::SerialImporter_

protected

Importer from Matrix.OperatorDomainMap() to SerialMap_.

Definition at line 421 of file Amesos_Mumps.h.

DMUMPS_STRUC_C Amesos_Mumps::MDS

protected

Definition at line 423 of file Amesos_Mumps.h.

std::map<int, int> Amesos_Mumps::ICNTL

protected

Definition at line 425 of file Amesos_Mumps.h.

std::map<int, double> Amesos_Mumps::CNTL

protected

Definition at line 426 of file Amesos_Mumps.h.

The documentation for this class was generated from the following files:

Public Member Functions

Protected Member Functions

Protected Attributes

Additional Inherited Members

Detailed Description

Constructor & Destructor Documentation

Member Function Documentation

Member Data Documentation
