Amesos_Lapack: an interface to LAPACK. More...

#include <Amesos_Lapack.h>

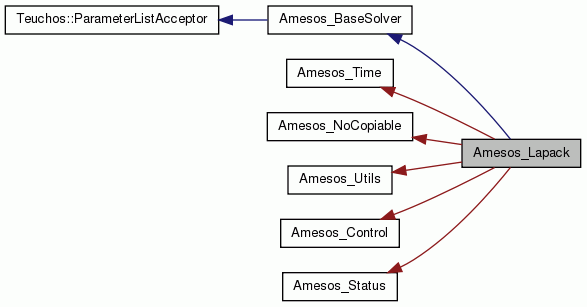

Inheritance diagram for Amesos_Lapack:

Protected Member Functions
const Epetra_RowMatrix *	Matrix () const
	Returns a pointer to the linear system matrix. More...

int	NumGlobalRows () const
	Returns the number of global rows, or -1 if Matrix() returns 0. More...

long long	NumGlobalRows64 () const

int	NumMyRows () const
	Returns the number of local rows, or -1 if Matrix() returns 0. More...

const Epetra_Map &	SerialMap ()
	Returns a reference to serial map (that with all elements on process 0). More...

Epetra_RowMatrix &	SerialMatrix ()
	Returns a reference to serial matrix (that with all rows on process 0). More...

Epetra_CrsMatrix &	SerialCrsMatrix ()

const Epetra_Import &	MatrixImporter ()
	Returns a reference to the matrix importer (from row map to serial map). More...

const Epetra_Export &	RhsExporter ()
	Returns a reference to the rhs exporter (from range map to serial map). More...

const Epetra_Import &	SolutionImporter ()
	Returns a reference to the solution importer (to domain map from serial map). More...

int	SolveSerial (Epetra_MultiVector &X, const Epetra_MultiVector &B)
	Solves the linear system, when only one process is used. More...

int	SolveDistributed (Epetra_MultiVector &X, const Epetra_MultiVector &B)
	Solves the linear system, when more than one process is used. More...

int	DistributedToSerial ()
	Converts a distributed matrix to serial matrix. More...

int	SerialToDense ()
	Converts a serial matrix to dense format. More...

int	DenseToFactored ()
	Factors the matrix using LAPACK. More...

Protected Attributes
Teuchos::RCP < Teuchos::ParameterList >	pl_

Teuchos::RCP< Epetra_RowMatrix >	SerialMatrix_

Teuchos::RCP< Epetra_CrsMatrix >	SerialCrsMatrix_

Teuchos::RCP< Epetra_Map >	SerialMap_

Teuchos::RCP< Epetra_Import >	MatrixImporter_

Teuchos::RCP< Epetra_Export >	RhsExporter_

Teuchos::RCP< Epetra_Import >	SolutionImporter_

Epetra_SerialDenseMatrix	DenseMatrix_
	Dense matrix. More...

Epetra_SerialDenseMatrix	DenseLHS_
	Dense LHS. More...

Epetra_SerialDenseMatrix	DenseRHS_
	Dense RHS. More...

Epetra_SerialDenseSolver	DenseSolver_
	Linear problem for dense matrix and vectors. More...

bool	UseTranspose_
	If `true`, the linear system with the transpose will be solved. More...

const Epetra_LinearProblem *	Problem_
	Pointer to the linear problem. More...

int	MtxRedistTime_
	Quick access ids for the individual timings. More...

int	MtxConvTime_

int	VecRedistTime_

int	SymFactTime_

int	NumFactTime_

int	SolveTime_

long long	NumGlobalRows_

long long	NumGlobalNonzeros_

Teuchos::RCP < Teuchos::ParameterList >	ParameterList_

	Amesos_Lapack (const Epetra_LinearProblem &LinearProblem)
	Amesos_Lapack Constructor. More...

	~Amesos_Lapack (void)
	Amesos_Lapack Destructor. More...

int	SymbolicFactorization ()
	Performs SymbolicFactorization on the matrix A. More...

int	NumericFactorization ()
	Performs NumericFactorization on the matrix A. More...

int	Solve ()
	Solves A X = B (or A^T x = B) More...

const Epetra_LinearProblem *	GetProblem () const
	Returns the Epetra_LinearProblem. More...

bool	MatrixShapeOK () const
	Returns true if the solver can handle this matrix shape. More...

int	SetUseTranspose (bool UseTranspose_in)
	If set true, X will be set to the solution of A^T X = B (not A X = B) More...

bool	UseTranspose () const
	Returns the current UseTranspose setting. More...

const Epetra_Comm &	Comm () const
	Returns a pointer to the Epetra_Comm communicator associated with this operator. More...

void	setParameterList (Teuchos::RCP< Teuchos::ParameterList > const &paramList)
	Use this parameter list to read values from. More...

Teuchos::RCP < Teuchos::ParameterList >	unsetParameterList ()
	This is an empty stub. More...

int	SetParameters (Teuchos::ParameterList &ParameterList)
	Deprecated - Sets parameters. More...

int	GEEV (Epetra_Vector &Er, Epetra_Vector &Ei)
	Computes the eigenvalues of the linear system matrix using DGEEV. More...

int	NumSymbolicFact () const
	Returns the number of symbolic factorizations performed by this object. More...

int	NumNumericFact () const
	Returns the number of numeric factorizations performed by this object. More...

int	NumSolve () const
	Returns the number of solves performed by this object. More...

void	PrintTiming () const
	Print timing information. More...

void	PrintStatus () const
	Print information about the factorization and solution phases. More...

void	GetTiming (Teuchos::ParameterList &TimingParameterList) const
	Extracts timing information from the current solver and places it in the parameter list. More...

Additional Inherited Members
Public Member Functions inherited from Amesos_BaseSolver
virtual	~Amesos_BaseSolver ()
	Destructor. More...

virtual Teuchos::RCP < Teuchos::ParameterList >	getNonconstParameterList ()
	This is an empty stub. More...

Public Member Functions inherited from Teuchos::ParameterListAcceptor
virtual RCP< const ParameterList >	getParameterList () const

virtual RCP< const ParameterList >	getValidParameters () const

Private Member Functions inherited from Amesos_Time
	Amesos_Time ()
	Default constructor to create `size` timers. More...

virtual	~Amesos_Time ()
	Default destructor. More...

void	CreateTimer (const Epetra_Comm &Comm, int size=1)
	Initializes the Time object. More...

void	ResetTimer (const int timerID=0)
	Resets the internally stored time object. More...

int	AddTime (const std::string what, int dataID, const int timerID=0)
	Adds to field `what` the time elapsed since last call to ResetTimer(). More...

double	GetTime (const std::string what) const
	Gets the cumulative time using the string. More...

double	GetTime (const int dataID) const
	Gets the cumulative time using the dataID. More...

void	GetTiming (Teuchos::ParameterList &list) const
	Load up the current timing information into the parameter list. More...

Private Member Functions inherited from Amesos_NoCopiable
	Amesos_NoCopiable ()
	Default constructor. More...

	~Amesos_NoCopiable ()
	Default destructor. More...

Private Member Functions inherited from Amesos_Utils
	Amesos_Utils ()
	Default constructor. More...

	~Amesos_Utils ()
	Default destructor. More...

void	ComputeTrueResidual (const Epetra_RowMatrix &Matrix, const Epetra_MultiVector &X, const Epetra_MultiVector &B, const bool UseTranspose, const std::string prefix) const
	Computes the true residual, B - Matrix * X, and prints the results. More...

void	ComputeVectorNorms (const Epetra_MultiVector &X, const Epetra_MultiVector &B, const std::string prefix) const
	Computes the norms of X and B and print the results. More...

void	PrintLine () const
	Prints line on std::cout. More...

void	SetMaxProcesses (int &MaxProcesses, const Epetra_RowMatrix &A)

Private Member Functions inherited from Amesos_Control
	Amesos_Control ()
	Default constructor. More...

	~Amesos_Control ()
	Default destructor. More...

void	SetControlParameters (const Teuchos::ParameterList &ParameterList)

Private Member Functions inherited from Amesos_Status
	Amesos_Status ()
	Default constructor. More...

	~Amesos_Status ()
	Default destructor. More...

void	SetStatusParameters (const Teuchos::ParameterList &ParameterList)

Private Attributes inherited from Amesos_Control
double	AddToDiag_
	Add `this` value to the diagonal. More...

bool	refactorize_

double	rcond_threshold_
	If error is greater than `this` value, perform symbolic and numeric factorization with full partial pivoting. More...

int	ScaleMethod_

bool	AddZeroToDiag_
	Adds zero to diagonal of redistributed matrix (some solvers choke on a matrix with a partly empty diag) More...

int	MatrixProperty_
	Set the matrix property. More...

int	MaxProcesses_

bool	Reindex_
	If true, the Amesos class should reindex the matrix to standard indexing (i.e. More...

Private Attributes inherited from Amesos_Status
bool	IsSymbolicFactorizationOK_
	If `true`, SymbolicFactorization() has been successfully called. More...

bool	IsNumericFactorizationOK_
	If `true`, NumericFactorization() has been successfully called. More...

bool	PrintTiming_
	If `true`, prints timing information in the destructor. More...

bool	PrintStatus_
	If `true`, print additional information in the destructor. More...

bool	ComputeVectorNorms_
	If `true`, prints the norms of X and B in Solve(). More...

bool	ComputeTrueResidual_
	If `true`, computes the true residual in Solve(). More...

int	verbose_
	Toggles the output level. More...

int	debug_
	Sets the level of debug_ output. More...

int	NumSymbolicFact_
	Number of symbolic factorization phases. More...

int	NumNumericFact_
	Number of numeric factorization phases. More...

int	NumSolve_
	Number of solves. More...

double	Threshold_

int	MyPID_

int	NumProcs_

Detailed Description

Amesos_Lapack: an interface to LAPACK.

Class Amesos_Lapack enables the solution of the distributed linear system, defined by an Epetra_LinearProblem, using LAPACK.

Amesos_Lapack stores the lineaar system matrix as an Epetra_SerialDensMatrix. The linear problem is an Epetra_SerialDenseProblem. Amesos_Lapack factorizes the matrix using DGETRF().

Date: Last updated on 16-Mar-05.

Author: Marzio Sala, 9214.

Definition at line 71 of file Amesos_Lapack.h.

Constructor & Destructor Documentation

Amesos_Lapack::Amesos_Lapack ( const Epetra_LinearProblem & LinearProblem )

Amesos_Lapack Constructor.

Creates an Amesos_Lapack instance, using an Epetra_LinearProblem, passing in an already-defined Epetra_LinearProblem object.

Note: The operator in LinearProblem must be an Epetra_RowMatrix.

Definition at line 39 of file Amesos_Lapack.cpp.

Amesos_Lapack::~Amesos_Lapack ( void )

Amesos_Lapack Destructor.

Completely deletes an Amesos_Lapack object.

Definition at line 74 of file Amesos_Lapack.cpp.

Member Function Documentation

int Amesos_Lapack::SymbolicFactorization ( )

virtual

Performs SymbolicFactorization on the matrix A.

In addition to performing symbolic factorization on the matrix A, the call to SymbolicFactorization() implies that no change will be made to the non-zero structure of the underlying matrix without a subsequent call to SymbolicFactorization().

Preconditions:

GetProblem().GetOperator() != 0 (return -1)
MatrixShapeOk(GetProblem().GetOperator()) == true (return -6)

Postconditions:

Symbolic Factorization will be performed (or marked to be performed) allowing NumericFactorization() and Solve() to be called.

Returns: Integer error code, set to 0 if successful.

Implements Amesos_BaseSolver.

Definition at line 127 of file Amesos_Lapack.cpp.

int Amesos_Lapack::NumericFactorization ( )

virtual

Performs NumericFactorization on the matrix A.

In addition to performing numeric factorization on the matrix A, the call to NumericFactorization() implies that no change will be made to the underlying matrix without a subsequent call to NumericFactorization().

Preconditions:

GetProblem().GetOperator() != 0 (return -1)
MatrixShapeOk(GetProblem().GetOperator()) == true (return -6)
The non-zero structure of the matrix should not have changed since the last call to SymbolicFactorization(). (return -2 if the number of non-zeros changes) Other changes can have arbitrary consequences.
The distribution of the matrix should not have changed since the last call to SymbolicFactorization()
The matrix should be indexed from 0 to n-1, unless the parameter "Reindex" was set to "true" prior to the call to SymbolicFactorization(). (return -3 - if caught)
The paremeter "Reindex" should not be set to "true" except on CrsMatrices. (return -4)
The paremeter "Reindex" should not be set to "true" unless Amesos was built with EpetraExt, i.e. with –enable-epetraext on the configure line. (return -4)
Internal errors retur -5.

Postconditions:

Numeric Factorization will be performed (or marked to be performed) allowing Solve() to be performed correctly despite a potential change in in the matrix values (though not in the non-zero structure).

Returns: Integer error code, set to 0 if successful.

Implements Amesos_BaseSolver.

Definition at line 183 of file Amesos_Lapack.cpp.

int Amesos_Lapack::Solve ( )

virtual

Solves A X = B (or A^T x = B)

Preconditions:

GetProblem().GetOperator() != 0 (return -1)
MatrixShapeOk(GetProblem().GetOperator()) == true (return -6)
GetProblem()->CheckInput (see Epetra_LinearProblem::CheckInput() for return values)
The non-zero structure of the matrix should not have changed since the last call to SymbolicFactorization().
The distribution of the matrix should not have changed since the last call to SymbolicFactorization()
The matrix should not have changed since the last call to NumericFactorization().

Postconditions:

X will be set such that A X = B (or A^T X = B), within the limits of the accuracy of the underlying solver.

Returns: Integer error code, set to 0 if successful.

Implements Amesos_BaseSolver.

Definition at line 206 of file Amesos_Lapack.cpp.

const Epetra_LinearProblem* Amesos_Lapack::GetProblem ( ) const

inlinevirtual

Returns the Epetra_LinearProblem.

Warning! Do not call return->SetOperator(...) to attempt to change the Epetra_Operator object (even if the new matrix has the same structure). This new operator matrix will be ignored!

Implements Amesos_BaseSolver.

Definition at line 108 of file Amesos_Lapack.h.

bool Amesos_Lapack::MatrixShapeOK ( ) const

virtual

Returns true if the solver can handle this matrix shape.

Returns true if the matrix shape is one that the underlying sparse direct solver can handle. Classes that work only on square matrices should return false for rectangular matrices. Classes that work only on symmetric matrices whould return false for non-symmetric matrices.

Implements Amesos_BaseSolver.

Definition at line 104 of file Amesos_Lapack.cpp.

int Amesos_Lapack::SetUseTranspose ( bool UseTranspose )

inlinevirtual

If set true, X will be set to the solution of A^T X = B (not A X = B)

If the implementation of this interface does not support transpose use, this method should return a value of -1.

Preconditions:

SetUseTranspose() should be called prior to the call to SymbolicFactorization() If NumericFactorization() or Solve() is called after SetUseTranspose() without an intervening call to SymbolicFactorization() the result is implementation dependent.

Postconditions:

The next factorization and solve will be performed with the new value of UseTranspose.

Parameters

UseTranspose – (In) If true, solve A^T X = B, otherwise solve A X = B.

Returns: Integer error code, set to 0 if successful. Set to -1 if this implementation does not support transpose.

Implements Amesos_BaseSolver.

Definition at line 112 of file Amesos_Lapack.h.

bool Amesos_Lapack::UseTranspose ( ) const

inlinevirtual

Returns the current UseTranspose setting.

Implements Amesos_BaseSolver.

Definition at line 117 of file Amesos_Lapack.h.

const Epetra_Comm& Amesos_Lapack::Comm ( ) const

inlinevirtual

Returns a pointer to the Epetra_Comm communicator associated with this operator.

Implements Amesos_BaseSolver.

Definition at line 119 of file Amesos_Lapack.h.

void Amesos_Lapack::setParameterList ( Teuchos::RCP< Teuchos::ParameterList > const & paramList )

virtual

Use this parameter list to read values from.

Redefined from Teuchos::ParameterListAcceptor

Reimplemented from Amesos_BaseSolver.

Definition at line 60 of file Amesos_Lapack.cpp.

Teuchos::RCP< Teuchos::ParameterList > Amesos_Lapack::unsetParameterList ( )

virtual

This is an empty stub.

Reimplemented from Amesos_BaseSolver.

Definition at line 53 of file Amesos_Lapack.cpp.

int Amesos_Lapack::SetParameters ( Teuchos::ParameterList & ParameterList )

virtual

Deprecated - Sets parameters.

Implements Amesos_BaseSolver.

Definition at line 85 of file Amesos_Lapack.cpp.

int Amesos_Lapack::GEEV	(	Epetra_Vector &	Er,
		Epetra_Vector &	Ei
	)

Computes the eigenvalues of the linear system matrix using DGEEV.

Parameters

Er	- (Out) On processor zero only, it will contain the real component of the eigenvalues.
Ei	- (Out) On processor zero only, it will contain the imaginary component of the eigenvalues.

Note: Er and Ei must have been allocated so that the local length on processor 0 equals the global size of the matrix.

Definition at line 372 of file Amesos_Lapack.cpp.

int Amesos_Lapack::NumSymbolicFact ( ) const

inlinevirtual

Returns the number of symbolic factorizations performed by this object.

Implements Amesos_BaseSolver.

Definition at line 148 of file Amesos_Lapack.h.

int Amesos_Lapack::NumNumericFact ( ) const

inlinevirtual

Returns the number of numeric factorizations performed by this object.

Implements Amesos_BaseSolver.

Definition at line 151 of file Amesos_Lapack.h.

int Amesos_Lapack::NumSolve ( ) const

inlinevirtual

Returns the number of solves performed by this object.

Implements Amesos_BaseSolver.

Definition at line 154 of file Amesos_Lapack.h.

void Amesos_Lapack::PrintTiming ( ) const

virtual

Print timing information.

Implements Amesos_BaseSolver.

Definition at line 488 of file Amesos_Lapack.cpp.

void Amesos_Lapack::PrintStatus ( ) const

virtual

Print information about the factorization and solution phases.

Implements Amesos_BaseSolver.

Definition at line 460 of file Amesos_Lapack.cpp.

void Amesos_Lapack::GetTiming ( Teuchos::ParameterList & TimingParameterList ) const

inlinevirtual

Extracts timing information from the current solver and places it in the parameter list.

Reimplemented from Amesos_BaseSolver.

Definition at line 163 of file Amesos_Lapack.h.

const Epetra_RowMatrix* Amesos_Lapack::Matrix ( ) const

inlineprotected

Returns a pointer to the linear system matrix.

Definition at line 170 of file Amesos_Lapack.h.

int Amesos_Lapack::NumGlobalRows ( ) const

inlineprotected

Returns the number of global rows, or -1 if Matrix() returns 0.

Definition at line 177 of file Amesos_Lapack.h.

long long Amesos_Lapack::NumGlobalRows64 ( ) const

inlineprotected

Definition at line 183 of file Amesos_Lapack.h.

int Amesos_Lapack::NumMyRows ( ) const

inlineprotected

Returns the number of local rows, or -1 if Matrix() returns 0.

Definition at line 189 of file Amesos_Lapack.h.

const Epetra_Map& Amesos_Lapack::SerialMap ( )

inlineprotected

Returns a reference to serial map (that with all elements on process 0).

Definition at line 195 of file Amesos_Lapack.h.

Epetra_RowMatrix& Amesos_Lapack::SerialMatrix ( )

inlineprotected

Returns a reference to serial matrix (that with all rows on process 0).

Definition at line 201 of file Amesos_Lapack.h.

Epetra_CrsMatrix& Amesos_Lapack::SerialCrsMatrix ( )

inlineprotected

Definition at line 206 of file Amesos_Lapack.h.

const Epetra_Import& Amesos_Lapack::MatrixImporter ( )

inlineprotected

Returns a reference to the matrix importer (from row map to serial map).

Definition at line 212 of file Amesos_Lapack.h.

const Epetra_Export& Amesos_Lapack::RhsExporter ( )

inlineprotected

Returns a reference to the rhs exporter (from range map to serial map).

Definition at line 218 of file Amesos_Lapack.h.

const Epetra_Import& Amesos_Lapack::SolutionImporter ( )

inlineprotected

Returns a reference to the solution importer (to domain map from serial map).

Definition at line 224 of file Amesos_Lapack.h.

int Amesos_Lapack::SolveSerial	(	Epetra_MultiVector &	X,
		const Epetra_MultiVector &	B
	)

protected

Solves the linear system, when only one process is used.

Definition at line 230 of file Amesos_Lapack.cpp.

int Amesos_Lapack::SolveDistributed	(	Epetra_MultiVector &	X,
		const Epetra_MultiVector &	B
	)

protected

Solves the linear system, when more than one process is used.

Definition at line 259 of file Amesos_Lapack.cpp.

int Amesos_Lapack::DistributedToSerial ( )

protected

Converts a distributed matrix to serial matrix.

Definition at line 352 of file Amesos_Lapack.cpp.

int Amesos_Lapack::SerialToDense ( )

protected

Converts a serial matrix to dense format.

Definition at line 304 of file Amesos_Lapack.cpp.

int Amesos_Lapack::DenseToFactored ( )

protected

Factors the matrix using LAPACK.

Definition at line 445 of file Amesos_Lapack.cpp.

Member Data Documentation

Teuchos::RCP<Teuchos::ParameterList> Amesos_Lapack::pl_

protected

Definition at line 229 of file Amesos_Lapack.h.

Teuchos::RCP<Epetra_RowMatrix> Amesos_Lapack::SerialMatrix_

protected

Definition at line 248 of file Amesos_Lapack.h.

Teuchos::RCP<Epetra_CrsMatrix> Amesos_Lapack::SerialCrsMatrix_

protected

Definition at line 249 of file Amesos_Lapack.h.

Teuchos::RCP<Epetra_Map> Amesos_Lapack::SerialMap_

protected

Definition at line 250 of file Amesos_Lapack.h.

Teuchos::RCP<Epetra_Import> Amesos_Lapack::MatrixImporter_

protected

Definition at line 251 of file Amesos_Lapack.h.

Teuchos::RCP<Epetra_Export> Amesos_Lapack::RhsExporter_

protected

Definition at line 252 of file Amesos_Lapack.h.

Teuchos::RCP<Epetra_Import> Amesos_Lapack::SolutionImporter_

protected

Definition at line 253 of file Amesos_Lapack.h.

Epetra_SerialDenseMatrix Amesos_Lapack::DenseMatrix_

protected

Dense matrix.

Definition at line 256 of file Amesos_Lapack.h.

Epetra_SerialDenseMatrix Amesos_Lapack::DenseLHS_

protected

Dense LHS.

Definition at line 258 of file Amesos_Lapack.h.

Epetra_SerialDenseMatrix Amesos_Lapack::DenseRHS_

protected

Dense RHS.

Definition at line 260 of file Amesos_Lapack.h.

Epetra_SerialDenseSolver Amesos_Lapack::DenseSolver_

protected

Linear problem for dense matrix and vectors.

Definition at line 262 of file Amesos_Lapack.h.

bool Amesos_Lapack::UseTranspose_

protected

If true, the linear system with the transpose will be solved.

Definition at line 265 of file Amesos_Lapack.h.

const Epetra_LinearProblem* Amesos_Lapack::Problem_

protected

Pointer to the linear problem.

Definition at line 267 of file Amesos_Lapack.h.

int Amesos_Lapack::MtxRedistTime_

protected

Quick access ids for the individual timings.

Definition at line 270 of file Amesos_Lapack.h.

int Amesos_Lapack::MtxConvTime_

protected

Definition at line 270 of file Amesos_Lapack.h.

int Amesos_Lapack::VecRedistTime_

protected

Definition at line 270 of file Amesos_Lapack.h.

int Amesos_Lapack::SymFactTime_

protected

Definition at line 270 of file Amesos_Lapack.h.

int Amesos_Lapack::NumFactTime_

protected

Definition at line 270 of file Amesos_Lapack.h.

int Amesos_Lapack::SolveTime_

protected

Definition at line 270 of file Amesos_Lapack.h.

long long Amesos_Lapack::NumGlobalRows_

protected

Definition at line 272 of file Amesos_Lapack.h.

long long Amesos_Lapack::NumGlobalNonzeros_

protected

Definition at line 273 of file Amesos_Lapack.h.

Teuchos::RCP<Teuchos::ParameterList> Amesos_Lapack::ParameterList_

protected

Definition at line 275 of file Amesos_Lapack.h.

The documentation for this class was generated from the following files:

Protected Member Functions

Protected Attributes

Additional Inherited Members

Detailed Description

Constructor & Destructor Documentation

Member Function Documentation

Member Data Documentation
