#include <stddef.h>
#include "amesos_UFconfig.h"

Include dependency graph for amesos_camd.h:

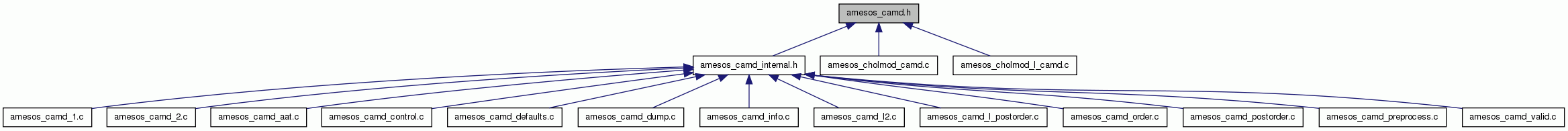

This graph shows which files directly or indirectly include this file:

Macros
#define	EXTERN extern

#define	CAMD_CONTROL 5 /* size of Control array */

#define	CAMD_INFO 20 /* size of Info array */

#define	CAMD_DENSE 0 /* "dense" if degree > Control [0] * sqrt (n) */

#define	CAMD_AGGRESSIVE 1 /* do aggressive absorption if Control [1] != 0 */

#define	CAMD_DEFAULT_DENSE 10.0 /* default "dense" degree 10sqrt(n) /

#define	CAMD_DEFAULT_AGGRESSIVE 1 /* do aggressive absorption by default */

#define	CAMD_STATUS 0 /* return value of camd_order and camd_l_order */

#define	CAMD_N 1 /* A is n-by-n */

#define	CAMD_NZ 2 /* number of nonzeros in A */

#define	CAMD_SYMMETRY 3 /* symmetry of pattern (1 is sym., 0 is unsym.) */

#define	CAMD_NZDIAG 4 /* # of entries on diagonal */

#define	CAMD_NZ_A_PLUS_AT 5 /* nz in A+A' */

#define	CAMD_NDENSE 6 /* number of "dense" rows/columns in A */

#define	CAMD_MEMORY 7 /* amount of memory used by CAMD */

#define	CAMD_NCMPA 8 /* number of garbage collections in CAMD */

#define	CAMD_LNZ 9 /* approx. nz in L, excluding the diagonal */

#define	CAMD_NDIV 10 /* number of fl. point divides for LU and LDL' */

#define	CAMD_NMULTSUBS_LDL 11 /* number of fl. point (,-) pairs for LDL' /

#define	CAMD_NMULTSUBS_LU 12 /* number of fl. point (,-) pairs for LU /

#define	CAMD_DMAX 13 /* max nz. in any column of L, incl. diagonal */

#define	CAMD_OK 0 /* success */

#define	CAMD_OUT_OF_MEMORY -1 /* malloc failed, or problem too large */

#define	CAMD_INVALID -2 /* input arguments are not valid */

#define	CAMD_OK_BUT_JUMBLED

#define	CAMD_DATE "May 31, 2007"

#define	CAMD_VERSION_CODE(main, sub) ((main) * 1000 + (sub))

#define	CAMD_MAIN_VERSION 2

#define	CAMD_SUB_VERSION 2

#define	CAMD_SUBSUB_VERSION 0

#define	CAMD_VERSION CAMD_VERSION_CODE(CAMD_MAIN_VERSION,CAMD_SUB_VERSION)

Functions
int	amesos_camd_order (int n, const int Ap[], const int Ai[], int P[], double Control[], double Info[], const int C[])

UF_long	amesos_camd_l_order (UF_long n, const UF_long Ap[], const UF_long Ai[], UF_long P[], double Control[], double Info[], const UF_long C[])

void	amesos_camd_2 (int n, int Pe[], int Iw[], int Len[], int iwlen, int pfree, int Nv[], int Next[], int Last[], int Head[], int Elen[], int Degree[], int W[], double Control[], double Info[], const int C[], int BucketSet[])

void	amesos_camd_l2 (UF_long n, UF_long Pe[], UF_long Iw[], UF_long Len[], UF_long iwlen, UF_long pfree, UF_long Nv[], UF_long Next[], UF_long Last[], UF_long Head[], UF_long Elen[], UF_long Degree[], UF_long W[], double Control[], double Info[], const UF_long C[], UF_long BucketSet[])

int	amesos_camd_valid (int n_row, int n_col, const int Ap[], const int Ai[])

UF_long	amesos_camd_l_valid (UF_long n_row, UF_long n_col, const UF_long Ap[], const UF_long Ai[])

int	amesos_camd_cvalid (int n, const int C[])

UF_long	amesos_camd_l_cvalid (UF_long n, const UF_long C[])

void	amesos_camd_defaults (double Control[])

void	amesos_camd_l_defaults (double Control[])

void	amesos_camd_control (double Control[])

void	amesos_camd_l_control (double Control[])

void	amesos_camd_info (double Info[])

void	amesos_camd_l_info (double Info[])

Variables
EXTERN void (	amesos_camd_malloc )(size_t)

EXTERN void(*	amesos_camd_free )(void *)

EXTERN void (	amesos_camd_realloc )(void *, size_t)

EXTERN void (	amesos_camd_calloc )(size_t, size_t)

EXTERN int(*	amesos_camd_printf )(const char *,...)

Macro Definition Documentation

#define EXTERN extern

Definition at line 326 of file amesos_camd.h.

#define CAMD_CONTROL 5 /* size of Control array */

Definition at line 351 of file amesos_camd.h.

#define CAMD_INFO 20 /* size of Info array */

Definition at line 352 of file amesos_camd.h.

#define CAMD_DENSE 0 /* "dense" if degree > Control [0] * sqrt (n) */

Definition at line 355 of file amesos_camd.h.

#define CAMD_AGGRESSIVE 1 /* do aggressive absorption if Control [1] != 0 */

Definition at line 356 of file amesos_camd.h.

#define CAMD_DEFAULT_DENSE 10.0 /* default "dense" degree 10*sqrt(n) */

Definition at line 359 of file amesos_camd.h.

#define CAMD_DEFAULT_AGGRESSIVE 1 /* do aggressive absorption by default */

Definition at line 360 of file amesos_camd.h.

#define CAMD_STATUS 0 /* return value of camd_order and camd_l_order */

Definition at line 363 of file amesos_camd.h.

#define CAMD_N 1 /* A is n-by-n */

Definition at line 364 of file amesos_camd.h.

#define CAMD_NZ 2 /* number of nonzeros in A */

Definition at line 365 of file amesos_camd.h.

#define CAMD_SYMMETRY 3 /* symmetry of pattern (1 is sym., 0 is unsym.) */

Definition at line 366 of file amesos_camd.h.

#define CAMD_NZDIAG 4 /* # of entries on diagonal */

Definition at line 367 of file amesos_camd.h.

#define CAMD_NZ_A_PLUS_AT 5 /* nz in A+A' */

Definition at line 368 of file amesos_camd.h.

#define CAMD_NDENSE 6 /* number of "dense" rows/columns in A */

Definition at line 369 of file amesos_camd.h.

#define CAMD_MEMORY 7 /* amount of memory used by CAMD */

Definition at line 370 of file amesos_camd.h.

#define CAMD_NCMPA 8 /* number of garbage collections in CAMD */

Definition at line 371 of file amesos_camd.h.

#define CAMD_LNZ 9 /* approx. nz in L, excluding the diagonal */

Definition at line 372 of file amesos_camd.h.

#define CAMD_NDIV 10 /* number of fl. point divides for LU and LDL' */

Definition at line 373 of file amesos_camd.h.

#define CAMD_NMULTSUBS_LDL 11 /* number of fl. point (*,-) pairs for LDL' */

Definition at line 374 of file amesos_camd.h.

#define CAMD_NMULTSUBS_LU 12 /* number of fl. point (*,-) pairs for LU */

Definition at line 375 of file amesos_camd.h.

#define CAMD_DMAX 13 /* max nz. in any column of L, incl. diagonal */

Definition at line 376 of file amesos_camd.h.

#define CAMD_OK 0 /* success */

Definition at line 382 of file amesos_camd.h.

#define CAMD_OUT_OF_MEMORY -1 /* malloc failed, or problem too large */

Definition at line 383 of file amesos_camd.h.

#define CAMD_INVALID -2 /* input arguments are not valid */

Definition at line 384 of file amesos_camd.h.

#define CAMD_OK_BUT_JUMBLED

Value:

1 /* input matrix is OK for camd_order, but
    * columns were not sorted, and/or duplicate entries were present.  CAMD had
    * to do extra work before ordering the matrix.  This is a warning, not an
    * error.  */

Definition at line 385 of file amesos_camd.h.

#define CAMD_DATE "May 31, 2007"

Definition at line 408 of file amesos_camd.h.

#define CAMD_VERSION_CODE	(	main,
		sub
	)	((main) * 1000 + (sub))

Definition at line 409 of file amesos_camd.h.

#define CAMD_MAIN_VERSION 2

Definition at line 410 of file amesos_camd.h.

#define CAMD_SUB_VERSION 2

Definition at line 411 of file amesos_camd.h.

#define CAMD_SUBSUB_VERSION 0

Definition at line 412 of file amesos_camd.h.

#define CAMD_VERSION CAMD_VERSION_CODE(CAMD_MAIN_VERSION,CAMD_SUB_VERSION)

Definition at line 413 of file amesos_camd.h.

Function Documentation

int amesos_camd_order	(	int	n,
		const int	Ap[],
		const int	Ai[],
		int	P[],
		double	Control[],
		double	Info[],
		const int	C[]
	)

UF_long amesos_camd_l_order	(	UF_long	n,
		const UF_long	Ap[],
		const UF_long	Ai[],
		UF_long	P[],
		double	Control[],
		double	Info[],
		const UF_long	C[]
	)

void amesos_camd_2	(	int	n,
		int	Pe[],
		int	Iw[],
		int	Len[],
		int	iwlen,
		int	pfree,
		int	Nv[],
		int	Next[],
		int	Last[],
		int	Head[],
		int	Elen[],
		int	Degree[],
		int	W[],
		double	Control[],
		double	Info[],
		const int	C[],
		int	BucketSet[]
	)

void amesos_camd_l2	(	UF_long	n,
		UF_long	Pe[],
		UF_long	Iw[],
		UF_long	Len[],
		UF_long	iwlen,
		UF_long	pfree,
		UF_long	Nv[],
		UF_long	Next[],
		UF_long	Last[],
		UF_long	Head[],
		UF_long	Elen[],
		UF_long	Degree[],
		UF_long	W[],
		double	Control[],
		double	Info[],
		const UF_long	C[],
		UF_long	BucketSet[]
	)

int amesos_camd_valid	(	int	n_row,
		int	n_col,
		const int	Ap[],
		const int	Ai[]
	)

UF_long amesos_camd_l_valid	(	UF_long	n_row,
		UF_long	n_col,
		const UF_long	Ap[],
		const UF_long	Ai[]
	)

int amesos_camd_cvalid	(	int	n,
		const int	C[]
	)

UF_long amesos_camd_l_cvalid	(	UF_long	n,
		const UF_long	C[]
	)

void amesos_camd_defaults ( double Control[] )

void amesos_camd_l_defaults ( double Control[] )

void amesos_camd_control ( double Control[] )

void amesos_camd_l_control ( double Control[] )

void amesos_camd_info ( double Info[] )

void amesos_camd_l_info ( double Info[] )

Variable Documentation

EXTERN void*(* amesos_camd_malloc)(size_t)

Definition at line 329 of file amesos_camd.h.

EXTERN void(* amesos_camd_free)(void *)

Definition at line 330 of file amesos_camd.h.

EXTERN void*(* amesos_camd_realloc)(void *, size_t)

Definition at line 331 of file amesos_camd.h.

EXTERN void*(* amesos_camd_calloc)(size_t, size_t)

Definition at line 332 of file amesos_camd.h.

EXTERN int(* amesos_camd_printf)(const char *,...)

Definition at line 333 of file amesos_camd.h.
