#include <Xpetra_TpetraOperator.hpp>

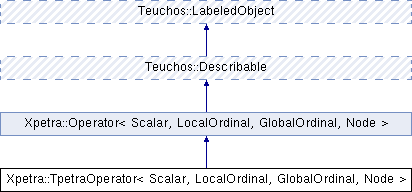

Inheritance diagram for Xpetra::TpetraOperator< Scalar, LocalOrdinal, GlobalOrdinal, Node >:

Private Attributes
RCP< Tpetra::Operator< Scalar, LocalOrdinal, GlobalOrdinal, Node > >	op_
	The Tpetra::Operator which this class wraps. More...

virtual Teuchos::RCP< const Map< LocalOrdinal, GlobalOrdinal, Node > >	getDomainMap () const
	The Map associated with the domain of this operator, which must be compatible with X.getMap(). More...

virtual Teuchos::RCP< const Map< LocalOrdinal, GlobalOrdinal, Node > >	getRangeMap () const
	The Map associated with the range of this operator, which must be compatible with Y.getMap(). More...

virtual void	apply (const MultiVector< Scalar, LocalOrdinal, GlobalOrdinal, Node > &X, MultiVector< Scalar, LocalOrdinal, GlobalOrdinal, Node > &Y, Teuchos::ETransp mode=Teuchos::NO_TRANS, Scalar alpha=Teuchos::ScalarTraits< Scalar >::one(), Scalar beta=Teuchos::ScalarTraits< Scalar >::zero()) const
	Computes the operator-multivector application. More...

virtual bool	hasTransposeApply () const
	Whether this operator supports applying the transpose or conjugate transpose. More...

Overridden from Teuchos::Describable
std::string	description () const
	A simple one-line description of this object. More...

void	describe (Teuchos::FancyOStream &out, const Teuchos::EVerbosityLevel verbLevel=Teuchos::Describable::verbLevel_default) const
	Print the object with the given verbosity level to a FancyOStream. More...

Xpetra specific
	TpetraOperator (const Teuchos::RCP< Tpetra::Operator< Scalar, LocalOrdinal, GlobalOrdinal, Node > > &op)
	TpetraOperator constructor to wrap a Tpetra::Operator object. More...

RCP< Tpetra::Operator< Scalar, LocalOrdinal, GlobalOrdinal, Node > >	getOperator ()
	Gets the operator out. More...

Additional Inherited Members
Public Types inherited from Xpetra::Operator< Scalar, LocalOrdinal, GlobalOrdinal, Node >
typedef Scalar	scalar_type
	The type of the entries of the input and output multivectors. More...

typedef LocalOrdinal	local_ordinal_type
	The local index type. More...

typedef GlobalOrdinal	global_ordinal_type
	The global index type. More...

typedef Node	node_type
	The Kokkos Node type. More...

Public Member Functions inherited from Xpetra::Operator< Scalar, LocalOrdinal, GlobalOrdinal, Node >
virtual	~Operator ()

virtual void	removeEmptyProcessesInPlace (const RCP< const Map > &)

virtual void	apply (const MultiVector &X, MultiVector &Y, Teuchos::ETransp mode=Teuchos::NO_TRANS, Scalar alpha=Teuchos::ScalarTraits< Scalar >::one(), Scalar beta=Teuchos::ScalarTraits< Scalar >::zero()) const =0
	Computes the operator-multivector application. More...

Public Member Functions inherited from Teuchos::Describable
void	describe (std::ostream &out, const EVerbosityLevel verbLevel=verbLevel_default) const

virtual	~Describable ()

	LabeledObject ()

virtual	~LabeledObject ()

virtual void	setObjectLabel (const std::string &objectLabel)

virtual std::string	getObjectLabel () const

DescribableStreamManipulatorState	describe (const Describable &describable, const EVerbosityLevel verbLevel=Describable::verbLevel_default)

std::ostream &	operator<< (std::ostream &os, const DescribableStreamManipulatorState &d)

Static Public Attributes inherited from Teuchos::Describable
static const EVerbosityLevel	verbLevel_default

Detailed Description

template<class Scalar, class LocalOrdinal, class GlobalOrdinal, class Node = KokkosClassic::DefaultNode::DefaultNodeType>
class Xpetra::TpetraOperator< Scalar, LocalOrdinal, GlobalOrdinal, Node >

Definition at line 67 of file Xpetra_TpetraOperator.hpp.

Constructor & Destructor Documentation

template<class Scalar , class LocalOrdinal , class GlobalOrdinal , class Node = KokkosClassic::DefaultNode::DefaultNodeType>

Xpetra::TpetraOperator< Scalar, LocalOrdinal, GlobalOrdinal, Node >::TpetraOperator ( const Teuchos::RCP< Tpetra::Operator< Scalar, LocalOrdinal, GlobalOrdinal, Node > > & op )

inline

TpetraOperator constructor to wrap a Tpetra::Operator object.

Definition at line 122 of file Xpetra_TpetraOperator.hpp.

Member Function Documentation

template<class Scalar , class LocalOrdinal , class GlobalOrdinal , class Node = KokkosClassic::DefaultNode::DefaultNodeType>

virtual Teuchos::RCP<const Map<LocalOrdinal,GlobalOrdinal,Node> > Xpetra::TpetraOperator< Scalar, LocalOrdinal, GlobalOrdinal, Node >::getDomainMap ( ) const

inlinevirtual

The Map associated with the domain of this operator, which must be compatible with X.getMap().

Implements Xpetra::Operator< Scalar, LocalOrdinal, GlobalOrdinal, Node >.

Definition at line 72 of file Xpetra_TpetraOperator.hpp.

template<class Scalar , class LocalOrdinal , class GlobalOrdinal , class Node = KokkosClassic::DefaultNode::DefaultNodeType>

virtual Teuchos::RCP<const Map<LocalOrdinal,GlobalOrdinal,Node> > Xpetra::TpetraOperator< Scalar, LocalOrdinal, GlobalOrdinal, Node >::getRangeMap ( ) const

inlinevirtual

The Map associated with the range of this operator, which must be compatible with Y.getMap().

Implements Xpetra::Operator< Scalar, LocalOrdinal, GlobalOrdinal, Node >.

Definition at line 78 of file Xpetra_TpetraOperator.hpp.

template<class Scalar , class LocalOrdinal , class GlobalOrdinal , class Node = KokkosClassic::DefaultNode::DefaultNodeType>

virtual void Xpetra::TpetraOperator< Scalar, LocalOrdinal, GlobalOrdinal, Node >::apply	(	const MultiVector< Scalar, LocalOrdinal, GlobalOrdinal, Node > &	X,
		MultiVector< Scalar, LocalOrdinal, GlobalOrdinal, Node > &	Y,
		Teuchos::ETransp	mode = `Teuchos::NO_TRANS`,
		Scalar	alpha = `Teuchos::ScalarTraits<Scalar>::one()`,
		Scalar	beta = `Teuchos::ScalarTraits<Scalar>::zero()`
	)		const

inlinevirtual

Computes the operator-multivector application.

Loosely, performs $Y = \alpha \cdot A^{\textrm{mode}} \cdot X + \beta \cdot Y$ . However, the details of operation vary according to the values of alpha and beta. Specifically

if beta == 0, apply() must overwrite Y, so that any values in Y (including NaNs) are ignored.
if alpha == 0, apply() may short-circuit the operator, so that any values in X (including NaNs) are ignored.

Definition at line 90 of file Xpetra_TpetraOperator.hpp.

template<class Scalar , class LocalOrdinal , class GlobalOrdinal , class Node = KokkosClassic::DefaultNode::DefaultNodeType>

virtual bool Xpetra::TpetraOperator< Scalar, LocalOrdinal, GlobalOrdinal, Node >::hasTransposeApply ( ) const

inlinevirtual

Whether this operator supports applying the transpose or conjugate transpose.

Reimplemented from Xpetra::Operator< Scalar, LocalOrdinal, GlobalOrdinal, Node >.

Definition at line 99 of file Xpetra_TpetraOperator.hpp.

template<class Scalar , class LocalOrdinal , class GlobalOrdinal , class Node = KokkosClassic::DefaultNode::DefaultNodeType>

std::string Xpetra::TpetraOperator< Scalar, LocalOrdinal, GlobalOrdinal, Node >::description ( ) const

inlinevirtual

A simple one-line description of this object.

Reimplemented from Teuchos::Describable.

Definition at line 109 of file Xpetra_TpetraOperator.hpp.

template<class Scalar , class LocalOrdinal , class GlobalOrdinal , class Node = KokkosClassic::DefaultNode::DefaultNodeType>

void Xpetra::TpetraOperator< Scalar, LocalOrdinal, GlobalOrdinal, Node >::describe	(	Teuchos::FancyOStream &	out,
		const Teuchos::EVerbosityLevel	verbLevel = `Teuchos::Describable::verbLevel_default`
	)		const

inlinevirtual

Print the object with the given verbosity level to a FancyOStream.

Reimplemented from Teuchos::Describable.

Definition at line 112 of file Xpetra_TpetraOperator.hpp.

template<class Scalar , class LocalOrdinal , class GlobalOrdinal , class Node = KokkosClassic::DefaultNode::DefaultNodeType>

RCP<Tpetra::Operator< Scalar, LocalOrdinal, GlobalOrdinal, Node> > Xpetra::TpetraOperator< Scalar, LocalOrdinal, GlobalOrdinal, Node >::getOperator ( )

inline

Gets the operator out.

Definition at line 125 of file Xpetra_TpetraOperator.hpp.

Member Data Documentation

template<class Scalar , class LocalOrdinal , class GlobalOrdinal , class Node = KokkosClassic::DefaultNode::DefaultNodeType>

RCP< Tpetra::Operator< Scalar, LocalOrdinal, GlobalOrdinal, Node> > Xpetra::TpetraOperator< Scalar, LocalOrdinal, GlobalOrdinal, Node >::op_

private

The Tpetra::Operator which this class wraps.

Definition at line 131 of file Xpetra_TpetraOperator.hpp.

The documentation for this class was generated from the following file:

Xpetra_TpetraOperator.hpp
