Class that stores a strided map. More...
#include <Xpetra_StridedMap_fwd.hpp>
Public Types | |
| typedef LocalOrdinal | local_ordinal_type |
| typedef GlobalOrdinal | global_ordinal_type |
| typedef Node | node_type |
 Public Types inherited from Xpetra::Map< LocalOrdinal, GlobalOrdinal, Node > | |
| typedef LocalOrdinal | local_ordinal_type |
| typedef GlobalOrdinal | global_ordinal_type |
| typedef Node | node_type |
Public Member Functions | |
| bool | isCompatible (const Map &map) const |
| Returns true if map is compatible with this Map. More... | |
| bool | isSameAs (const Map &map) const |
| Returns true if map is identical to this Map. More... | |
| Teuchos::RCP< const Teuchos::Comm< int > > | getComm () const |
| Get the Comm object for this Map. More... | |
| RCP< const Map > | removeEmptyProcesses () const |
| Return a new Map with processes with zero elements removed. More... | |
| RCP< const Map > | replaceCommWithSubset (const Teuchos::RCP< const Teuchos::Comm< int >> &newComm) const |
| std::string | description () const |
| Return a simple one-line description of this object. More... | |
| void | describe (Teuchos::FancyOStream &out, const Teuchos::EVerbosityLevel verbLevel=Teuchos::Describable::verbLevel_default) const |
| Print the object with some verbosity level to a FancyOStream object. More... | |
| UnderlyingLib | lib () const |
| Get the library used by this object (Tpetra or Epetra?) More... | |
| Public Member Functions inherited from Xpetra::Map< LocalOrdinal, GlobalOrdinal, Node > | |
| virtual | ~Map () |
| Destructor. More... | |
| virtual RCP< const Map < LocalOrdinal, GlobalOrdinal, Node > > | replaceCommWithSubset (const Teuchos::RCP< const Teuchos::Comm< int > > &newComm) const =0 |
| Replace this Map's communicator with a subset communicator. More... | |
| Public Member Functions inherited from Teuchos::Describable | |
| void | describe (std::ostream &out, const EVerbosityLevel verbLevel=verbLevel_default) const |
| virtual | ~Describable () |
| LabeledObject () | |
| virtual | ~LabeledObject () |
| virtual void | setObjectLabel (const std::string &objectLabel) |
| virtual std::string | getObjectLabel () const |
| DescribableStreamManipulatorState | describe (const Describable &describable, const EVerbosityLevel verbLevel=Describable::verbLevel_default) |
| std::ostream & | operator<< (std::ostream &os, const DescribableStreamManipulatorState &d) |
Private Member Functions | |
| virtual bool | CheckConsistency () |
Private Attributes | |
| RCP< const Xpetra::Map < LocalOrdinal, GlobalOrdinal, Node > > | map_ |
| std::vector< size_t > | stridingInfo_ |
| vector with size of strided blocks (dofs) More... | |
| LocalOrdinal | stridedBlockId_ |
| member variable denoting which dofs are stored in map More... | |
| GlobalOrdinal | offset_ |
| offset for gids in map (default = 0) More... | |
| GlobalOrdinal | indexBase_ |
| index base for the strided map (default = 0) More... | |
Constructor/Destructor Methods | |
| StridedMap (UnderlyingLib xlib, global_size_t numGlobalElements, GlobalOrdinal indexBase, std::vector< size_t > &stridingInfo, const Teuchos::RCP< const Teuchos::Comm< int >> &comm, LocalOrdinal stridedBlockId=-1, GlobalOrdinal offset=0, LocalGlobal lg=GloballyDistributed) | |
| Map constructor with contiguous uniform distribution. More... | |
| StridedMap (UnderlyingLib xlib, global_size_t numGlobalElements, size_t numLocalElements, GlobalOrdinal indexBase, std::vector< size_t > &stridingInfo, const Teuchos::RCP< const Teuchos::Comm< int >> &comm, LocalOrdinal stridedBlockId=-1, GlobalOrdinal offset=0) | |
| Map constructor with a user-defined contiguous distribution. More... | |
| StridedMap (UnderlyingLib xlib, global_size_t numGlobalElements, const Teuchos::ArrayView< const GlobalOrdinal > &elementList, GlobalOrdinal indexBase, std::vector< size_t > &stridingInfo, const Teuchos::RCP< const Teuchos::Comm< int >> &comm, LocalOrdinal stridedBlockId=-1) | |
| Map constructor with user-defined non-contiguous (arbitrary) distribution. More... | |
| StridedMap (const RCP< const Map > &map, std::vector< size_t > &stridingInfo, GlobalOrdinal, LocalOrdinal stridedBlockId=-1, GlobalOrdinal offset=0) | |
| virtual | ~StridedMap () |
| Destructor. More... | |
Access functions for striding data | |
| std::vector< size_t > | getStridingData () const |
| void | setStridingData (std::vector< size_t > stridingInfo) |
| size_t | getFixedBlockSize () const |
| LocalOrdinal | getStridedBlockId () const |
| bool | isStrided () const |
| returns true, if this is a strided map (i.e. more than 1 strided blocks) More... | |
| bool | isBlocked () const |
| GlobalOrdinal | getOffset () const |
| void | setOffset (GlobalOrdinal offset) |
| size_t | GID2StridingBlockId (GlobalOrdinal gid) const |
Xpetra specific | |
| RCP< const Xpetra::Map < LocalOrdinal, GlobalOrdinal, Node > > | getMap () const |
Map Attribute Methods | |
| global_size_t | getGlobalNumElements () const |
| Returns the number of elements in this Map. More... | |
| size_t | getNodeNumElements () const |
| Returns the number of elements belonging to the calling node. More... | |
| GlobalOrdinal | getIndexBase () const |
| Returns the index base for this Map. More... | |
| LocalOrdinal | getMinLocalIndex () const |
| Returns minimum local index. More... | |
| LocalOrdinal | getMaxLocalIndex () const |
| Returns maximum local index. More... | |
| GlobalOrdinal | getMinGlobalIndex () const |
| Returns minimum global index owned by this node. More... | |
| GlobalOrdinal | getMaxGlobalIndex () const |
| Returns maximum global index owned by this node. More... | |
| GlobalOrdinal | getMinAllGlobalIndex () const |
| Return the minimum global index over all nodes. More... | |
| GlobalOrdinal | getMaxAllGlobalIndex () const |
| Return the maximum global index over all nodes. More... | |
| LocalOrdinal | getLocalElement (GlobalOrdinal globalIndex) const |
| Return the local index for a given global index. More... | |
| GlobalOrdinal | getGlobalElement (LocalOrdinal localIndex) const |
| Return the global index for a given local index. More... | |
| LookupStatus | getRemoteIndexList (const Teuchos::ArrayView< const GlobalOrdinal > &GIDList, const Teuchos::ArrayView< int > &nodeIDList, const Teuchos::ArrayView< LocalOrdinal > &LIDList) const |
| Returns the node IDs and corresponding local indices for a given list of global indices. More... | |
| LookupStatus | getRemoteIndexList (const Teuchos::ArrayView< const GlobalOrdinal > &GIDList, const Teuchos::ArrayView< int > &nodeIDList) const |
| Returns the node IDs for a given list of global indices. More... | |
| Teuchos::ArrayView< const GlobalOrdinal > | getNodeElementList () const |
| Return a list of the global indices owned by this node. More... | |
| bool | isNodeLocalElement (LocalOrdinal localIndex) const |
| Returns true if the local index is valid for this Map on this node; returns false if it isn't. More... | |
| bool | isNodeGlobalElement (GlobalOrdinal globalIndex) const |
| Returns true if the global index is found in this Map on this node; returns false if it isn't. More... | |
| bool | isContiguous () const |
| Returns true if this Map is distributed contiguously; returns false otherwise. More... | |
| bool | isDistributed () const |
| Returns true if this Map is distributed across more than one node; returns false otherwise. More... | |
Additional Inherited Members | |
| Static Public Attributes inherited from Teuchos::Describable | |
| static const EVerbosityLevel | verbLevel_default |
Class that stores a strided map.

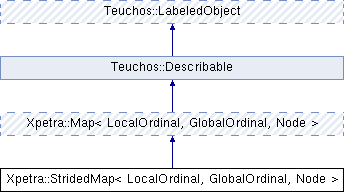

StridedMap extends the functionality of Xpetra::Map
It derives from Xpetra::Map and adds a std::vector, which contains the striding information. E.g. for a strided map with 3dofs per node (2 velocity dofs, 1 pressure dof) the striding information looks like: std::vector<size_t> stridingInformation; stridingInformation.push_back(2); // 2 velocity dofs stridingInformation.push_back(1); // 1 pressure dof
For this example the getFixedBlockSize() returns 3 (3 dofs per node). Providing a stridedBlockId parameter in the constructor the strided map only contains dofs of one strided block, e.g. with above stridingInformation the call
StridingMap M(33,0,stridiningInformation,comm,0); // striding block 0 (velocity dofs) returns a map with the gids 0, 1, 3, 4, 6, 7, ... (which contains only the velocity dofs)
and StridingMap M(33,0,stridiningInformation,comm,1); // striding block 1 (pressure dofs) creates a map with only the pressure dofs 2, 5, 8, ...
Definition at line 51 of file Xpetra_StridedMap_fwd.hpp.
| typedef LocalOrdinal Xpetra::StridedMap< LocalOrdinal, GlobalOrdinal, Node >::local_ordinal_type |
Definition at line 98 of file Xpetra_StridedMap_decl.hpp.
| typedef GlobalOrdinal Xpetra::StridedMap< LocalOrdinal, GlobalOrdinal, Node >::global_ordinal_type |
Definition at line 99 of file Xpetra_StridedMap_decl.hpp.
| typedef Node Xpetra::StridedMap< LocalOrdinal, GlobalOrdinal, Node >::node_type |
Definition at line 100 of file Xpetra_StridedMap_decl.hpp.
| Xpetra::StridedMap< LocalOrdinal, GlobalOrdinal, Node >::StridedMap | ( | UnderlyingLib | xlib, |
| global_size_t | numGlobalElements, | ||
| GlobalOrdinal | indexBase, | ||
| std::vector< size_t > & | stridingInfo, | ||
| const Teuchos::RCP< const Teuchos::Comm< int >> & | comm, | ||
| LocalOrdinal | stridedBlockId = -1, |
||
| GlobalOrdinal | offset = 0, |
||
| LocalGlobal | lg = GloballyDistributed |
||
| ) |
Map constructor with contiguous uniform distribution.
Map constructor with contiguous uniform distribution. The elements are distributed among nodes so that the subsets of global elements are non-overlapping and contiguous and as evenly distributed across the nodes as possible.
If numGlobalElements == Teuchos::OrdinalTraits<global_size_t>::invalid(), the number of global elements will be computed via a global communication. Otherwise, it must be equal to the sum of the local elements across all nodes. This will only be verified if Trilinos' Teuchos package was built with debug support (CMake Boolean option TEUCHOS_ENABLE_DEBUG=ON). If verification fails, a std::invalid_argument exception will be thrown.
Definition at line 84 of file Xpetra_StridedMap_def.hpp.
| Xpetra::StridedMap< LocalOrdinal, GlobalOrdinal, Node >::StridedMap | ( | UnderlyingLib | xlib, |
| global_size_t | numGlobalElements, | ||
| size_t | numLocalElements, | ||
| GlobalOrdinal | indexBase, | ||
| std::vector< size_t > & | stridingInfo, | ||
| const Teuchos::RCP< const Teuchos::Comm< int >> & | comm, | ||
| LocalOrdinal | stridedBlockId = -1, |
||
| GlobalOrdinal | offset = 0 |
||
| ) |
Map constructor with a user-defined contiguous distribution.
Map constructor with a user-defined contiguous distribution.
Map constructor with a user-defined contiguous distribution. The elements are distributed among nodes so that the subsets of global elements are non-overlapping and contiguous and as evenly distributed across the nodes as possible.
If numGlobalElements == Teuchos::OrdinalTraits<global_size_t>::invalid(), the number of global elements will be computed via a global communication. Otherwise, it must be equal to the sum of the local elements across all nodes. This will only be verified if Trilinos' Teuchos package was built with debug support (CMake Boolean option TEUCHOS_ENABLE_DEBUG=ON). If verification fails, a std::invalid_argument exception will be thrown.
Definition at line 214 of file Xpetra_StridedMap_def.hpp.
| Xpetra::StridedMap< LocalOrdinal, GlobalOrdinal, Node >::StridedMap | ( | UnderlyingLib | xlib, |
| global_size_t | numGlobalElements, | ||
| const Teuchos::ArrayView< const GlobalOrdinal > & | elementList, | ||
| GlobalOrdinal | indexBase, | ||
| std::vector< size_t > & | stridingInfo, | ||
| const Teuchos::RCP< const Teuchos::Comm< int >> & | comm, | ||
| LocalOrdinal | stridedBlockId = -1 |
||
| ) |
Map constructor with user-defined non-contiguous (arbitrary) distribution.
createse a strided map using the GIDs in elementList and the striding information provided by user.
Definition at line 359 of file Xpetra_StridedMap_def.hpp.
| Xpetra::StridedMap< LocalOrdinal, GlobalOrdinal, Node >::StridedMap | ( | const RCP< const Map > & | map, |
| std::vector< size_t > & | stridingInfo, | ||
| GlobalOrdinal | , | ||
| LocalOrdinal | stridedBlockId = -1, |
||
| GlobalOrdinal | offset = 0 |
||
| ) |
Definition at line 452 of file Xpetra_StridedMap_def.hpp.
|
virtual |
Destructor.
Definition at line 479 of file Xpetra_StridedMap_def.hpp.
| std::vector< size_t > Xpetra::StridedMap< LocalOrdinal, GlobalOrdinal, Node >::getStridingData | ( | ) | const |
Definition at line 487 of file Xpetra_StridedMap_def.hpp.
| void Xpetra::StridedMap< LocalOrdinal, GlobalOrdinal, Node >::setStridingData | ( | std::vector< size_t > | stridingInfo | ) |
Definition at line 496 of file Xpetra_StridedMap_def.hpp.
| size_t Xpetra::StridedMap< LocalOrdinal, GlobalOrdinal, Node >::getFixedBlockSize | ( | ) | const |
Definition at line 505 of file Xpetra_StridedMap_def.hpp.
| LocalOrdinal Xpetra::StridedMap< LocalOrdinal, GlobalOrdinal, Node >::getStridedBlockId | ( | ) | const |
returns strided block id of the dofs stored in this map or -1 if full strided map is stored in this map
Definition at line 519 of file Xpetra_StridedMap_def.hpp.
| bool Xpetra::StridedMap< LocalOrdinal, GlobalOrdinal, Node >::isStrided | ( | ) | const |
returns true, if this is a strided map (i.e. more than 1 strided blocks)
Definition at line 528 of file Xpetra_StridedMap_def.hpp.
| bool Xpetra::StridedMap< LocalOrdinal, GlobalOrdinal, Node >::isBlocked | ( | ) | const |
returns true, if this is a blocked map (i.e. more than 1 dof per node) either strided or just 1 block per node
Definition at line 537 of file Xpetra_StridedMap_def.hpp.
| GlobalOrdinal Xpetra::StridedMap< LocalOrdinal, GlobalOrdinal, Node >::getOffset | ( | ) | const |
Definition at line 546 of file Xpetra_StridedMap_def.hpp.
| void Xpetra::StridedMap< LocalOrdinal, GlobalOrdinal, Node >::setOffset | ( | GlobalOrdinal | offset | ) |
Definition at line 555 of file Xpetra_StridedMap_def.hpp.
| size_t Xpetra::StridedMap< LocalOrdinal, GlobalOrdinal, Node >::GID2StridingBlockId | ( | GlobalOrdinal | gid | ) | const |
Definition at line 564 of file Xpetra_StridedMap_def.hpp.
|
virtual |
Reimplemented from Xpetra::Map< LocalOrdinal, GlobalOrdinal, Node >.
Definition at line 587 of file Xpetra_StridedMap_def.hpp.
|
privatevirtual |
Definition at line 596 of file Xpetra_StridedMap_def.hpp.
|
virtual |
Returns the number of elements in this Map.
Implements Xpetra::Map< LocalOrdinal, GlobalOrdinal, Node >.
Definition at line 680 of file Xpetra_StridedMap_def.hpp.
|
virtual |
Returns the number of elements belonging to the calling node.
Implements Xpetra::Map< LocalOrdinal, GlobalOrdinal, Node >.
Definition at line 689 of file Xpetra_StridedMap_def.hpp.
|
virtual |
Returns the index base for this Map.
Implements Xpetra::Map< LocalOrdinal, GlobalOrdinal, Node >.
Definition at line 698 of file Xpetra_StridedMap_def.hpp.
|
virtual |
Returns minimum local index.
Implements Xpetra::Map< LocalOrdinal, GlobalOrdinal, Node >.
Definition at line 707 of file Xpetra_StridedMap_def.hpp.
|
virtual |
Returns maximum local index.
Implements Xpetra::Map< LocalOrdinal, GlobalOrdinal, Node >.
Definition at line 716 of file Xpetra_StridedMap_def.hpp.
|
virtual |
Returns minimum global index owned by this node.
Implements Xpetra::Map< LocalOrdinal, GlobalOrdinal, Node >.
Definition at line 725 of file Xpetra_StridedMap_def.hpp.
|
virtual |
Returns maximum global index owned by this node.
Implements Xpetra::Map< LocalOrdinal, GlobalOrdinal, Node >.
Definition at line 734 of file Xpetra_StridedMap_def.hpp.
|
virtual |
Return the minimum global index over all nodes.
Implements Xpetra::Map< LocalOrdinal, GlobalOrdinal, Node >.
Definition at line 743 of file Xpetra_StridedMap_def.hpp.
|
virtual |
Return the maximum global index over all nodes.
Implements Xpetra::Map< LocalOrdinal, GlobalOrdinal, Node >.
Definition at line 752 of file Xpetra_StridedMap_def.hpp.
|
virtual |
Return the local index for a given global index.
Implements Xpetra::Map< LocalOrdinal, GlobalOrdinal, Node >.
Definition at line 761 of file Xpetra_StridedMap_def.hpp.
|
virtual |
Return the global index for a given local index.
Implements Xpetra::Map< LocalOrdinal, GlobalOrdinal, Node >.
Definition at line 770 of file Xpetra_StridedMap_def.hpp.
|
virtual |
Returns the node IDs and corresponding local indices for a given list of global indices.
Implements Xpetra::Map< LocalOrdinal, GlobalOrdinal, Node >.
Definition at line 779 of file Xpetra_StridedMap_def.hpp.
|
virtual |
Returns the node IDs for a given list of global indices.
Implements Xpetra::Map< LocalOrdinal, GlobalOrdinal, Node >.
Definition at line 790 of file Xpetra_StridedMap_def.hpp.
|
virtual |
Return a list of the global indices owned by this node.
Implements Xpetra::Map< LocalOrdinal, GlobalOrdinal, Node >.
Definition at line 800 of file Xpetra_StridedMap_def.hpp.
|
virtual |
Returns true if the local index is valid for this Map on this node; returns false if it isn't.
Implements Xpetra::Map< LocalOrdinal, GlobalOrdinal, Node >.
Definition at line 809 of file Xpetra_StridedMap_def.hpp.
|
virtual |
Returns true if the global index is found in this Map on this node; returns false if it isn't.
Implements Xpetra::Map< LocalOrdinal, GlobalOrdinal, Node >.
Definition at line 818 of file Xpetra_StridedMap_def.hpp.
|
virtual |
Returns true if this Map is distributed contiguously; returns false otherwise.
Implements Xpetra::Map< LocalOrdinal, GlobalOrdinal, Node >.
Definition at line 827 of file Xpetra_StridedMap_def.hpp.
|
virtual |
Returns true if this Map is distributed across more than one node; returns false otherwise.
Implements Xpetra::Map< LocalOrdinal, GlobalOrdinal, Node >.
Definition at line 836 of file Xpetra_StridedMap_def.hpp.
|
virtual |
Returns true if map is compatible with this Map.
Implements Xpetra::Map< LocalOrdinal, GlobalOrdinal, Node >.
Definition at line 845 of file Xpetra_StridedMap_def.hpp.
|
virtual |
Returns true if map is identical to this Map.
Implements Xpetra::Map< LocalOrdinal, GlobalOrdinal, Node >.
Definition at line 854 of file Xpetra_StridedMap_def.hpp.
|
virtual |
Get the Comm object for this Map.
Implements Xpetra::Map< LocalOrdinal, GlobalOrdinal, Node >.
Definition at line 863 of file Xpetra_StridedMap_def.hpp.
|
virtual |
Return a new Map with processes with zero elements removed.
Implements Xpetra::Map< LocalOrdinal, GlobalOrdinal, Node >.
Definition at line 883 of file Xpetra_StridedMap_def.hpp.
| RCP< const Xpetra::Map< LocalOrdinal, GlobalOrdinal, Node > > Xpetra::StridedMap< LocalOrdinal, GlobalOrdinal, Node >::replaceCommWithSubset | ( | const Teuchos::RCP< const Teuchos::Comm< int >> & | newComm | ) | const |
Definition at line 892 of file Xpetra_StridedMap_def.hpp.
|
virtual |
Return a simple one-line description of this object.
Implements Xpetra::Map< LocalOrdinal, GlobalOrdinal, Node >.
Definition at line 901 of file Xpetra_StridedMap_def.hpp.
|
virtual |
Print the object with some verbosity level to a FancyOStream object.
Implements Xpetra::Map< LocalOrdinal, GlobalOrdinal, Node >.
Definition at line 910 of file Xpetra_StridedMap_def.hpp.
|
virtual |
Get the library used by this object (Tpetra or Epetra?)
Implements Xpetra::Map< LocalOrdinal, GlobalOrdinal, Node >.
Definition at line 919 of file Xpetra_StridedMap_def.hpp.
|
private |
Definition at line 356 of file Xpetra_StridedMap_decl.hpp.
|
private |
vector with size of strided blocks (dofs)
Definition at line 358 of file Xpetra_StridedMap_decl.hpp.
|
private |
member variable denoting which dofs are stored in map
Definition at line 359 of file Xpetra_StridedMap_decl.hpp.
|
private |
offset for gids in map (default = 0)
Definition at line 363 of file Xpetra_StridedMap_decl.hpp.
|
private |
index base for the strided map (default = 0)
Definition at line 364 of file Xpetra_StridedMap_decl.hpp.
1.8.5
