An abstract base class for converting ParameterEntryValidators to and from XML. More...

#include <Teuchos_ValidatorXMLConverter.hpp>

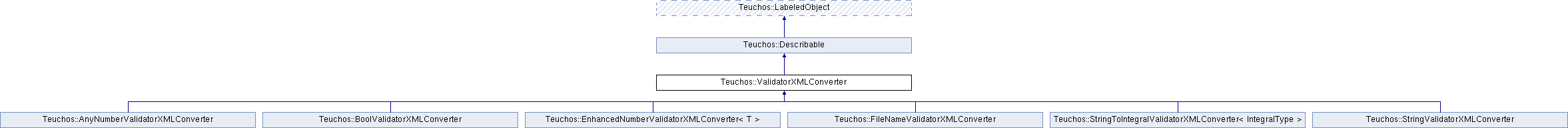

Inheritance diagram for Teuchos::ValidatorXMLConverter:

Public Member Functions
Converter Functions
RCP< ParameterEntryValidator >	fromXMLtoValidator (const XMLObject &xmlObj, const IDtoValidatorMap &validatorIDsMap) const
	Converts a given XMLObject to a ParameterEntryValidator. More...

virtual RCP < ParameterEntryValidator >	convertXML (const XMLObject &xmlObj, const IDtoValidatorMap &validatorIDsMap) const =0
	Preforms any and all special xml conversion that is specific to a particular ParameterEntryValidator. More...

XMLObject	fromValidatortoXML (const RCP< const ParameterEntryValidator > validator, const ValidatortoIDMap &validatorIDsMap, bool assignedID=true) const
	Converters a given ParameterEntryValidator to XML. More...

virtual void	convertValidator (const RCP< const ParameterEntryValidator > validator, XMLObject &xmlObj, const ValidatortoIDMap &validatorIDsMap) const =0
	Preforms any and all special validator conversion that is specific to a particlar ParameterEntryValidator. More...

Public Member Functions inherited from Teuchos::Describable
virtual std::string	description () const
	Return a simple one-line description of this object. More...

virtual void	describe (FancyOStream &out, const EVerbosityLevel verbLevel=verbLevel_default) const
	Print the object with some verbosity level to a FancyOStream. More...

void	describe (std::ostream &out, const EVerbosityLevel verbLevel=verbLevel_default) const
	Version of describe() that takes an std::ostream instead of a FancyOStream. More...

virtual	~Describable ()
	Destructor (marked virtual for memory safety of derived classes). More...

Public Member Functions inherited from Teuchos::LabeledObject
	LabeledObject ()
	Construct with an empty label. More...

virtual	~LabeledObject ()

virtual void	setObjectLabel (const std::string &objectLabel)
	Set the object label (see LabeledObject). More...

virtual std::string	getObjectLabel () const
	Get the object label (see LabeledObject). More...

Static Public Member Functions
Attribute/Query Functions
static const std::string &	getIdAttributeName ()

static const std::string &	getPrototypeIdAttributeName ()

static const std::string &	getTypeAttributeName ()

static const std::string &	getValidatorTagName ()

Additional Inherited Members
Static Public Attributes inherited from Teuchos::Describable
static const EVerbosityLevel	verbLevel_default = VERB_DEFAULT
	Default value for the `verbLevel` argument of describe(). More...

Related Functions inherited from Teuchos::Describable
DescribableStreamManipulatorState	describe (const Describable &describable, const EVerbosityLevel verbLevel=Describable::verbLevel_default)
	Describable output stream manipulator. More...

std::ostream &	operator<< (std::ostream &os, const DescribableStreamManipulatorState &d)
	Output stream operator for Describable manipulator. More...

Detailed Description

An abstract base class for converting ParameterEntryValidators to and from XML.

Definition at line 64 of file Teuchos_ValidatorXMLConverter.hpp.

Member Function Documentation

RCP< ParameterEntryValidator > Teuchos::ValidatorXMLConverter::fromXMLtoValidator	(	const XMLObject &	xmlObj,
		const IDtoValidatorMap &	validatorIDsMap
	)		const

Converts a given XMLObject to a ParameterEntryValidator.

Parameters

xmlObj	The XMLObject to convert to a ParameterEntryValidator.
validatorIDsMap	A map containing ParameterEntryValidators and their associated IDs.

Returns: The converted ParameterEntryValidator.

Definition at line 47 of file Teuchos_ValidatorXMLConverter.cpp.

virtual RCP<ParameterEntryValidator> Teuchos::ValidatorXMLConverter::convertXML	(	const XMLObject &	xmlObj,
		const IDtoValidatorMap &	validatorIDsMap
	)		const

pure virtual

Preforms any and all special xml conversion that is specific to a particular ParameterEntryValidator.

Parameters

xmlObj	The xml to be converted.
validatorIDsMap	A map containing ParameterEntryValidators and their associated IDs.

Returns: The converted ParameterEntryValidator.

Implemented in Teuchos::StringValidatorXMLConverter, Teuchos::FileNameValidatorXMLConverter, Teuchos::EnhancedNumberValidatorXMLConverter< T >, Teuchos::AnyNumberValidatorXMLConverter, Teuchos::BoolValidatorXMLConverter, and Teuchos::StringToIntegralValidatorXMLConverter< IntegralType >.

XMLObject Teuchos::ValidatorXMLConverter::fromValidatortoXML	(	const RCP< const ParameterEntryValidator >	validator,
		const ValidatortoIDMap &	validatorIDsMap,
		bool	assignedID = `true`
	)		const

Converters a given ParameterEntryValidator to XML.

Parameters

validator	The ParameterEntryValidator to be converted to XML.
validatorIDsMap	A map containing ParameterEntryValidators and their associated IDs.
assignedID	Whether or not the validator to be converted has been assigned an ID and is therefore in the validatorIDsMap and should have a ID attribute.

Returns: An XML representation of the given ParameterEntryValidator.

Definition at line 68 of file Teuchos_ValidatorXMLConverter.cpp.

virtual void Teuchos::ValidatorXMLConverter::convertValidator	(	const RCP< const ParameterEntryValidator >	validator,
		XMLObject &	xmlObj,
		const ValidatortoIDMap &	validatorIDsMap
	)		const

pure virtual

Preforms any and all special validator conversion that is specific to a particlar ParameterEntryValidator.

Parameters

validator	The validator to be converted.
xmlObj	The XMLObject to store all serialization in.
validatorIDsMap	A map containing ParameterEntryValidators and their associated IDs. being converted.

Implemented in Teuchos::StringValidatorXMLConverter, Teuchos::FileNameValidatorXMLConverter, Teuchos::EnhancedNumberValidatorXMLConverter< T >, Teuchos::AnyNumberValidatorXMLConverter, Teuchos::BoolValidatorXMLConverter, and Teuchos::StringToIntegralValidatorXMLConverter< IntegralType >.

static const std::string& Teuchos::ValidatorXMLConverter::getIdAttributeName ( )

inlinestatic

Definition at line 147 of file Teuchos_ValidatorXMLConverter.hpp.

static const std::string& Teuchos::ValidatorXMLConverter::getPrototypeIdAttributeName ( )

inlinestatic

Definition at line 153 of file Teuchos_ValidatorXMLConverter.hpp.

static const std::string& Teuchos::ValidatorXMLConverter::getTypeAttributeName ( )

inlinestatic

Definition at line 159 of file Teuchos_ValidatorXMLConverter.hpp.

static const std::string& Teuchos::ValidatorXMLConverter::getValidatorTagName ( )

inlinestatic

Definition at line 165 of file Teuchos_ValidatorXMLConverter.hpp.

The documentation for this class was generated from the following files:
