This class creates and provides basic support for TriDi matrix of templated type. More...

#include <Teuchos_SerialTriDiMatrix.hpp>

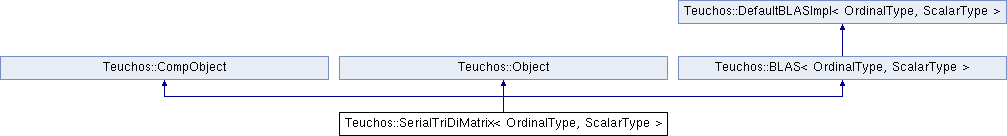

Inheritance diagram for Teuchos::SerialTriDiMatrix< OrdinalType, ScalarType >:

Public Types
typedef OrdinalType	ordinalType
	Typedef for ordinal type. More...

typedef ScalarType	scalarType
	Typedef for scalar type. More...

Public Types inherited from Teuchos::DefaultBLASImpl< OrdinalType, ScalarType >
typedef details::GivensRotator < ScalarType >::c_type	rotg_c_type
	The type used for c in ROTG. More...

Public Member Functions

Constructor/Destructor methods.

SerialTriDiMatrix ()

Default Constructor. More...

SerialTriDiMatrix (OrdinalType numRows, OrdinalType numCols, bool zeroOut=true)

Shaped Constructor. More...

SerialTriDiMatrix (DataAccess CV, ScalarType *values, OrdinalType numRowsCols)

Shaped Constructor with Values. More...

SerialTriDiMatrix (const SerialTriDiMatrix< OrdinalType, ScalarType > &Source, ETransp trans=Teuchos::NO_TRANS)

Copy Constructor. More...

SerialTriDiMatrix (DataAccess CV, const SerialTriDiMatrix< OrdinalType, ScalarType > &Source, OrdinalType numRowsCols, OrdinalType startRowCols=0)

Submatrix Copy Constructor. More...

virtual ~SerialTriDiMatrix ()

Destructor. More...

Shaping methods.

int shape (OrdinalType numRows)

Shape method for changing the size of a SerialTriDiMatrix, initializing entries to zero. More...

int shapeUninitialized (OrdinalType numRows)

Same as shape() except leaves uninitialized. More...

int reshape (OrdinalType numRowsCols)

Reshaping method for changing the size of a SerialTriDiMatrix, keeping the entries. More...

Set methods.

SerialTriDiMatrix< OrdinalType,
ScalarType > & operator= (const SerialTriDiMatrix< OrdinalType, ScalarType > &Source)

Copies values from one matrix to another. More...

SerialTriDiMatrix< OrdinalType,
ScalarType > & assign (const SerialTriDiMatrix< OrdinalType, ScalarType > &Source)

Copies values from one matrix to another. More...

SerialTriDiMatrix< OrdinalType,
ScalarType > & operator= (const ScalarType value)

Set all values in the matrix to a constant value. More...

int putScalar (const ScalarType value=Teuchos::ScalarTraits< ScalarType >::zero())

Set all values in the matrix to a constant value. More...

Accessor methods.

Set all values in the matrix to be random numbers.

ScalarType & operator() (OrdinalType rowIndex, OrdinalType colIndex)

Element access method (non-const). More...

const ScalarType & operator() (OrdinalType rowIndex, OrdinalType colIndex) const

Element access method (const). More...

ScalarType * values () const

Column access method (non-const). More...

ScalarType * D () const

ScalarType * DL () const

ScalarType * DU () const

ScalarType * DU2 () const

Mathematical methods.

SerialTriDiMatrix< OrdinalType,
ScalarType > & operator+= (const SerialTriDiMatrix< OrdinalType, ScalarType > &Source)

Add another matrix to this matrix. More...

SerialTriDiMatrix< OrdinalType,
ScalarType > & operator-= (const SerialTriDiMatrix< OrdinalType, ScalarType > &Source)

Subtract another matrix from this matrix. More...

SerialTriDiMatrix< OrdinalType,
ScalarType > & operator*= (const ScalarType alpha)

Scale this matrix by alpha; *this = alpha**this. More...

int scale (const ScalarType alpha)

Scale this matrix by alpha; *this = alpha**this. More...

int scale (const SerialTriDiMatrix< OrdinalType, ScalarType > &A)

Point-wise scale this matrix by A; i.e. *this(i,j) *= A(i,j) More...

Comparison methods.

Multiply A * B and add them to this; this = beta * this + alpha*A*B.

Parameters

transa	- Use the transpose of `A` if transa = Teuchos::TRANS, else don't use the transpose if transa = Teuchos::NO_TRANS.
transb	- Use the transpose of `B` if transb = Teuchos::TRANS, else don't use the transpose if transb = Teuchos::NO_TRANS.
alpha	- The scaling factor for `A` * `B`.
A	- SerialTriDiMatrix
B	- SerialTriDiMatrix
beta	- The scaling factor for this.

If the matrices A and B are not of the right dimension, consistent with this, then this matrix will not be altered and -1 will be returned.

Returns: Integer error code, set to 0 if successful.Multiply A and B and add them to this; this = beta * this + alpha*A*B or this = beta * this + alpha*B*A.

Parameters

sideA	- Which side is A on for the multiplication to B, AB (Teuchos::LEFT_SIDE) or BA (Teuchos::RIGHT_SIDE).
alpha	- The scaling factor for `A` * `B`, or `B` * `A`.
A	- SerialSymTriDiMatrix (a serial SPD TriDi matrix)
B	- SerialTriDiMatrix (a serial TriDi matrix)
beta	- The scaling factor for this.

If the matrices A and B are not of the right dimension, consistent with this, then this matrix will not be altered and -1 will be returned.

Returns: Integer error code, set to 0 if successful.

bool operator== (const SerialTriDiMatrix< OrdinalType, ScalarType > &Operand) const

Equality of two matrices. More...

bool operator!= (const SerialTriDiMatrix< OrdinalType, ScalarType > &Operand) const

Inequality of two matrices. More...

Attribute methods.

OrdinalType numRowsCols () const

Returns the row dimension of this matrix. More...

bool empty () const

Returns the column dimension of this matrix. More...

Norm methods.

ScalarTraits< ScalarType >
::magnitudeType normOne () const

Returns the 1-norm of the matrix. More...

ScalarTraits< ScalarType >
::magnitudeType normInf () const

Returns the Infinity-norm of the matrix. More...

ScalarTraits< ScalarType >
::magnitudeType normFrobenius () const

Returns the Frobenius-norm of the matrix. More...

I/O methods.

virtual void print (std::ostream &os) const

Print method. Defines the behavior of the std::ostream << operator inherited from the Object class. More...

Public Member Functions inherited from Teuchos::CompObject

CompObject ()

Default constructor. More...

CompObject (const CompObject &source)

Copy Constructor. More...

virtual ~CompObject ()

Destructor. More...

void setFlopCounter (const Flops &FlopCounter)

Set the internal Teuchos::Flops() pointer. More...

void setFlopCounter (const CompObject &compObject)

Set the internal Teuchos::Flops() pointer to the flop counter of another Teuchos::CompObject. More...

void unsetFlopCounter ()

Set the internal Teuchos::Flops() pointer to 0 (no flops counted). More...

Flops * getFlopCounter () const

Get the pointer to the Teuchos::Flops() object associated with this object, returns 0 if none. More...

void resetFlops () const

Resets the number of floating point operations to zero for this multi-std::vector. More...

double getFlops () const

Returns the number of floating point operations with this multi-std::vector. More...

void updateFlops (int addflops) const

Increment Flop count for this object. More...

void updateFlops (long int addflops) const

Increment Flop count for this object. More...

void updateFlops (double addflops) const

Increment Flop count for this object. More...

void updateFlops (float addflops) const

Increment Flop count for this object. More...

Public Member Functions inherited from Teuchos::Object

Object (int tracebackModeIn=-1)

Default Constructor. More...

Object (const char *label, int tracebackModeIn=-1)

Labeling Constructor. More...

Object (const std::string &label, int tracebackModeIn=-1)

Create an Object with the given label, and optionally, with the given traceback mode. More...

virtual ~Object ()

Destructor (virtual, for safety of derived classes). More...

virtual int reportError (const std::string message, int errorCode) const

Report an error with this Object. More...

virtual void setLabel (const char *theLabel)

virtual const char * label () const

Access the object's label (LEGACY; return std::string instead). More...

Public Member Functions inherited from Teuchos::BLAS< OrdinalType, ScalarType >

BLAS (void)

Default constructor. More...

BLAS (const BLAS< OrdinalType, ScalarType > &)

Copy constructor. More...

virtual ~BLAS (void)

Destructor. More...

Public Member Functions inherited from Teuchos::DefaultBLASImpl< OrdinalType, ScalarType >

DefaultBLASImpl (void)

Default constructor. More...

DefaultBLASImpl (const DefaultBLASImpl< OrdinalType, ScalarType > &)

Copy constructor. More...

virtual ~DefaultBLASImpl (void)

Destructor. More...

template<typename alpha_type , typename A_type , typename x_type , typename beta_type >

void GEMV (ETransp trans, const OrdinalType &m, const OrdinalType &n, const alpha_type alpha, const A_type *A, const OrdinalType &lda, const x_type *x, const OrdinalType &incx, const beta_type beta, ScalarType *y, const OrdinalType &incy) const

Performs the matrix-vector operation: y <- alpha*A*x+beta*y or y <- alpha*A'*x+beta*y where A is a general m by n matrix. More...

template<typename A_type >

void TRMV (EUplo uplo, ETransp trans, EDiag diag, const OrdinalType &n, const A_type *A, const OrdinalType &lda, ScalarType *x, const OrdinalType &incx) const

Performs the matrix-vector operation: x <- A*x or x <- A'*x where A is a unit/non-unit n by n upper/lower triangular matrix. More...

template<typename alpha_type , typename x_type , typename y_type >

void GER (const OrdinalType &m, const OrdinalType &n, const alpha_type alpha, const x_type *x, const OrdinalType &incx, const y_type *y, const OrdinalType &incy, ScalarType *A, const OrdinalType &lda) const

Performs the rank 1 operation: A <- alpha*x*y'+A. More...

template<typename alpha_type , typename A_type , typename B_type , typename beta_type >

void GEMM (ETransp transa, ETransp transb, const OrdinalType &m, const OrdinalType &n, const OrdinalType &k, const alpha_type alpha, const A_type *A, const OrdinalType &lda, const B_type *B, const OrdinalType &ldb, const beta_type beta, ScalarType *C, const OrdinalType &ldc) const

General matrix-matrix multiply. More...

void SWAP (const OrdinalType &n, ScalarType *const x, const OrdinalType &incx, ScalarType *const y, const OrdinalType &incy) const

Swap the entries of x and y. More...

template<typename alpha_type , typename A_type , typename B_type , typename beta_type >

void SYMM (ESide side, EUplo uplo, const OrdinalType &m, const OrdinalType &n, const alpha_type alpha, const A_type *A, const OrdinalType &lda, const B_type *B, const OrdinalType &ldb, const beta_type beta, ScalarType *C, const OrdinalType &ldc) const

Performs the matrix-matrix operation: C <- alpha*A*B+beta*C or C <- alpha*B*A+beta*C where A is an m by m or n by n symmetric matrix and B is a general matrix. More...

template<typename alpha_type , typename A_type , typename beta_type >

void SYRK (EUplo uplo, ETransp trans, const OrdinalType &n, const OrdinalType &k, const alpha_type alpha, const A_type *A, const OrdinalType &lda, const beta_type beta, ScalarType *C, const OrdinalType &ldc) const

Performs the symmetric rank k operation: C <- alpha*A*A'+beta*C or C <- alpha*A'*A+beta*C, where alpha and beta are scalars, C is an n by n symmetric matrix and A is an n by k matrix in the first case or k by n matrix in the second case. More...

template<typename alpha_type , typename A_type >

void TRMM (ESide side, EUplo uplo, ETransp transa, EDiag diag, const OrdinalType &m, const OrdinalType &n, const alpha_type alpha, const A_type *A, const OrdinalType &lda, ScalarType *B, const OrdinalType &ldb) const

Performs the matrix-matrix operation: B <- alpha*op(A)*B or B <- alpha*B*op(A) where op(A) is an unit/non-unit, upper/lower triangular matrix and B is a general matrix. More...

template<typename alpha_type , typename A_type >

void TRSM (ESide side, EUplo uplo, ETransp transa, EDiag diag, const OrdinalType &m, const OrdinalType &n, const alpha_type alpha, const A_type *A, const OrdinalType &lda, ScalarType *B, const OrdinalType &ldb) const

Solves the matrix equations: op(A)*X=alpha*B or X*op(A)=alpha*B where X and B are m by n matrices, A is a unit/non-unit, upper/lower triangular matrix and op(A) is A or A'. The matrix X is overwritten on B. More...

void ROTG (ScalarType *da, ScalarType *db, rotg_c_type *c, ScalarType *s) const

Computes a Givens plane rotation. More...

void ROT (const OrdinalType &n, ScalarType *dx, const OrdinalType &incx, ScalarType *dy, const OrdinalType &incy, MagnitudeType *c, ScalarType *s) const

Applies a Givens plane rotation. More...

void SCAL (const OrdinalType &n, const ScalarType &alpha, ScalarType *x, const OrdinalType &incx) const

Scale the vector x by the constant alpha. More...

void COPY (const OrdinalType &n, const ScalarType *x, const OrdinalType &incx, ScalarType *y, const OrdinalType &incy) const

Copy the vector x to the vector y. More...

template<typename alpha_type , typename x_type >

void AXPY (const OrdinalType &n, const alpha_type alpha, const x_type *x, const OrdinalType &incx, ScalarType *y, const OrdinalType &incy) const

Perform the operation: y <- y+alpha*x. More...

ScalarTraits< ScalarType >
::magnitudeType ASUM (const OrdinalType &n, const ScalarType *x, const OrdinalType &incx) const

Sum the absolute values of the entries of x. More...

template<typename x_type , typename y_type >

ScalarType DOT (const OrdinalType &n, const x_type *x, const OrdinalType &incx, const y_type *y, const OrdinalType &incy) const

Form the dot product of the vectors x and y. More...

ScalarTraits< ScalarType >
::magnitudeType NRM2 (const OrdinalType &n, const ScalarType *x, const OrdinalType &incx) const

Compute the 2-norm of the vector x. More...

OrdinalType IAMAX (const OrdinalType &n, const ScalarType *x, const OrdinalType &incx) const

Return the index of the element of x with the maximum magnitude. More...

Additional Inherited Members
Static Public Member Functions inherited from Teuchos::Object
static void	setTracebackMode (int tracebackModeValue)
	Set the value of the Object error traceback report mode. More...

static int	getTracebackMode ()
	Get the value of the Object error traceback report mode. More...

Related Functions inherited from Teuchos::Object
std::ostream &	operator<< (std::ostream &os, const Teuchos::Object &obj)
	Print the given Object to the given output stream. More...

Detailed Description

template<typename OrdinalType, typename ScalarType>
class Teuchos::SerialTriDiMatrix< OrdinalType, ScalarType >

This class creates and provides basic support for TriDi matrix of templated type.

Definition at line 67 of file Teuchos_SerialTriDiMatrix.hpp.

Member Typedef Documentation

template<typename OrdinalType, typename ScalarType>

typedef OrdinalType Teuchos::SerialTriDiMatrix< OrdinalType, ScalarType >::ordinalType

Typedef for ordinal type.

Definition at line 71 of file Teuchos_SerialTriDiMatrix.hpp.

template<typename OrdinalType, typename ScalarType>

typedef ScalarType Teuchos::SerialTriDiMatrix< OrdinalType, ScalarType >::scalarType

Typedef for scalar type.

Definition at line 73 of file Teuchos_SerialTriDiMatrix.hpp.

Constructor & Destructor Documentation

template<typename OrdinalType , typename ScalarType >

Teuchos::SerialTriDiMatrix< OrdinalType, ScalarType >::SerialTriDiMatrix ( )

Default Constructor.

Creates a empty matrix of no dimension. The Shaping methods should be used to size this matrix. Values of this matrix should be set using the [], (), or = operators.

Definition at line 396 of file Teuchos_SerialTriDiMatrix.hpp.

template<typename OrdinalType , typename ScalarType >

Teuchos::SerialTriDiMatrix< OrdinalType, ScalarType >::SerialTriDiMatrix	(	OrdinalType	numRows,
		OrdinalType	numCols,
		bool	zeroOut = `true`
	)

Shaped Constructor.

Parameters

numRows	- Number of rows in matrix.
numCols	- Number of columns in matrix.
zeroOut	- Initializes values to 0 if true (default)

Creates a shaped matrix with numRows rows and numCols cols. All values are initialized to 0 when zeroOut is true. Values of this matrix should be set using the [] or the () operators.

Definition at line 409 of file Teuchos_SerialTriDiMatrix.hpp.

template<typename OrdinalType , typename ScalarType >

Teuchos::SerialTriDiMatrix< OrdinalType, ScalarType >::SerialTriDiMatrix	(	DataAccess	CV,
		ScalarType *	values,
		OrdinalType	numRowsCols
	)

Shaped Constructor with Values.

Parameters

CV	- Enumerated type set to Teuchos::Copy or Teuchos::View.
values	- Pointer to an array of ScalarType.
numRowsCols	- Number of rows and columns in matrix.

Definition at line 425 of file Teuchos_SerialTriDiMatrix.hpp.

template<typename OrdinalType , typename ScalarType >

Teuchos::SerialTriDiMatrix< OrdinalType, ScalarType >::SerialTriDiMatrix	(	const SerialTriDiMatrix< OrdinalType, ScalarType > &	Source,
		ETransp	trans = `Teuchos::NO_TRANS`
	)

Copy Constructor.

Note: A deep copy of the Source transposed can be obtained if trans=Teuchos::TRANS, else a non-transposed copy of Source is made. There is no storage of the transpose state of the matrix within the SerialTriDiMatrix class, so this information will not propogate to any operation performed on a matrix that has been copy constructed in transpose.

Definition at line 450 of file Teuchos_SerialTriDiMatrix.hpp.

template<typename OrdinalType , typename ScalarType >

Teuchos::SerialTriDiMatrix< OrdinalType, ScalarType >::SerialTriDiMatrix	(	DataAccess	CV,
		const SerialTriDiMatrix< OrdinalType, ScalarType > &	Source,
		OrdinalType	numRowsCols,
		OrdinalType	startRowCols = `0`
	)

Submatrix Copy Constructor.

Parameters

CV	- Enumerated type set to Teuchos::Copy or Teuchos::View.
Source	- Reference to another TriDi matrix from which values are to be copied.
numRowsCols	- The number of rows and columns in this matrix.
startRowCols	- The row and col of `Source` from which the submatrix copy should start.

Creates a shaped matrix with numRowsCols rows and columns, which is a submatrix of Source. If startRowCols, then the submatrix is the leading submatrix of Source. Otherwise, the (1,1) entry in the copied matrix is the (startRow, startCol) entry of Source.

Definition at line 509 of file Teuchos_SerialTriDiMatrix.hpp.

template<typename OrdinalType , typename ScalarType >

Teuchos::SerialTriDiMatrix< OrdinalType, ScalarType >::~SerialTriDiMatrix ( )

virtual

Destructor.

Definition at line 529 of file Teuchos_SerialTriDiMatrix.hpp.

Member Function Documentation

template<typename OrdinalType , typename ScalarType >

int Teuchos::SerialTriDiMatrix< OrdinalType, ScalarType >::shape ( OrdinalType numRows )

Shape method for changing the size of a SerialTriDiMatrix, initializing entries to zero.

Parameters

numRowsCols - The number of rows in this matrix.

This method allows the user to define the dimensions of a SerialTriDiMatrix at any point. This method can be called at any point after construction. Any values previously in this object will be destroyed and the resized matrix starts of with all zero values.

Returns: Integer error code, set to 0 if successful.

Definition at line 539 of file Teuchos_SerialTriDiMatrix.hpp.

template<typename OrdinalType , typename ScalarType >

int Teuchos::SerialTriDiMatrix< OrdinalType, ScalarType >::shapeUninitialized ( OrdinalType numRows )

Same as shape() except leaves uninitialized.

Definition at line 552 of file Teuchos_SerialTriDiMatrix.hpp.

template<typename OrdinalType , typename ScalarType >

int Teuchos::SerialTriDiMatrix< OrdinalType, ScalarType >::reshape ( OrdinalType numRowsCols )

Reshaping method for changing the size of a SerialTriDiMatrix, keeping the entries.

Parameters

numRowsCols - The number of rows in this matrix.

This method allows the user to redefine the dimensions of a SerialTriDiMatrix at any point. This method can be called at any point after construction. Any values previously in this object will be copied into the reshaped matrix.

Returns: Integer error code, set 0 if successful.

Definition at line 563 of file Teuchos_SerialTriDiMatrix.hpp.

template<typename OrdinalType , typename ScalarType >

SerialTriDiMatrix< OrdinalType, ScalarType > & Teuchos::SerialTriDiMatrix< OrdinalType, ScalarType >::operator= ( const SerialTriDiMatrix< OrdinalType, ScalarType > & Source )

Copies values from one matrix to another.

The operator= copies the values from one existing SerialTriDiMatrix to another. If Source is a view (i.e. CV = Teuchos::View), then this method will return a view. Otherwise, it will return a copy of Source. this object will be resized if it is not large enough to copy Source into.

Definition at line 636 of file Teuchos_SerialTriDiMatrix.hpp.

template<typename OrdinalType , typename ScalarType >

SerialTriDiMatrix< OrdinalType, ScalarType > & Teuchos::SerialTriDiMatrix< OrdinalType, ScalarType >::assign ( const SerialTriDiMatrix< OrdinalType, ScalarType > & Source )

Copies values from one matrix to another.

The operator= copies the values from one existing SerialTriDiMatrix to another if the dimension of both matrices are the same. If not, this matrix will be returned unchanged.

Definition at line 727 of file Teuchos_SerialTriDiMatrix.hpp.

template<typename OrdinalType, typename ScalarType>

SerialTriDiMatrix<OrdinalType, ScalarType>& Teuchos::SerialTriDiMatrix< OrdinalType, ScalarType >::operator= ( const ScalarType value )

inline

Set all values in the matrix to a constant value.

Parameters

value - Value to use;

Definition at line 184 of file Teuchos_SerialTriDiMatrix.hpp.

template<typename OrdinalType , typename ScalarType >

int Teuchos::SerialTriDiMatrix< OrdinalType, ScalarType >::putScalar ( const ScalarType value = Teuchos::ScalarTraits<ScalarType>::zero() )

Set all values in the matrix to a constant value.

Parameters

value - Value to use; zero if none specified.

Returns: Integer error code, set to 0 if successful.

Definition at line 609 of file Teuchos_SerialTriDiMatrix.hpp.

template<typename OrdinalType , typename ScalarType >

ScalarType & Teuchos::SerialTriDiMatrix< OrdinalType, ScalarType >::operator()	(	OrdinalType	rowIndex,
		OrdinalType	colIndex
	)

inline

Element access method (non-const).

Returns the element in the ith row and jth column if A(i,j) is specified, the expression A[j][i] will return the same element.

Returns: Element from the specified rowIndex row and colIndex column.

Warning: The validity of rowIndex and colIndex will only be checked if Teuchos is configured with –enable-teuchos-abc.

Definition at line 772 of file Teuchos_SerialTriDiMatrix.hpp.

template<typename OrdinalType , typename ScalarType >

const ScalarType & Teuchos::SerialTriDiMatrix< OrdinalType, ScalarType >::operator()	(	OrdinalType	rowIndex,
		OrdinalType	colIndex
	)		const

inline

Element access method (const).

Returns the element in the ith row and jth column if A(i,j) is specified, the expression A[j][i] will return the same element.

Returns: Element from the specified rowIndex row and colIndex column.

Warning: The validity of rowIndex and colIndex will only be checked if Teuchos is configured with –enable-teuchos-abc.

Definition at line 748 of file Teuchos_SerialTriDiMatrix.hpp.

template<typename OrdinalType, typename ScalarType>

ScalarType* Teuchos::SerialTriDiMatrix< OrdinalType, ScalarType >::values ( ) const

inline

Column access method (non-const).

Returns the pointer to the ScalarType array at the jth column if A[j] is specified, the expression A[j][i] will return the same element as A(i,j).

Returns: Pointer to the ScalarType array at the colIndex column ( values_+colIndex*stride_ ).

Warning: The validity of colIndex will only be checked if Teuchos is configured with –enable-teuchos-abc.Column access method (const).

Returns the pointer to the ScalarType array at the jth column if A[j] is specified, the expression A[j][i] will return the same element as A(i,j).

Returns: Pointer to the ScalarType array at the colIndex column ( values_+colIndex*stride_ ).

Warning: The validity of colIndex will only be checked if Teuchos is configured with –enable-teuchos-abc.Data array access method.

Returns: Pointer to the ScalarType data array contained in the object.

Definition at line 243 of file Teuchos_SerialTriDiMatrix.hpp.

template<typename OrdinalType , typename ScalarType >

SerialTriDiMatrix< OrdinalType, ScalarType > & Teuchos::SerialTriDiMatrix< OrdinalType, ScalarType >::operator+= ( const SerialTriDiMatrix< OrdinalType, ScalarType > & Source )

Add another matrix to this matrix.

Add Source to this if the dimension of both matrices are the same. If not, this matrix will be returned unchanged.

Definition at line 703 of file Teuchos_SerialTriDiMatrix.hpp.

template<typename OrdinalType , typename ScalarType >

SerialTriDiMatrix< OrdinalType, ScalarType > & Teuchos::SerialTriDiMatrix< OrdinalType, ScalarType >::operator-= ( const SerialTriDiMatrix< OrdinalType, ScalarType > & Source )

Subtract another matrix from this matrix.

Subtract Source from this if the dimension of both matrices are the same. If not, this matrix will be returned unchanged.

Definition at line 715 of file Teuchos_SerialTriDiMatrix.hpp.

template<typename OrdinalType , typename ScalarType >

SerialTriDiMatrix< OrdinalType, ScalarType > & Teuchos::SerialTriDiMatrix< OrdinalType, ScalarType >::operator*= ( const ScalarType alpha )

Scale this matrix by alpha; *this = alpha**this.

Parameters

alpha Scalar to multiply this by.

Definition at line 889 of file Teuchos_SerialTriDiMatrix.hpp.

template<typename OrdinalType , typename ScalarType >

int Teuchos::SerialTriDiMatrix< OrdinalType, ScalarType >::scale ( const ScalarType alpha )

Scale this matrix by alpha; *this = alpha**this.

Parameters

alpha Scalar to multiply this by.

Returns: Integer error code, set to 0 if successful.

Definition at line 896 of file Teuchos_SerialTriDiMatrix.hpp.

template<typename OrdinalType , typename ScalarType >

int Teuchos::SerialTriDiMatrix< OrdinalType, ScalarType >::scale ( const SerialTriDiMatrix< OrdinalType, ScalarType > & A )

Point-wise scale this matrix by A; i.e. *this(i,j) *= A(i,j)

The values of *this matrix will be point-wise scaled by the values in A. If A and this matrix are not the same dimension this will be returned unchanged.

Parameters

B	Teuchos::SerialTriDiMatrix used to perform element-wise scaling of this.

Returns: Integer error code, set to 0 if successful.

Definition at line 907 of file Teuchos_SerialTriDiMatrix.hpp.

template<typename OrdinalType , typename ScalarType >

bool Teuchos::SerialTriDiMatrix< OrdinalType, ScalarType >::operator== ( const SerialTriDiMatrix< OrdinalType, ScalarType > & Operand ) const

Equality of two matrices.

Returns: True if this matrix and Operand are of the same shape (rows and columns) and have the same entries, else False will be returned.

Definition at line 861 of file Teuchos_SerialTriDiMatrix.hpp.

template<typename OrdinalType , typename ScalarType >

bool Teuchos::SerialTriDiMatrix< OrdinalType, ScalarType >::operator!= ( const SerialTriDiMatrix< OrdinalType, ScalarType > & Operand ) const

Inequality of two matrices.

Returns: True if this matrix and Operand of not of the same shape (rows and columns) or don't have the same entries, else False will be returned.

Definition at line 880 of file Teuchos_SerialTriDiMatrix.hpp.

template<typename OrdinalType, typename ScalarType>

OrdinalType Teuchos::SerialTriDiMatrix< OrdinalType, ScalarType >::numRowsCols ( ) const

inline

Returns the row dimension of this matrix.

Definition at line 343 of file Teuchos_SerialTriDiMatrix.hpp.

template<typename OrdinalType, typename ScalarType>

bool Teuchos::SerialTriDiMatrix< OrdinalType, ScalarType >::empty ( ) const

inline

Returns the column dimension of this matrix.

Returns the stride between the columns of this matrix in memory. Returns whether this matrix is empty.

Definition at line 352 of file Teuchos_SerialTriDiMatrix.hpp.

template<typename OrdinalType , typename ScalarType >

ScalarTraits< ScalarType >::magnitudeType Teuchos::SerialTriDiMatrix< OrdinalType, ScalarType >::normOne ( ) const

Returns the 1-norm of the matrix.

Definition at line 799 of file Teuchos_SerialTriDiMatrix.hpp.

template<typename OrdinalType , typename ScalarType >

ScalarTraits< ScalarType >::magnitudeType Teuchos::SerialTriDiMatrix< OrdinalType, ScalarType >::normInf ( ) const

Returns the Infinity-norm of the matrix.

Definition at line 824 of file Teuchos_SerialTriDiMatrix.hpp.

template<typename OrdinalType , typename ScalarType >

ScalarTraits< ScalarType >::magnitudeType Teuchos::SerialTriDiMatrix< OrdinalType, ScalarType >::normFrobenius ( ) const

Returns the Frobenius-norm of the matrix.

Definition at line 841 of file Teuchos_SerialTriDiMatrix.hpp.

template<typename OrdinalType , typename ScalarType >

void Teuchos::SerialTriDiMatrix< OrdinalType, ScalarType >::print ( std::ostream & os ) const

virtual

Print method. Defines the behavior of the std::ostream << operator inherited from the Object class.

Reimplemented from Teuchos::Object.

Definition at line 925 of file Teuchos_SerialTriDiMatrix.hpp.

The documentation for this class was generated from the following file:

Teuchos_SerialTriDiMatrix.hpp

Public Types

Public Member Functions

Additional Inherited Members

Detailed Description

template<typename OrdinalType, typename ScalarType> class Teuchos::SerialTriDiMatrix< OrdinalType, ScalarType >

Member Typedef Documentation

Constructor & Destructor Documentation

Member Function Documentation

template<typename OrdinalType, typename ScalarType>
class Teuchos::SerialTriDiMatrix< OrdinalType, ScalarType >
