An abstract base class for converting Dependencies to and from XML. More...

#include <Teuchos_DependencyXMLConverter.hpp>

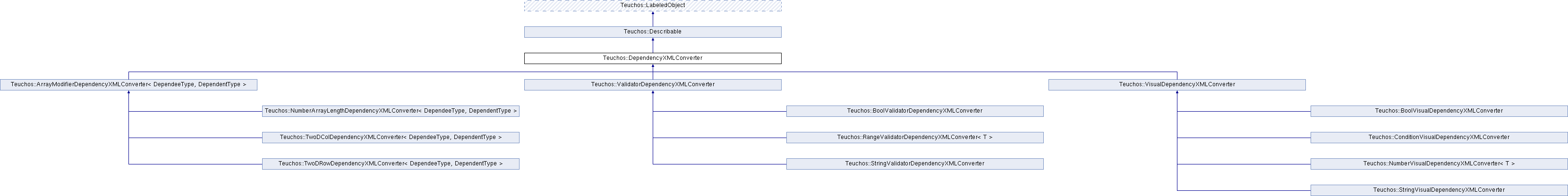

Inheritance diagram for Teuchos::DependencyXMLConverter:

Public Member Functions
Converter Functions
RCP< Dependency >	fromXMLtoDependency (const XMLObject &xmlObj, const XMLParameterListReader::EntryIDsMap &entryIDsMap, const IDtoValidatorMap &validatorIDsMap) const
	Converts a given XMLObject to a Dependency. More...

virtual RCP< Dependency >	convertXML (const XMLObject &xmlObj, const Dependency::ConstParameterEntryList dependees, const Dependency::ParameterEntryList dependets, const XMLParameterListReader::EntryIDsMap &entryIDsMap, const IDtoValidatorMap &validatorIDsMap) const =0
	Preforms any and all special xml conversion that is specific to a particular Dependency. More...

XMLObject	fromDependencytoXML (const RCP< const Dependency > dependency, const XMLParameterListWriter::EntryIDsMap &entryIDsMap, ValidatortoIDMap &validatorIDsMap) const
	Converters a given ParameterEntryValidator to XML. More...

virtual void	convertDependency (const RCP< const Dependency > dependency, XMLObject &xmlObj, const XMLParameterListWriter::EntryIDsMap &entryIDsMap, ValidatortoIDMap &validatorIDsMap) const =0
	Preforms any and all special dependency conversion that is specific to a particlar Dependency. More...

Public Member Functions inherited from Teuchos::Describable
virtual std::string	description () const
	Return a simple one-line description of this object. More...

virtual void	describe (FancyOStream &out, const EVerbosityLevel verbLevel=verbLevel_default) const
	Print the object with some verbosity level to a FancyOStream. More...

void	describe (std::ostream &out, const EVerbosityLevel verbLevel=verbLevel_default) const
	Version of describe() that takes an std::ostream instead of a FancyOStream. More...

virtual	~Describable ()
	Destructor (marked virtual for memory safety of derived classes). More...

Public Member Functions inherited from Teuchos::LabeledObject
	LabeledObject ()
	Construct with an empty label. More...

virtual	~LabeledObject ()

virtual void	setObjectLabel (const std::string &objectLabel)
	Set the object label (see LabeledObject). More...

virtual std::string	getObjectLabel () const
	Get the object label (see LabeledObject). More...

Static Public Member Functions
Attribute/Query Functions
static const std::string &	getDependeeTagName ()
	Returns the string to be used for the dependee tag. More...

static const std::string &	getDependentTagName ()
	Returns the string to be used for the dependent tag. More...

static const std::string &	getParameterIdAttributeName ()
	Returns the string to be used for the ParameterID attribute. More...

static const std::string &	getTypeAttributeName ()
	Returns the string to be used for the type attribute. More...

Additional Inherited Members
Static Public Attributes inherited from Teuchos::Describable
static const EVerbosityLevel	verbLevel_default = VERB_DEFAULT
	Default value for the `verbLevel` argument of describe(). More...

Related Functions inherited from Teuchos::Describable
DescribableStreamManipulatorState	describe (const Describable &describable, const EVerbosityLevel verbLevel=Describable::verbLevel_default)
	Describable output stream manipulator. More...

std::ostream &	operator<< (std::ostream &os, const DescribableStreamManipulatorState &d)
	Output stream operator for Describable manipulator. More...

Detailed Description

An abstract base class for converting Dependencies to and from XML.

Definition at line 63 of file Teuchos_DependencyXMLConverter.hpp.

Member Function Documentation

RCP< Dependency > Teuchos::DependencyXMLConverter::fromXMLtoDependency	(	const XMLObject &	xmlObj,
		const XMLParameterListReader::EntryIDsMap &	entryIDsMap,
		const IDtoValidatorMap &	validatorIDsMap
	)		const

Converts a given XMLObject to a Dependency.

Parameters

xmlObj	The XMLObject to convert to a Dependency.
entryIDsMap	A map containing ParameterEntrys and their associated IDs.
validtorIDsMap	A map containing ParameterEntryValidators and their associated IDs.

Returns: The converted Dependency.

Definition at line 50 of file Teuchos_DependencyXMLConverter.cpp.

virtual RCP<Dependency> Teuchos::DependencyXMLConverter::convertXML	(	const XMLObject &	xmlObj,
		const Dependency::ConstParameterEntryList	dependees,
		const Dependency::ParameterEntryList	dependets,
		const XMLParameterListReader::EntryIDsMap &	entryIDsMap,
		const IDtoValidatorMap &	validatorIDsMap
	)		const

pure virtual

Preforms any and all special xml conversion that is specific to a particular Dependency.

Parameters

xmlObj	The xml to be converted. in which this resulting dependency will be inserted.
dependees	The dependees of the dependency.
dependents	The dependents of the dependency.
entryIDsMap	A map containing ParameterEntrys and their associated IDs.
validtorIDsMap	A map containing ParameterEntryValidators and their associated IDs.

Returns: The converted Dependency.

Implemented in Teuchos::ArrayModifierDependencyXMLConverter< DependeeType, DependentType >, Teuchos::ValidatorDependencyXMLConverter, and Teuchos::VisualDependencyXMLConverter.

XMLObject Teuchos::DependencyXMLConverter::fromDependencytoXML	(	const RCP< const Dependency >	dependency,
		const XMLParameterListWriter::EntryIDsMap &	entryIDsMap,
		ValidatortoIDMap &	validatorIDsMap
	)		const

Converters a given ParameterEntryValidator to XML.

Parameters

dependency	The Dependency to be converted to XML.
entryIDsMap	A map containing ParameterEntrys and their associated IDs.
validtorIDsMap	A map containing ParameterEntryValidators and their associated IDs.

Returns: An XML representation of the given Dependency.

Definition at line 99 of file Teuchos_DependencyXMLConverter.cpp.

virtual void Teuchos::DependencyXMLConverter::convertDependency	(	const RCP< const Dependency >	dependency,
		XMLObject &	xmlObj,
		const XMLParameterListWriter::EntryIDsMap &	entryIDsMap,
		ValidatortoIDMap &	validatorIDsMap
	)		const

pure virtual

Preforms any and all special dependency conversion that is specific to a particlar Dependency.

Parameters

dependency	The validator to be converted.
xmlObj	The XMLObject on which all child tags should be appended and attributes added.
entryIDsMap	A map containing ParameterEntrys and their associated IDs.
validtorIDsMap	A map containing ParameterEntryValidators and their associated IDs.

Returns: An XML representation of the given Dependency.

Implemented in Teuchos::ArrayModifierDependencyXMLConverter< DependeeType, DependentType >, Teuchos::ValidatorDependencyXMLConverter, and Teuchos::VisualDependencyXMLConverter.

static const std::string& Teuchos::DependencyXMLConverter::getDependeeTagName ( )

inlinestatic

Returns the string to be used for the dependee tag.

Definition at line 144 of file Teuchos_DependencyXMLConverter.hpp.

static const std::string& Teuchos::DependencyXMLConverter::getDependentTagName ( )

inlinestatic

Returns the string to be used for the dependent tag.

Definition at line 152 of file Teuchos_DependencyXMLConverter.hpp.

static const std::string& Teuchos::DependencyXMLConverter::getParameterIdAttributeName ( )

inlinestatic

Returns the string to be used for the ParameterID attribute.

Definition at line 160 of file Teuchos_DependencyXMLConverter.hpp.

static const std::string& Teuchos::DependencyXMLConverter::getTypeAttributeName ( )

inlinestatic

Returns the string to be used for the type attribute.

Definition at line 168 of file Teuchos_DependencyXMLConverter.hpp.
