#include <Xpetra_TpetraCrsGraph.hpp>

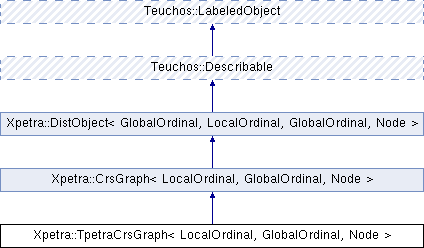

Inheritance diagram for Xpetra::TpetraCrsGraph< LocalOrdinal, GlobalOrdinal, Node >:

Public Member Functions
Teuchos::RCP< const Map < LocalOrdinal, GlobalOrdinal, Node > >	getMap () const
	Implements DistObject interface. More...

void	doImport (const DistObject< GlobalOrdinal, LocalOrdinal, GlobalOrdinal, Node > &source, const Import< LocalOrdinal, GlobalOrdinal, Node > &importer, CombineMode CM)
	Import. More...

void	doExport (const DistObject< GlobalOrdinal, LocalOrdinal, GlobalOrdinal, Node > &dest, const Import< LocalOrdinal, GlobalOrdinal, Node > &importer, CombineMode CM)
	Export. More...

void	doImport (const DistObject< GlobalOrdinal, LocalOrdinal, GlobalOrdinal, Node > &source, const Export< LocalOrdinal, GlobalOrdinal, Node > &exporter, CombineMode CM)
	Import (using an Exporter). More...

void	doExport (const DistObject< GlobalOrdinal, LocalOrdinal, GlobalOrdinal, Node > &dest, const Export< LocalOrdinal, GlobalOrdinal, Node > &exporter, CombineMode CM)
	Export (using an Importer). More...

Public Member Functions inherited from Xpetra::CrsGraph< LocalOrdinal, GlobalOrdinal, Node >
virtual	~CrsGraph ()
	Destructor. More...

Public Member Functions inherited from Xpetra::DistObject< GlobalOrdinal, LocalOrdinal, GlobalOrdinal, Node >
virtual	~DistObject ()
	Destructor. More...

Public Member Functions inherited from Teuchos::Describable
void	describe (std::ostream &out, const EVerbosityLevel verbLevel=verbLevel_default) const

virtual	~Describable ()

	LabeledObject ()

virtual	~LabeledObject ()

virtual void	setObjectLabel (const std::string &objectLabel)

virtual std::string	getObjectLabel () const

DescribableStreamManipulatorState	describe (const Describable &describable, const EVerbosityLevel verbLevel=Describable::verbLevel_default)

std::ostream &	operator<< (std::ostream &os, const DescribableStreamManipulatorState &d)

Private Types
typedef TpetraCrsGraph < LocalOrdinal, GlobalOrdinal, Node >	TpetraCrsGraphClass

typedef Map< LocalOrdinal, GlobalOrdinal, Node >	map_type

Private Attributes
RCP< Tpetra::CrsGraph < LocalOrdinal, GlobalOrdinal, Node > >	graph_

Constructor/Destructor Methods
	TpetraCrsGraph (const RCP< const map_type > &rowMap, size_t maxNumEntriesPerRow, ProfileType pftype=DynamicProfile, const RCP< ParameterList > &params=null)
	Constructor specifying fixed number of entries for each row. More...

	TpetraCrsGraph (const RCP< const Map< LocalOrdinal, GlobalOrdinal, Node > > &rowMap, const ArrayRCP< const size_t > &NumEntriesPerRowToAlloc, ProfileType pftype=DynamicProfile, const RCP< ParameterList > &params=null)
	Constructor specifying (possibly different) number of entries in each row. More...

	TpetraCrsGraph (const RCP< const Map< LocalOrdinal, GlobalOrdinal, Node > > &rowMap, const RCP< const Map< LocalOrdinal, GlobalOrdinal, Node > > &colMap, size_t maxNumEntriesPerRow, ProfileType pftype=DynamicProfile, const RCP< ParameterList > &params=null)
	Constructor specifying column Map and fixed number of entries for each row. More...

	TpetraCrsGraph (const RCP< const Map< LocalOrdinal, GlobalOrdinal, Node > > &rowMap, const RCP< const Map< LocalOrdinal, GlobalOrdinal, Node > > &colMap, const ArrayRCP< const size_t > &NumEntriesPerRowToAlloc, ProfileType pftype=DynamicProfile, const RCP< ParameterList > &params=null)
	Constructor specifying column Map and number of entries in each row. More...

virtual	~TpetraCrsGraph ()
	Destructor. More...

Insertion/Removal Methods
void	insertGlobalIndices (GlobalOrdinal globalRow, const ArrayView< const GlobalOrdinal > &indices)
	Insert global indices into the graph. More...

void	insertLocalIndices (const LocalOrdinal localRow, const ArrayView< const LocalOrdinal > &indices)
	Insert local indices into the graph. More...

void	removeLocalIndices (LocalOrdinal localRow)
	Remove all graph indices from the specified local row. More...

Transformational Methods
void	fillComplete (const RCP< const Map< LocalOrdinal, GlobalOrdinal, Node > > &domainMap, const RCP< const Map< LocalOrdinal, GlobalOrdinal, Node > > &rangeMap, const RCP< ParameterList > &params=null)
	Signal that data entry is complete, specifying domain and range maps. More...

void	fillComplete (const RCP< ParameterList > &params=null)
	Signal that data entry is complete. More...

Methods implementing RowGraph.
RCP< const Comm< int > >	getComm () const
	Returns the communicator. More...

RCP< const Map< LocalOrdinal, GlobalOrdinal, Node > >	getRowMap () const
	Returns the Map that describes the row distribution in this graph. More...

RCP< const Map< LocalOrdinal, GlobalOrdinal, Node > >	getColMap () const
	Returns the Map that describes the column distribution in this graph. More...

RCP< const Map< LocalOrdinal, GlobalOrdinal, Node > >	getDomainMap () const
	Returns the Map associated with the domain of this graph. More...

RCP< const Map< LocalOrdinal, GlobalOrdinal, Node > >	getRangeMap () const
	Returns the Map associated with the domain of this graph. More...

RCP< const Import < LocalOrdinal, GlobalOrdinal, Node > >	getImporter () const
	Returns the importer associated with this graph. More...

RCP< const Export < LocalOrdinal, GlobalOrdinal, Node > >	getExporter () const
	Returns the exporter associated with this graph. More...

global_size_t	getGlobalNumRows () const
	Returns the number of global rows in the graph. More...

global_size_t	getGlobalNumCols () const
	Returns the number of global columns in the graph. More...

size_t	getNodeNumRows () const
	Returns the number of graph rows owned on the calling node. More...

size_t	getNodeNumCols () const
	Returns the number of columns connected to the locally owned rows of this graph. More...

GlobalOrdinal	getIndexBase () const
	Returns the index base for global indices for this graph. More...

global_size_t	getGlobalNumEntries () const
	Returns the global number of entries in the graph. More...

size_t	getNodeNumEntries () const
	Returns the local number of entries in the graph. More...

size_t	getNumEntriesInGlobalRow (GlobalOrdinal globalRow) const
	Returns the current number of entries on this node in the specified global row. More...

size_t	getNumEntriesInLocalRow (LocalOrdinal localRow) const
	Returns the current number of entries on this node in the specified local row. More...

size_t	getNumAllocatedEntriesInGlobalRow (GlobalOrdinal globalRow) const
	Returns the current number of allocated entries for this node in the specified global row . More...

size_t	getNumAllocatedEntriesInLocalRow (LocalOrdinal localRow) const
	Returns the current number of allocated entries on this node in the specified local row. More...

size_t	getGlobalMaxNumRowEntries () const
	Maximum number of entries in all rows over all processes. More...

size_t	getNodeMaxNumRowEntries () const
	Maximum number of entries in all rows owned by the calling process. More...

bool	hasColMap () const
	Whether the graph has a column Map. More...

bool	isLocallyIndexed () const
	Whether column indices are stored using local indices on the calling process. More...

bool	isGloballyIndexed () const
	Whether column indices are stored using global indices on the calling process. More...

bool	isFillComplete () const
	Whether fillComplete() has been called and the graph is in compute mode. More...

bool	isStorageOptimized () const
	Returns true if storage has been optimized. More...

void	getGlobalRowView (GlobalOrdinal GlobalRow, ArrayView< const GlobalOrdinal > &Indices) const
	Return a const, nonpersisting view of global indices in the given row. More...

void	getLocalRowView (LocalOrdinal LocalRow, ArrayView< const LocalOrdinal > &indices) const
	Return a const, nonpersisting view of local indices in the given row. More...

void	computeGlobalConstants ()
	Force the computation of global constants if we don't have them. More...

Overridden from Teuchos::Describable
std::string	description () const
	Return a simple one-line description of this object. More...

void	describe (Teuchos::FancyOStream &out, const Teuchos::EVerbosityLevel verbLevel=Teuchos::Describable::verbLevel_default) const
	Print the object with some verbosity level to an FancyOStream object. More...

Advanced methods, at increased risk of deprecation.
ArrayRCP< const size_t >	getNodeRowPtrs () const
	Get an ArrayRCP of the row-offsets. More...

Xpetra specific
	TpetraCrsGraph (const Teuchos::RCP< Tpetra::CrsGraph< LocalOrdinal, GlobalOrdinal, Node > > &graph)
	TpetraCrsGraph constructor to wrap a Tpetra::CrsGraph object. More...

RCP< const Tpetra::CrsGraph < LocalOrdinal, GlobalOrdinal, Node > >	getTpetra_CrsGraph () const
	Get the underlying Tpetra graph. More...

Additional Inherited Members
Public Types inherited from Xpetra::CrsGraph< LocalOrdinal, GlobalOrdinal, Node >
typedef LocalOrdinal	local_ordinal_type

typedef GlobalOrdinal	global_ordinal_type

typedef Node	node_type

Static Public Attributes inherited from Teuchos::Describable
static const EVerbosityLevel	verbLevel_default

Detailed Description

template<class LocalOrdinal = CrsGraph<>::local_ordinal_type, class GlobalOrdinal = typename CrsGraph<LocalOrdinal>::global_ordinal_type, class Node = typename CrsGraph<LocalOrdinal, GlobalOrdinal>::node_type>
class Xpetra::TpetraCrsGraph< LocalOrdinal, GlobalOrdinal, Node >

Definition at line 76 of file Xpetra_TpetraCrsGraph.hpp.

Member Typedef Documentation

template<class LocalOrdinal = CrsGraph<>::local_ordinal_type, class GlobalOrdinal = typename CrsGraph<LocalOrdinal>::global_ordinal_type, class Node = typename CrsGraph<LocalOrdinal, GlobalOrdinal>::node_type>

typedef TpetraCrsGraph<LocalOrdinal,GlobalOrdinal,Node> Xpetra::TpetraCrsGraph< LocalOrdinal, GlobalOrdinal, Node >::TpetraCrsGraphClass

private

Definition at line 81 of file Xpetra_TpetraCrsGraph.hpp.

template<class LocalOrdinal = CrsGraph<>::local_ordinal_type, class GlobalOrdinal = typename CrsGraph<LocalOrdinal>::global_ordinal_type, class Node = typename CrsGraph<LocalOrdinal, GlobalOrdinal>::node_type>

typedef Map<LocalOrdinal,GlobalOrdinal,Node> Xpetra::TpetraCrsGraph< LocalOrdinal, GlobalOrdinal, Node >::map_type

private

Definition at line 82 of file Xpetra_TpetraCrsGraph.hpp.

Constructor & Destructor Documentation

template<class LocalOrdinal = CrsGraph<>::local_ordinal_type, class GlobalOrdinal = typename CrsGraph<LocalOrdinal>::global_ordinal_type, class Node = typename CrsGraph<LocalOrdinal, GlobalOrdinal>::node_type>

Xpetra::TpetraCrsGraph< LocalOrdinal, GlobalOrdinal, Node >::TpetraCrsGraph	(	const RCP< const map_type > &	rowMap,
		size_t	maxNumEntriesPerRow,
		ProfileType	pftype = `DynamicProfile`,
		const RCP< ParameterList > &	params = `null`
	)

inline

Constructor specifying fixed number of entries for each row.

Definition at line 94 of file Xpetra_TpetraCrsGraph.hpp.

template<class LocalOrdinal = CrsGraph<>::local_ordinal_type, class GlobalOrdinal = typename CrsGraph<LocalOrdinal>::global_ordinal_type, class Node = typename CrsGraph<LocalOrdinal, GlobalOrdinal>::node_type>

Xpetra::TpetraCrsGraph< LocalOrdinal, GlobalOrdinal, Node >::TpetraCrsGraph	(	const RCP< const Map< LocalOrdinal, GlobalOrdinal, Node > > &	rowMap,
		const ArrayRCP< const size_t > &	NumEntriesPerRowToAlloc,
		ProfileType	pftype = `DynamicProfile`,
		const RCP< ParameterList > &	params = `null`
	)

inline

Constructor specifying (possibly different) number of entries in each row.

Definition at line 98 of file Xpetra_TpetraCrsGraph.hpp.

template<class LocalOrdinal = CrsGraph<>::local_ordinal_type, class GlobalOrdinal = typename CrsGraph<LocalOrdinal>::global_ordinal_type, class Node = typename CrsGraph<LocalOrdinal, GlobalOrdinal>::node_type>

Xpetra::TpetraCrsGraph< LocalOrdinal, GlobalOrdinal, Node >::TpetraCrsGraph	(	const RCP< const Map< LocalOrdinal, GlobalOrdinal, Node > > &	rowMap,
		const RCP< const Map< LocalOrdinal, GlobalOrdinal, Node > > &	colMap,
		size_t	maxNumEntriesPerRow,
		ProfileType	pftype = `DynamicProfile`,
		const RCP< ParameterList > &	params = `null`
	)

inline

Constructor specifying column Map and fixed number of entries for each row.

Definition at line 102 of file Xpetra_TpetraCrsGraph.hpp.

template<class LocalOrdinal = CrsGraph<>::local_ordinal_type, class GlobalOrdinal = typename CrsGraph<LocalOrdinal>::global_ordinal_type, class Node = typename CrsGraph<LocalOrdinal, GlobalOrdinal>::node_type>

Xpetra::TpetraCrsGraph< LocalOrdinal, GlobalOrdinal, Node >::TpetraCrsGraph	(	const RCP< const Map< LocalOrdinal, GlobalOrdinal, Node > > &	rowMap,
		const RCP< const Map< LocalOrdinal, GlobalOrdinal, Node > > &	colMap,
		const ArrayRCP< const size_t > &	NumEntriesPerRowToAlloc,
		ProfileType	pftype = `DynamicProfile`,
		const RCP< ParameterList > &	params = `null`
	)

inline

Constructor specifying column Map and number of entries in each row.

Definition at line 106 of file Xpetra_TpetraCrsGraph.hpp.

template<class LocalOrdinal = CrsGraph<>::local_ordinal_type, class GlobalOrdinal = typename CrsGraph<LocalOrdinal>::global_ordinal_type, class Node = typename CrsGraph<LocalOrdinal, GlobalOrdinal>::node_type>

virtual Xpetra::TpetraCrsGraph< LocalOrdinal, GlobalOrdinal, Node >::~TpetraCrsGraph ( )

inlinevirtual

Destructor.

Definition at line 194 of file Xpetra_TpetraCrsGraph.hpp.

template<class LocalOrdinal = CrsGraph<>::local_ordinal_type, class GlobalOrdinal = typename CrsGraph<LocalOrdinal>::global_ordinal_type, class Node = typename CrsGraph<LocalOrdinal, GlobalOrdinal>::node_type>

Xpetra::TpetraCrsGraph< LocalOrdinal, GlobalOrdinal, Node >::TpetraCrsGraph ( const Teuchos::RCP< Tpetra::CrsGraph< LocalOrdinal, GlobalOrdinal, Node > > & graph )

inline

TpetraCrsGraph constructor to wrap a Tpetra::CrsGraph object.

Definition at line 402 of file Xpetra_TpetraCrsGraph.hpp.

Member Function Documentation

template<class LocalOrdinal = CrsGraph<>::local_ordinal_type, class GlobalOrdinal = typename CrsGraph<LocalOrdinal>::global_ordinal_type, class Node = typename CrsGraph<LocalOrdinal, GlobalOrdinal>::node_type>

void Xpetra::TpetraCrsGraph< LocalOrdinal, GlobalOrdinal, Node >::insertGlobalIndices	(	GlobalOrdinal	globalRow,
		const ArrayView< const GlobalOrdinal > &	indices
	)

inlinevirtual

Insert global indices into the graph.

Implements Xpetra::CrsGraph< LocalOrdinal, GlobalOrdinal, Node >.

Definition at line 202 of file Xpetra_TpetraCrsGraph.hpp.

template<class LocalOrdinal = CrsGraph<>::local_ordinal_type, class GlobalOrdinal = typename CrsGraph<LocalOrdinal>::global_ordinal_type, class Node = typename CrsGraph<LocalOrdinal, GlobalOrdinal>::node_type>

void Xpetra::TpetraCrsGraph< LocalOrdinal, GlobalOrdinal, Node >::insertLocalIndices	(	const LocalOrdinal	localRow,
		const ArrayView< const LocalOrdinal > &	indices
	)

inlinevirtual

Insert local indices into the graph.

Implements Xpetra::CrsGraph< LocalOrdinal, GlobalOrdinal, Node >.

Definition at line 205 of file Xpetra_TpetraCrsGraph.hpp.

template<class LocalOrdinal = CrsGraph<>::local_ordinal_type, class GlobalOrdinal = typename CrsGraph<LocalOrdinal>::global_ordinal_type, class Node = typename CrsGraph<LocalOrdinal, GlobalOrdinal>::node_type>

void Xpetra::TpetraCrsGraph< LocalOrdinal, GlobalOrdinal, Node >::removeLocalIndices ( LocalOrdinal localRow )

inlinevirtual

Remove all graph indices from the specified local row.

Implements Xpetra::CrsGraph< LocalOrdinal, GlobalOrdinal, Node >.

Definition at line 208 of file Xpetra_TpetraCrsGraph.hpp.

template<class LocalOrdinal = CrsGraph<>::local_ordinal_type, class GlobalOrdinal = typename CrsGraph<LocalOrdinal>::global_ordinal_type, class Node = typename CrsGraph<LocalOrdinal, GlobalOrdinal>::node_type>

void Xpetra::TpetraCrsGraph< LocalOrdinal, GlobalOrdinal, Node >::fillComplete	(	const RCP< const Map< LocalOrdinal, GlobalOrdinal, Node > > &	domainMap,
		const RCP< const Map< LocalOrdinal, GlobalOrdinal, Node > > &	rangeMap,
		const RCP< ParameterList > &	params = `null`
	)

inlinevirtual

Signal that data entry is complete, specifying domain and range maps.

Implements Xpetra::CrsGraph< LocalOrdinal, GlobalOrdinal, Node >.

Definition at line 216 of file Xpetra_TpetraCrsGraph.hpp.

template<class LocalOrdinal = CrsGraph<>::local_ordinal_type, class GlobalOrdinal = typename CrsGraph<LocalOrdinal>::global_ordinal_type, class Node = typename CrsGraph<LocalOrdinal, GlobalOrdinal>::node_type>

void Xpetra::TpetraCrsGraph< LocalOrdinal, GlobalOrdinal, Node >::fillComplete ( const RCP< ParameterList > & params = null )

inlinevirtual

Signal that data entry is complete.

Implements Xpetra::CrsGraph< LocalOrdinal, GlobalOrdinal, Node >.

Definition at line 219 of file Xpetra_TpetraCrsGraph.hpp.

template<class LocalOrdinal = CrsGraph<>::local_ordinal_type, class GlobalOrdinal = typename CrsGraph<LocalOrdinal>::global_ordinal_type, class Node = typename CrsGraph<LocalOrdinal, GlobalOrdinal>::node_type>

RCP< const Comm< int > > Xpetra::TpetraCrsGraph< LocalOrdinal, GlobalOrdinal, Node >::getComm ( ) const

inlinevirtual

Returns the communicator.

Implements Xpetra::CrsGraph< LocalOrdinal, GlobalOrdinal, Node >.

Definition at line 227 of file Xpetra_TpetraCrsGraph.hpp.

template<class LocalOrdinal = CrsGraph<>::local_ordinal_type, class GlobalOrdinal = typename CrsGraph<LocalOrdinal>::global_ordinal_type, class Node = typename CrsGraph<LocalOrdinal, GlobalOrdinal>::node_type>

RCP< const Map< LocalOrdinal, GlobalOrdinal, Node > > Xpetra::TpetraCrsGraph< LocalOrdinal, GlobalOrdinal, Node >::getRowMap ( ) const

inlinevirtual

Returns the Map that describes the row distribution in this graph.

Implements Xpetra::CrsGraph< LocalOrdinal, GlobalOrdinal, Node >.

Definition at line 230 of file Xpetra_TpetraCrsGraph.hpp.

template<class LocalOrdinal = CrsGraph<>::local_ordinal_type, class GlobalOrdinal = typename CrsGraph<LocalOrdinal>::global_ordinal_type, class Node = typename CrsGraph<LocalOrdinal, GlobalOrdinal>::node_type>

RCP< const Map< LocalOrdinal, GlobalOrdinal, Node > > Xpetra::TpetraCrsGraph< LocalOrdinal, GlobalOrdinal, Node >::getColMap ( ) const

inlinevirtual

Returns the Map that describes the column distribution in this graph.

Implements Xpetra::CrsGraph< LocalOrdinal, GlobalOrdinal, Node >.

Definition at line 233 of file Xpetra_TpetraCrsGraph.hpp.

template<class LocalOrdinal = CrsGraph<>::local_ordinal_type, class GlobalOrdinal = typename CrsGraph<LocalOrdinal>::global_ordinal_type, class Node = typename CrsGraph<LocalOrdinal, GlobalOrdinal>::node_type>

RCP< const Map< LocalOrdinal, GlobalOrdinal, Node > > Xpetra::TpetraCrsGraph< LocalOrdinal, GlobalOrdinal, Node >::getDomainMap ( ) const

inlinevirtual

Returns the Map associated with the domain of this graph.

Implements Xpetra::CrsGraph< LocalOrdinal, GlobalOrdinal, Node >.

Definition at line 236 of file Xpetra_TpetraCrsGraph.hpp.

template<class LocalOrdinal = CrsGraph<>::local_ordinal_type, class GlobalOrdinal = typename CrsGraph<LocalOrdinal>::global_ordinal_type, class Node = typename CrsGraph<LocalOrdinal, GlobalOrdinal>::node_type>

RCP< const Map< LocalOrdinal, GlobalOrdinal, Node > > Xpetra::TpetraCrsGraph< LocalOrdinal, GlobalOrdinal, Node >::getRangeMap ( ) const

inlinevirtual

Returns the Map associated with the domain of this graph.

Implements Xpetra::CrsGraph< LocalOrdinal, GlobalOrdinal, Node >.

Definition at line 239 of file Xpetra_TpetraCrsGraph.hpp.

template<class LocalOrdinal = CrsGraph<>::local_ordinal_type, class GlobalOrdinal = typename CrsGraph<LocalOrdinal>::global_ordinal_type, class Node = typename CrsGraph<LocalOrdinal, GlobalOrdinal>::node_type>

RCP< const Import< LocalOrdinal, GlobalOrdinal, Node > > Xpetra::TpetraCrsGraph< LocalOrdinal, GlobalOrdinal, Node >::getImporter ( ) const

inlinevirtual

Returns the importer associated with this graph.

Implements Xpetra::CrsGraph< LocalOrdinal, GlobalOrdinal, Node >.

Definition at line 242 of file Xpetra_TpetraCrsGraph.hpp.

template<class LocalOrdinal = CrsGraph<>::local_ordinal_type, class GlobalOrdinal = typename CrsGraph<LocalOrdinal>::global_ordinal_type, class Node = typename CrsGraph<LocalOrdinal, GlobalOrdinal>::node_type>

RCP< const Export< LocalOrdinal, GlobalOrdinal, Node > > Xpetra::TpetraCrsGraph< LocalOrdinal, GlobalOrdinal, Node >::getExporter ( ) const

inlinevirtual

Returns the exporter associated with this graph.

Implements Xpetra::CrsGraph< LocalOrdinal, GlobalOrdinal, Node >.

Definition at line 245 of file Xpetra_TpetraCrsGraph.hpp.

template<class LocalOrdinal = CrsGraph<>::local_ordinal_type, class GlobalOrdinal = typename CrsGraph<LocalOrdinal>::global_ordinal_type, class Node = typename CrsGraph<LocalOrdinal, GlobalOrdinal>::node_type>

global_size_t Xpetra::TpetraCrsGraph< LocalOrdinal, GlobalOrdinal, Node >::getGlobalNumRows ( ) const

inlinevirtual

Returns the number of global rows in the graph.

Implements Xpetra::CrsGraph< LocalOrdinal, GlobalOrdinal, Node >.

Definition at line 248 of file Xpetra_TpetraCrsGraph.hpp.

template<class LocalOrdinal = CrsGraph<>::local_ordinal_type, class GlobalOrdinal = typename CrsGraph<LocalOrdinal>::global_ordinal_type, class Node = typename CrsGraph<LocalOrdinal, GlobalOrdinal>::node_type>

global_size_t Xpetra::TpetraCrsGraph< LocalOrdinal, GlobalOrdinal, Node >::getGlobalNumCols ( ) const

inlinevirtual

Returns the number of global columns in the graph.

Implements Xpetra::CrsGraph< LocalOrdinal, GlobalOrdinal, Node >.

Definition at line 251 of file Xpetra_TpetraCrsGraph.hpp.

template<class LocalOrdinal = CrsGraph<>::local_ordinal_type, class GlobalOrdinal = typename CrsGraph<LocalOrdinal>::global_ordinal_type, class Node = typename CrsGraph<LocalOrdinal, GlobalOrdinal>::node_type>

size_t Xpetra::TpetraCrsGraph< LocalOrdinal, GlobalOrdinal, Node >::getNodeNumRows ( ) const

inlinevirtual

Returns the number of graph rows owned on the calling node.

Implements Xpetra::CrsGraph< LocalOrdinal, GlobalOrdinal, Node >.

Definition at line 254 of file Xpetra_TpetraCrsGraph.hpp.

template<class LocalOrdinal = CrsGraph<>::local_ordinal_type, class GlobalOrdinal = typename CrsGraph<LocalOrdinal>::global_ordinal_type, class Node = typename CrsGraph<LocalOrdinal, GlobalOrdinal>::node_type>

size_t Xpetra::TpetraCrsGraph< LocalOrdinal, GlobalOrdinal, Node >::getNodeNumCols ( ) const

inlinevirtual

Returns the number of columns connected to the locally owned rows of this graph.

Implements Xpetra::CrsGraph< LocalOrdinal, GlobalOrdinal, Node >.

Definition at line 257 of file Xpetra_TpetraCrsGraph.hpp.

template<class LocalOrdinal = CrsGraph<>::local_ordinal_type, class GlobalOrdinal = typename CrsGraph<LocalOrdinal>::global_ordinal_type, class Node = typename CrsGraph<LocalOrdinal, GlobalOrdinal>::node_type>

GlobalOrdinal Xpetra::TpetraCrsGraph< LocalOrdinal, GlobalOrdinal, Node >::getIndexBase ( ) const

inlinevirtual

Returns the index base for global indices for this graph.

Implements Xpetra::CrsGraph< LocalOrdinal, GlobalOrdinal, Node >.

Definition at line 260 of file Xpetra_TpetraCrsGraph.hpp.

template<class LocalOrdinal = CrsGraph<>::local_ordinal_type, class GlobalOrdinal = typename CrsGraph<LocalOrdinal>::global_ordinal_type, class Node = typename CrsGraph<LocalOrdinal, GlobalOrdinal>::node_type>

global_size_t Xpetra::TpetraCrsGraph< LocalOrdinal, GlobalOrdinal, Node >::getGlobalNumEntries ( ) const

inlinevirtual

Returns the global number of entries in the graph.

Implements Xpetra::CrsGraph< LocalOrdinal, GlobalOrdinal, Node >.

Definition at line 263 of file Xpetra_TpetraCrsGraph.hpp.

template<class LocalOrdinal = CrsGraph<>::local_ordinal_type, class GlobalOrdinal = typename CrsGraph<LocalOrdinal>::global_ordinal_type, class Node = typename CrsGraph<LocalOrdinal, GlobalOrdinal>::node_type>

size_t Xpetra::TpetraCrsGraph< LocalOrdinal, GlobalOrdinal, Node >::getNodeNumEntries ( ) const

inlinevirtual

Returns the local number of entries in the graph.

Implements Xpetra::CrsGraph< LocalOrdinal, GlobalOrdinal, Node >.

Definition at line 266 of file Xpetra_TpetraCrsGraph.hpp.

template<class LocalOrdinal = CrsGraph<>::local_ordinal_type, class GlobalOrdinal = typename CrsGraph<LocalOrdinal>::global_ordinal_type, class Node = typename CrsGraph<LocalOrdinal, GlobalOrdinal>::node_type>

size_t Xpetra::TpetraCrsGraph< LocalOrdinal, GlobalOrdinal, Node >::getNumEntriesInGlobalRow ( GlobalOrdinal globalRow ) const

inlinevirtual

Returns the current number of entries on this node in the specified global row.

Implements Xpetra::CrsGraph< LocalOrdinal, GlobalOrdinal, Node >.

Definition at line 269 of file Xpetra_TpetraCrsGraph.hpp.

template<class LocalOrdinal = CrsGraph<>::local_ordinal_type, class GlobalOrdinal = typename CrsGraph<LocalOrdinal>::global_ordinal_type, class Node = typename CrsGraph<LocalOrdinal, GlobalOrdinal>::node_type>

size_t Xpetra::TpetraCrsGraph< LocalOrdinal, GlobalOrdinal, Node >::getNumEntriesInLocalRow ( LocalOrdinal localRow ) const

inlinevirtual

Returns the current number of entries on this node in the specified local row.

Implements Xpetra::CrsGraph< LocalOrdinal, GlobalOrdinal, Node >.

Definition at line 272 of file Xpetra_TpetraCrsGraph.hpp.

template<class LocalOrdinal = CrsGraph<>::local_ordinal_type, class GlobalOrdinal = typename CrsGraph<LocalOrdinal>::global_ordinal_type, class Node = typename CrsGraph<LocalOrdinal, GlobalOrdinal>::node_type>

size_t Xpetra::TpetraCrsGraph< LocalOrdinal, GlobalOrdinal, Node >::getNumAllocatedEntriesInGlobalRow ( GlobalOrdinal globalRow ) const

inlinevirtual

Returns the current number of allocated entries for this node in the specified global row .

Implements Xpetra::CrsGraph< LocalOrdinal, GlobalOrdinal, Node >.

Definition at line 275 of file Xpetra_TpetraCrsGraph.hpp.

template<class LocalOrdinal = CrsGraph<>::local_ordinal_type, class GlobalOrdinal = typename CrsGraph<LocalOrdinal>::global_ordinal_type, class Node = typename CrsGraph<LocalOrdinal, GlobalOrdinal>::node_type>

size_t Xpetra::TpetraCrsGraph< LocalOrdinal, GlobalOrdinal, Node >::getNumAllocatedEntriesInLocalRow ( LocalOrdinal localRow ) const

inlinevirtual

Returns the current number of allocated entries on this node in the specified local row.

Implements Xpetra::CrsGraph< LocalOrdinal, GlobalOrdinal, Node >.

Definition at line 278 of file Xpetra_TpetraCrsGraph.hpp.

template<class LocalOrdinal = CrsGraph<>::local_ordinal_type, class GlobalOrdinal = typename CrsGraph<LocalOrdinal>::global_ordinal_type, class Node = typename CrsGraph<LocalOrdinal, GlobalOrdinal>::node_type>

size_t Xpetra::TpetraCrsGraph< LocalOrdinal, GlobalOrdinal, Node >::getGlobalMaxNumRowEntries ( ) const

inlinevirtual

Maximum number of entries in all rows over all processes.

Implements Xpetra::CrsGraph< LocalOrdinal, GlobalOrdinal, Node >.

Definition at line 281 of file Xpetra_TpetraCrsGraph.hpp.

template<class LocalOrdinal = CrsGraph<>::local_ordinal_type, class GlobalOrdinal = typename CrsGraph<LocalOrdinal>::global_ordinal_type, class Node = typename CrsGraph<LocalOrdinal, GlobalOrdinal>::node_type>

size_t Xpetra::TpetraCrsGraph< LocalOrdinal, GlobalOrdinal, Node >::getNodeMaxNumRowEntries ( ) const

inlinevirtual

Maximum number of entries in all rows owned by the calling process.

Implements Xpetra::CrsGraph< LocalOrdinal, GlobalOrdinal, Node >.

Definition at line 284 of file Xpetra_TpetraCrsGraph.hpp.

template<class LocalOrdinal = CrsGraph<>::local_ordinal_type, class GlobalOrdinal = typename CrsGraph<LocalOrdinal>::global_ordinal_type, class Node = typename CrsGraph<LocalOrdinal, GlobalOrdinal>::node_type>

bool Xpetra::TpetraCrsGraph< LocalOrdinal, GlobalOrdinal, Node >::hasColMap ( ) const

inlinevirtual

Whether the graph has a column Map.

Implements Xpetra::CrsGraph< LocalOrdinal, GlobalOrdinal, Node >.

Definition at line 287 of file Xpetra_TpetraCrsGraph.hpp.

template<class LocalOrdinal = CrsGraph<>::local_ordinal_type, class GlobalOrdinal = typename CrsGraph<LocalOrdinal>::global_ordinal_type, class Node = typename CrsGraph<LocalOrdinal, GlobalOrdinal>::node_type>

bool Xpetra::TpetraCrsGraph< LocalOrdinal, GlobalOrdinal, Node >::isLocallyIndexed ( ) const

inlinevirtual

Whether column indices are stored using local indices on the calling process.

Implements Xpetra::CrsGraph< LocalOrdinal, GlobalOrdinal, Node >.

Definition at line 290 of file Xpetra_TpetraCrsGraph.hpp.

template<class LocalOrdinal = CrsGraph<>::local_ordinal_type, class GlobalOrdinal = typename CrsGraph<LocalOrdinal>::global_ordinal_type, class Node = typename CrsGraph<LocalOrdinal, GlobalOrdinal>::node_type>

bool Xpetra::TpetraCrsGraph< LocalOrdinal, GlobalOrdinal, Node >::isGloballyIndexed ( ) const

inlinevirtual

Whether column indices are stored using global indices on the calling process.

Implements Xpetra::CrsGraph< LocalOrdinal, GlobalOrdinal, Node >.

Definition at line 293 of file Xpetra_TpetraCrsGraph.hpp.

template<class LocalOrdinal = CrsGraph<>::local_ordinal_type, class GlobalOrdinal = typename CrsGraph<LocalOrdinal>::global_ordinal_type, class Node = typename CrsGraph<LocalOrdinal, GlobalOrdinal>::node_type>

bool Xpetra::TpetraCrsGraph< LocalOrdinal, GlobalOrdinal, Node >::isFillComplete ( ) const

inlinevirtual

Whether fillComplete() has been called and the graph is in compute mode.

Implements Xpetra::CrsGraph< LocalOrdinal, GlobalOrdinal, Node >.

Definition at line 296 of file Xpetra_TpetraCrsGraph.hpp.

template<class LocalOrdinal = CrsGraph<>::local_ordinal_type, class GlobalOrdinal = typename CrsGraph<LocalOrdinal>::global_ordinal_type, class Node = typename CrsGraph<LocalOrdinal, GlobalOrdinal>::node_type>

bool Xpetra::TpetraCrsGraph< LocalOrdinal, GlobalOrdinal, Node >::isStorageOptimized ( ) const

inlinevirtual

Returns true if storage has been optimized.

Implements Xpetra::CrsGraph< LocalOrdinal, GlobalOrdinal, Node >.

Definition at line 299 of file Xpetra_TpetraCrsGraph.hpp.

template<class LocalOrdinal = CrsGraph<>::local_ordinal_type, class GlobalOrdinal = typename CrsGraph<LocalOrdinal>::global_ordinal_type, class Node = typename CrsGraph<LocalOrdinal, GlobalOrdinal>::node_type>

void Xpetra::TpetraCrsGraph< LocalOrdinal, GlobalOrdinal, Node >::getGlobalRowView	(	GlobalOrdinal	GlobalRow,
		ArrayView< const GlobalOrdinal > &	Indices
	)		const

inlinevirtual

Return a const, nonpersisting view of global indices in the given row.

Implements Xpetra::CrsGraph< LocalOrdinal, GlobalOrdinal, Node >.

Definition at line 302 of file Xpetra_TpetraCrsGraph.hpp.

template<class LocalOrdinal = CrsGraph<>::local_ordinal_type, class GlobalOrdinal = typename CrsGraph<LocalOrdinal>::global_ordinal_type, class Node = typename CrsGraph<LocalOrdinal, GlobalOrdinal>::node_type>

void Xpetra::TpetraCrsGraph< LocalOrdinal, GlobalOrdinal, Node >::getLocalRowView	(	LocalOrdinal	LocalRow,
		ArrayView< const LocalOrdinal > &	indices
	)		const

inlinevirtual

Return a const, nonpersisting view of local indices in the given row.

Implements Xpetra::CrsGraph< LocalOrdinal, GlobalOrdinal, Node >.

Definition at line 305 of file Xpetra_TpetraCrsGraph.hpp.

template<class LocalOrdinal = CrsGraph<>::local_ordinal_type, class GlobalOrdinal = typename CrsGraph<LocalOrdinal>::global_ordinal_type, class Node = typename CrsGraph<LocalOrdinal, GlobalOrdinal>::node_type>

void Xpetra::TpetraCrsGraph< LocalOrdinal, GlobalOrdinal, Node >::computeGlobalConstants ( )

inlinevirtual

Force the computation of global constants if we don't have them.

Implements Xpetra::CrsGraph< LocalOrdinal, GlobalOrdinal, Node >.

Definition at line 316 of file Xpetra_TpetraCrsGraph.hpp.

template<class LocalOrdinal = CrsGraph<>::local_ordinal_type, class GlobalOrdinal = typename CrsGraph<LocalOrdinal>::global_ordinal_type, class Node = typename CrsGraph<LocalOrdinal, GlobalOrdinal>::node_type>

std::string Xpetra::TpetraCrsGraph< LocalOrdinal, GlobalOrdinal, Node >::description ( ) const

inlinevirtual

Return a simple one-line description of this object.

Implements Xpetra::CrsGraph< LocalOrdinal, GlobalOrdinal, Node >.

Definition at line 328 of file Xpetra_TpetraCrsGraph.hpp.

template<class LocalOrdinal = CrsGraph<>::local_ordinal_type, class GlobalOrdinal = typename CrsGraph<LocalOrdinal>::global_ordinal_type, class Node = typename CrsGraph<LocalOrdinal, GlobalOrdinal>::node_type>

void Xpetra::TpetraCrsGraph< LocalOrdinal, GlobalOrdinal, Node >::describe	(	Teuchos::FancyOStream &	out,
		const Teuchos::EVerbosityLevel	verbLevel = `Teuchos::Describable::verbLevel_default`
	)		const

inlinevirtual

Print the object with some verbosity level to an FancyOStream object.

Implements Xpetra::CrsGraph< LocalOrdinal, GlobalOrdinal, Node >.

Definition at line 331 of file Xpetra_TpetraCrsGraph.hpp.

template<class LocalOrdinal = CrsGraph<>::local_ordinal_type, class GlobalOrdinal = typename CrsGraph<LocalOrdinal>::global_ordinal_type, class Node = typename CrsGraph<LocalOrdinal, GlobalOrdinal>::node_type>

ArrayRCP< const size_t > Xpetra::TpetraCrsGraph< LocalOrdinal, GlobalOrdinal, Node >::getNodeRowPtrs ( ) const

inline

Get an ArrayRCP of the row-offsets.

Definition at line 339 of file Xpetra_TpetraCrsGraph.hpp.

template<class LocalOrdinal = CrsGraph<>::local_ordinal_type, class GlobalOrdinal = typename CrsGraph<LocalOrdinal>::global_ordinal_type, class Node = typename CrsGraph<LocalOrdinal, GlobalOrdinal>::node_type>

Teuchos::RCP< const Map< LocalOrdinal, GlobalOrdinal, Node > > Xpetra::TpetraCrsGraph< LocalOrdinal, GlobalOrdinal, Node >::getMap ( ) const

inlinevirtual

Implements DistObject interface.

Access function for the Tpetra::Map this DistObject was constructed with.

Implements Xpetra::DistObject< GlobalOrdinal, LocalOrdinal, GlobalOrdinal, Node >.

Definition at line 347 of file Xpetra_TpetraCrsGraph.hpp.

template<class LocalOrdinal = CrsGraph<>::local_ordinal_type, class GlobalOrdinal = typename CrsGraph<LocalOrdinal>::global_ordinal_type, class Node = typename CrsGraph<LocalOrdinal, GlobalOrdinal>::node_type>

void Xpetra::TpetraCrsGraph< LocalOrdinal, GlobalOrdinal, Node >::doImport	(	const DistObject< GlobalOrdinal, LocalOrdinal, GlobalOrdinal, Node > &	source,
		const Import< LocalOrdinal, GlobalOrdinal, Node > &	importer,
		CombineMode	CM
	)

inlinevirtual

Import.

Implements Xpetra::DistObject< GlobalOrdinal, LocalOrdinal, GlobalOrdinal, Node >.

Definition at line 350 of file Xpetra_TpetraCrsGraph.hpp.

template<class LocalOrdinal = CrsGraph<>::local_ordinal_type, class GlobalOrdinal = typename CrsGraph<LocalOrdinal>::global_ordinal_type, class Node = typename CrsGraph<LocalOrdinal, GlobalOrdinal>::node_type>

void Xpetra::TpetraCrsGraph< LocalOrdinal, GlobalOrdinal, Node >::doExport	(	const DistObject< GlobalOrdinal, LocalOrdinal, GlobalOrdinal, Node > &	dest,
		const Import< LocalOrdinal, GlobalOrdinal, Node > &	importer,
		CombineMode	CM
	)

inlinevirtual

Export.

Implements Xpetra::DistObject< GlobalOrdinal, LocalOrdinal, GlobalOrdinal, Node >.

Definition at line 362 of file Xpetra_TpetraCrsGraph.hpp.

template<class LocalOrdinal = CrsGraph<>::local_ordinal_type, class GlobalOrdinal = typename CrsGraph<LocalOrdinal>::global_ordinal_type, class Node = typename CrsGraph<LocalOrdinal, GlobalOrdinal>::node_type>

void Xpetra::TpetraCrsGraph< LocalOrdinal, GlobalOrdinal, Node >::doImport	(	const DistObject< GlobalOrdinal, LocalOrdinal, GlobalOrdinal, Node > &	source,
		const Export< LocalOrdinal, GlobalOrdinal, Node > &	exporter,
		CombineMode	CM
	)

inlinevirtual

Import (using an Exporter).

Implements Xpetra::DistObject< GlobalOrdinal, LocalOrdinal, GlobalOrdinal, Node >.

Definition at line 373 of file Xpetra_TpetraCrsGraph.hpp.

template<class LocalOrdinal = CrsGraph<>::local_ordinal_type, class GlobalOrdinal = typename CrsGraph<LocalOrdinal>::global_ordinal_type, class Node = typename CrsGraph<LocalOrdinal, GlobalOrdinal>::node_type>

void Xpetra::TpetraCrsGraph< LocalOrdinal, GlobalOrdinal, Node >::doExport	(	const DistObject< GlobalOrdinal, LocalOrdinal, GlobalOrdinal, Node > &	dest,
		const Export< LocalOrdinal, GlobalOrdinal, Node > &	exporter,
		CombineMode	CM
	)

inlinevirtual

Export (using an Importer).

Implements Xpetra::DistObject< GlobalOrdinal, LocalOrdinal, GlobalOrdinal, Node >.

Definition at line 385 of file Xpetra_TpetraCrsGraph.hpp.

template<class LocalOrdinal = CrsGraph<>::local_ordinal_type, class GlobalOrdinal = typename CrsGraph<LocalOrdinal>::global_ordinal_type, class Node = typename CrsGraph<LocalOrdinal, GlobalOrdinal>::node_type>

RCP< const Tpetra::CrsGraph<LocalOrdinal, GlobalOrdinal, Node> > Xpetra::TpetraCrsGraph< LocalOrdinal, GlobalOrdinal, Node >::getTpetra_CrsGraph ( ) const

inline

Get the underlying Tpetra graph.

Definition at line 405 of file Xpetra_TpetraCrsGraph.hpp.

Member Data Documentation

template<class LocalOrdinal = CrsGraph<>::local_ordinal_type, class GlobalOrdinal = typename CrsGraph<LocalOrdinal>::global_ordinal_type, class Node = typename CrsGraph<LocalOrdinal, GlobalOrdinal>::node_type>

RCP< Tpetra::CrsGraph<LocalOrdinal, GlobalOrdinal, Node> > Xpetra::TpetraCrsGraph< LocalOrdinal, GlobalOrdinal, Node >::graph_

private

Definition at line 410 of file Xpetra_TpetraCrsGraph.hpp.

The documentation for this class was generated from the following file:

Xpetra_TpetraCrsGraph.hpp

Public Member Functions

Private Types

Private Attributes

Constructor/Destructor Methods

Insertion/Removal Methods

Transformational Methods

Methods implementing RowGraph.

Overridden from Teuchos::Describable

Advanced methods, at increased risk of deprecation.

Xpetra specific

Additional Inherited Members

Detailed Description

template<class LocalOrdinal = CrsGraph<>::local_ordinal_type, class GlobalOrdinal = typename CrsGraph<LocalOrdinal>::global_ordinal_type, class Node = typename CrsGraph<LocalOrdinal, GlobalOrdinal>::node_type> class Xpetra::TpetraCrsGraph< LocalOrdinal, GlobalOrdinal, Node >

Member Typedef Documentation

Constructor & Destructor Documentation

Member Function Documentation

Member Data Documentation

template<class LocalOrdinal = CrsGraph<>::local_ordinal_type, class GlobalOrdinal = typename CrsGraph<LocalOrdinal>::global_ordinal_type, class Node = typename CrsGraph<LocalOrdinal, GlobalOrdinal>::node_type>
class Xpetra::TpetraCrsGraph< LocalOrdinal, GlobalOrdinal, Node >
