#include <Xpetra_Operator.hpp>

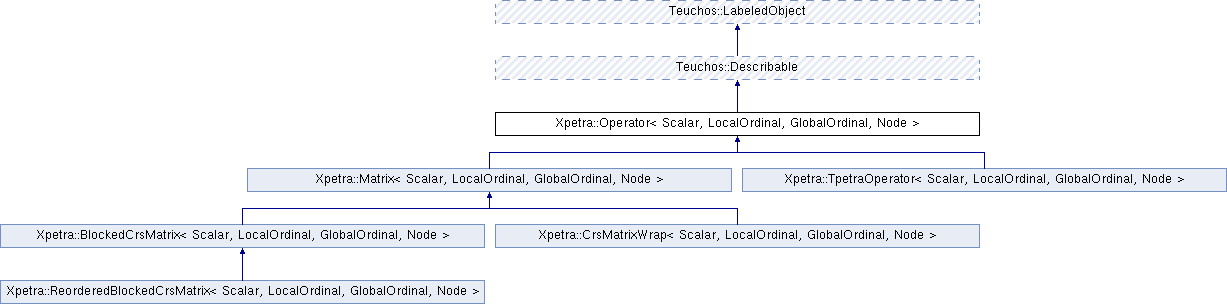

Inheritance diagram for Xpetra::Operator< Scalar, LocalOrdinal, GlobalOrdinal, Node >:

Public Member Functions
virtual	~Operator ()

virtual void	removeEmptyProcessesInPlace (const RCP< const Map > &)

Public Member Functions inherited from Teuchos::Describable
virtual std::string	description () const

virtual void	describe (FancyOStream &out, const EVerbosityLevel verbLevel=verbLevel_default) const

void	describe (std::ostream &out, const EVerbosityLevel verbLevel=verbLevel_default) const

virtual	~Describable ()

	LabeledObject ()

virtual	~LabeledObject ()

virtual void	setObjectLabel (const std::string &objectLabel)

virtual std::string	getObjectLabel () const

DescribableStreamManipulatorState	describe (const Describable &describable, const EVerbosityLevel verbLevel=Describable::verbLevel_default)

std::ostream &	operator<< (std::ostream &os, const DescribableStreamManipulatorState &d)

Private Types
typedef Xpetra::Map < LocalOrdinal, GlobalOrdinal, Node >	Map

typedef Xpetra::MultiVector < Scalar, LocalOrdinal, GlobalOrdinal, Node >	MultiVector

Typedefs that give access to the template parameters.
typedef Scalar	scalar_type
	The type of the entries of the input and output multivectors. More...

typedef LocalOrdinal	local_ordinal_type
	The local index type. More...

typedef GlobalOrdinal	global_ordinal_type
	The global index type. More...

typedef Node	node_type
	The Kokkos Node type. More...

Pure virtual functions to be overridden by subclasses.
virtual Teuchos::RCP< const Map >	getDomainMap () const =0
	The Map associated with the domain of this operator, which must be compatible with X.getMap(). More...

virtual Teuchos::RCP< const Map >	getRangeMap () const =0
	The Map associated with the range of this operator, which must be compatible with Y.getMap(). More...

virtual void	apply (const MultiVector &X, MultiVector &Y, Teuchos::ETransp mode=Teuchos::NO_TRANS, Scalar alpha=Teuchos::ScalarTraits< Scalar >::one(), Scalar beta=Teuchos::ScalarTraits< Scalar >::zero()) const =0
	Computes the operator-multivector application. More...

virtual bool	hasTransposeApply () const
	Whether this operator supports applying the transpose or conjugate transpose. More...

Additional Inherited Members
Static Public Attributes inherited from Teuchos::Describable
static const EVerbosityLevel	verbLevel_default

Detailed Description

template<class Scalar = MultiVector<>::scalar_type, class LocalOrdinal = typename MultiVector<Scalar>::local_ordinal_type, class GlobalOrdinal = typename MultiVector<Scalar, LocalOrdinal>::global_ordinal_type, class Node = typename MultiVector<Scalar, LocalOrdinal, GlobalOrdinal>::node_type>
class Xpetra::Operator< Scalar, LocalOrdinal, GlobalOrdinal, Node >

Definition at line 64 of file Xpetra_Operator.hpp.

Member Typedef Documentation

template<class Scalar = MultiVector<>::scalar_type, class LocalOrdinal = typename MultiVector<Scalar>::local_ordinal_type, class GlobalOrdinal = typename MultiVector<Scalar, LocalOrdinal>::global_ordinal_type, class Node = typename MultiVector<Scalar, LocalOrdinal, GlobalOrdinal>::node_type>

typedef Xpetra::Map<LocalOrdinal,GlobalOrdinal,Node> Xpetra::Operator< Scalar, LocalOrdinal, GlobalOrdinal, Node >::Map

private

Definition at line 65 of file Xpetra_Operator.hpp.

template<class Scalar = MultiVector<>::scalar_type, class LocalOrdinal = typename MultiVector<Scalar>::local_ordinal_type, class GlobalOrdinal = typename MultiVector<Scalar, LocalOrdinal>::global_ordinal_type, class Node = typename MultiVector<Scalar, LocalOrdinal, GlobalOrdinal>::node_type>

typedef Xpetra::MultiVector<Scalar,LocalOrdinal,GlobalOrdinal,Node> Xpetra::Operator< Scalar, LocalOrdinal, GlobalOrdinal, Node >::MultiVector

private

Definition at line 66 of file Xpetra_Operator.hpp.

template<class Scalar = MultiVector<>::scalar_type, class LocalOrdinal = typename MultiVector<Scalar>::local_ordinal_type, class GlobalOrdinal = typename MultiVector<Scalar, LocalOrdinal>::global_ordinal_type, class Node = typename MultiVector<Scalar, LocalOrdinal, GlobalOrdinal>::node_type>

typedef Scalar Xpetra::Operator< Scalar, LocalOrdinal, GlobalOrdinal, Node >::scalar_type

The type of the entries of the input and output multivectors.

Definition at line 73 of file Xpetra_Operator.hpp.

template<class Scalar = MultiVector<>::scalar_type, class LocalOrdinal = typename MultiVector<Scalar>::local_ordinal_type, class GlobalOrdinal = typename MultiVector<Scalar, LocalOrdinal>::global_ordinal_type, class Node = typename MultiVector<Scalar, LocalOrdinal, GlobalOrdinal>::node_type>

typedef LocalOrdinal Xpetra::Operator< Scalar, LocalOrdinal, GlobalOrdinal, Node >::local_ordinal_type

The local index type.

Definition at line 76 of file Xpetra_Operator.hpp.

template<class Scalar = MultiVector<>::scalar_type, class LocalOrdinal = typename MultiVector<Scalar>::local_ordinal_type, class GlobalOrdinal = typename MultiVector<Scalar, LocalOrdinal>::global_ordinal_type, class Node = typename MultiVector<Scalar, LocalOrdinal, GlobalOrdinal>::node_type>

typedef GlobalOrdinal Xpetra::Operator< Scalar, LocalOrdinal, GlobalOrdinal, Node >::global_ordinal_type

The global index type.

Definition at line 79 of file Xpetra_Operator.hpp.

template<class Scalar = MultiVector<>::scalar_type, class LocalOrdinal = typename MultiVector<Scalar>::local_ordinal_type, class GlobalOrdinal = typename MultiVector<Scalar, LocalOrdinal>::global_ordinal_type, class Node = typename MultiVector<Scalar, LocalOrdinal, GlobalOrdinal>::node_type>

typedef Node Xpetra::Operator< Scalar, LocalOrdinal, GlobalOrdinal, Node >::node_type

The Kokkos Node type.

Definition at line 82 of file Xpetra_Operator.hpp.

Constructor & Destructor Documentation

template<class Scalar = MultiVector<>::scalar_type, class LocalOrdinal = typename MultiVector<Scalar>::local_ordinal_type, class GlobalOrdinal = typename MultiVector<Scalar, LocalOrdinal>::global_ordinal_type, class Node = typename MultiVector<Scalar, LocalOrdinal, GlobalOrdinal>::node_type>

virtual Xpetra::Operator< Scalar, LocalOrdinal, GlobalOrdinal, Node >::~Operator ( )

inlinevirtual

Definition at line 68 of file Xpetra_Operator.hpp.

Member Function Documentation

template<class Scalar = MultiVector<>::scalar_type, class LocalOrdinal = typename MultiVector<Scalar>::local_ordinal_type, class GlobalOrdinal = typename MultiVector<Scalar, LocalOrdinal>::global_ordinal_type, class Node = typename MultiVector<Scalar, LocalOrdinal, GlobalOrdinal>::node_type>

virtual Teuchos::RCP<const Map> Xpetra::Operator< Scalar, LocalOrdinal, GlobalOrdinal, Node >::getDomainMap ( ) const

pure virtual

The Map associated with the domain of this operator, which must be compatible with X.getMap().

Implemented in Xpetra::BlockedCrsMatrix< Scalar, LocalOrdinal, GlobalOrdinal, Node >, Xpetra::CrsMatrixWrap< Scalar, LocalOrdinal, GlobalOrdinal, Node >, Xpetra::TpetraOperator< double, int, long long, EpetraNode >, Xpetra::TpetraOperator< double, int, int, EpetraNode >, Xpetra::EpetraOperator< EpetraGlobalOrdinal, Node >, and Xpetra::TpetraOperator< Scalar, LocalOrdinal, GlobalOrdinal, Node >.

template<class Scalar = MultiVector<>::scalar_type, class LocalOrdinal = typename MultiVector<Scalar>::local_ordinal_type, class GlobalOrdinal = typename MultiVector<Scalar, LocalOrdinal>::global_ordinal_type, class Node = typename MultiVector<Scalar, LocalOrdinal, GlobalOrdinal>::node_type>

virtual Teuchos::RCP<const Map> Xpetra::Operator< Scalar, LocalOrdinal, GlobalOrdinal, Node >::getRangeMap ( ) const

pure virtual

The Map associated with the range of this operator, which must be compatible with Y.getMap().

Implemented in Xpetra::BlockedCrsMatrix< Scalar, LocalOrdinal, GlobalOrdinal, Node >, Xpetra::CrsMatrixWrap< Scalar, LocalOrdinal, GlobalOrdinal, Node >, Xpetra::TpetraOperator< double, int, long long, EpetraNode >, Xpetra::TpetraOperator< double, int, int, EpetraNode >, Xpetra::EpetraOperator< EpetraGlobalOrdinal, Node >, and Xpetra::TpetraOperator< Scalar, LocalOrdinal, GlobalOrdinal, Node >.

template<class Scalar = MultiVector<>::scalar_type, class LocalOrdinal = typename MultiVector<Scalar>::local_ordinal_type, class GlobalOrdinal = typename MultiVector<Scalar, LocalOrdinal>::global_ordinal_type, class Node = typename MultiVector<Scalar, LocalOrdinal, GlobalOrdinal>::node_type>

virtual void Xpetra::Operator< Scalar, LocalOrdinal, GlobalOrdinal, Node >::apply	(	const MultiVector &	X,
		MultiVector &	Y,
		Teuchos::ETransp	mode = `Teuchos::NO_TRANS`,
		Scalar	alpha = `Teuchos::ScalarTraits< Scalar >::one()`,
		Scalar	beta = `Teuchos::ScalarTraits< Scalar >::zero()`
	)		const

pure virtual

Computes the operator-multivector application.

Loosely, performs $Y = \alpha \cdot A^{\textrm{mode}} \cdot X + \beta \cdot Y$ . However, the details of operation vary according to the values of alpha and beta. Specifically

if beta == 0, apply() must overwrite Y, so that any values in Y (including NaNs) are ignored.
if alpha == 0, apply() may short-circuit the operator, so that any values in X (including NaNs) are ignored.

Implemented in Xpetra::BlockedCrsMatrix< Scalar, LocalOrdinal, GlobalOrdinal, Node >, Xpetra::CrsMatrixWrap< Scalar, LocalOrdinal, GlobalOrdinal, Node >, Xpetra::ReorderedBlockedCrsMatrix< Scalar, LocalOrdinal, GlobalOrdinal, Node >, and Xpetra::EpetraOperator< EpetraGlobalOrdinal, Node >.

template<class Scalar = MultiVector<>::scalar_type, class LocalOrdinal = typename MultiVector<Scalar>::local_ordinal_type, class GlobalOrdinal = typename MultiVector<Scalar, LocalOrdinal>::global_ordinal_type, class Node = typename MultiVector<Scalar, LocalOrdinal, GlobalOrdinal>::node_type>

virtual bool Xpetra::Operator< Scalar, LocalOrdinal, GlobalOrdinal, Node >::hasTransposeApply ( ) const

inlinevirtual

Whether this operator supports applying the transpose or conjugate transpose.

By default, this returns false. Subclasses must override this method if they can support apply() with mode=Teuchos::TRANS or mode=Teuchos::CONJ_TRANS.

Reimplemented in Xpetra::TpetraOperator< double, int, long long, EpetraNode >, Xpetra::TpetraOperator< double, int, int, EpetraNode >, Xpetra::EpetraOperator< EpetraGlobalOrdinal, Node >, and Xpetra::TpetraOperator< Scalar, LocalOrdinal, GlobalOrdinal, Node >.

Definition at line 112 of file Xpetra_Operator.hpp.

template<class Scalar = MultiVector<>::scalar_type, class LocalOrdinal = typename MultiVector<Scalar>::local_ordinal_type, class GlobalOrdinal = typename MultiVector<Scalar, LocalOrdinal>::global_ordinal_type, class Node = typename MultiVector<Scalar, LocalOrdinal, GlobalOrdinal>::node_type>

virtual void Xpetra::Operator< Scalar, LocalOrdinal, GlobalOrdinal, Node >::removeEmptyProcessesInPlace ( const RCP< const Map > & )

inlinevirtual

Reimplemented in Xpetra::CrsMatrixWrap< Scalar, LocalOrdinal, GlobalOrdinal, Node >, and Xpetra::BlockedCrsMatrix< Scalar, LocalOrdinal, GlobalOrdinal, Node >.

Definition at line 116 of file Xpetra_Operator.hpp.

The documentation for this class was generated from the following file:

Xpetra_Operator.hpp
