panzer_stk::GatherRefCoords< EvalT, Traits > Class Template Reference

#include <Panzer_STK_GatherRefCoords.hpp>

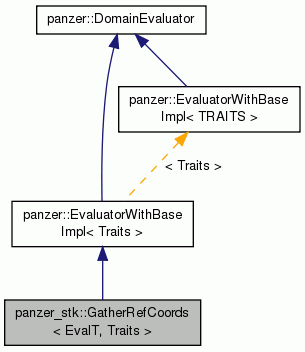

Inheritance diagram for panzer_stk::GatherRefCoords< EvalT, Traits >:
Inheritance graph
[legend]

Public Member Functions

 GatherRefCoords (const Teuchos::RCP< const STK_Interface > &mesh, const panzer::BasisIRLayout &basis, const std::string &fieldName)

void evaluateFields (typename Traits::EvalData d)

- Public Member Functions inherited from panzer::EvaluatorWithBaseImpl< Traits >
void setDetailsIndex (const int di)
 An evaluator builder sets the details index. More...

- Public Member Functions inherited from panzer::DomainEvaluator
 DomainEvaluator (DomainType domain=ALL)
 Constructor. More...

virtual ~DomainEvaluator ()=default
 Default destructor. More...

void setDomain (const DomainType domain)
 Set the domain for the evaluator. More...

DomainType getDomain ()
 Get the domain for the evaluator. More...

virtual int cellStartIndex (const panzer::Workset &workset) const
 Returns the starting cell for the specified domain for a given workset. More...

virtual int cellEndIndex (const panzer::Workset &workset) const
 Returns the non-inclusive end cell for the specified domain for a given workset. More...


Private Types

typedef EvalT::ScalarT ScalarT


Private Member Functions

 GatherRefCoords ()


Private Attributes

PHX::MDField< ScalarT,
panzer::Cell, panzer::NODE,
panzer::Dim >
coordField_

Teuchos::RCP< const STK_Interfacemesh_


Additional Inherited Members

- Public Types inherited from panzer::DomainEvaluator
enum  DomainType : int {
  OWNED =0, GHOST =1, REAL =2, VIRTUAL =3,
  ALL =4
}
 Domain types supported by worksets. More...

- Protected Attributes inherited from panzer::EvaluatorWithBaseImpl< Traits >
WorksetDetailsAccessor wda


Detailed Description

template<typename EvalT, typename Traits>
class panzer_stk::GatherRefCoords< EvalT, Traits >

This class is a gather operation from the mesh. It takes a set of field names and basis objects and then reads them in from the mesh object.

The constructor takes a STK_Interface RCP and parameter list that is required to contain the following two fields "Field Names" of type Teuchos::RCP<std::vector<std::string> > and "Basis" of type Teuchos::RCP<panzer::Basis>.

Definition at line 70 of file Panzer_STK_GatherRefCoords.hpp.

Member Typedef Documentation

template<typename EvalT , typename Traits >
typedef EvalT::ScalarT panzer_stk::GatherRefCoords< EvalT, Traits >::ScalarT
private

Definition at line 82 of file Panzer_STK_GatherRefCoords.hpp.

Constructor & Destructor Documentation

template<typename EvalT , typename Traits >
panzer_stk::GatherRefCoords< EvalT, Traits >::GatherRefCoords ( const Teuchos::RCP< const STK_Interface > &  mesh,
const panzer::BasisIRLayout basis,
const std::string &  fieldName
)

Definition at line 59 of file Panzer_STK_GatherRefCoords_impl.hpp.

template<typename EvalT , typename Traits >
panzer_stk::GatherRefCoords< EvalT, Traits >::GatherRefCoords ( )
private

Member Function Documentation

template<typename EvalT , typename Traits >
void panzer_stk::GatherRefCoords< EvalT, Traits >::evaluateFields ( typename Traits::EvalData  d)

Definition at line 77 of file Panzer_STK_GatherRefCoords_impl.hpp.

Member Data Documentation

template<typename EvalT , typename Traits >
PHX::MDField<ScalarT,panzer::Cell,panzer::NODE,panzer::Dim> panzer_stk::GatherRefCoords< EvalT, Traits >::coordField_
private

Definition at line 84 of file Panzer_STK_GatherRefCoords.hpp.

template<typename EvalT , typename Traits >
Teuchos::RCP<const STK_Interface> panzer_stk::GatherRefCoords< EvalT, Traits >::mesh_
private

Definition at line 86 of file Panzer_STK_GatherRefCoords.hpp.


The documentation for this class was generated from the following files:
